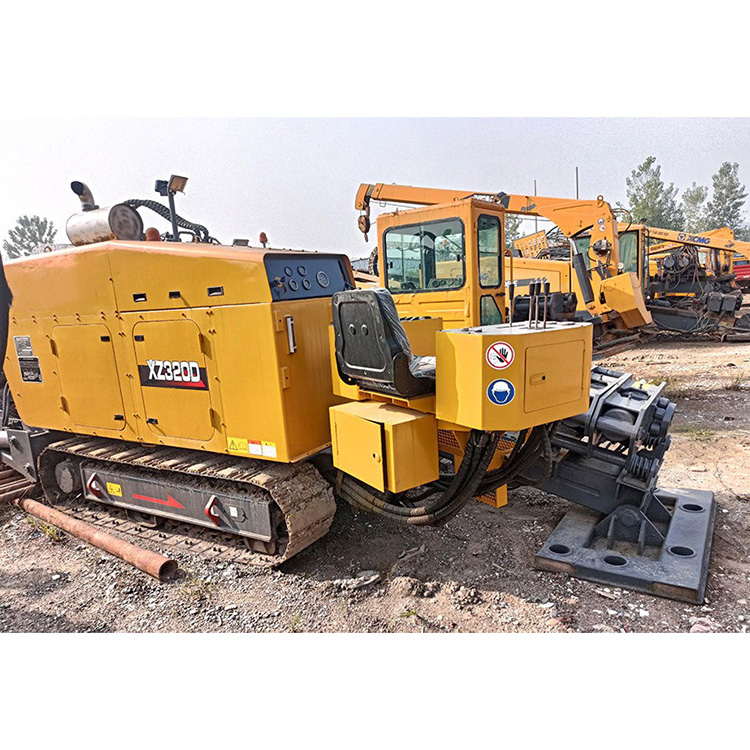

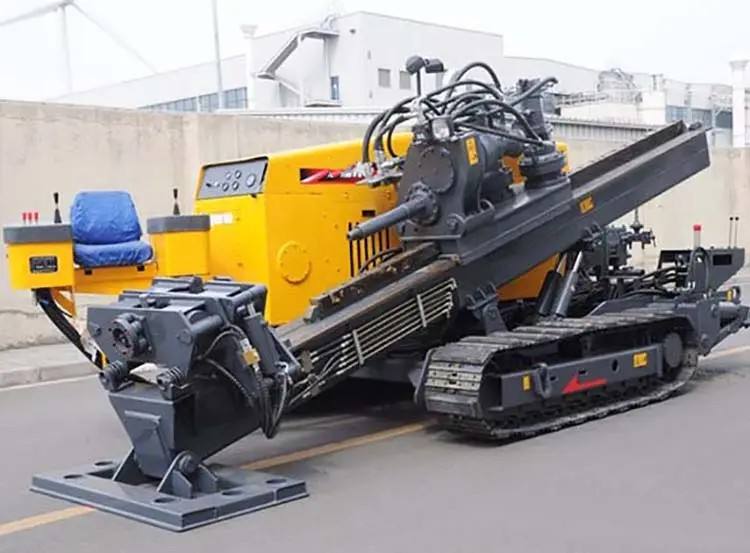

Product Introduction
The XZ320D is equipped with a high-horsepower engine, providing reliable power support for construction in complex geological conditions. Its dual-speed power head design ensures low-speed operation during drilling and towing to guarantee stable construction, and rapid sliding during empty round trips to reduce auxiliary time and enhance work efficiency.
Product Advantage
1,Cummins (153KW) engine, 320kN of thrust-pull force, 12000N·m of Max.spindle torque, dual speed power head, self-propelled steel tracks chassis with rubber, floating clamp,high strength box-type drilling frame, rotatable control board,onboard 320L/min mud pump,machine transport can use container,attached is option menu.
2,High-power engine system, strong power to enlugh and insures there is enough power for drill in different working conditions.
3,Rack and pinion sliding, to ensure the stability of the Carriage and the reliability of drive operational. Carriage floating,
4,Carriage and floating vise patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
5,High-speed sliding and rotation systems, variable motor to achieve high and low carriage sliding change, increasing the ability to adapt the drilling rig working conditions, improve the efficiency of the drilling rig construction
Technical Parameters
| Description | Unit | Parameter value |
| Engine | Manufacturers |
|
|
| China III | Model |
| QSB5.9-C210 |
| Rated Power | kW /（r/min） | 154 / 2200 |
| China II | Model |
| 6BTAA5.9-C205 |
| Rated Power | kW /（r/min） | 153/ 2200 |
| Thrust-Pull | Type |
| Pinion and rack drive |
| Max thrust-pull force | kN | 320/320 |
| Max thrust-pull speed | m/min | 22 |
| Rotation | Type |
| Four motor |
| Torque | N·m | 12000 |
| Max spindle speed | r/min | 0～140 |
| Max inclination angle | ° | 20 |
| Pipe | Diameter × Length | mm×mm | Φ73×3000 |
| Mud pump | Max Flow rate | L/min | 320 |
| Max pressure | MPa | 8 |
| Weight | kg | 10500 |
Product Uses

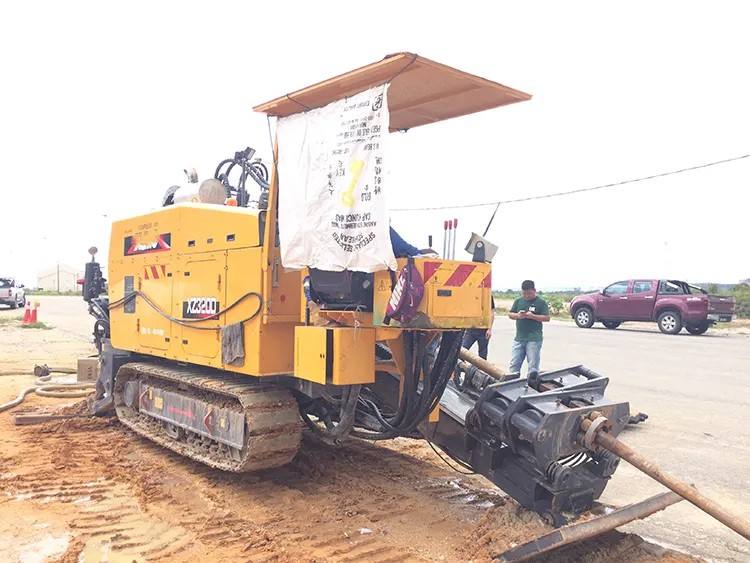

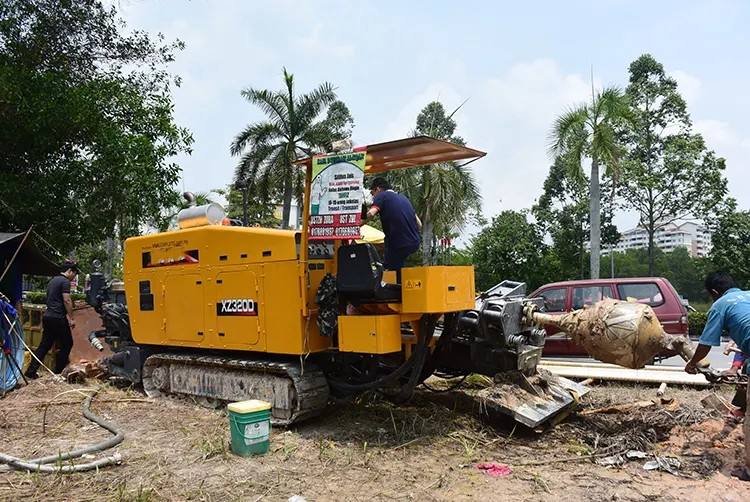

Municipal pipeline laying: Used for trenchless construction of underground power, communication, and gas pipelines in cities, avoiding road damage.
River crossing projects: Can safely cross sensitive areas such as rivers and lakes, ensuring the integrity of water conservancy facilities.
Transportation Infrastructure Construction: Used for pipeline laying beneath highways and railways, with high construction precision that does not disrupt ground traffic operations.
Rock Formation Operations: Equipped with high-performance drill bits, enabling efficient drilling in moderately weathered rock layers and expanding applicability in complex geological conditions.
Product Operate Guide
Path Planning: Pre-deploy detection instruments to survey underground obstacles, optimize drill hole trajectory design, and reduce construction risks.
Parameter Adjustment: Adjust drilling pressure, rotation speed, and mud mixture ratio based on geological reports. For soft soil layers, use high speed and low drilling pressure; for hard rock layers, enhance mud wall protection.
Process Monitoring: Continuously track the position and angular deviation of the guidance head, and promptly correct the trajectory via a wireless positioning system.
Equipment Maintenance: Daily cleaning of drill rod threads, checking hydraulic oil levels, regular replacement of filters, and lubrication of critical points.
