Product Introduction

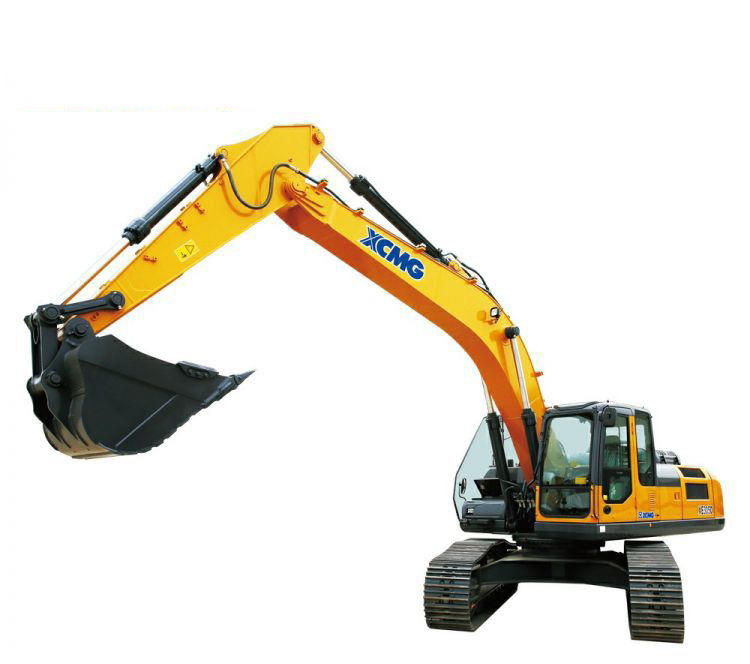

XE300U,featuring high efficiency and energy conservation,is mainly used for earth working conditions.The powerful Cummins QSB7 engine and high-end hydraulic system are matched perfectly,which can guarantee the product reliablity and define high-efficiency operation and fuel economy.With strengthened structural parts,it is applicable for earth working,road construction and municipal engineering,and allow you to get digging and loading operations done easily.
Product Advantage
1. Ecological and economical
*High-power engine is more fuel savin.
* New main pump can ensure high efficiency and reduced leakage.
* Smart matching technology ensures higher operating efficiency and lower fuel consumption.
* Efficiency main valve increases overflow pressure and reduces pressure loss.
2. Multiple applications
* Variety of boom, stick and bucket matching to maximize utilization in different conditions.
* Multi-functional intelligent work tool control system can meet different operating requirements such as digging, breaking and dismanting.
* The plateau mode can easily cope with the high-altitude operating environment.
* The new control system can achieve faster data management and more efficient control.

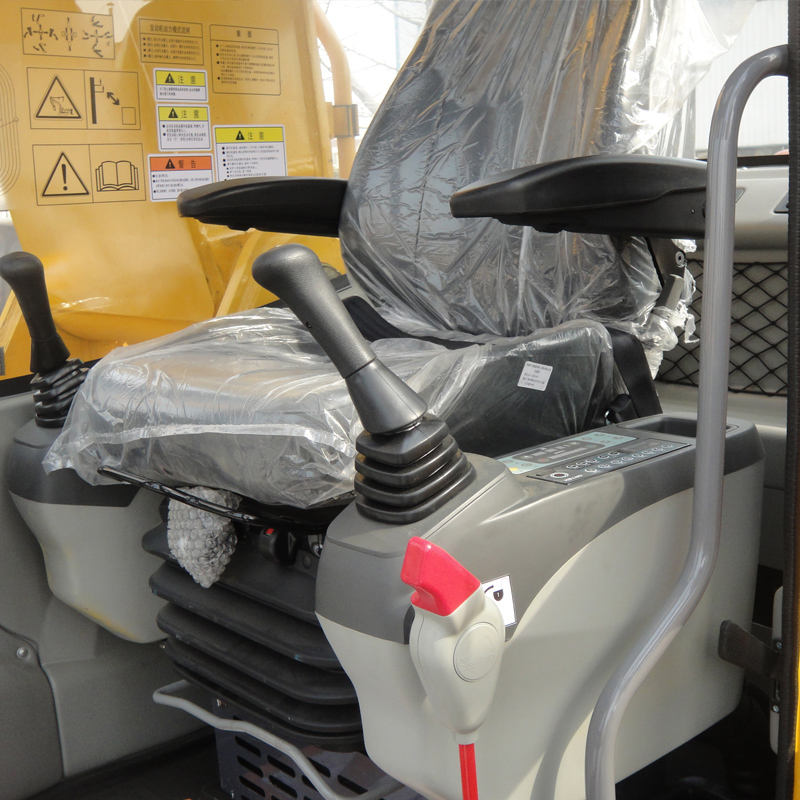

3.Comfortable operating experience
* Air Conditioner and Heator ensure the appropriate temperature.
* Silicone rubber shock absorber is adopted in the cab.
* Integrated control panel and large display screen provide
Technical Parameters
| Sales model | XE300U |
| Operating weight | 32700 |
| Bucket capacity | 1.4~1.6 |
| Engine | Model | QSB6.7 |
| Direct injection | √ |
| Four strokes | √ |
| Water cooling | √ |
| Turbo-charging | √ |
| No. of cylinders | 6 |
| Rated power | 186/2000 |
| Maximum torque/speed | 990/1500 |
| Displacement | 6.7 |
Main performance | Travel speed | 5.0/2.9 |
| Swing speed | 9.8 |
| Gradeability | ≤35 |
| Ground pressure | 44.7 |
| Bucket digging force | 201 |
| Arm digging force | 140 |
| Maximum tractive force | 262 |
Hydraulic
system | Rated flow of main pump | 2×266 |
| Main safety valve pressure | 34.3/37 |
| Travel system pressure | 34.3 |
| Swing system pressure | 30 |
| Pilot system pressure | 3.9 |
Oil Capacity | Fuel tank capacity | 520 |
| Hydraulic tank capacity | 270 |
| Engine oil capacity | 30 |
Appearance
size | Overall length | 10645 |
| Overall width | 3390 |
| Overall height | 3500 |
| Width of platform | 2960 |
| Track length | 4945 |
| Overall width of chassis | 3390 |
| Track width | 800 |
| Wheel base of crawler | 4030 |
| Track gauge | 2590 |
| Counterweight clearance | 1198 |
| Min. ground clearance | 536 |
| Min. tail swing radius | 3200 |
| Track height | 1085 |
Working
scope | Max. digging height | 10145 |
| Max. dumping height | 7180 |
| Max. digging depth | 7200 |
| Maximum depth cut for 2240mm(8 ft) level bottom | - |
| Max. vertical wall digging depth | 5185 |
| Max. digging radius | 10665 |
| Min. swing radius | 3850 |
Standard | Length of boom | 6200 |
| Length of arm | 3110 |
| Bucket capacity | 1.4 |
Optional | Length of boom | 6200 |
| Length of arm | 2650 |
| Bucket capacity | 1.4(Rock bucket)
1.6(Earthwork bucket) |
Product Uses
1. Conventional Earthmoving and Urban Construction
The XE300U excels in conventional earthmoving tasks such as urban foundation excavation, trench laying, and site grading. Its enhanced digging performance effectively handles diverse construction materials. Safety features including travel alarms, rearview cameras, and a ROPS/FOPS-protected cab ensure secure operation in complex environments.
2. Forestry Harvesting and Timber Processing
With its compatibility for various attachments (such as grapples and felling tools), the XE300U performs timber harvesting, delimbing, debarking, crosscutting, and log loading in forestry operations. Its heavy-duty reinforced chassis structure improves traversability and stability on rugged forest trails, while the North American Tier 4F-compliant high-pressure common rail diesel engine ensures environmental compliance for operations in sensitive areas.
3. Adaptability for Diverse Applications
The XE300U's versatility is a key highlight. By swapping out different attachments and tools (such as blades and other implements), it can be extended for use in material handling, light crushing, and more scenarios. This achieves multi-functional operation with a single machine, meeting diverse construction demands.
Product Operate Guide
Before operation, check engine oil and hydraulic fluid levels, and inspect safety devices (rearview camera/alarm). After starting, idle for warm-up. During operation, pay attention to dashboard prompts and select appropriate working modes. Before using attachments, correctly switch hydraulic lines. When performing forestry operations, always activate the upper guarding device. Clean the equipment after use, focusing on inspecting tool connection pins. Perform regular maintenance on the Tier 4F compliant emission system. Always observe the surrounding environment, maintain safe operating distances, and remain particularly vigilant of rotating blind spots.
FAQ
1. HOW IS YOUR PRICE COMPARED WITH MANUFACTURERS/FACTORIES?
We work as the leading dealers of various leading China construction machinery manufacturers/ factories, and are constantly treated with best dealership price. From numerous comparison and feedbacks from clients, our price is more competitive than the price from manufacturers/factories.
2. HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?
Our team is consisted of a group of diligent and dynamic people, working 247 to respond client inquiries and questions all the time Most problems can be solved within 4 hours while manufacturers/factories will take much longer to give response.
3. WHAT PRODUCTS YOU CAN GET FROM US?
Our main products including,wheel loader,backhoe loader,truck crane,crawler crane,tower crane,road roller,motor
grader,excavator,bulldozer,forklift,dump truck,trailer,tractor truck,special vehicle ,Marine Machinery and all of their spare parts.
4. ARE ALL ACTUATORS MOVING SLOWLY AND WEAKLY?
The root cause lies in the common system: Check engine RPM, hydraulic oil level and quality, main pump output pressure/flow, and main relief valve setting.
5. IS ONLY ONE SET OF ACTUATORS MOVING SLOWLY?
The issue is confined to that circuit. Check the corresponding pilot pressure line, whether the control valve spool is stuck, or the overload relief valve setting.
6. ACTUATORS (E.G., CYLINDERS) SLOWLY SINK WHEN THE CONTROL LEVER IS IN NEUTRAL?
Caused by internal leakage in the cylinder (damaged piston seals) or internal leakage in the control valve's neutral position (spool wear).
