XG1012AC
| Availability: | |
|---|---|
| Quantity: | |

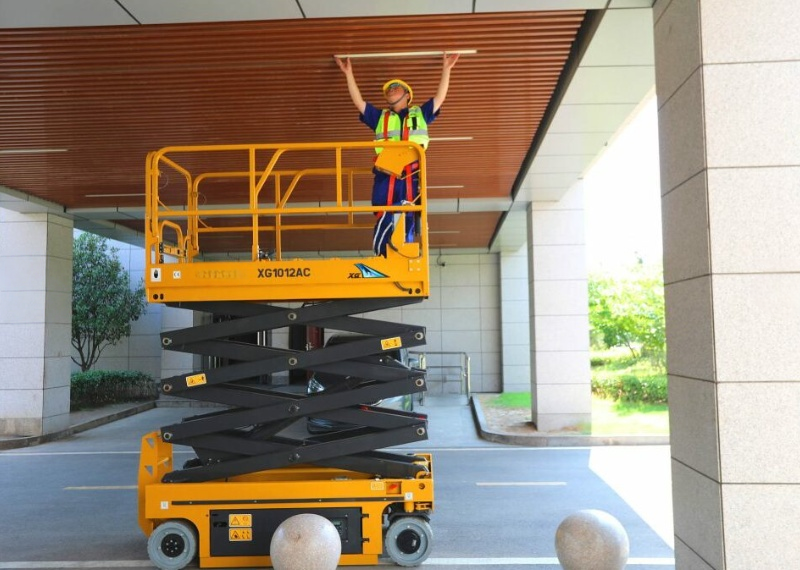

The XG1012AC is a high-load AC electric self-propelled scissor aerial work platform. It features a maximum working height of 11.8 meters and a rated load capacity of 320 kilograms. Equipped with a high-performance AC power system and an auxiliary battery energy storage device, the equipment operates stably with low noise and zero exhaust emissions, achieving eco-friendly performance. Adopting a reinforced steel scissor load-bearing structure and wear-resistant solid tires, the machine delivers excellent operational stability and strong site adaptability. Complying with CE safety certification standards, it is specially developed for indoor medium and high-altitude operations. Widely applicable to construction work, warehouse logistics, commercial venue operation and maintenance, daily building maintenance and other aerial work scenarios, it serves as an optimal choice for indoor high-altitude operations.
Fitted with a dedicated AC power system, the equipment outputs continuous and stable power to support long-hour non-stop operation. It operates with low noise and zero exhaust pollution, perfectly adapting to various enclosed and indoor working environments.
With a rated load of 320 kilograms and a maximum working height of 11.8 meters, the equipment fully meets diverse high-load and medium-to-high altitude indoor operation requirements and adapts to multiple working conditions.
Constructed with a thickened steel plate frame and reinforced scissor arms, the machine greatly enhances overall structural rigidity and deformation resistance, effectively reducing equipment wear and prolonging the overall service life.
Featuring a compact body structure and flexible steering control, the lift can easily pass through standard doors, indoor elevators and narrow aisles, delivering superior adaptability to indoor sites.
The whole machine is equipped with overload protection, tilt alarm, emergency stop device, automatic pothole protection system and anti-slip working platform. Multiple protection mechanisms fully ensure the safety of operators and equipment.
Equipped with a 0.9-meter retractable auxiliary platform, it effectively expands the operating space, solves the limitations of narrow working surfaces, and significantly improves the convenience and efficiency of high-altitude operations.
Adopting an optimized structural design and high-quality core components with a reasonable layout, the equipment greatly simplifies daily inspection and maintenance procedures, reducing daily maintenance workload and operational costs.
Fitted with wear-resistant solid tires free of inflation and air leakage risks, the equipment travels smoothly and stably on flat indoor ground with excellent moving stability during operation.
Item | Specification |
Model | XG1012AC |
Max. Working Height | 11.8 m |
Max. Platform Height | 9.8 m |
Rated Load Capacity | 320 kg |
Extended Platform Load Capacity | 120 kg |
Platform Size (L × W) | 1870 × 800 mm |
Extended Platform Length | 0.9 m |
Overall Dimension (Folded, L × W × H) | 2450 × 810 × 2380 mm |
Total Weight | 1920 kg |
Inner Turning Radius | 0 m |
Outer Turning Radius | 1.8 m |
Ground Clearance | 22 mm (Raised) / 72 mm (Stowed) |
Travel Speed (Stowed / Raised) | 4.5 km/h / 0.8 km/h |
Gradeability | 25% |
Lifting Time | 22 ~ 40 s |
Lowering Time | 30 ~ 42 s |
Power Type | AC Power + 24V Auxiliary Battery |
Certification | CE |
Suitable for high shelf maintenance, inventory checking, lighting equipment repair and other high-altitude operations in large warehouses, adapting to daily warehouse maintenance work.
Meets medium and high-altitude operation demands such as ceiling cleaning, air conditioning maintenance, pipeline upkeep and electrical system maintenance for office buildings and public facilities.
Widely used for lamp replacement, billboard installation, indoor layout adjustment and venue equipment maintenance in shopping malls, hotels, exhibition centers and other commercial sites.
Adapts to various indoor high-altitude construction scenarios including wall painting, electrical wiring, interior decoration and structural renovation for residential and commercial projects.
Capable of temporary high-altitude operations such as stage setup, banner hanging and on-site equipment installation and commissioning for exhibitions, conferences and large-scale cultural and sports events.
Applicable to all kinds of indoor medium and high-altitude tasks requiring high load capacity and stable performance with strong universality.
1. Check the AC power connection status, remaining battery level, tire condition and hydraulic oil level to ensure all media and accessories are in normal condition.
2. Thoroughly inspect safety guardrails, extendable platform and positioning lock pins to confirm all components are firmly installed without looseness or falling off.
3. Test the emergency stop button, tilt alarm device and automatic pothole protection system one by one to ensure all safety functions respond normally and sensitively.
4. Remove obstacles around the working area, and confirm the working ground is flat, solid and meets the equipment's slope specification requirements.
1. Turn the equipment key switch to the ON gear to start the whole machine system.
2. Control the equipment’s forward and backward movement via the joystick. The traveling speed will be automatically limited when the platform is lifted to ensure operation safety.
3. Perform steering gently and smoothly. Sharp steering is prohibited when the platform is elevated. Meanwhile, do not drive and operate on slopes exceeding 25%.
1. Press the lift button to raise the working platform; release the button to stop the lifting action immediately.
2. Press the lower button to descend the platform. Ensure no personnel stay and no obstacles exist below the platform during lowering.
3. The extendable platform can only be operated after the main platform is fully lifted. Strictly abide by the rated load standard and prohibit overloaded operation.
1. Overload operation is strictly prohibited: the maximum load of the main platform is 320kg, and the maximum load of the extended platform is 120kg. Never exceed the rated load capacity.
2. It is forbidden to drive or move the equipment on slopes greater than 25% when the platform is elevated.
3. Operators must wear safety harnesses correctly during high-altitude operations for personal protection.
4. Fully lower the working platform and retract the extended platform before moving the equipment to ensure the machine is in a compliant stowed state.
1. After operation, fully lower the working platform and retract the extendable auxiliary platform.
2. Turn off the equipment key switch and cut off the main power supply of the machine.
3. Clean dust and stains on the equipment body, inspect all components comprehensively, and troubleshoot potential faults such as loose and damaged parts.
4. Charge the battery timely after use. Store the equipment in a dry, ventilated, water-free and corrosion-free environment daily.
Q1: What is the maximum working height of the XG1012AC scissor lift?
A: The maximum working height of the equipment is 11.8 meters, and the maximum platform height from the ground is 9.8 meters.
Q2: What power system does this lift adopt?
A: The equipment adopts a combined power mode of AC mains power and 24V auxiliary battery to realize continuous and stable operation power supply.
Q3: Can this scissor lift be used outdoors?
A: The equipment is mainly designed for indoor operation. Short-time light-duty operation is allowed on flat outdoor ground. Usage in harsh outdoor environments such as heavy rain, strong wind and rough terrain is strictly prohibited.
Q4: What is the maximum load capacity of the extended platform?
A: The rated maximum load of the extendable auxiliary platform is 120kg, and overload operation is forbidden during work.
Q5: How many operators can work on the platform simultaneously?
A: The working platform can accommodate up to 2 operators at the same time, and the total weight of personnel and tools shall not exceed the rated load of 320kg.
Q6: What safety protection devices are equipped on this lift?
A: The whole machine is equipped with an overload protection system, tilt alarm device, emergency stop button, automatic pothole protection system and anti-slip working platform. Multiple safety protections guarantee operational safety.
