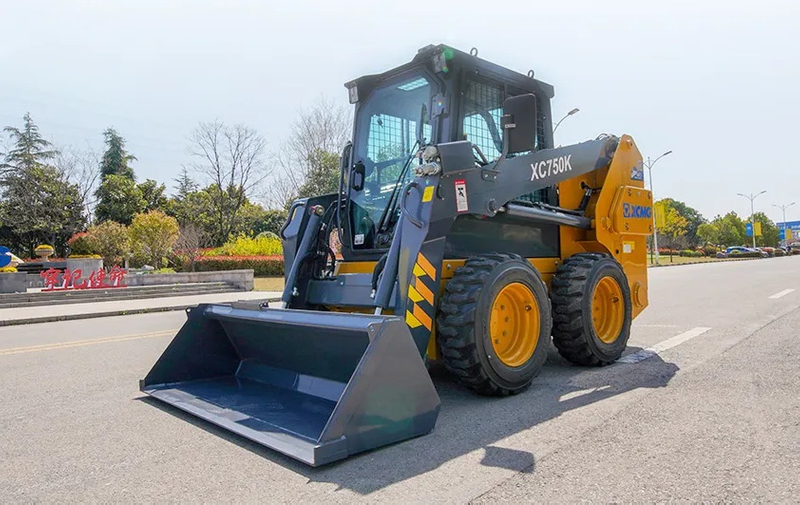

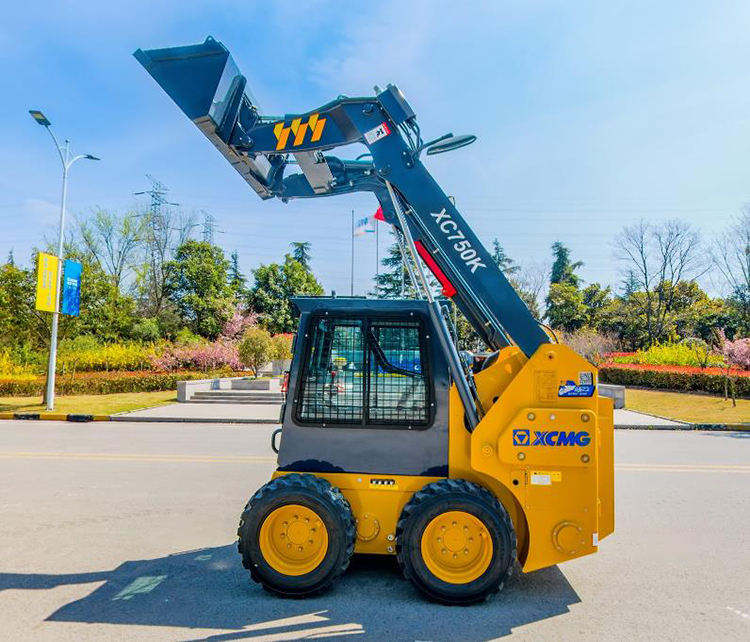

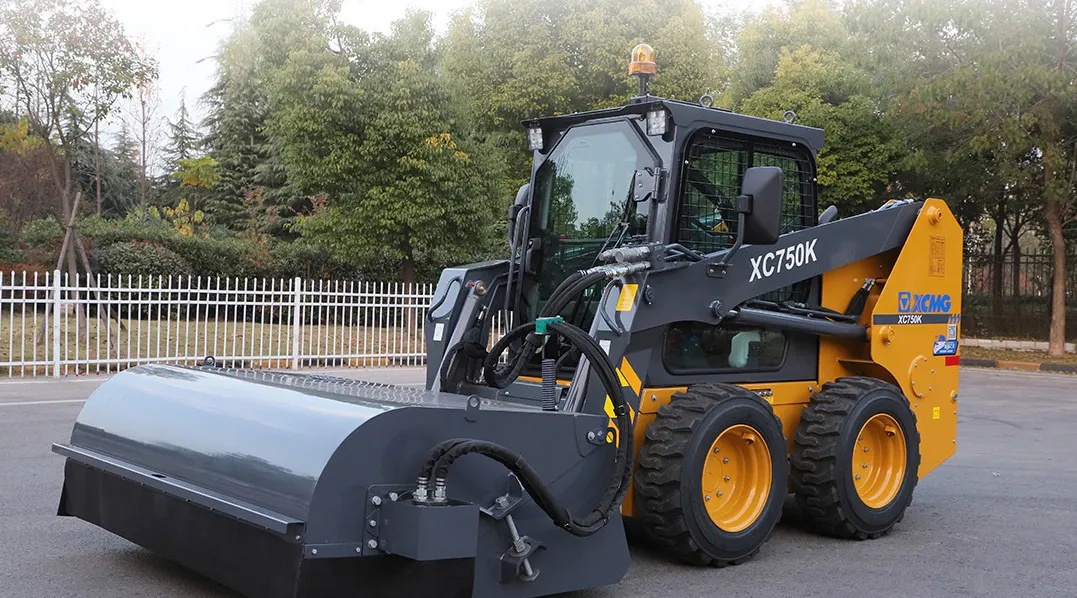

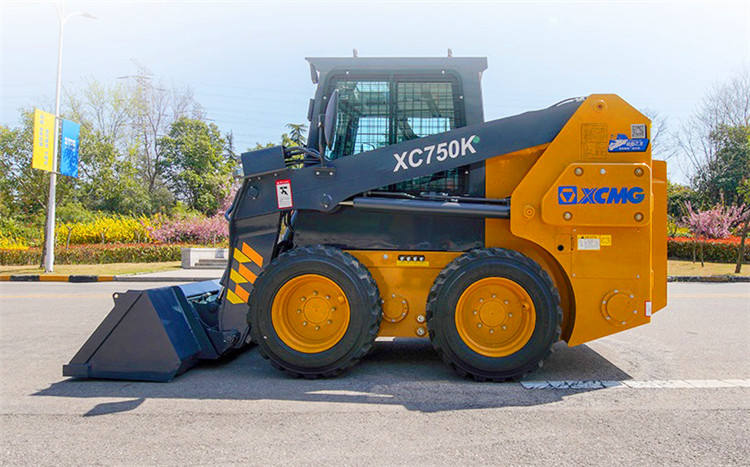

XC750K
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction
The XC750K is positioned in the high-end market and is the flagship or sub-flagship model in its product series. It highlights "powerful performance", "high operational efficiency" and "super stability", and is suitable for various heavy-duty operation scenarios such as mining, construction, agriculture, forestry, animal husbandry and municipal construction.
Product Advantage
As a large and high-end model in its skid steer loader series, the XC750K's core advantages lie in four aspects: ultimate performance, extraordinary reliability, outstanding ergonomics and all-round application, aiming to provide ultimate solutions for users engaged in high-intensity operations.
Technical Parameters
|
Description
|
Unit
|
XC750K
|
|
|
Engine |
Rated power
|
HP(Kw)/rpm
|
67(50)/2300
|
|
Emission standard
|
Chinese-III
|
||
|
Working hydraulic system |
Standard flow
|
L/min
|
75.9
|
|
Optional high flow
|
L/min
|
119.6
|
|
|
System pressure
|
bar
|
210
|
|
|
Traveling System |
Maximum traveling speed
|
Km/h
|
12
|
|
Optional two speed, maximum traveling speed
|
Km/h
|
18
|
|
|
Tire specification
|
10-16.5
|
||
|
Control system
|
Operating weight
|
Kg
|
3200
|
|
Loading performance |
Rated load
|
Kg
|
900
|
|
Static tipping load
|
Kg
|
1800
|
|
|
Breakout force
|
kN
|
20
|
|
|
Overall dimensions |
Cab roof height
|
mm
|
1950
|
|
Length with bucket
|
mm
|
3330
|
|
|
Dumping angle
|
°
|
40
|
|
|
Maximum dumping height
|
mm
|
2375
|
|
|
Dumping range
|
mm
|
575
|
|
|
Wheelbase
|
mm
|
1027
|
|
|
Departure angle
|
°
|
25
|
|
|
Ground clearance
|
mm
|
185
|
|
|
Wheel tread
|
mm
|
1380
|
|
|
Bucket edge width
|
mm
|
1800
|
|
|
Bucket capacity (High heap)
|
m3
|
0.45
|
|
Product Uses
Construction site: Material handling, site clearance, small-scale earthwork operations.
Mine ranch: Ore cleaning, feed feeding, site maintenance.
Agriculture and forestry: Livestock stable cleaning, grain transportation, wood processing.
Municipal sanitation: Snow removal in winter, street sweeping, and greenery maintenance.
Infrastructure: inside confined spaces like warehouses and plants.
Product Operate Guide
Start the engine:
Sit down and fasten your seat belt.
Place the handbrake in the "Brake" position.
Gently press the accelerator pedal.
Insert the key, turn it to the "Start" position, and release it immediately after the engine starts.
Let the engine warm up for a few minutes below medium throttle (especially in cold weather).
Machine movement:
Release the handbrake.
Hold the operation handle with both hands.
Push the left handle slowly and steadily to control the direction and speed. Pushing the handle hard will cause the machine to accelerate suddenly, which is extremely dangerous.
Keep your eyes always directed towards the direction of travel.
