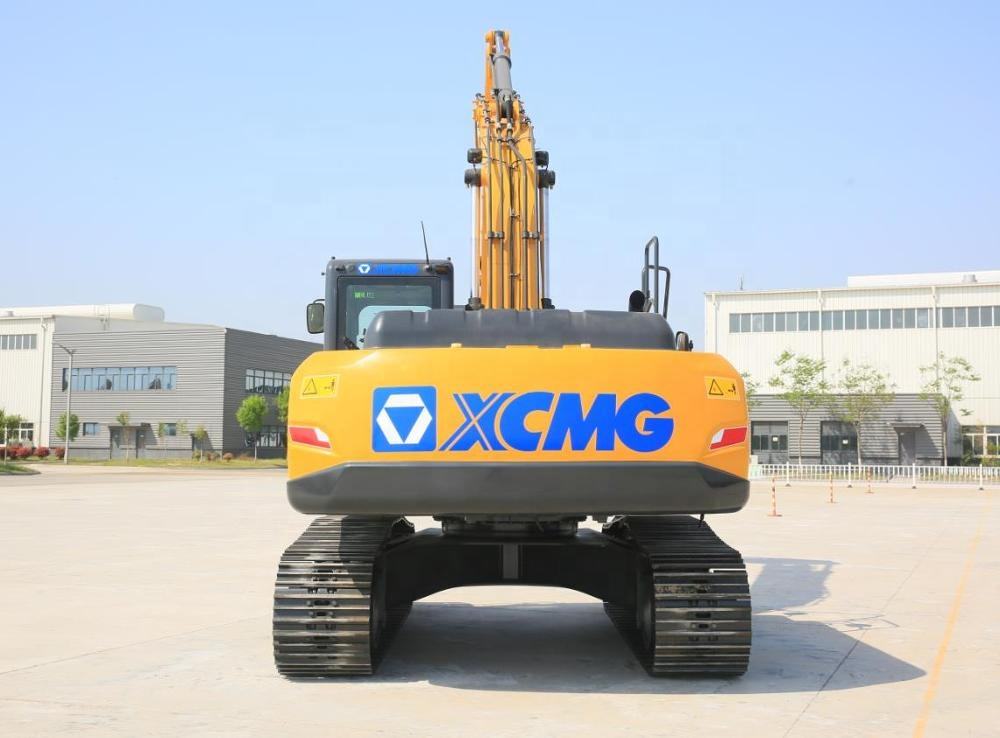

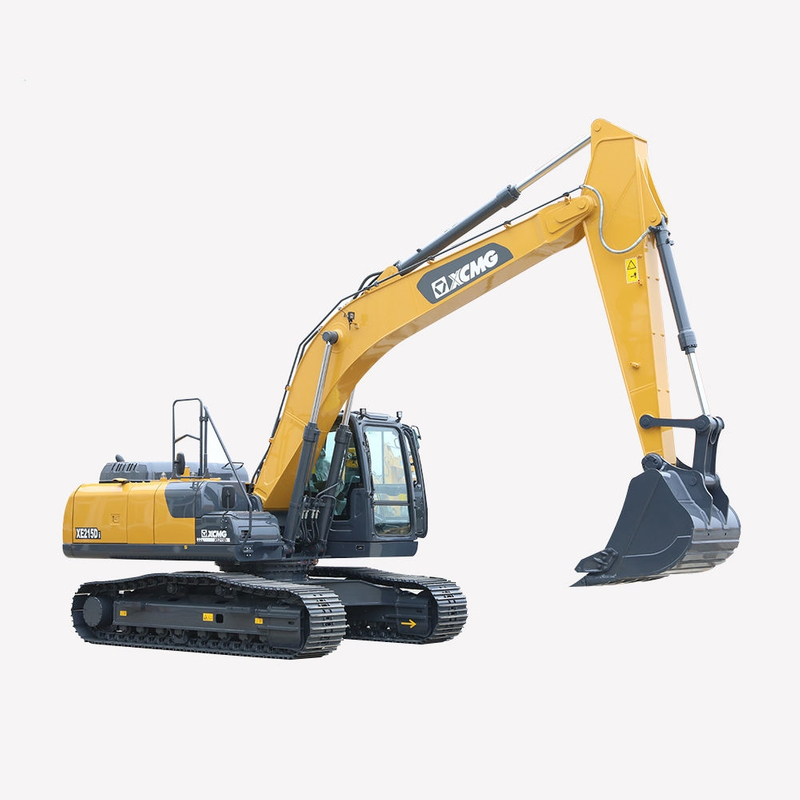

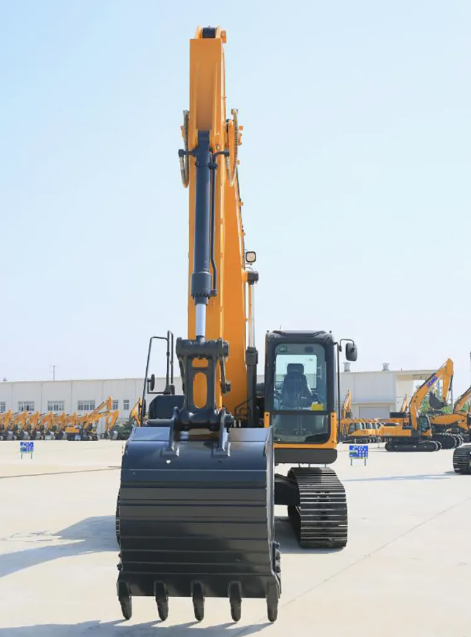

XE215D
| Availability: | |
|---|---|
| Quantity: | |
New generation environmental engine is adopted in this machine, which has both excellent environmental performance and large power, matched with ow fuel consumption design, operating costs are significantly reduced.
1.Ecological and economical
Customized high-power engine with stronger power. Adopting proprietary matching technology, the operation efficiency is higher, the fuel consumption is smaller. Minimized impact on emission systems and make it more environmentally friendly.
2.Multiple applications
Different boom, arm and bucket combinations can adapt to as many working conditions as possible. Multi-functional work tool system can meet various operational requirements including digging, breaking, dismanting and so on.
| Description | Unit | Parameters | |||
| Operating weight | kg | 21900 | |||
| Bucket capacity | m³ | 0.8~1.3 | |||
| Engine | Model | Engine | QSB7 | ||
| Output power | kW/ r/min | 135/2050 | |||
| torque/speed | N.m | 740/1250 | |||
| Displacement | L | 6.7 | |||
| Main performance | Travel speed(H/L) | km/h | 5.4/3.1 | ||
| Gradeability | % | 70 | |||
| Rotary speed | r/min | 11.8 | |||
| Ground pressure | kPa | 47.2 | |||
| Bucket digging force | kN | 149 | |||
| Arm digging force | kN | 111 | |||
| Hydraulic system | Main pump | -- | K7V125 | ||
| Rated flow of main pump | L/min | 2×225 | |||
| Main safety valve pressure | MPa | 34.3/37 | |||
| Pressure of pilot system | MPa | 3.9 | |||
| Appearance size | Overall length | mm | 9625 | ||
| Overall width | mm | 2990 | |||
| Overall height | mm | 3100 | |||
| Width of platform | mm | 2830 | |||
| Length of crawler | mm | 4255 | |||
| Overall width of chassis | mm | 2990 | |||
| Width of crawler | mm | 600 | |||
| Wheel base of crawler | mm | 3462 | |||
| Crawler gauge | mm | 2390 | |||
| Clearance under counterweight | mm | 1050 | |||
| Min. ground clearance | mm | 476 | |||
| Min. rear-end swing radius | mm | 2890 | |||
| Working scope | Max. digging height | mm | 9620 | ||
| Max. dumping height | mm | 6780 | |||
| Max. digging depth | mm | 6680 | |||
| Max. digging depth at the range of level 8 feet | mm | 6500 | |||
| Max. vertical wall digging depth | mm | 5715 | |||
| Max. digging reach | mm | 9940 | |||
| Min. swing radius | mm | 3530 | |||

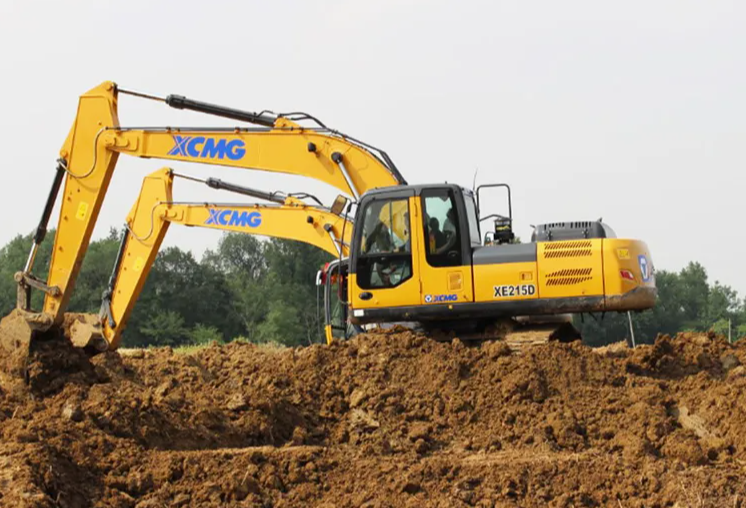

1. Road and Infrastructure Construction
The XE215D is ideal for highway upgrades, large-scale earthmoving projects, and foundation excavation. With a bucket capacity ranging from 0.8 to 1.3 cubic meters (depending on configuration), it delivers powerful digging force (bucket digging force: 138 kN; boom digging force: 103 kN), enabling efficient handling of various soils and materials to enhance construction efficiency.

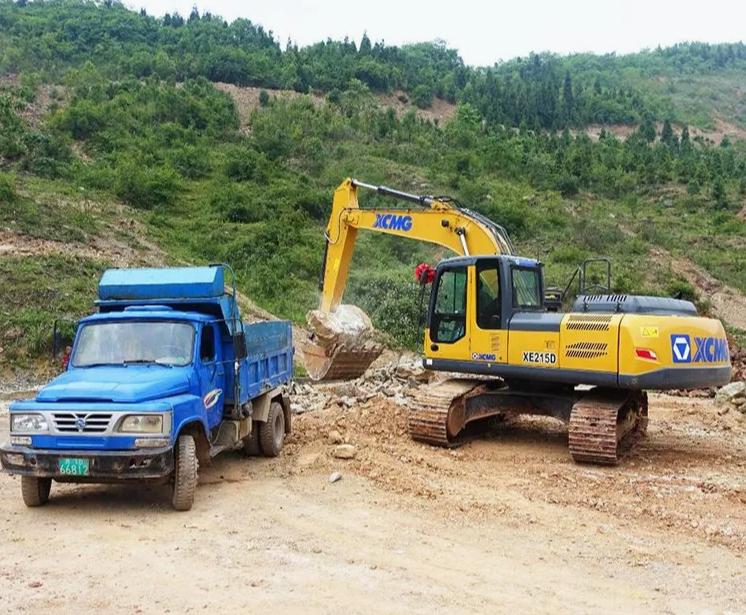

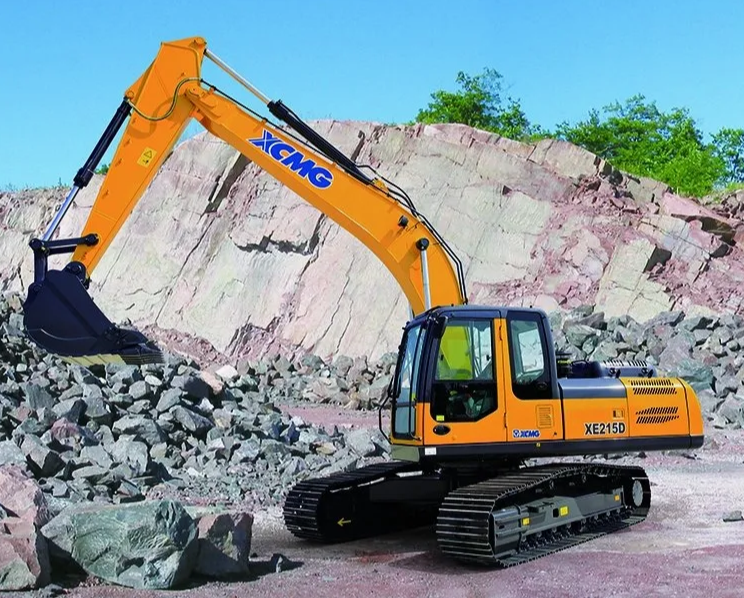

2. Mining and Quarry Operations
Equipped with a reinforced chassis system and high-quality integrated electrical system, the XE215D performs exceptionally well in harsh mining and quarrying conditions, with enhanced adaptability and extended service life. It has been successfully deployed in special environments such as quarries in Xinjiang where temperatures can reach up to 42°C.
3. Water Conservancy Projects and River Management
The XE215D is a reliable tool for projects such as river dredging, embankment reinforcement, and Yellow River cleanup efforts. Its powerful digging capability and excellent adaptability to various working conditions enable it to effectively handle water conservancy projects with severe silt accumulation.
4. Special and Harsh Environment Construction
The XE215D's exceptional quality enables it to tackle a variety of special operating conditions. It has been successfully deployed at an altitude of 4,600 meters on the Qinghai-Tibet Plateau and in the complex terrain of a sand and gravel plant in Guizhou Province, demonstrating its reliability and adaptability under extreme conditions.
Before operating the XE215D, please conduct a pre-operation inspection to ensure that hydraulic oil, engine oil, coolant, and other fluid levels are normal, and all components are in good condition. Start the engine and wait for it to run smoothly before using the control handles to maneuver the mechanical arm and boom for digging and dumping operations. Maintain smooth movements during operation. Strictly adhere to safety regulations, be mindful of the surrounding environment, and maintain a safe distance. Regularly maintain and inspect the machine, including changing engine oil, hydraulic oil, and filters as needed, to keep the equipment in optimal condition and extend its service life.
1. HOW IS YOUR PRICE COMPARED WITH MANUFACTURERS/FACTORIES?
We work as the leading dealers of various leading China construction machinery manufacturers/ factories, and are constantly treated with best dealership price. From numerous comparison and feedbacks from clients, our price is more competitive than the price from manufacturers/factories.
2. WHICH PAYMENT TERMS CAN YOU ACCEPT?
Normally we can work on T/T term or L/ term, sometime DP term.
1)On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment, or against the copy of original B/L for long-term cooperating client.
2)On L/C term, a 100% irrevocable L/ C without "soft clauses"from an international recognized bank can be accepted. Please seek the advice from the individual sales manager whom you work with.
3. WHAT SERVICES CAN WE PROVIDE?
Accepted Delivery Terms: FOB,CFR,CIF;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
4. DO THE TRACK ROLLERS OR IDLER WHEELS LEAK OIL OR FAIL TO ROTATE?
Damaged oil seals cause oil leakage, leading to bearing wear and failure. Replace the assembly or repair kit.
5. DOES THE UNDERCARRIAGE PRODUCE ABNORMAL NOISES DURING TRAVEL OR OPERATION?
Check for loose fastening bolts (e.g., drive axle, transmission mounting bolts), insufficient lubrication at all points, and structural component interference.
6. INSUFFICIENT SERVICE BRAKING OR INCREASED STOPPING DISTANCE?
Check brake fluid level, inspect master/slave cylinder for leaks, verify brake pads are not excessively worn, and check for air in the brake system.
