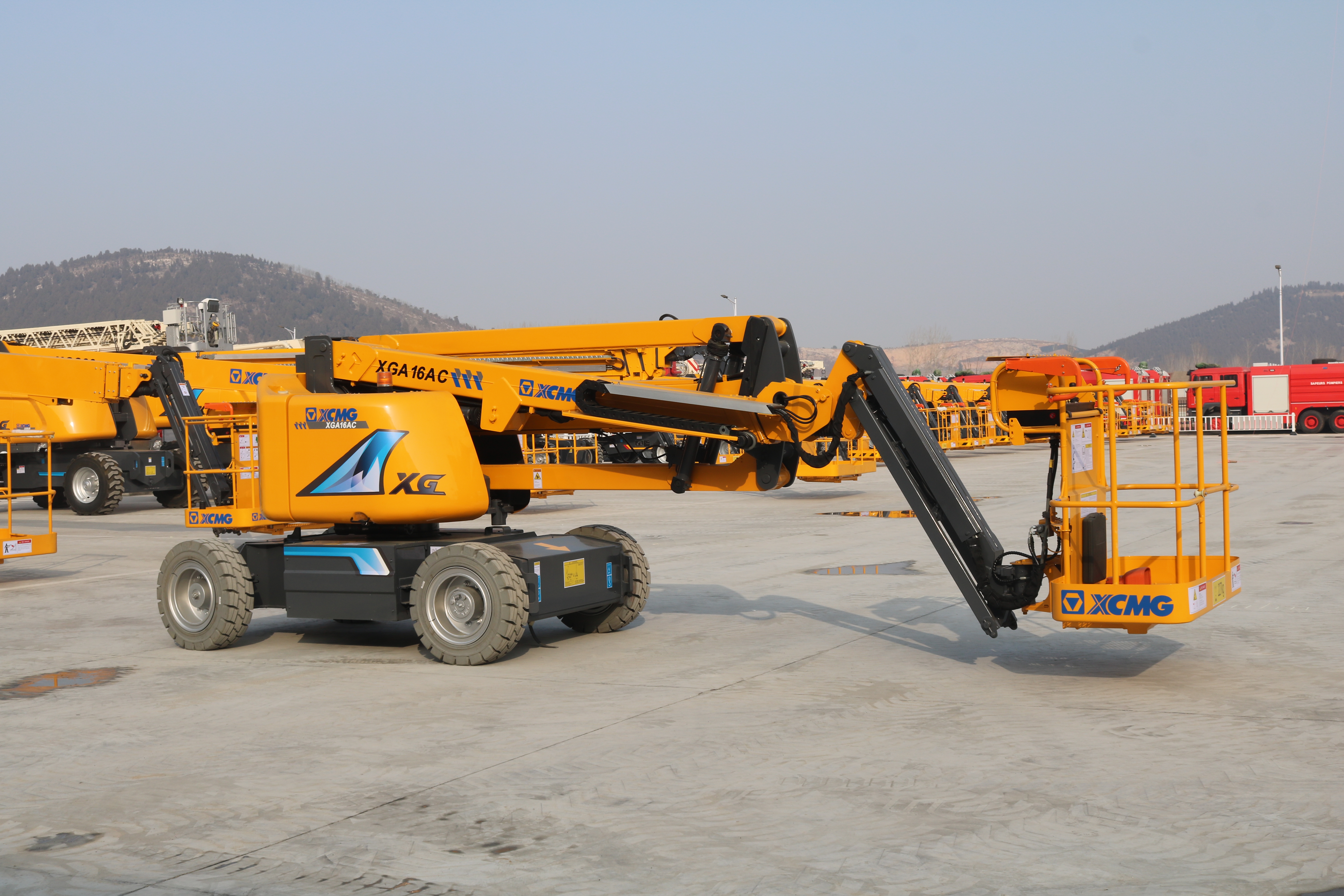

XGA16AC
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction

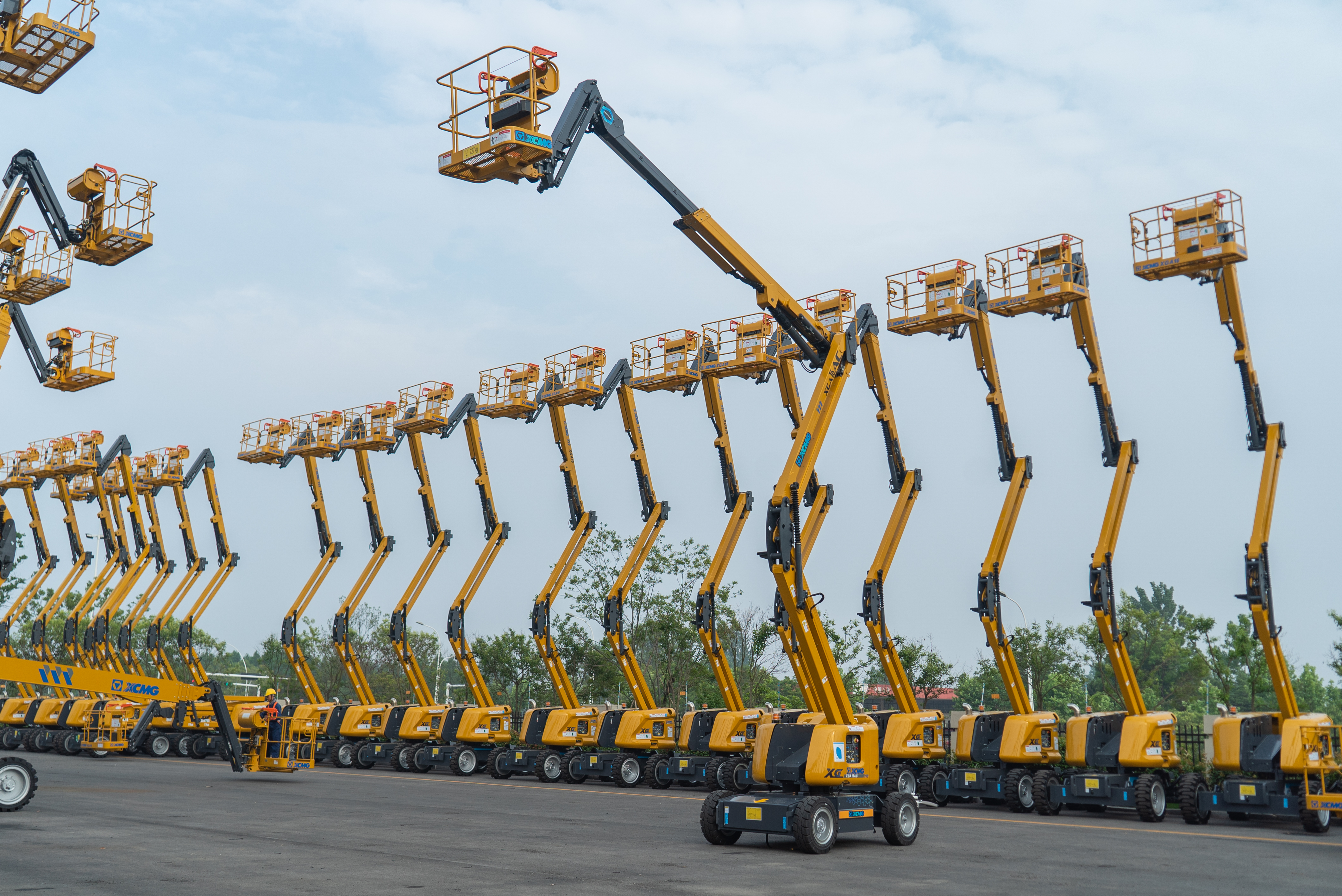

The XGA16AC straight boom aerial work platform is a well-balanced, safe, reliable and cost-effective operation equipment. Its AC drive system offers more powerful performance and lower maintenance requirements. Its excellent operating range and safety design enable it to handle a variety of complex working conditions.
Product Advantage
1. Σ-shaped boom combine and zero tail swing design make it more productive.
2. As small as 3.15m turning radius enables the machine to work in narrow space.
3. 48V and 420Ah large-capacity battery makes the cruising ability longer.
4. Advanced AC motor driven technologies; steering differential control technologies; powerful and steady actions; grade ability up to 30%.
5. DC pump and proportional control technologies are energy-saving and effective, making the work steadier and safer.
6. Environment friendly, zero emission, low noise, traceless traveling, suitable for indoor construction.
Technical Parameters
| Parameters of running state | |
| Overall dimensions (L × W × H) | 6.42×1.75×2 m |
| Working platform overall dimensions | 1.4×0.7×1.15 m |
| Max. speed | 5.2 km/h |
| Max. gradeability | ≥30% |
| Min. external turning radius | ≤3.15 m |
| Ground clearance/m (centre) | 0.21 m |
| Wheelbase | 2 m |
| Total mass | 6500 kg |
| Main Operation Performance Parameters | |
| Rated working height | 15.5 m |
| Max. platform height | 13.8 m |
| Max. working range | 8 m |
| Max. net spanning height | 7.03 m |
| Scope of luffing of No. 1 arm | 0°~60° |
| Scope of luffing of No. 2 arm | -8°~75° |
| Scope of crank arm luffing | -60°~80° |
| Scope of platform swing | 160° |
| Slewing angle | 355° |
| Slewing radius of turntable | 0.875 m |
| Max. load capacity | 227 kg |
| Max. rearward slewing | 0 m |
| Control system | 12V DC proportional control |
| Tire | 250-15 solid tire, optional foam tire 240/55 D17.5 |
| Power parameters | |
| Power source | 420 Ah/48 V DC |
| Power unit | 4 kw/48 V DC |
| Auxiliary power unit | 2.2 kw/24 V DC |
| Traveling motor | 3.3 kw/32 V AC |
Product Uses
• Construction: Steel structure installation, exterior wall construction, decoration and painting.
• Industrial maintenance: Inspection and repair of factory equipment, installation of pipelines, and maintenance of lighting systems.
• Commercial applications: Lamp replacement, cleaning and billboard installation in shopping malls, airports and stadiums.
• Municipal engineering: Street lamp maintenance, tree pruning, bridge inspection.
Product Operate Guide
Before starting the operation, check the condition of the equipment and the surrounding environment to ensure that the ground is solid and flat. When operating, start the hydraulic system through the control box on the chassis or platform. Use the proportional control joystick to continuously adjust the lifting, rotation and traveling speed of the boom. The movements should be smooth and precise. Please note that the load on the platform must not exceed the limit and always keep an eye on the distance from obstacles. In case of emergency, press the emergency stop button immediately. After the operation is completed, restore the equipment to the driving state and park it in a safe area. Strictly follow the manual to ensure safety.
FAQ
A: This equipment is driven by an AC motor, featuring strong power and four-wheel drive capability. Its maximum climbing gradient is typically ≥30% (approximately 16.7°), with good site passability and the ability to adapt to rough and uneven construction site roads.
A: Yes. The XGA16AC is purely electrically driven, with zero emissions and low noise during operation. It is highly suitable for use in indoor venues, shopping malls, factories and other places with high environmental requirements.
A: The equipment is equipped with multiple safety devices, including but not limited to: tilt protection system, platform overload protection, emergency descent device, emergency power unit (optional), as well as soft start and stop functions for boom movement and travel, effectively ensuring operation safety.
A: Before daily operations, visual inspections (such as whether structural components, cylinders, and oil pipes are damaged or leaking) and functional checks (such as whether operation buttons, safety alarm devices, and brakes are functioning properly) should be conducted. The hydraulic oil and filter elements should be replaced regularly as required by the maintenance manual, and the key moving parts should be lubricated. Ac motors do not require carbon brush replacement and are easier to maintain.
A: The diagnostic system on the control panel will display fault codes. Please stop the operation immediately and refer to the "Fault Code Table" in the vehicle manual for a preliminary judgment of the problem. It is strictly prohibited to force operation before the fault is eliminated. Professional maintenance personnel should be contacted in a timely manner.
The main advantages of the AC AC system lie in its higher motor efficiency and greater power consumption. It starts and stops more smoothly and controls more precisely. The motor is maintenance-free (brushless), has a longer service life and reduces long-term maintenance costs.
