Product Introduction

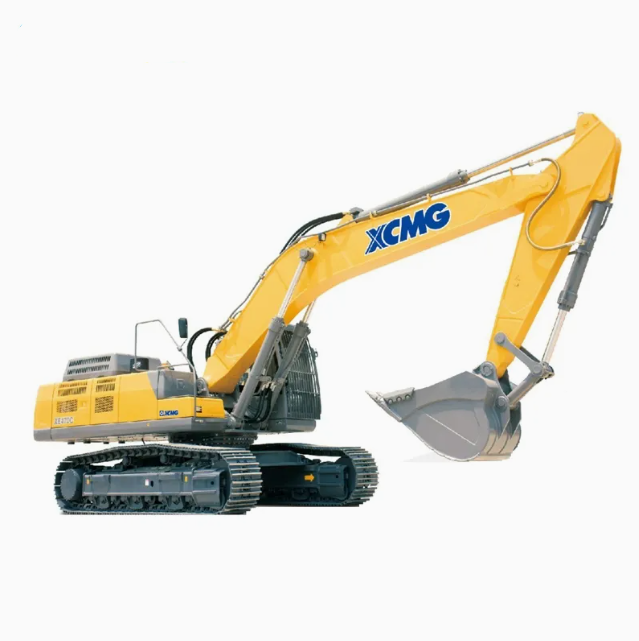

The XE470C hydraulic excavator subject to full hydraulic drive has been widely used throughout China and exported to more than twenty countries and regions in the world by virtue of its high working efficiency like medium-sized excavators and such characteristics of less fuel consumption and higher flexibility for small-sized excavators, with the sales leading its peers domestically for three consecutive years.
Product Advantage
The XE470C employs a mature and reliable negative flow control system, utilizing dual pump flow sharing to increase the flow distribution provided by the multi-way valve to each action cylinder, thereby maintaining strong digging capability and excellent operational efficiency. It adopts an advanced all-aluminum plate-type radiator, which uses a parallel and series cooling method, ensuring smooth airflow, high flow velocity, excellent cooling performance, stable system operating temperature, and a long service life.
Technical Parameters
| Model | XE470C |
| Bucket Capacity | m3 | 1.4-1.8 |
| Operation Weight | kg | 47000KGS |
|
| Dimension | Overall length | mm | 11246 |
| Overall width | mm | 3190 |
| Overall height | mm | 3350 |
| Min.Ground clearance | mm | 500 |
|
| Engine | Model |
| AA-6HK1XQP |
| Total dispalcement | L | 7.79 |
| Rated output power | kw/rpm | 184/2000 |
| Max.torque/speed | N.m | 872.8/2000 |
|
| Digging Performance | Max.digging height | mm | 10675 |
| Max.dumping height | mm | 7337 |
| Max.digging depth | mm | 11631 |
| Max.vertical digging depth | mm | 6545 |
| Max.digging radius | mm | 10887 |
| Min. slew radius | mm | 4424 |
| Min.rear slew radius | mm | 2750 |
| Bucket digging force | kn | 284 |
|
| Track Type | Steel |
| Track Width | mm | 3190 |
Product Uses

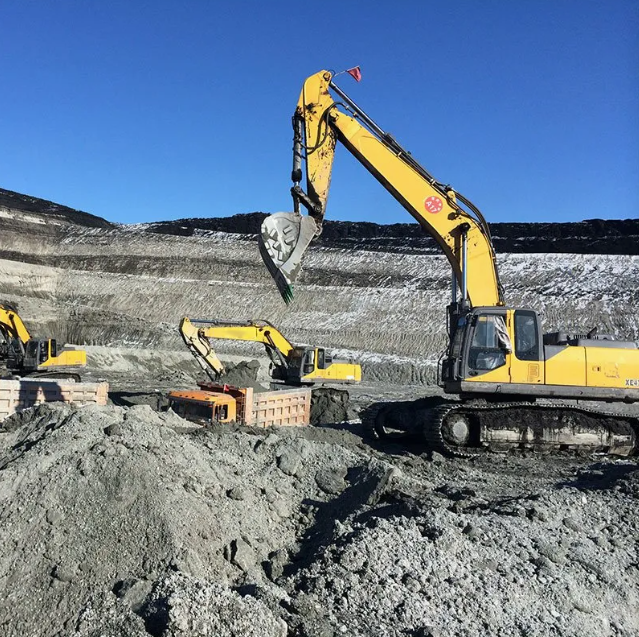

Mining: Ore stripping and loading; powerful, sturdy, reliable, and efficient
Hard rock crushing: Using a breaker to process hard rock; high digging force, robust working equipment, and high construction efficiency
Large-scale earthwork projects: Earth excavation for reservoirs, dams, and industrial parks; high work efficiency, good stability, and strong endurance
Special terrain and emergency rescue: Emergency tasks such as river cleaning and road clearance; good maneuverability and strong adaptability
Product Operate Guide
Smart Start/Stop:
After a cold start, idle for 3-5 minutes to warm up, and wait until the hydraulic oil temperature reaches 40°C before operating.
Efficient Operation:
Use “Power Mode” to increase output during heavy-duty digging
Switch to “Micro-Operation Mode” for precise control during fine-tuning tasks
Regularly lubricate the bucket connection pins
Safety Standards:
Maintain a vertical angle between the tracks and the slope surface when working on slopes
Water depth must not exceed the centerline of the track rollers
Monitor real-time alarm information on the multifunctional display screen
Smart Maintenance:
Clean the hydraulic system filter every 500 hours
Release hydraulic system pressure when storing the machine for an extended period
FAQ
1. WHO ARE WE?
XUZHOU SHANGHENG ENGINEERING MACHINERY CO.,LTD is a leading construction machinery exporter,located in Xuzhou city,Jiangsu province where Xuzhou Construction Machinery Group Inc in. We have the domestic agency rights of them more than 10years,based on the advantage of them,we also estabish long-time business with other famous brands.
2. HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?
Our team is consisted of a group of diligent and dynamic people, working 247 to respond client inquiries and questions all the time Most problems can be solved within 4 hours while manufacturers/factories will take much longer to give response.
3. WHAT PRODUCTS YOU CAN GET FROM US?
Our main products including,wheel loader,backhoe loader,truck crane,crawler crane,tower crane,road roller,motor
grader,excavator,bulldozer,forklift,dump truck,trailer,tractor truck,special vehicle ,Marine Machinery and all of their spare parts.
4. SENSOR READINGS INACCURATE OR NO SIGNAL?
First check the sensor's power supply, grounding, and signal wire connections for integrity; only then inspect the sensor itself.
5. DIM OR NO LIGHTING?
Check the bulb, socket, relevant fuses, relays, and wiring connections and grounding.
6. HORN NOT SOUNDING OR PRODUCING A MUFFLED SOUND?
Check the horn itself, horn relay, pushbutton switch, and wiring.
