Product Description

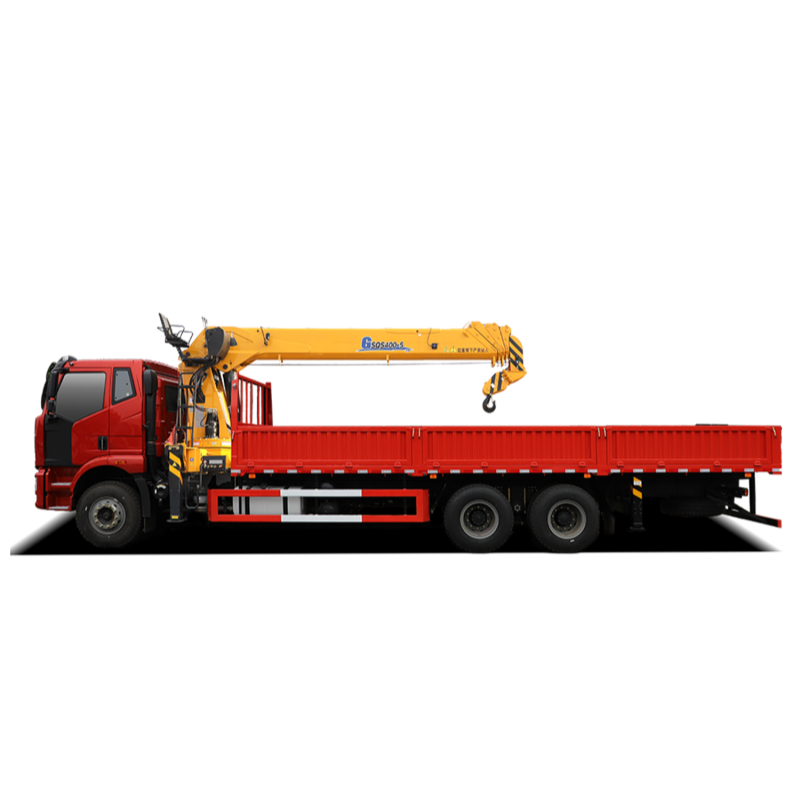

GSQS400-5 truck mounted crane is a professional hydraulic lifting equipment developed for medium and large-scale material handling demands. Equipped with a five-section synchronous telescopic boom, the machine achieves a maximum hydraulic extension length of 21.77m and a maximum working height of 23.1m, covering a super-wide working radius to meet high-altitude and long-distance lifting requirements.
The whole machine adopts high-strength integral steel plate welding and hexagonal boom structure, which effectively improves overall rigidity and anti-torsion capacity, resisting deformation under heavy load. It is fitted with an inclined axis piston winch motor and planetary dual slewing reducer, ensuring smooth lifting, stable rotation and precise positioning during operation. The dual-outrigger structure expands the supporting span up to 8.3m, greatly enhancing overall operational stability and anti-overturning performance.
Standard configuration includes an integrated high-power heat dissipation system to ensure stable hydraulic temperature control during continuous long-hour operation. Equipped with an original factory wireless proportional remote control, it supports one-hand intelligent operation, flexible speed regulation and safer working experience. All core hydraulic components and structural parts undergo strict factory inspection and pressure testing, ensuring consistent performance and long service life for global commercial and engineering applications.
Core Product Advantages
Superior Load-bearing & Structural Stability:
Adopts hexagonal high-strength steel boom with integral thickened structure. Maximum lifting torque reaches 420kN·m, supporting 16-ton heavy-load lifting. Effectively avoids boom shaking and structural deformation under long-term heavy-duty operation.
Ultra-long Working Coverage:

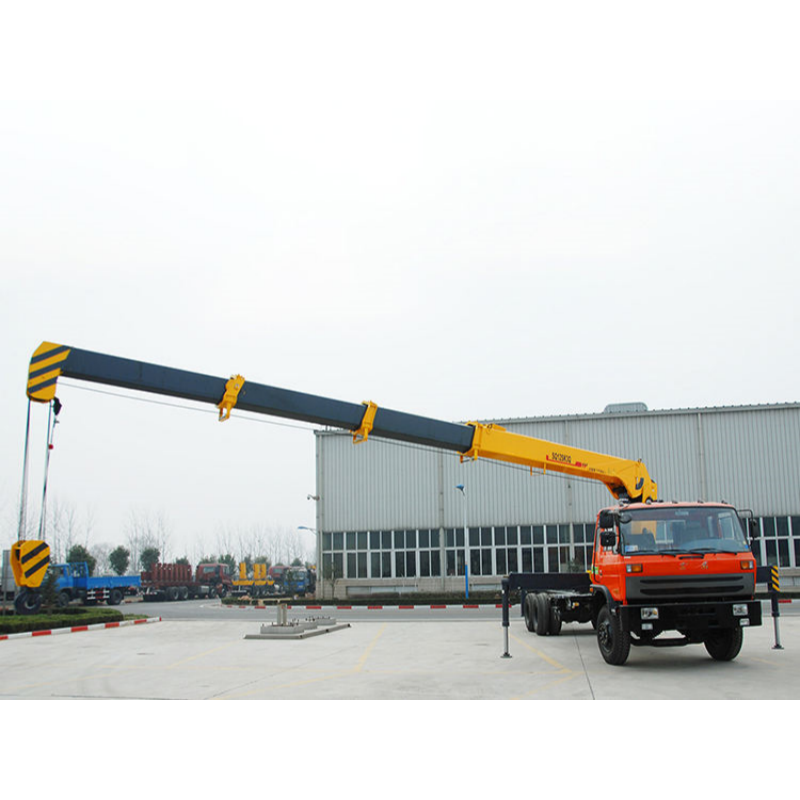

5-section synchronous telescopic boom realizes 21.77m max hydraulic extension and 23.1m max working height. Full 360° unlimited continuous rotation covers multi-angle and long-distance lifting scenarios with no dead working zone.
High-efficiency & Stable Hydraulic System:
Matched with high-precision piston motor and dual slewing reducer, featuring stable oil supply, uniform lifting speed and accurate micro-control. Low failure rate and strong continuous working capability adapt to high-intensity engineering operations.
Enhanced Safety Configuration:
8.3m super-wide dual front outriggers provide solid support. Equipped with overload protection, height limit protection and hydraulic self-locking function. Wireless proportional remote control realizes remote safe operation, reducing on-site risk.
Durable & Long Service Life:
All structural parts adopt anti-rust and anti-corrosion treatment. The independent heat dissipation system prevents hydraulic overheating, ensuring stable performance in high-temperature, dusty and complex outdoor environments.
Wide Adaptability & Easy Matching:
Standard mainstream chassis interface, compatible with multiple heavy-duty truck chassis. Suitable for rapid deployment in various projects with flexible transition and high overall operation efficiency.
Export Standard Quality & Service:
Fully compliant with CE/ISO international standards. Complete test reports and export packaging are provided. Supports customized configuration and global after-sales technical guidance.
Technical Parameters
Item | Specification |
Model | GSQS400-5 |
Boom Structure | 5-section Hexagonal Straight Boom |
Max Lifting Capacity | 16000kg (16Ton) |
Max Lifting Torque | 420kN·m |
Max Hydraulic Boom Length | 21.77m |
Max Working Height | 23.1m |
Max Working Radius | 21.2m |
Rotation Angle | 360° Continuous Rotation |
Rotation Speed | 2.1rpm |
Outrigger Span | 8.3m (Dual Front Outriggers) |
Hydraulic System | High-precision Piston Motor, Stable Heat Dissipation System |
Operation Mode | Wireless Proportional Remote Control + Manual Operation |
Rated Oil Flow | 63+50L/min |
Working Oil Pressure | 280kg/cm² |
Oil Tank Capacity | 270L |
Certification | CE, ISO9001, RoHS |
Warranty | 1 Year Standard Warranty |
Product Applications
GSQS400-5 truck mounted crane is a versatile integrated lifting equipment widely adopted in multiple industrial and engineering fields. With flexible transition, high lifting efficiency and strong environmental adaptability, it perfectly solves medium and large-scale material lifting, equipment installation and cargo handling problems.
Construction Engineering:
Building material lifting, steel structure installation, temporary hoisting operation on construction sites
Municipal Engineering:
Street lamp maintenance, guardrail installation, municipal equipment replacement, road facility construction

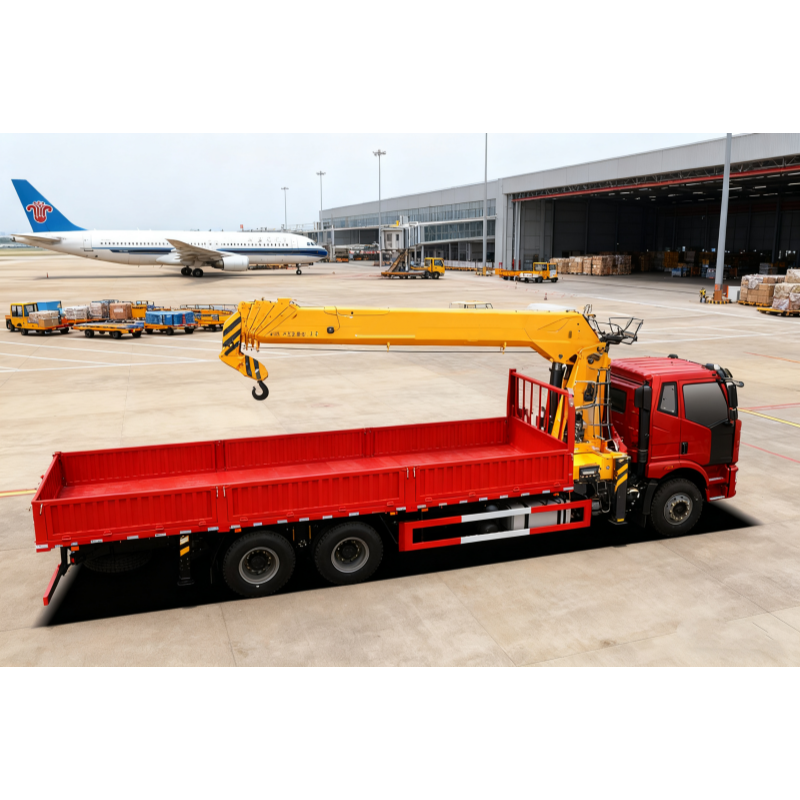

Logistics & Transportation:
Container handling, bulk cargo loading and unloading, cross-region material transfer
Electric Power & Energy:
Power pole erection, electrical equipment maintenance, wind power and photovoltaic auxiliary construction
Port & Terminal:
Small and medium-sized cargo handling, yard material sorting and stacking
Field Operation & Rental Business:
Mobile engineering operation, machinery leasing, emergency rescue and hoisting work
FAQ
Q1: Is GSQS400-5 a complete truck mounted crane or a spare part?
A1: It is a complete original truck mounted crane unit, not accessories or spare parts. The whole crane body is finished and debugged in factory, ready for chassis assembly and direct working.
Q2: What is the maximum lifting capacity and working coverage?
A2: It supports a max lifting capacity of 16 tons, with a max working height of 23.1m and a max working radius of 21.2m. The 5-section boom meets high-altitude and long-distance lifting demands for most engineering projects.
Q3: Does it support 360-degree full rotation?
A3: Yes. The GSQS400-5 realizes unlimited 360° continuous rotation with stable rotating speed and no dead working zone, greatly improving operation flexibility.
Q4: What operation methods are available?
A4: It is equipped with original wireless proportional remote control and traditional manual double operation modes. Remote control ensures safer and more precise operation on site.
Q5: Can it adapt to different truck chassis?
A5: Yes. The standard interface design is compatible with most mainstream heavy-duty truck chassis. We can provide chassis matching suggestions according to customer’s local road conditions and usage scenarios.
Q6: What certificates can be provided for export?
A6: We can provide CE, ISO9001, RoHS certification, factory test reports, packing list and other full export documents to support customs clearance in various countries.
Q7: What is your delivery time and packaging?
A7: Standard in-stock orders can be delivered within 7-15 working days. Export-standard rust-proof packaging and fixed packing are adopted to ensure no damage during long-distance sea and land transportation.
Q8: What after-sales support is provided?
A8: We provide 1-year standard warranty, lifelong technical consultation and remote guidance. Spare parts supply and overseas technical support are available for long-term cooperative clients.
