Product Introduction

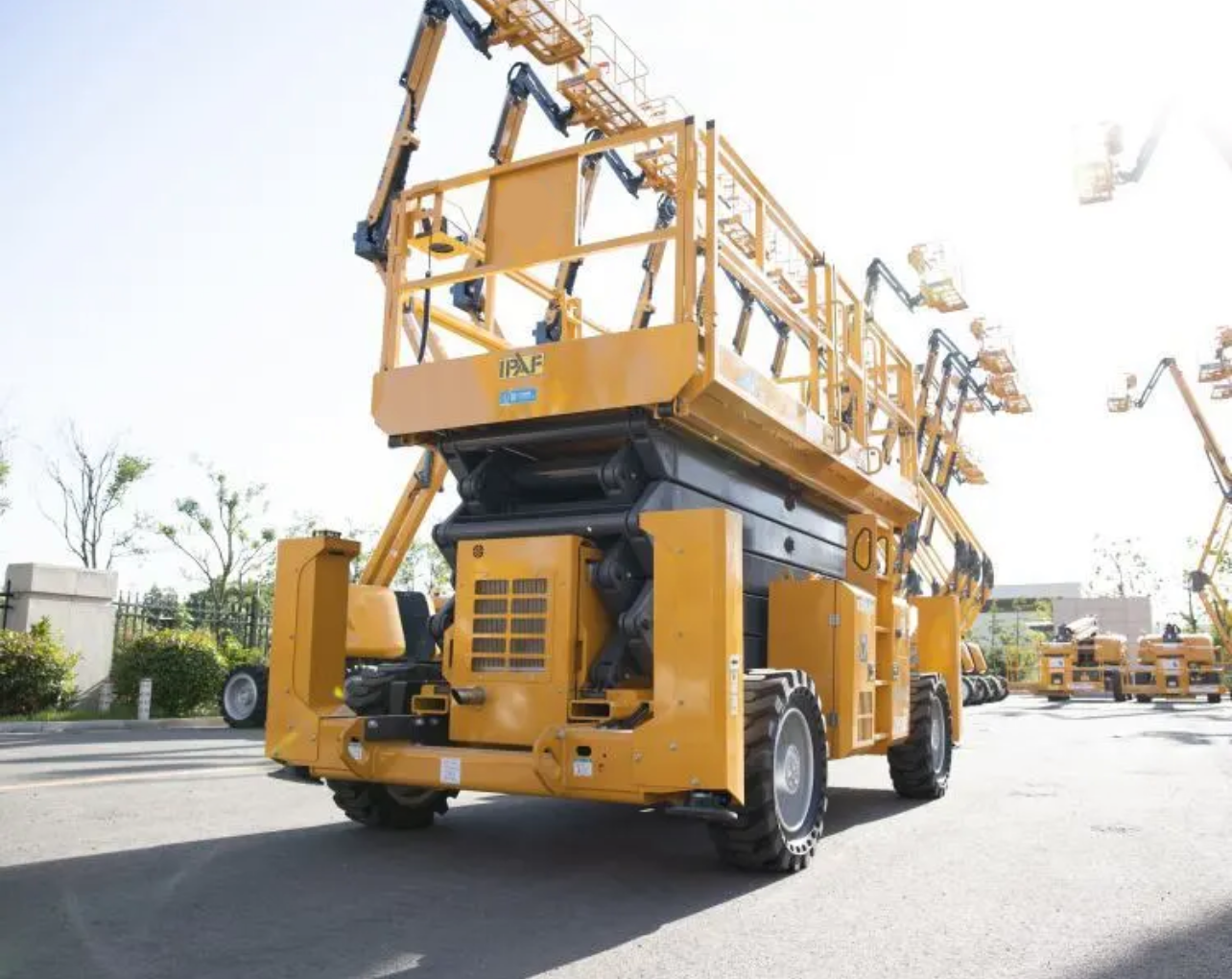

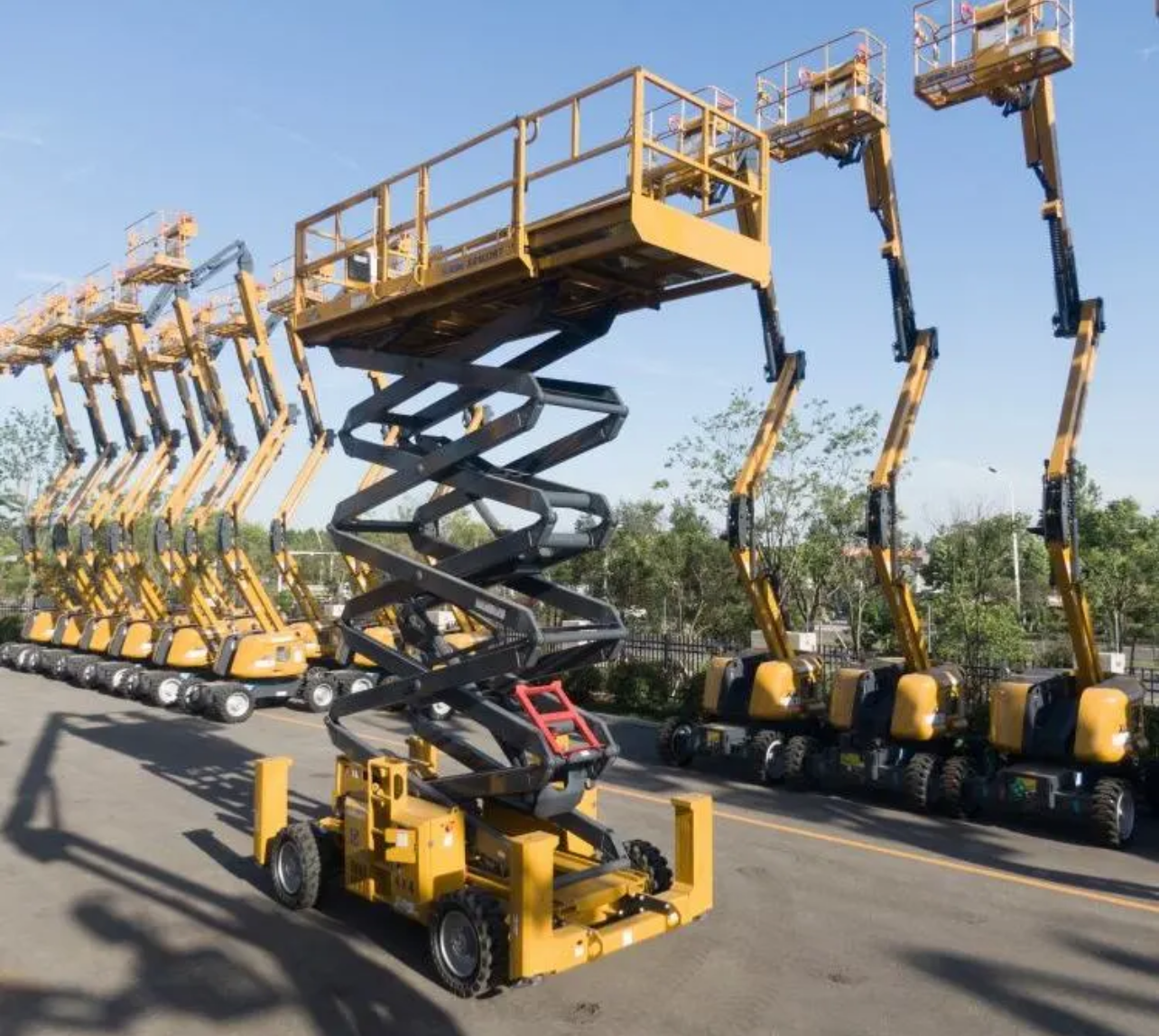

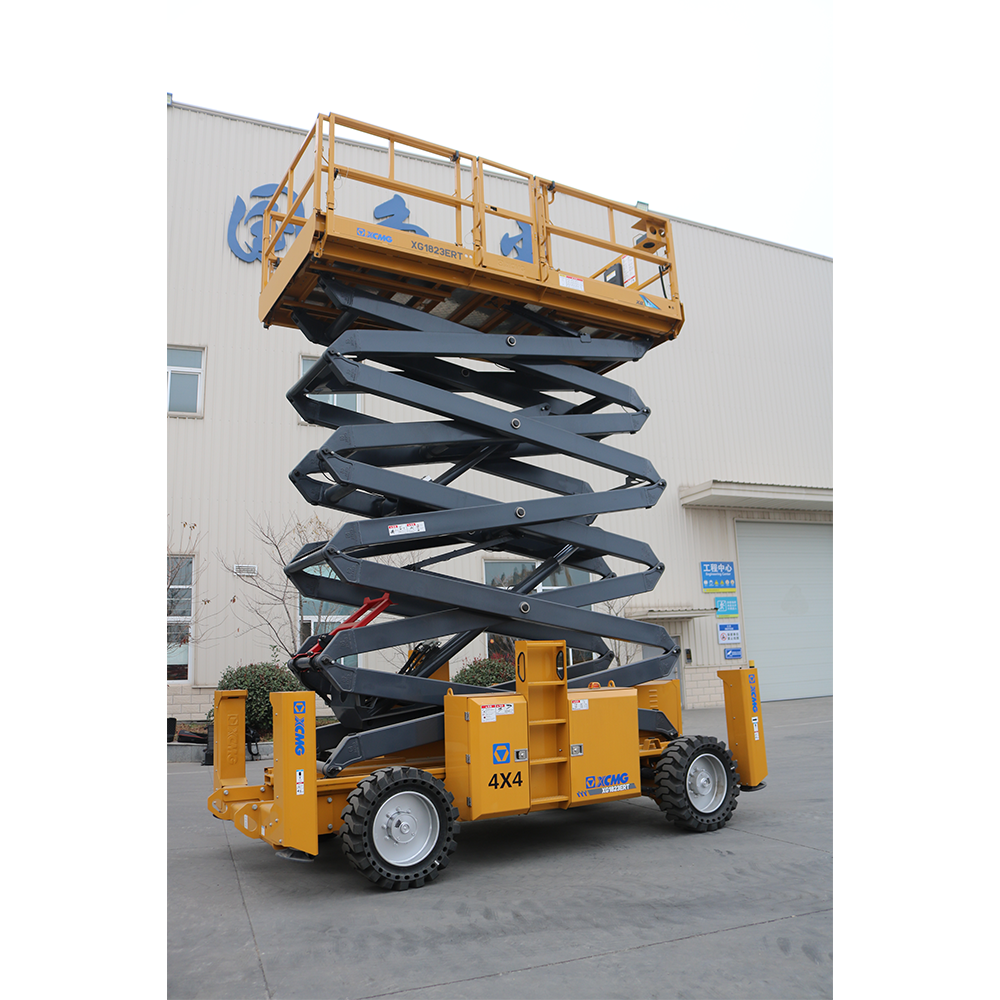

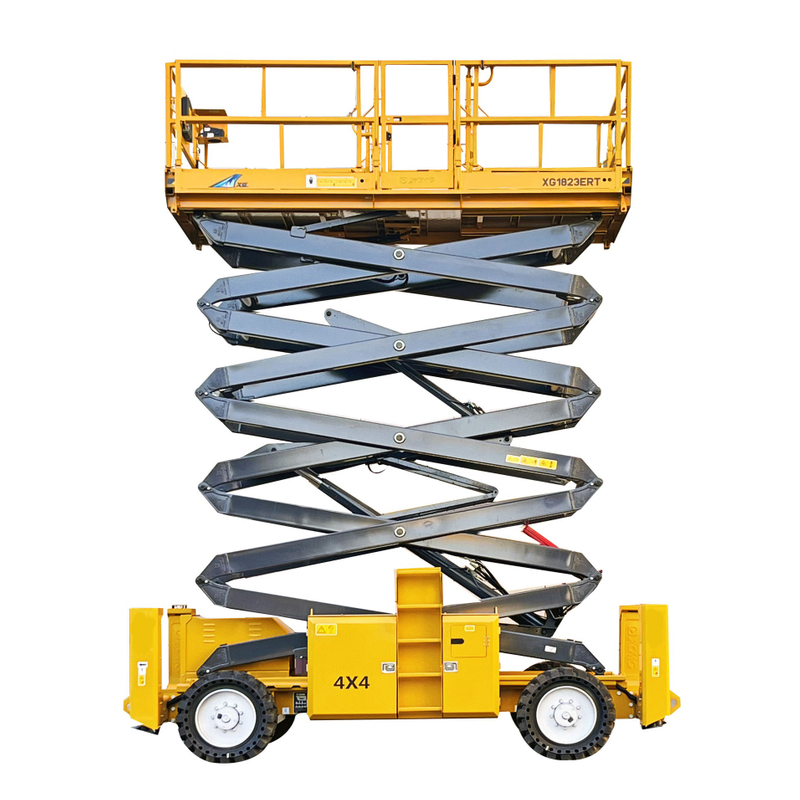

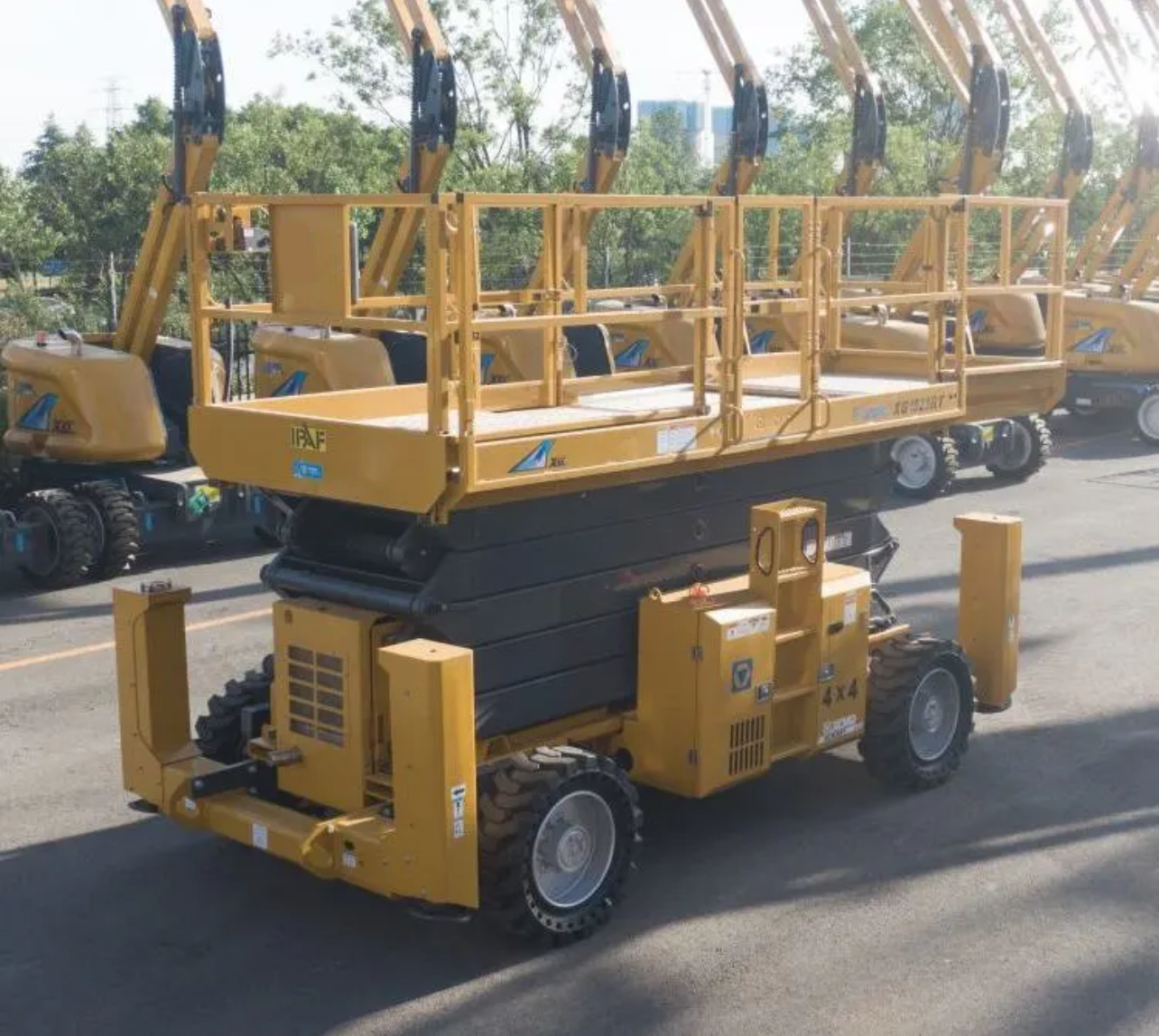

The XG1823RT is undoubtedly the "King of high-altitude heavy-duty off-road vehicles". It combines powerful diesel power, outstanding off-road passability, extremely high load capacity and an exceptionally large working height, and is specially designed to meet the most demanding outdoor heavy-load high-altitude operation requirements. For users engaged in large-scale projects and complex construction environments, the XG1823RT is a powerful equipment that ensures project progress, enhances operation safety and efficiency.
Product Advantage
1. The high-efficiency reliable axle balance system is applied, in which the rear axle is integrated with the frame and the front axle features high swing efficiency. This system features higher efficiency than the negative pressure leveling cylinder type axle balance system and higher reliability than half-axle type axle balance system.
2. The air suction type radiator system applied features compacter structure and higher heat dissipation efficiency than the air-blowing type radiator system and can effectively meet the operating needs in high temperature environment in summer.
3.The telescoping and extendible work platform achieves a larger working space and works with folding railings to realize easier transportation and translocation.
4. Load capacity at 680kg is leading in this field.
5. The 6.1km/h dirve speed and 25% gradeability make the operations easier.
Technical Parameters
| Item | Metric |
| Overall dimensions | Length (With ladder/Without ladder) | 4860mm(-) |
| Width | 2286mm |
| Height (With platform folded) | 3170mm(2510mm) |
| Work platform dimensions | Length Width Height | 3980x1830x1329mm |
| Extensible length of auxiliary work platform | 1450mm/1140mm |
| Maximum working height | 18.1m |
| Maximum platform height | 16.1m |
| Minimum platform height | 2m |
| Guardrail height | 1.1m |
| Footplate height | 150mm |
| Wheelbase | 2850mm |
| Wheel tread | 1995mm |
| Minimum ground clearance | 253mm |
| Load capacity | 680kg |
| Load capacity of extensible work platform | 230kg |
Product Uses
• Large-scale construction: power plants, oil refineries, steel structure installation of large factories, exterior wall construction.
• Infrastructure construction: Construction and maintenance of Bridges, DAMS, airports, and port terminals.
• Installation and maintenance of large-scale equipment: Installation and maintenance of wind turbine generators, chemical tanks, and large-scale machinery.
• Shipbuilding and maintenance.
Product Operate Guide
The XG1823RT is a large off-road diesel scissor lift. Before operation, it is essential to obtain a license and read the manual. Core steps: 1. Inspection: Ensure the ground is solid, and check the oil, structure, and safety devices (emergency stop, guardrail, alarm). 2. Start: Park horizontally, unlock the emergency stop, and start the engine. 3. Operation: After the platform is raised, the safety belt must be fastened and hung at the designated point. Use the proportional handle to control movement and lifting, and pay attention to the surrounding environment. 4. Off-roading: Utilize the four-wheel drive function to adapt to complex terrains, but drive carefully and slowly. 5. Emergency: Press the emergency stop button immediately. Overloading (limited to 500kg+), climbing or rough handling is strictly prohibited. For details, please refer to the official manual.
FAQ
1.What does "RT" in the model number stand for?What is the fundamental difference between it and an electric scissor lift?
A: "RT" stands for Rough Terrain. The fundamental difference between it and the electric scissor lift lies in its diesel engine power and four-wheel drive off-road chassis. This means that it does not rely on electricity, has strong power, and can easily handle complex and harsh outdoor terrains such as mud, roughness, and softness. It is a heavy-duty device specially designed for harsh working conditions.
2.How can the equipment remain stable on complex road surfaces?
A: It is equipped with an automatic leveling outrigger system. Even on rough ground, the outrigger can automatically extend and level itself, providing a stable and level working foundation for the equipment and ensuring safety and stability during the lifting process.
3.What are the special precautions when the equipment is in operation and running?
• Transportation: The equipment is heavy and large in size (about 8-10 tons), so it must be transported by flatbed trucks and cannot be moved over long distances by itself.
• Terrain: Although it is an off-road type, the ground bearing capacity still needs to be evaluated to avoid extremely steep terrain.
• Wind speed: When working outdoors, it is essential to pay close attention to the wind speed. Work should be immediately halted when the wind speed exceeds level 6 (approximately 10.8m/s).
4.What daily checks are needed?
A: Before starting up the machine every day, in addition to the routine structural and hydraulic checks, special attention should be paid to:
• Diesel fuel level: Check the fuel quantity.
• Engine: Check the oil level, coolant level and air filter.
• Tires: Check the tire pressure and wear of large off-road tires for any damage.
5.What is the maintenance cycle of the equipment?
A: The maintenance cycle of diesel engines and hydraulic systems is usually calculated by working hours (such as 250 hours, 500 hours, 1000 hours). The specific projects and cycles must strictly follow the maintenance plan table in the operation manual, including the replacement of engine oil, oil filter, diesel filter, hydraulic oil filter element, etc.
6.What are the core security configurations of the equipment?
A: Equipped with multiple safety devices, including:
• Sound and light alarm: Alerts people around when moving or lifting.
• Tilt alarm system: Senses the tilt of the vehicle body, alarms and locks the action when it exceeds the limit.
• Emergency descent device: Dual systems (manual and emergency power) to ensure safe descent in case of power failure.
• Explosion-proof valve: Prevents the platform from rapidly descending due to the rupture of the hydraulic pipeline.
