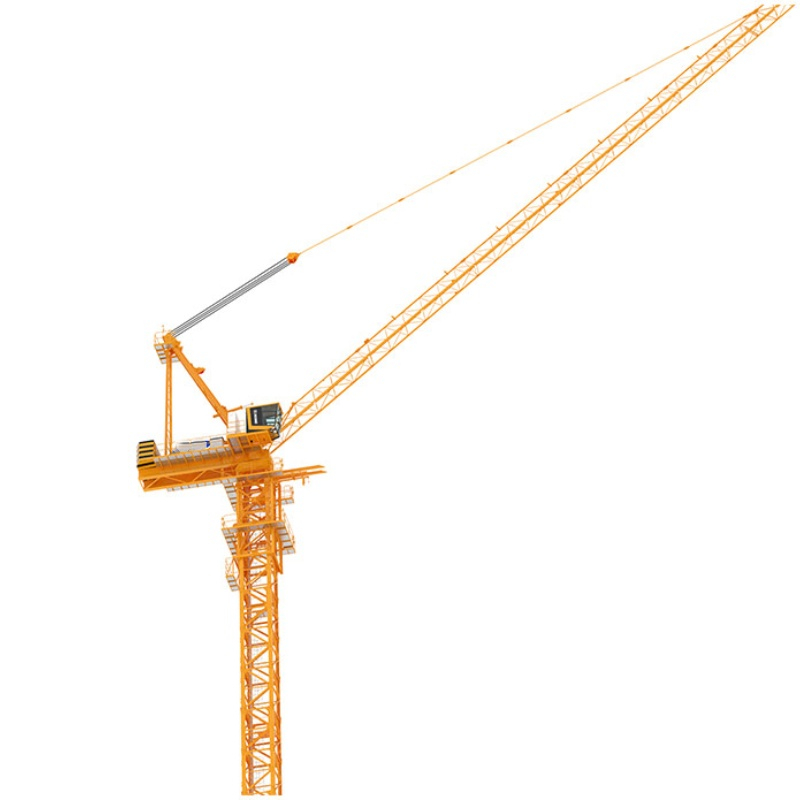

Product Description
The XGL300-20S 300t·m super-large moment luffing jib tower crane is a professional ultra-heavy engineering lifting equipment customized for high-load, ultra-high-altitude and dense urban complex construction scenarios. The whole machine adopts thickened high-strength low-alloy steel tower sections and integral secondary stress relief welding technology, comprehensively improving structural rigidity, torsion resistance and long-term extreme heavy-load anti-fatigue performance. Compared with 190t·m and lower-spec luffing cranes, the 300t·m ultra-large lifting moment provides explosive power reserve, ensuring zero-jitter stable operation under 20-ton extreme heavy-load and strong wind working conditions.
Equipped with a new generation of full intelligent variable-frequency stepless speed regulation system, the XGL300-20S realizes ultra-smooth and low-impact synchronous control for hoisting, luffing and slewing actions. The upgraded high-power hydraulic matching system outputs continuous and strong torque, supporting frequent cyclic lifting of super-heavy steel trusses, large precast components and heavy construction equipment. The professional vertical zero-tail-swing luffing structure supports 10°–85° wide-angle amplitude adjustment, completely solving the space collision problem of traditional horizontal jib cranes in urban core dense building areas. With high-speed hoisting performance and 805m super-long rope capacity, it fully meets the continuous lifting demands of 268.75m ultra-high-rise super projects.
The whole machine adopts export-oriented standardized modular split design, with regular and unified components, convenient for full-container transportation and greatly reducing cross-border logistics costs. The independent high-efficiency automatic hydraulic climbing system supports rapid layered heightening and on-site fast assembly, greatly shortening the super-project construction cycle. All core electrical, hydraulic and power accessories adopt first-class brand supporting parts, with ultra-low failure rate and super-long service life. In terms of safety configuration, the crane is equipped with a full set of intelligent full-range limit protection systems and emergency braking devices, realizing real-time overload monitoring, wind speed monitoring and tilt early warning. All finished cranes pass strict factory full-load aging tests and extreme working condition simulation to ensure long-term stable and safe ultra-intensity operation.
Product Advantages
300t·m Ultra-large Lifting Moment:
Flagship top-tier super-high torque design, far exceeding conventional large luffing cranes, providing sufficient power reserve for extreme heavy-load construction of national key super projects.
20-ton Ultra-heavy Lifting Capacity:
Industry-leading 20-ton max heavy-load capacity, perfectly meeting the lifting demands of super-heavy steel structures and large precast components that ordinary tower cranes cannot handle.
60m Super-long Jib & 3.2t Super Tip Load:
Extended 60m jib expands ultra-wide working coverage, and the 3.2-ton ultra-stable far-end load ensures efficient long-distance heavy-duty operation with leading industry performance.
55m Ultra-high Free-standing Height:
Industry-leading independent free-standing height reduces wall attachment frequency and installation difficulty, saving project attachment cost and improving construction flexibility.
Zero Tail Swing Luffing Structure: Vertical luffing jib design occupies no horizontal operating space, perfectly adapting to dense urban core areas, narrow sites and old city renovation projects without any collision risk.
Full Intelligent Variable-frequency Control:
Full-action stepless speed regulation realizes ultra-smooth start, stable operation and precise stop, minimizing high-altitude vibration and material damage, greatly improving construction accuracy and safety.
Extreme Wind Resistance & High-altitude Stability:
Super-thickened high-rigidity tower body + optimized overall force balance structure enhance extreme weather adaptability, suitable for all-weather operation in coastal strong wind and high-altitude areas.
Export Modular & High Cost Performance:
Standard split structure is convenient for global transportation and rapid assembly, with low later maintenance cost, becoming the preferred heavy equipment for global super large-scale engineering.
Full-coverage Intelligent Safety Protection:
Equipped with torque limiter, height limiter, amplitude limiter, wind speed monitoring and emergency braking system, realizing automatic early warning and power-off protection to eliminate all high-altitude operation hidden dangers.
Technical Parameters
Item | Specification |
Model | XGL300-20S |
Crane Type | Luffing Jib Tower Crane |
Rated Lifting Moment | 300 t·m |
Max Lifting Capacity | 20 Ton |
Max Jib Length | 60m |
Jib End Tip Load | 3.2 Ton |
Max Free-standing Height | 55m |
Max Attached Height | 268.75m |
Max Hoisting Speed | 90m/min |
Luffing Speed | 10°~85° ≤2.5min |
Slewing Speed | 0~0.7r/min |
Rope Capacity | 805m |
Tower Section Size | 2.0m × 2.0m × 2.8m |
Mast Type | Super Thickened High-strength Integral Tower Section |
Control System | Full Intelligent Variable-frequency Stepless Speed Control |
Safety Device | Torque Limiter, Height Limiter, Amplitude Limiter, Wind Speed Monitor, Emergency Brake System |
Product Applications
Super High-rise Landmark Buildings:
Professional 20-ton ultra-heavy load lifting and high-precision component installation for urban ultra-high landmark buildings, super high-rise commercial complexes and high-end CBD buildings, meeting ultra-high standard construction requirements.
Large Sea-crossing Bridge & Traffic Infrastructure:
Stable hoisting of super-heavy bridge steel beams, large precast pier components and heavy construction equipment, suitable for sea-crossing bridges, long-span viaducts and national key traffic projects.
Dense Urban Core Renovation & Construction:
Zero tail swing luffing design perfectly adapts to ultra-narrow urban central sites, dense building clusters and old city large-scale renovation projects, completely avoiding construction collision risks.

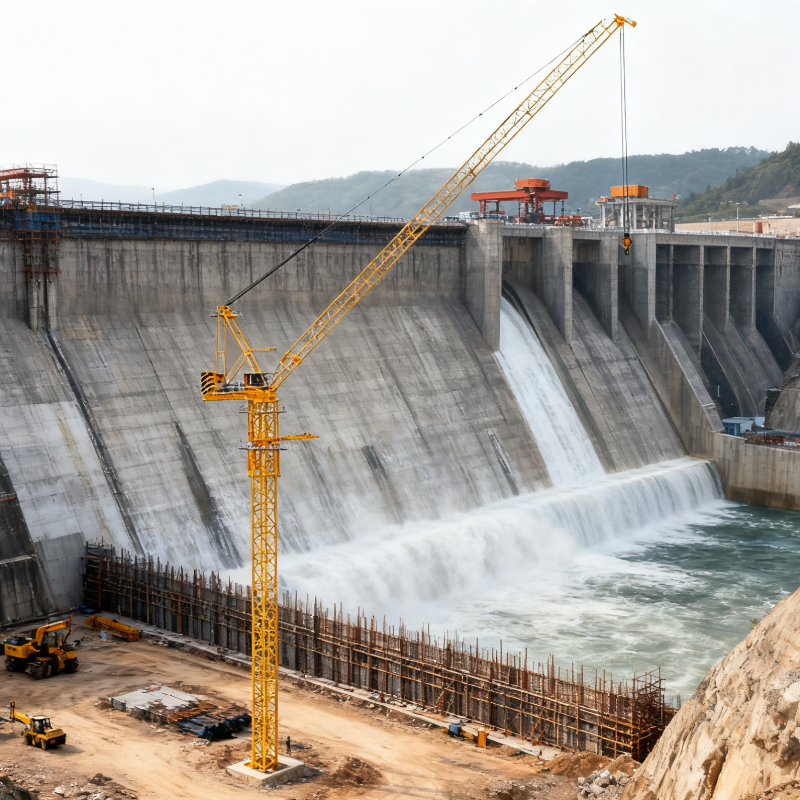

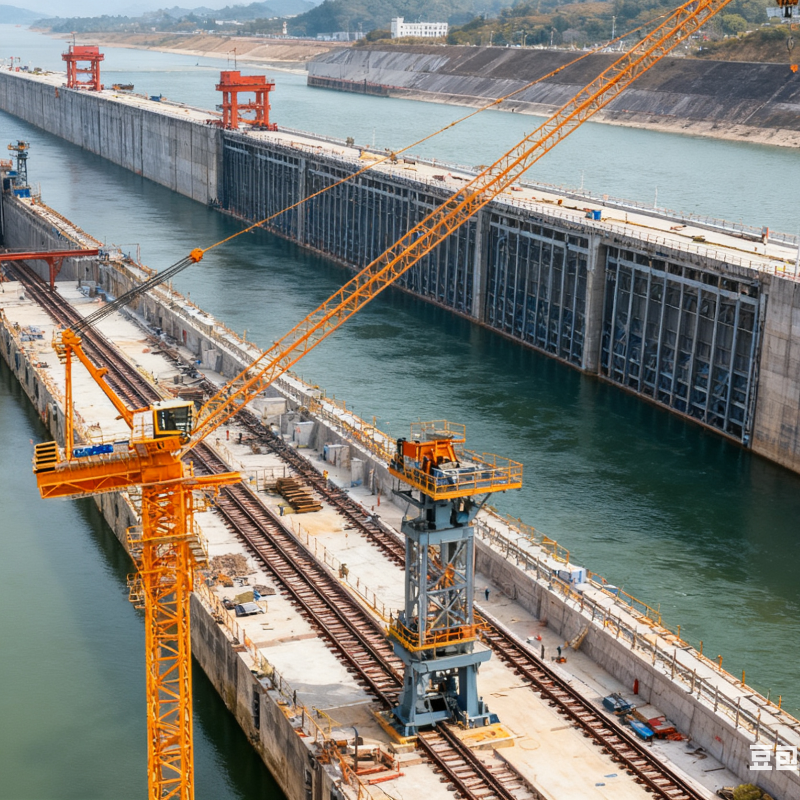

Large Industrial & Energy Engineering:
Super-heavy steel structure installation and large equipment hoisting for thermal power plants, hydropower stations, large industrial parks and heavy-duty factory building projects.
Coastal Extreme Weather Construction:
Super-large torque and enhanced wind-resistant structure ensure stable all-weather operation in coastal strong wind, high humidity and complex extreme climate environments.
National Key Super Projects:
Ultra-high lifting height, extreme heavy-load capacity and durable structure adapt to long-cycle and high-intensity construction of various national and municipal key super engineering projects.
FAQ
Q1: What core upgrades does XGL300-20S have compared with XGL190-12S?
A: The XGL300-20S is a full-level flagship upgrade model. Its rated lifting moment is upgraded from 190t·m to 300t·m, the maximum lifting capacity is increased from 12 tons to 20 tons, the jib length is extended to 60m, and the jib-end tip load is upgraded to 3.2 tons. It achieves comprehensive leaps in heavy-load performance, long-distance operation capacity and working height, fully meeting ultra-high difficulty super project construction demands that conventional large tower cranes cannot support.
Q2: What is the maximum working height of XGL300-20S?
A: It features a 55m ultra-high free-standing independent height without wall attachments, reducing construction difficulty and cost. The maximum attached working height can reach 268.75m, perfectly covering the construction height of almost all super high-rise buildings and large infrastructure projects.
Q3: Why choose 300t·m ultra-large moment luffing crane for super projects?
A: Super high-rise and bridge projects require frequent heavy-component lifting. The XGL300-20S 300t·m super-large moment provides abundant power reserve, avoiding overload operation risk. Meanwhile, the zero tail swing luffing structure adapts to complex narrow sites, which is the exclusive high-efficiency and safe solution for modern high-end super engineering construction.
Q4: Is the XGL300-20S convenient for global transportation and installation?
A: Yes. The whole machine adopts export-standard modular split design, with regular component sizes suitable for container transportation, effectively reducing international logistics costs. Equipped with a mature automatic hydraulic climbing system, on-site heightening and assembly are efficient and labor-saving, greatly shortening the super project construction cycle.
Q5: What safety protection systems does this flagship crane equip?
A: It is equipped with a full set of upgraded intelligent safety protection systems, including torque limit, height limit, amplitude limit, real-time wind speed monitoring and emergency braking device. It can automatically alarm and cut off power under overload, over-range and strong wind conditions, realizing full-range safety control for ultra-heavy high-altitude operation.
Q6: What scenarios is XGL300-20S most suitable for?
A: It is specially tailored for super high-rise landmark buildings, sea-crossing bridge projects, urban core dense construction, large energy industrial engineering and national key super infrastructure projects, being the ultimate heavy-duty lifting equipment for high-difficulty and ultra-heavy load construction scenarios.
