Product Introduction

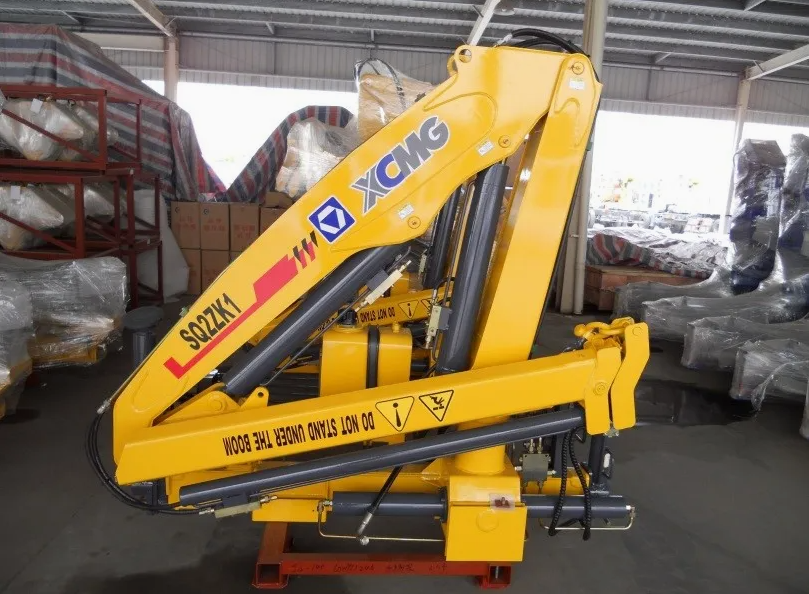

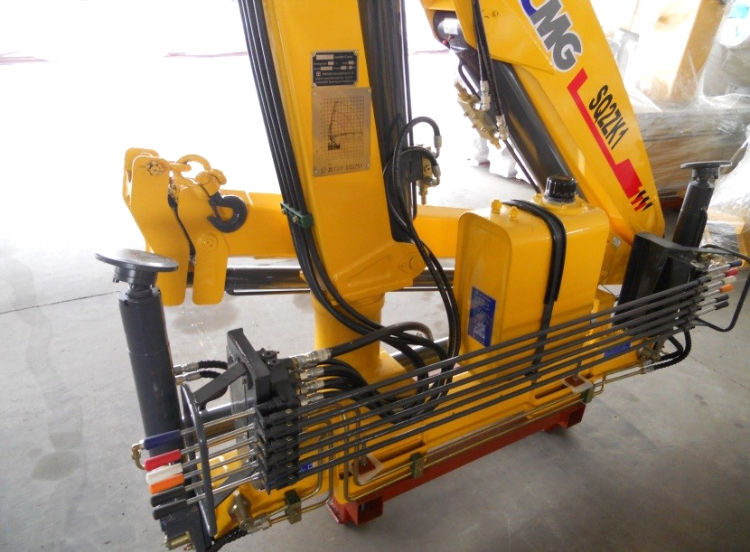

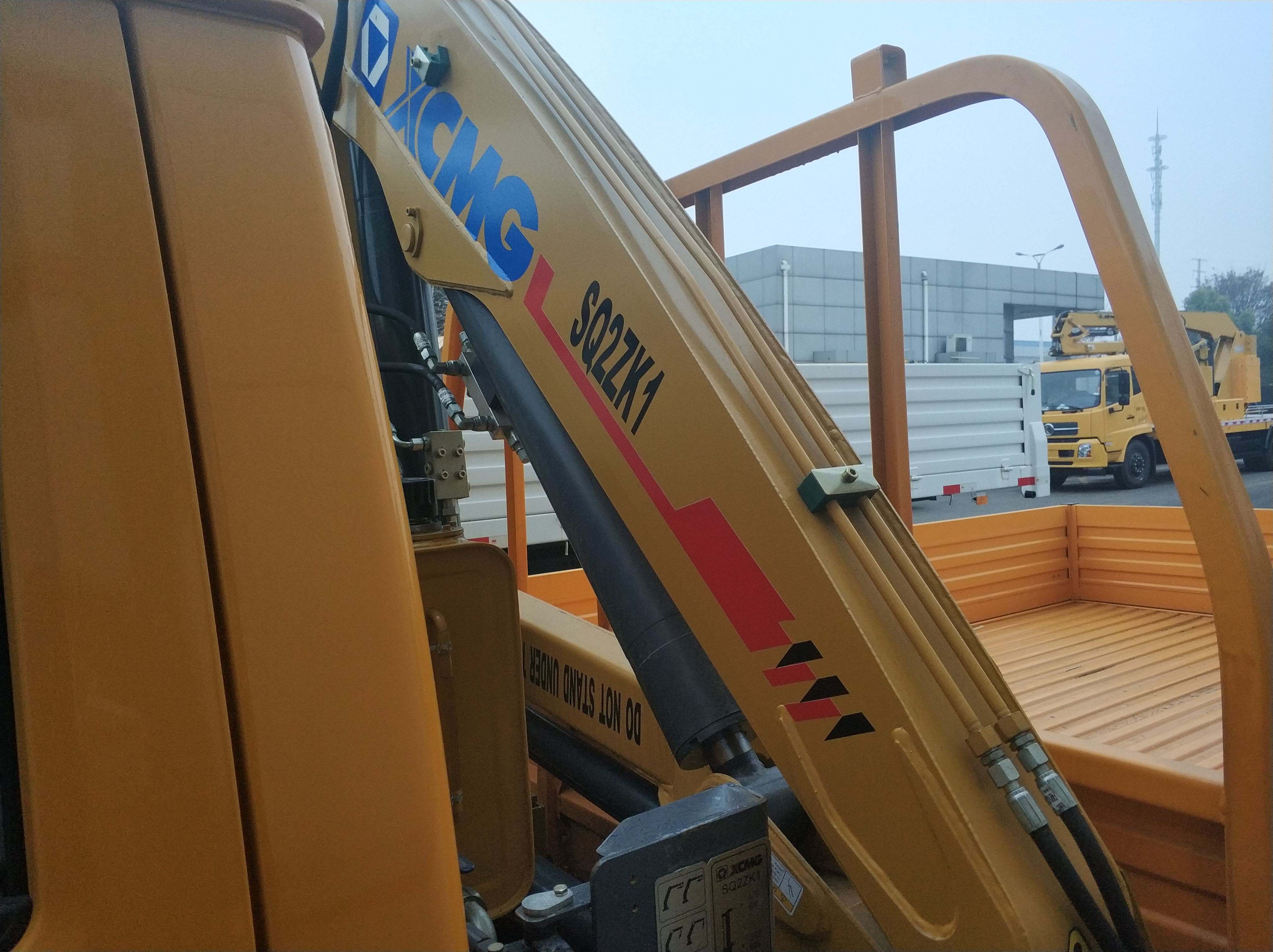

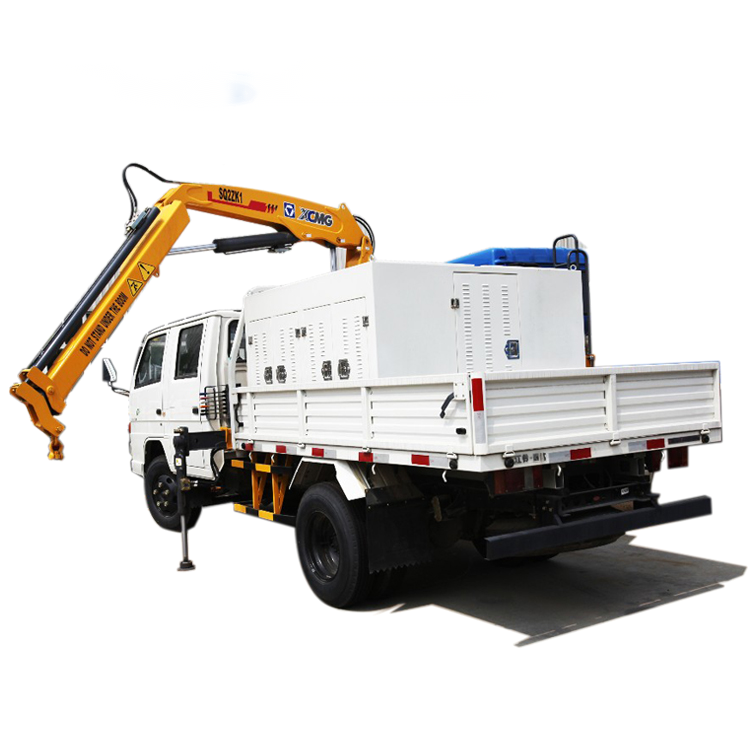

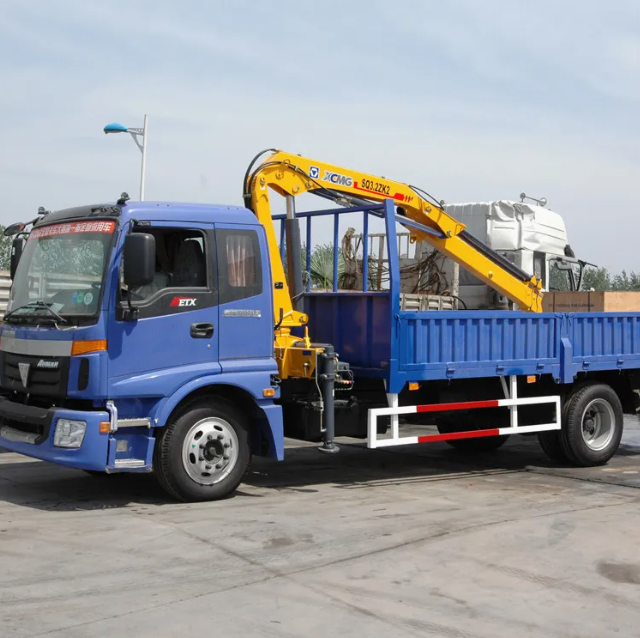

Truck mounted crane is a kind of hydraulic lift and telescopic system to achieve the goods up and down, rotation, lifting equipment, usually assembled on the truck. Generally by the truck chassis, cargo compartment, take power, crane composition.
Product Advantage
Single cylinder synchronization guy cable technology makes work efficiency higher than before.
Advanced development means make sure that the design is very reliable.
The more symmetrical center design of pentagon or hexagon boom make it has bigger anti-bending capacity.
Compact hinge point design takes up smaller space.
The work is more safety after fitted with alarm device.
The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system.
Float three -point bridge structure design can lower the accessional stress on the chassis when traveling.
It has been fitted own powerful slewing of working in diversifying conditions.
Anti-slewing impulse equipment makes vehicle running safety.
Technical Parameters
| Item | Unit | SQ2ZK2 |
| Max Lifting Capacity | kg | 2000 |
| Max Lifting Moment | t.m | 3.2 |
| Recommend Power | kw | 9 |
| Max Oil Flow of Hydraulic System | L/min | 20 |
| Max Pressure of Hydraulic System | Mpa | 20 |
| Oil Tank Capacity | L | 25 |
| Crance Weight | kg | 608 |
| Installation Space | mm | 680 |
| Rotation Angle | ° | 370 |
Product Uses
1. Urban Construction and Municipal Engineering
This crane is ideally suited for urban construction sites and municipal projects, handling the lifting of building materials such as precast slabs and reinforcing bars. Its folding boom design and compact dimensions (requiring only 680mm of installation space) enable agile operation in confined urban streets, significantly boosting construction efficiency.
2. Logistics Warehousing and Yard Handling
Within logistics parks, warehousing centers, and cargo transfer yards, this equipment efficiently handles tasks like loading/unloading goods and moving pallets. Its 2000kg rated lifting capacity accommodates most common cargoes, while 370° full rotation ensures operational flexibility.
3. Small Construction Sites and Specialized Industrial Settings
For compact construction sites, workshops, or specific industrial environments, this crane facilitates material handling during equipment installation and maintenance. Its hexagonal boom technology and flanged telescopic boom connection ensure stability and durability under demanding conditions.
4. Emergency Response and Auxiliary Operations
With its excellent mobility (compatible with various light truck chassis) and dependable hydraulic system, this crane also serves emergency rescue scenarios, lifting rescue equipment or performing auxiliary tasks.
Product Operate Guide
Before operating the SQ2ZK1, operators must hold a valid special equipment operator's license. Conduct a comprehensive inspection of the equipment's condition prior to operation to ensure all components are in good working order. Fully extend the outriggers on level, solid ground to achieve stable support. Strictly adhere to the load chart provided with the equipment; overloading is strictly prohibited. When operating via the control console, movements must be smooth and steady, fully utilizing its 370° full rotation capability. Lifting operations must never pass over personnel, and a safe distance must be maintained from electrical facilities. Regularly inspect the condition of wire ropes, hooks, and structural components, and maintain detailed equipment maintenance records.
FAQ
1. WHAT SHOULD I DO IF THE ENGINE IS HARD TO START?
Check the battery charge, starter motor operation, fuel system, and intake system, troubleshooting each component systematically.
2. HOW TO RESOLVE INSUFFICIENT HYDRAULIC SYSTEM PRESSURE?
Check the hydraulic oil level and quality. Inspect the hydraulic pump, control valves, and cylinders for internal leaks or damage.
3. WHAT CAUSES EQUIPMENT TO VEER OFF COURSE DURING TRAVEL?
Verify consistent tire pressure or track tension. Check for unilateral brake drag in the braking system or transmission system malfunctions.
4. WHAT TASKS ARE REQUIRED FOR ROUTINE MAINTENANCE?
Includes checking engine oil, hydraulic fluid, and coolant levels; cleaning the air filter; inspecting tire or track condition; and tightening all connecting components.
5. HOW OFTEN SHOULD HYDRAULIC FLUID BE REPLACED?
Generally every 2,000 operating hours or annually, but shorten the replacement interval under harsh operating conditions.
6. HOW SHOULD EQUIPMENT BE PROPERLY STORED?
Clean the equipment, fill fuel tanks, drain water from water tanks, apply rust-proofing to exposed metal parts, and start the engine monthly for operation.
