XG1412AC
| Availability: | |
|---|---|
| Quantity: | |

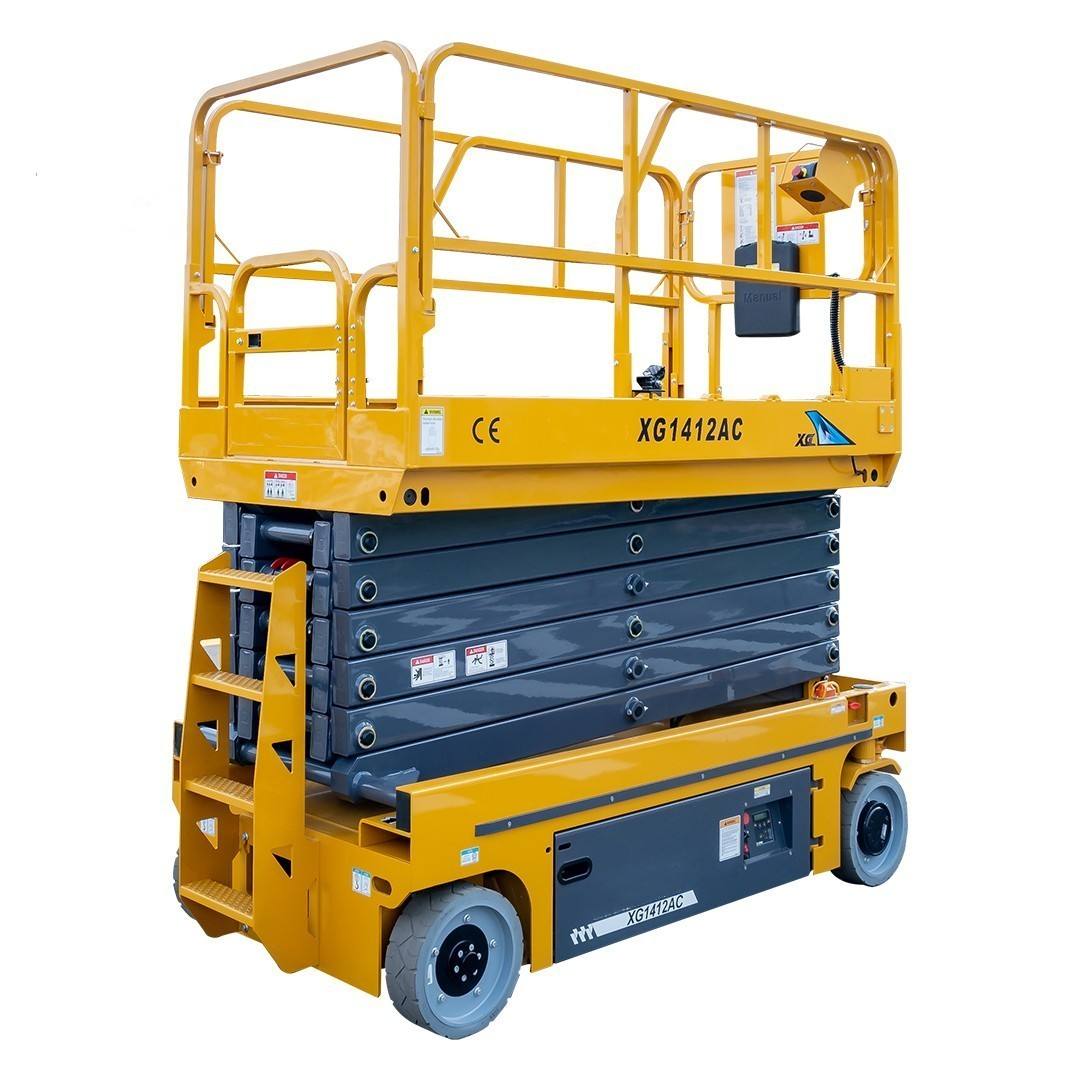

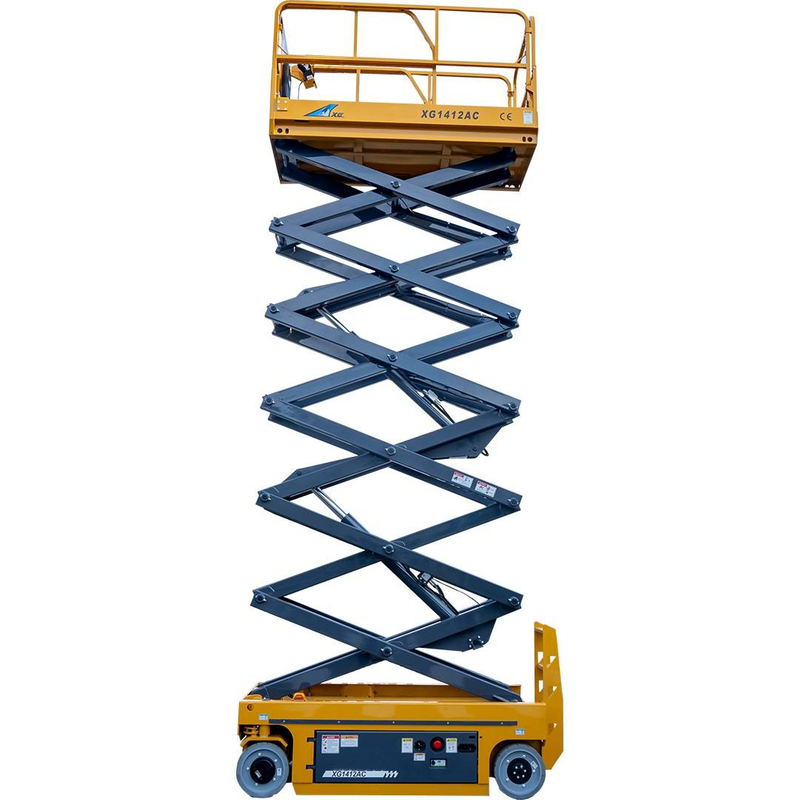

The XG1412AC is a dedicated AC-powered self-propelled scissor lift engineered for high-standard indoor aerial work scenarios. Tailored to meet stringent indoor high-altitude operation requirements, this machine boasts a maximum working height of 15.8 meters and a rated load capacity of 320 kilograms. Fitted with a reliable AC power system and 24V auxiliary battery module, the unit delivers stable, low-noise operation with zero pollutant emissions, fully complying with green construction standards. Built with high-strength reinforced steel structures and durable solid rubber tires, the equipment features superior structural stability and agile travelling adaptability. With official CE certification, it serves as a highly reliable aerial work solution for indoor construction projects, warehouse operational management, commercial venue services and daily building maintenance works.
Stable AC Power Operation: Equipped with a mature AC power supply system, the machine outputs continuous and stable power, enabling long-hour uninterrupted operation. The whole working process features low noise generation and zero exhaust discharge, realizing eco-friendly and quiet construction.
Superior Working Height & Load Capacity: Featuring a 15.8m maximum working height and 320kg standard rated load, the equipment perfectly adapts to diverse high-altitude operation and heavy-duty construction demands in indoor environments.
Enhanced Robotic Body Structure: Adopting thickened steel body frames and reinforced scissor arm structures, the equipment’s overall structural strength and impact resistance are significantly improved, effectively extending the overall service life of the machine.
Agile & Flexible Travelling Performance: Thanks to its optimized compact body design and high-sensitivity steering system, the lift can freely pass through standard building doors, indoor elevators and narrow working aisles, with strong site adaptability.
Comprehensive Safety Protection System: The machine is fully equipped with multi-dimensional safety configurations, including load overload protection, tilt angle alarm device, emergency stop mechanism, automatic terrain adaptation protection for pothole roads and anti-slip working platform, eliminating potential operation risks in all aspects.
Expandable Working Platform: Supported by a 0.9-meter retractable extended platform, the effective working area is greatly expanded, allowing operators to cover a wider working range and substantially boost overall construction efficiency.
Humanized Operation Design: The machine adopts an intuitive integrated control system and rational functional layout. The operation logic is simple and clear, which greatly reduces the operation threshold and simplifies daily operational procedures.
Low Daily Maintenance Cost: Configured with high-quality matching accessories and optimized internal mechanical structure, the equipment effectively reduces daily failure rates, lowers maintenance workload and saves long-term operational and maintenance costs.
Item | Detailed Specification |
|---|---|
Equipment Model | XG1412AC |
Maximum Working Height | 15.8 m |
Maximum Platform Lifting Height | 13.8 m |
Rated Main Platform Load | 320 kg |
Extended Platform Rated Load | 120 kg |
Main Platform Dimension (Length × Width) | 1870 × 800 mm |
Extended Platform Length | 0.9 m |
Overall Folded Dimension (L × W × H) | 2850 × 810 × 2520 mm |
Total Equipment Weight | 2230 kg |
Inner Turning Radius | 0 m |
Outer Turning Radius | 1.8 m |
Ground Clearance | 22 mm (Platform Raised) / 72 mm (Platform Stowed) |
Travelling Speed | 4.5 km/h (Platform Lowered) / 0.8 km/h (Platform Raised) |
Maximum Gradeability | 25% |
Platform Lifting Time | 28 ~ 48 s |
Platform Lowering Time | 35 ~ 48 s |
Power Supply Mode | AC Main Power + 24V Auxiliary Battery |
Qualification Certification | CE Standard Certification |
Warehouse & Logistics Industry: Suitable for high shelf inventory inspection, daily goods stock management and indoor lighting system maintenance in large storage warehouses and logistics centers.
Building Daily Maintenance: Applicable to high-altitude operations such as interior ceiling cleaning, air conditioning system maintenance, pipeline inspection and electrical circuit overhaul of high-rise buildings.
Commercial Venue Operations: Ideal for lamp replacement, advertising board installation, indoor space layout adjustment and other high-altitude works in shopping malls, hotels, exhibition halls and other commercial public areas.
Indoor Construction & Renovation: Widely used in interior wall painting, circuit wiring construction, indoor decoration and renovation projects for commercial buildings and residential houses.
Event & Exhibition Layout: Used for rapid stage assembly, promotional banner hanging, on-site equipment installation and debugging for various exhibitions, business conferences and temporary commercial events.
General Indoor High-altitude Work: Adaptable to all types of conventional high-reach aerial operation demands in closed indoor building spaces.
Check the firmness of AC power connection status, confirm auxiliary battery power level, inspect tire wear condition and verify sufficient hydraulic oil volume.
Examine the safety guardrails, retractable extended platform and fixed locking pins to ensure all components are installed firmly and without looseness.
Test the emergency stop button, tilt alarm system and automatic pothole protection functions one by one to ensure all safety devices respond normally.
Clear all obstacles on the operation site, confirm the working ground is flat, solid and stable, and ensure the ground slope is within the safe allowable range.
Turn the key switch to the ON gear to complete equipment startup and self-inspection.
Control the forward and backward travelling of the equipment through the operating joystick. The system will automatically limit the travelling speed when the platform is in a raised state to ensure operation safety.
Operate the steering system gently during movement. It is forbidden to perform sharp steering operations or drive on a slope exceeding 25% when the platform is elevated with personnel on board.
Press the lifting control button to raise the platform, and release the button to stop the lifting action in real time.
Press the lowering button to descend the platform. During the lowering process, ensure no personnel or obstacles exist in the lower working area.
The extended auxiliary platform can only be unfolded after the main platform is completely lifted. It is strictly prohibited to exceed the specified load limit of the extended platform during use.
Overload operation is strictly forbidden: the maximum load of the main platform is 320kg, and the maximum load of the extended platform is 120kg.
Do not drive or operate the equipment on a slope with a gradient greater than 25% when the platform is raised.
All operators must wear qualified safety harnesses throughout the whole high-altitude operation process.
Before moving the equipment, the platform must be completely lowered and the extended deck fully retracted and locked.
Lower the platform completely and retract and fix the extended auxiliary deck after finishing the operation.
Turn off the equipment key switch and disconnect the external AC power supply.
Clean the surface dust and stains of the equipment, and conduct a comprehensive inspection to check for loose fasteners, damaged components or abnormal wear.
Charge the auxiliary battery in a timely manner after use, and store the equipment in a dry, ventilated and flat storage environment.
Q1: What is the maximum working height of the XG1412AC scissor lift?
A: This equipment features a maximum working height of 15.8 meters, and the net lifting height of the main platform can reach 13.8 meters.
Q2: What power system is equipped on the XG1412AC?
A: The machine adopts a dual power mode of AC main power supply matched with a 24V auxiliary battery, which can support stable and long-term continuous operation of the equipment.
Q3: Is this scissor lift available for outdoor operation?
A: This model is mainly designed and optimized for indoor working scenarios. Short-time light-load operation on flat outdoor ground is allowable, but operation in heavy rain, strong wind and rugged uneven terrain is strictly prohibited.
Q4: What is the load limit of the extended platform?
A: The retractable extended platform has a maximum bearing capacity of 120 kilograms, and any overload operation is strictly forbidden.
Q5: How many operators can work on the platform simultaneously?
A: The equipment platform supports a maximum of 2 operators working at the same time, and the total weight of personnel and goods shall not exceed the 320kg rated load of the main platform.
Q6: What are the daily maintenance standards for the equipment?
A: Conduct a full functional inspection before daily use. Complete battery performance and hydraulic system inspection every week, and carry out lubrication maintenance for all movable mechanical components on a monthly basis.
