ZL60GN
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction
The ZL60GN is a medium-sized loader with comprehensive performance and robust durability. It has achieved an upgrade in capacity and efficiency on the basis of ZL50GN, and is a reliable partner for users to pursue higher production efficiency and create stable profits.
Product Advantage
Performance improvement: Compared with ZL50GN, it has a larger rated load capacity and bucket capacity, and higher operation efficiency.
Powerful and robust: Equipped with a more powerful engine and an enhanced transmission system, it has greater lifting force and a stronger ability to handle heavy-load working conditions.
Reliable and durable: It adopts a reinforced structural design and high-quality components. Key structural parts have been strengthened to adapt to harsh working conditions and have a long service life.
Reasonable operating costs: While enhancing efficiency, it maintains good fuel economy and maintenance convenience, offering a high overall cost performance.
Technical Parameters
| Description | Unit | Parameter value | |
| Rated working load | kg | 6000 | |
| Bucket capacity | m3 | 3.5 | |
| Operating weight | kg | 20000±300 | |
| Traveling speed in various gears | Forward I/II/III/IV Gear | km/h | 6/11/20/34 |
| Reverse I/II/III/IV gear | km/h | 6/11/20/34 | |
| Maximum grade ability | ° | 28 | |
| Bucket digging force | kN | 205 | |
| Maximum digging depth | mm | 82 | |
| Boom lifting time | s | ≤5.9 | |
| Total cycling time | s | ≤10.9 | |
| Minimum turning radius | Outside of bucket | mm | 7100 |
| Tire center | mm | 6005 | |
| Machine steering angle | ° | ±38 | |
| Tire specification | 23.5-25 | ||
| Tire inflation pressure | Front wheel | MPa | 0.44~0.46 |
| Rear wheel | MPa | 0.38~0.40 | |
Product Uses

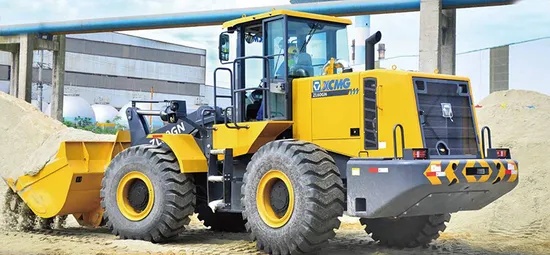

Construction site: Loading and unloading of building materials such as sand, gravel, cement and bricks.

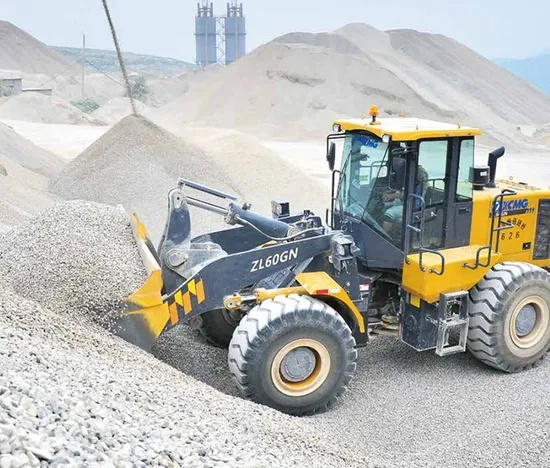

Sand and gravel yard & Mine: Responsible for loading and transporting stones and ores onto vehicles.
Railway & highway construction: roadbed filling, material loading at mixing plants, etc.
Port terminals: Short-distance handling and loading operations of bulk cargo.

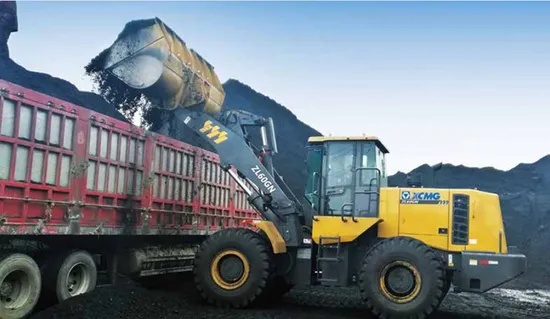

Steel plant & coal yard: Handling coal powder, mineral powder, waste residue, etc.
Agriculture & Animal Husbandry: Transporting feed, cleaning up the site.
Product Operate Guide
Start the engine：
Sit on the seat, adjust it to a comfortable position and fasten your seat belt.
Place the transmission lever in the "neutral (N)" position.
Press the accelerator pedal slightly.
Turn the key to start the engine and observe whether all the indications on the dashboard are normal. The vehicle can only be driven when the barometer reaches the specified value.
Machine Walking and Operation：
Start: Sound the horn as a warning and operate slowly and steadily.
Standard operating method: Adopt the "V-shaped operating method". The machine moves forward towards the material pile, inserts it, scoops up the material, then reverses, turns towards the direction of the carrying vehicle to move forward and lift and unload the material.
Loading operation: The bucket should be inserted horizontally or slightly downward into the material pile, and at the same time, it should be coordinated with the boom and bucket rotation movements.

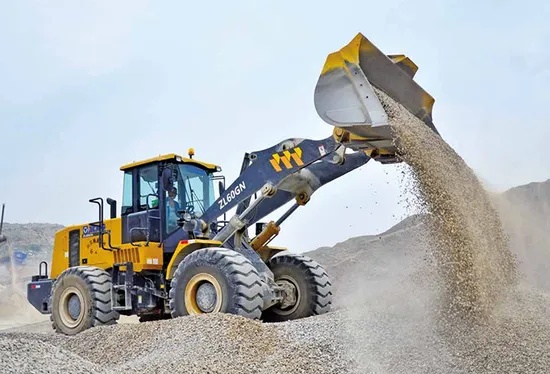

Unloading operation: Lift the boom to an appropriate height, then flip the transfer hopper forward to unload all the materials. The movement should be smooth to minimize impact.
FAQ
1. WHO ARE WE?
XUZHOU SHANGHENG ENGINEERING MACHINERY CO.,LTD is a leading construction machinery exporter,located in Xuzhou city,Jiangsu province where Xuzhou Construction Machinery Group Inc in. We have the domestic agency rights of them more than 10years,based on the advantage of them,we also estabish long-time business with other famous brands.
2. HOW IS YOUR PRICE COMPARED WITH MANUFACTURERS/FACTORIES?
We work as the leading dealers of various leading China construction machinery manufacturers/ factories, and are constantly treated with best dealership price. From numerous comparison and feedbacks from clients, our price is more competitive than the price from manufacturers/factories.
3. HOW IS YOUR DELIVERY TIME?
In general circumstance, we can have an immediate delivery of regular machines for our clients within 7 days, because we have a variety of resources to check machines in stock, locally and nation widely, and to receive machines in timely manner. But for manufacturers/factories, it will take more than 30 days to produce the ordered machine.
4. HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?
Our team is consisted of a group of diligent and dynamic people, working 247 to respond client inquiries and questions all the time Most problems can be solved within 4 hours while manufacturers/factories will take much longer to give response.
5. WHICH PAYMENT TERMS CAN YOU ACCEPT?
Normally we can work on T/T term or L/ term, sometime DP term.
1)On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment, or against the copy of original B/L for long-term cooperating client.
2)On L/C term, a 100% irrevocable L/ C without "soft clauses"from an international recognized bank can be accepted. Please seek the advice from the individual sales manager whom you work with.
6. WHAT SERVICES CAN WE PROVIDE?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
7. WHAT PRODUCTS YOU CAN GET FROM US?
Our main products including,wheel loader,backhoe loader,truck crane,crawler crane,tower crane,road roller,motor
grader,excavator,bulldozer,forklift,dump truck,trailer,tractor truck,special vehicle ,Marine Machinery and all of their spare parts.
