Product Introduction

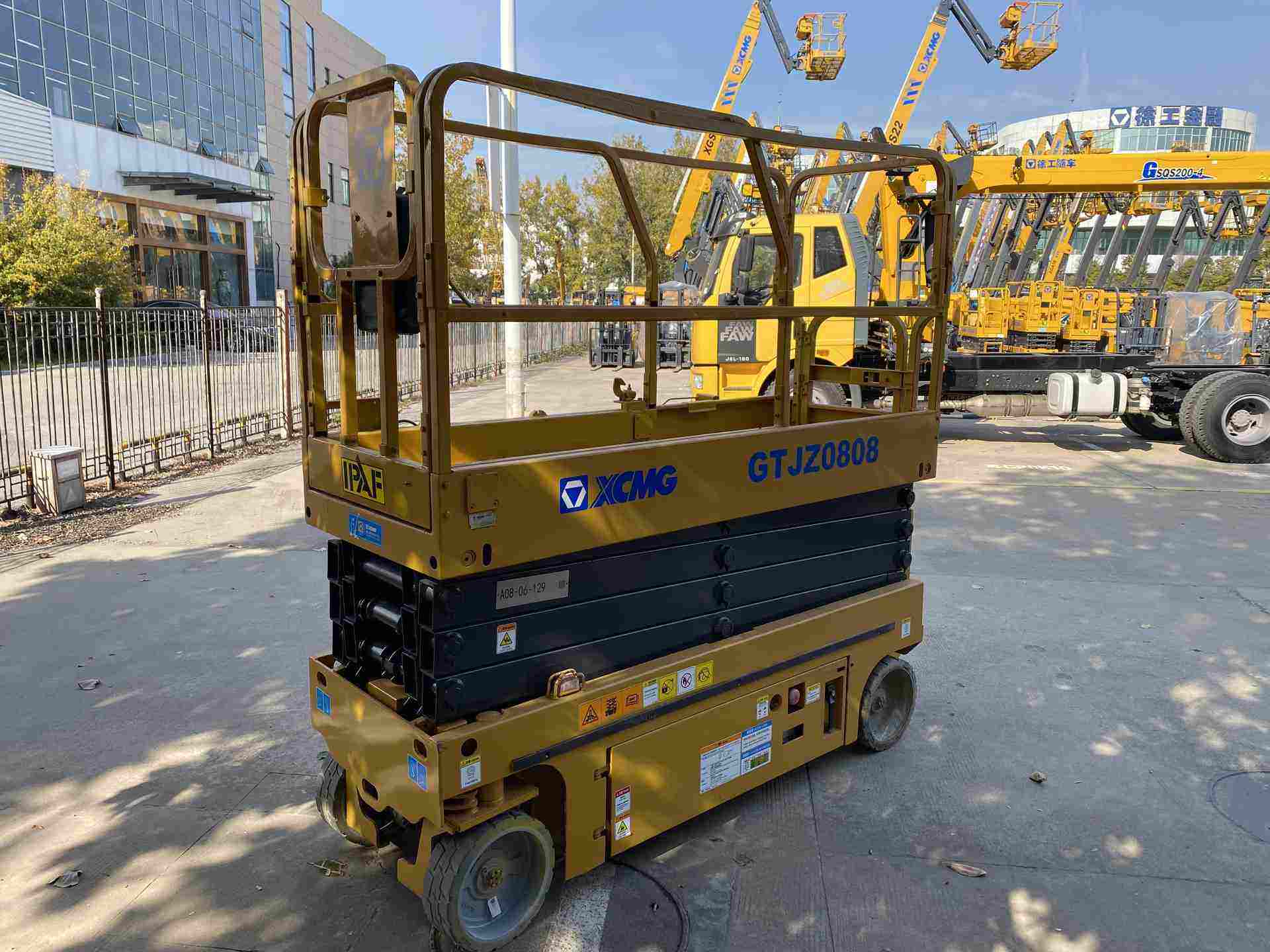

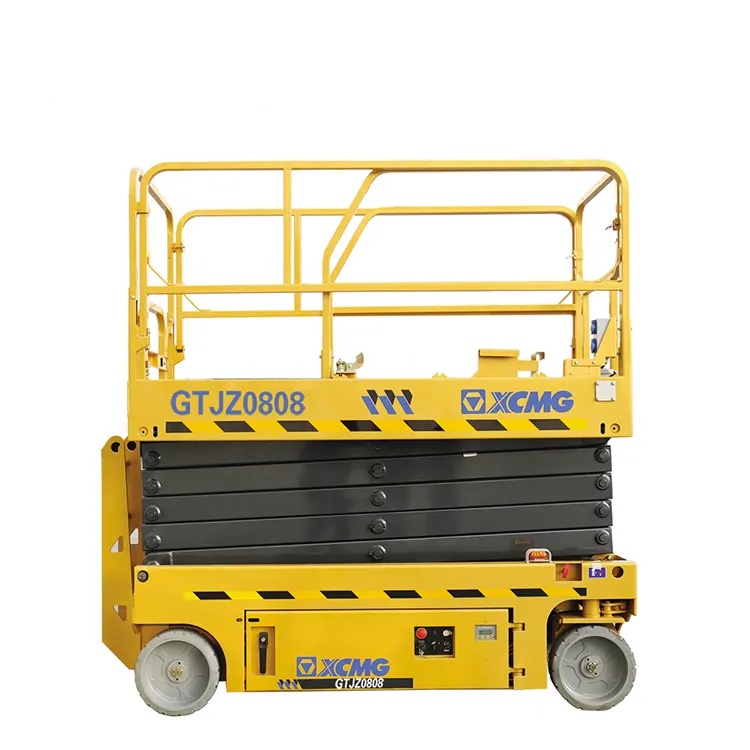

GTJZ0808 is a medium-height, high-load-bearing electric scissor lift aerial work platform. It perfectly balances working height, platform capacity and passability, and is one of the most widely used aircraft models in indoor and outdoor medium and low-altitude operations, renowned for its high efficiency, stability and safety.
Product Advantage

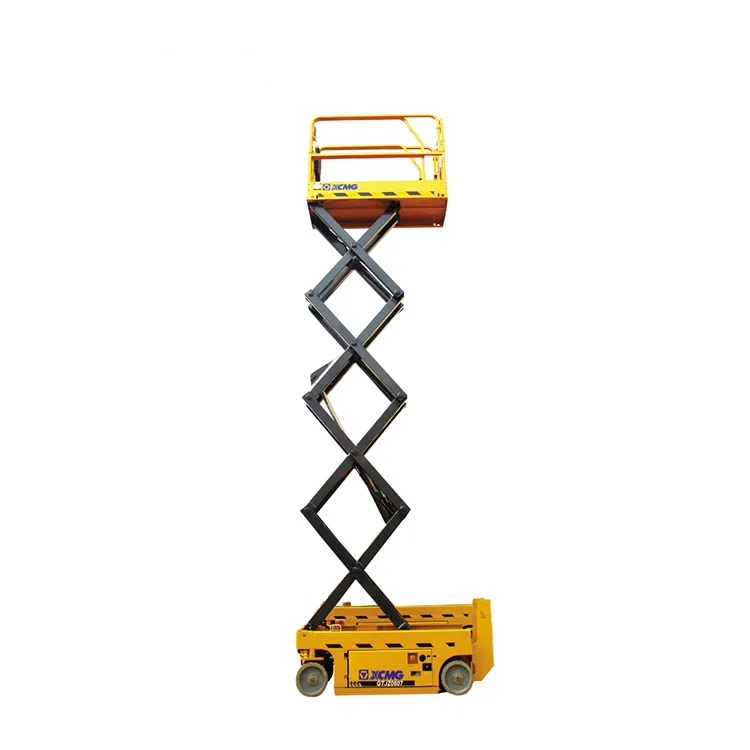

1. Scissor-type Boom Assembly
The boom assembly mainly consists of four sets of scissor-type boom. This model is equipped with narrow-type boom with local reinforcement and good reliability.
2. Electrical System
The electrical system adopts CAN bus control technology; the chassis is fitted with controller and the platform is equipped with operating handle. The chassis communicates with the platform controller through CAN bus to control the movement of the platform.
The electrical system could realize the following movements: Left/right turn of platform, traveling on forward and backward directions, control of high/low traveling speed and rising/lowering movement of platform.
3. Hydraulic System
The hydraulic system is driven with power unit. The power is supplied from the storage battery to the battery pump which drives the hydraulic system directly. The hydraulic system adopts electro-hydraulic proportional control technology, which could realize stable movement of platform.
The lifting cylinder is equipped with hydraulic lock to maintain the work platform reliably in the case that the hydraulic hose is broken. The lifting cylinder is equipped with emergency lowering valve which may lower the platform at stable speed in cases of unexpected faults and power failure to ensure the personal safety.
Technical Parameters
| Item | Parameter | Unit |
| Overall length of the machine | mm | 2485 |
| Full width of the machine | mm | 830 |
| Full height of the machine (guardrails folded | mm | 2345(1965) |
| Wheelbase | mm | 1877 |
| Maximum working height | m | 10 |
| Maximum platform height | M | 8 |
| Maximum cutting weight | kg | 230 |
| extended platform load | kg | 115 |
| Platform size | mm | 2276*825 |
| Platform extension length | mm | 900 |
| Working platform lifting speed | S | 30 |
| Working platform lowering speed | S | 34 |
| Total Weight | kd | 2170 |
| Driving speed (high speed) | km/h | 3.5 |
| Driving speed (low speed) | km/h | 0.8 |
| Maximum driving platform height | m | 8 |
| Minimum turning radius |
| 0 |
| Minimum ground clearance (pothole protector raised/lowered) | M | 100/20 |
| Maximum climbing ability | % | 25 |
| Tire specifications |
| 381/127 |
Product Uses
• Industrial plants: Installation, maintenance and repair of production equipment.
• Warehousing and logistics: Maintenance of shelves in large warehouses, replacement of lighting fixtures, and storage and retrieval of goods.
• Commercial buildings: Decoration, cleaning and advertising installation for shopping malls, airports and conference centers.
• Construction: Interior and exterior construction of low-rise buildings, installation of water and electricity.
Product Operate Guide
1. Power startup: Insert the key and turn it to the "ON" position. Observe that there are no fault alarms on the control panel
2. Mode Selection:
◦ Platform mode: Operated through the platform console (main mode)
◦ Ground mode: Operated by remote control (needs to be enabled separately)
3. Basic Operations:
◦ Movement: Slowly push the proportional handle, and the device will accelerate continuously
◦ Lifting: Operate the lifting handle to lift and lower smoothly. Sudden start and stop are strictly prohibited
◦ Steering: The device defaults to dual-wheel drive steering. Pay attention to the tail swing
FAQ
1.What power does the equipment use?How long is the battery life?
A: It adopts a 48V AC drive system. After a full charge, the battery life is approximately 6 to 8 hours (depending on the load and operating frequency).
2.How to switch between platform and ground operations?
A: Switch via the console key switch
• Platform mode: Turn the key to the "Platform" position
• Ground mode: A dedicated remote control (optional accessory) is required.
3.What should I do if the equipment has a "tilt alarm" and cannot be raised or lowered?
A: Indicates that the ground slope exceeds the limit (> 5°) :
1. Move the equipment to a level ground immediately
2. Press the "Reset" button on the console to clear the alarm
4.What safety protection devices does the equipment have?
A: Equipped with multiple protections
• Dual emergency stop buttons (platform + chassis)
• Tilt alarm system (automatically locked when > 5°)
• Manual emergency descent device
Pit protection rail
Real-time load monitoring system
5.How to land safely in case of a sudden power outage?
A: Follow these steps
Tighten the manual pump valve clockwise
2. Press the handle repeatedly until the platform touches the ground
6.What basic checks need to be done on a daily basis?
A: Check before daily work
Check for any deformation or cracks in the structural components
• Battery power (recommended to be no less than 30%)
• Tire pressure (standard 3.5±0.2Bar)
• Emergency function tests (emergency stop, emergency descent)
