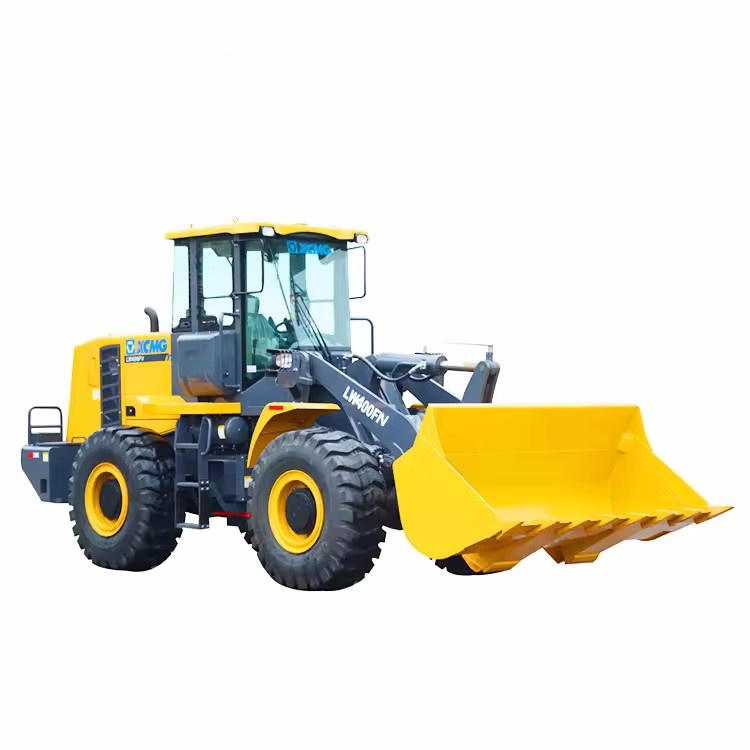

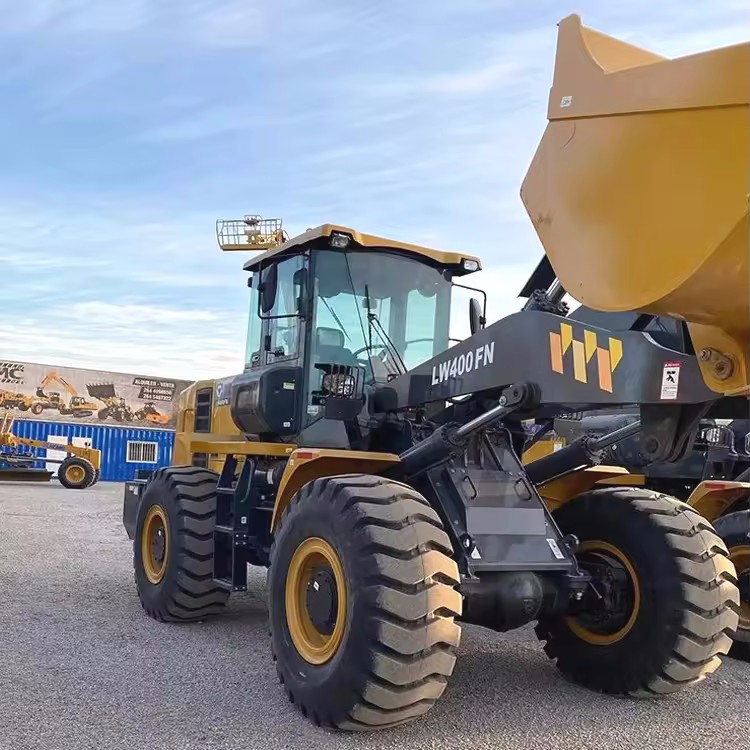

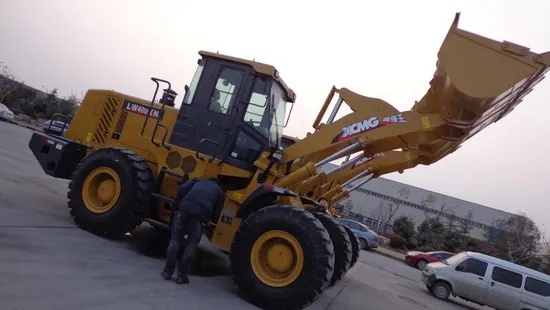

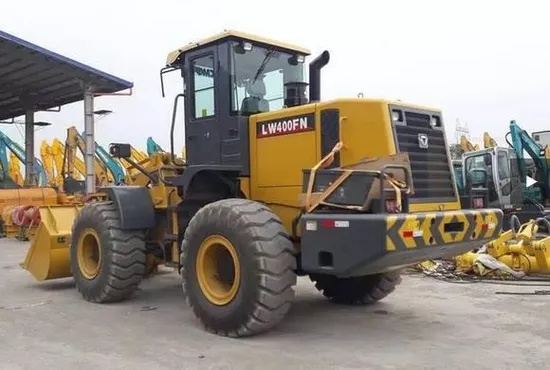

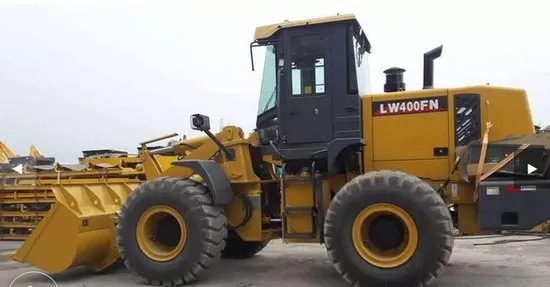

LW400FN
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction
The LW400FN is a 4-ton product designed for heavy-duty working conditions and efficient operation requirements. It perfectly inherits the excellent genes of the F series and has been comprehensively upgraded in terms of power, energy conservation, intelligent control and structure. It is particularly suitable for large-scale mines, building materials bases and infrastructure construction projects with strict requirements for production efficiency and cost control.
Product Advantage
More fuel-efficient: Intelligent control, power allocation as needed.
More powerful: Strong lifting force, excellent performance under heavy load conditions.
More durable: Reinforced structure, adaptable to harsh environments, and high availability.
Smarter: Electronic control, precise and effortless, information at a glance.
More comfortable: Luxurious cockpit, reducing fatigue and enhancing work efficiency.
Easier to maintain: Convenient for maintenance and low maintenance costs.
Technical Parameters
| Description | Specification | Unit |
| Rated operating load | 4000 | kg |
| Bucket capacity | 2.4 | m³ |
| Machine weight | 13300±200 | kg |
| Dump clearance at maximum lift | 2850 | mm |
| Reach at maximum lift | 1020 | mm |
| Wheel base | 2900 | mm |
| Tread | 2060 | mm |
| Max.breakout force | 130±5 | kN |
| Max.traction force | 120±5 | kN |
| Hydraulic cycle time-raise | 5.6 | s |
| Total hydraulic cycle time | 9.8 | s |
| Min circle radius over outside bucket | 6180±50 | mm |
| Min. turning radius over tyres | 5570±50 | mm |
| Articulation angle | 38 | ° |
| Gradeability | 28 | ° |
| Tyre size | 20.5-25-16PR | |
| Overall machine dimension L×W×H | 7420×2718×3450 | mm |
| Model | WP6G175E22 | |
| Rated Power/Speed | 129/2200 | kW/rpm |
Product Uses
Large-scale mining: Loading and unloading various types of mineral materials such as iron ore, copper ore, coal ore, and limestone.
Large-scale sand and gravel aggregate plants: Feeding before the crushing line or loading finished materials onto vehicles.
Large port terminals: Transshipment and loading operations of bulk cargo such as iron ore powder, coal, sand and gravel, etc.
Major infrastructure construction: earthwork operations for projects such as hydropower DAMS, expressways, and railways.
Steel and metallurgical enterprises: Cleaning and transportation of raw materials and waste residues within the factory.
Product Operate Guide
Power-on self-check：
Make sure the transmission lever is in neutral (N) position.
Make sure the parking brake (handbrake) is fully engaged.
Rotate the key to the "ON" (power on) position and pause for a moment. At this point, the entire vehicle is powered on, and all the indicator lights on the dashboard will light up for self-checking. Pay attention to observe whether the red alarm light remains on constantly.
Startup operation：
After the self-check is completed (with some indicator lights, such as the preheating light and the oil pressure warning light, going out), turn the key to the "START" position.
After the engine starts, release the key immediately and it will automatically rebound to the "ON" position.
Strictly prohibited: Each startup time must not exceed 15 seconds. If the startup fails, wait for at least 2 minutes before attempting again to prevent the starting motor from overheating and getting damaged.
Idle preheating after startup:
After starting, let the engine idle for 3 to 5 minutes (about 700-800 rpm).
Objective: To circulate the engine oil to all parts of the engine, lubricate the turbocharger, and thin the hydraulic oil to facilitate circulation. Never slam on the accelerator!
Observe the instruments: Keep a close eye on the instrument panel and confirm that the readings of oil pressure, water temperature, etc. quickly enter the normal green zone, and no abnormal alarm lights are on.
