Product Description

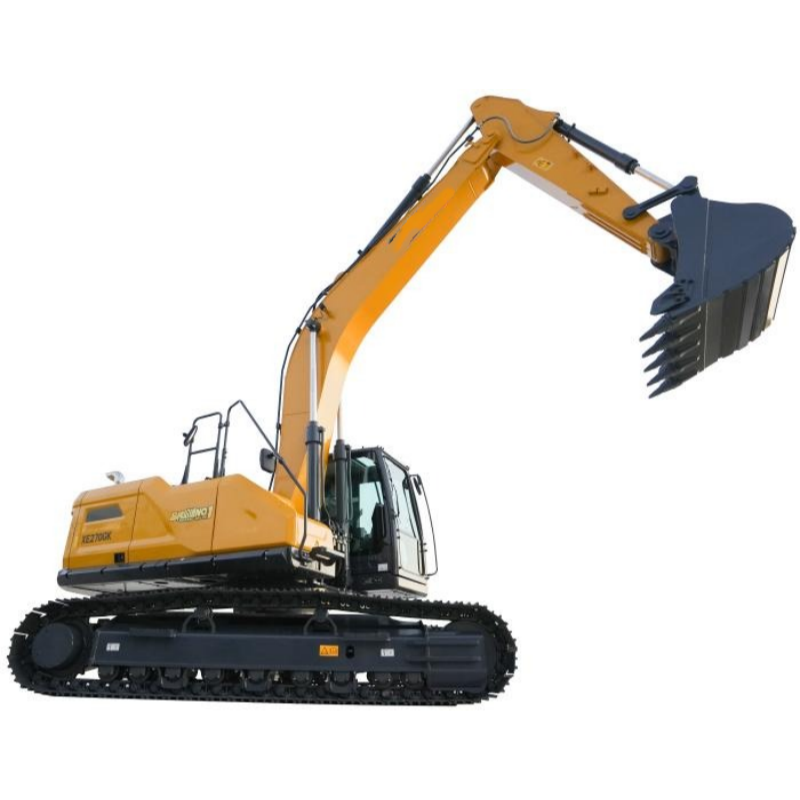

XE270G is a 27-ton medium-to-large hydraulic crawler excavator, designed for heavy-duty construction tasks. It features a 1.6m³ standard bucket capacity and 150kW high-power engine, meeting Euro IV emission standards with low fuel consumption and stable power output. Equipped with an intelligent load-sensing hydraulic system, it delivers strong digging force and smooth compound operation, adapting to harsh working conditions. Reinforced boom and arm adopt high-strength steel, with wear-resistant undercarriage to extend service life. The fully enclosed shock-absorbing cab offers wide vision and low noise for comfortable long-hour operation. It is widely used in quarries, infrastructure, municipal engineering, earthmoving, and mine loading, with convenient maintenance and high cost-effectiveness.
Product Advantages
Strong Power & Energy Saving
Equipped with high-power low-speed engine, stable power output, low fuel consumption, compliant with Euro IV emission standard, eco-friendly and cost-saving.
Excellent Hydraulic Performance
Advanced load sensing hydraulic system provides sensitive response, powerful digging force and smooth combined action, improving overall working efficiency.
Reinforced Durable Structure
Boom, arm and bucket are made of high-strength steel with reinforced welding. Thickened track frame and wear-resistant undercarriage parts adapt to heavy-load and harsh working sites.
Comfortable Driving Experience
Fully enclosed shock-absorption cab with wide view, low noise and dustproof design. Ergonomic control layout reduces operator fatigue during long-time work.
Easy Daily Maintenance
Centralized maintenance layout, easy access to oil filling ports, filter elements and wearing parts, saving inspection time and lowering maintenance cost.
Product Parameter Table
Item | Unit | Specification |
Operating Weight | kg | 27000 |
Standard Bucket Capacity | m³ | 1.6 |
Rated Engine Power | kW | 150 |
Emission Standard | - | Euro IV |
Max Digging Depth | mm | 7000 |
Max Digging Height | mm | 10200 |
Max Dumping Height | mm | 7100 |
Travel Speed | km/h | 3.3～5.5 |
Gradeability | ° | 35 |
Fuel Tank Capacity | L | 420 |
Product Uses
Municipal road construction and foundation excavation
Earthmoving, site leveling and pit development
Quarry mining, stone loading and material handling
River dredging and water conservancy engineering
Building demolition and construction waste cleaning
Mine infrastructure and large project earthwork
Engineering equipment leasing and long-term construction projects
Product Operation Guide
Pre-operation Inspection
Check engine oil, hydraulic oil, coolant and fuel volume. Inspect track tension, bucket teeth wear, pipeline leakage and bolt tightness. Clean air filter and confirm site terrain is safe and flat.
Starting and Working Operation
Start the engine and keep idling for preheating. Operate joystick gently for excavation, slewing, lifting and traveling. Avoid sudden start, sharp turn and overload digging. Keep stable movement during combined operations.
Parking and Daily Maintenance
Park the machine on flat ground, place the bucket flat on the ground. Idle the engine for several minutes then shut down. Clean the body and heat dissipation system; lubricate key parts and replace wearing parts regularly.
Safety Notice
Do not operate on over-gradient slopes. Keep away from collapse edges and stay out of the slewing range. Prohibit overload excavation and oblique pulling. Stop working in heavy rain, strong wind and bad weather.
Frequently Asked Questions
Q1: What is the tonnage of XE270G?
A1: It is a 27-ton medium and large hydraulic crawler excavator.
Q2: What is the standard bucket capacity?
A2: Standard bucket capacity is 1.6m³, suitable for heavy loading and earthmoving work.
Q3: Is it fuel efficient for long-term operation?
A3: Yes, matched with energy-saving engine and optimized hydraulic system, it keeps low fuel consumption under high efficiency.
Q4: What working conditions is it suitable for?
A4: Perfect for quarry, municipal engineering, water conservancy, mine and large earthwork projects.
Q5: Can it be fitted with hydraulic breaker?
A5: Yes, it can be equipped with breaker, ripper and other attachments to meet multiple working needs.
Q6: Is daily maintenance simple?
A6: Reasonable layout with centralized maintenance points, easy inspection and low later maintenance cost.
