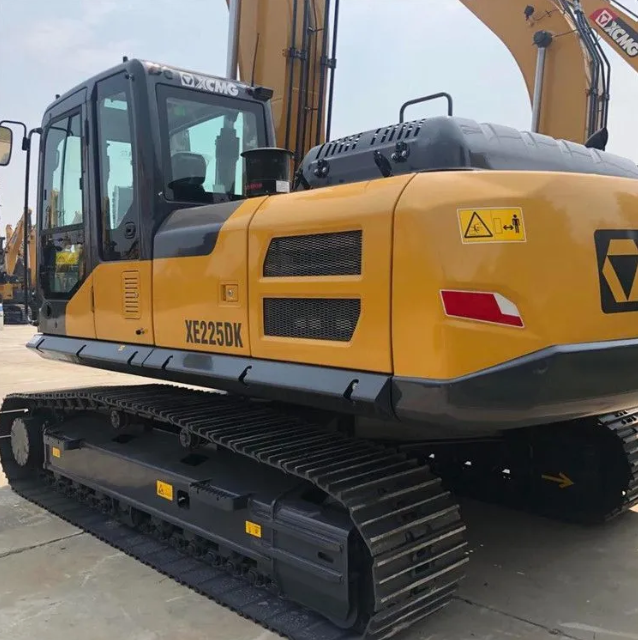

XE225DK
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction
The XE225DK hydraulic excavator adopts a high-power, large-displacement and low-noise engine, a high-pressure low loss hydraulic system, an optimized design of the working mechanism enclosure structure and a standard reinforced digging bucket largest in capacity among its peers, able to greatly improve its reliability, durability and adaptability to various working conditions; its reinforced chassis system can have the complete excavator achieve stronger adaptability to mining conditions and a longer service life;
Product Advantage
1. Powerful digging capability: The XE225DK excavator boasts high-performance digging capabilities, enabling it to effortlessly handle a wide range of digging tasks.
2. Stable and reliable performance: This excavator utilizes high-quality components and advanced technology, offering outstanding stability and reliability, capable of operating for extended periods without frequent malfunctions.
3. Efficient operational performance: The XE225DK excavator features precise control performance, enabling it to quickly and accurately complete excavation tasks and enhance work efficiency.
4. Excellent fuel efficiency: This excavator is equipped with a low-energy consumption engine and an advanced fuel management system, effectively reducing fuel consumption and lowering operational costs.
5. Human-centric design: The XE225DK excavator prioritizes user experience with a human-centric design, featuring a comfortable cab and advanced control systems for enhanced convenience and comfort.
6. Easy maintenance: The excavator is equipped with an intelligent fault diagnosis system that monitors machine status in real-time and provides remote support and maintenance, reducing repair time and costs.
Technical Parameters
| Model | Unit | XE225DK | |
| Operating weight | Kg | 21900 | |
| Bucket capacity | m³ | 1.0-1.2(1.14) | |
| Engine | Model | / | 4HK1X |
| No. of cylinders | / | 4 | |
| Output power | kw/rpm | 140/2000 | |
| Maximum torque/speed | N.m/rpm | 650/1500 | |
| Displacement | L | 5.3 | |
| Main performance | Travel speed | km/h | 5.3/3.0 |
| Swing speed | r/min | 11.8 | |
| Gradeability | ° | ≤35 | |
| Ground pressure | kPa | 47.2 | |
| Bucket digging force | kN | 149 | |
| Arm digging force | kN | 111 | |
| Maximum traction | kN | 184 | |
| Hydraulic system | Rated flow of main pump | L/min | 2×225 |
| Main safety valve pressure | MPa | 34.3/37 | |
| Travel system pressure | MPa | 34.3 | |
| Rotary system pressure | MPa | 27.5 | |
| Appearance size | Overall length | mm | 9625 |
| Overall width | mm | 2990 | |
| Overall height | mm | 3100 | |
| Width of platform | mm | 2830 | |
| Track length | mm | 4255 | |
| Overall width of chassis | mm | 2990 | |
| Track width | mm | 600 | |
| Length to center of rollers | mm | 3462 | |
| Track gauge | mm | 2390 | |
| Counterweight clearance | mm | 1050 | |
| Min. ground clearance | mm | 486 | |
| Min. tail swing radius | mm | 2890 | |
| Track height | mm | 942 | |
| Working scope | Max. digging height | mm | 9620 |
| Max. dumping height | mm | 6780 | |
| Max. digging depth | mm | 6680 | |
| Maximum depth cut for 2240mm(8 ft) level bottom | mm | 6500 | |
| Max. vertical wall digging depth | mm | 5715 | |
| Max. digging radius | mm | 9940 | |
| Min. swing radius | mm | 3530 | |
Product Uses
1. Municipal and Urban Construction
The XE225DK is ideal for urban foundation excavation, trench laying, landscape renovation, and site leveling. Its flexible operation allows it to adapt to relatively narrow construction environments, while its reinforced work equipment and collision-resistant beam design reduce the risk of damage during complex urban operations.
2. Agricultural Water Conservancy and Rural Construction
In agricultural water conservancy projects, the XE225DK can be used for channel excavation and dredging, pond excavation, farmland renovation, and the construction of small-scale agricultural water conservancy facilities. Its excellent fuel efficiency helps reduce long-term operational costs, making it a reliable choice for rural infrastructure construction.
3. Small and Medium-Sized Mining, Quarrying, and Material Handling
Equipped with mining-type work equipment (with strength increased by over 10%) and a new reinforced chassis, the XE225DK is capable of handling tasks such as rock excavation, loading, and material handling in quarries and sand pits. Its digging force has been increased by over 5%, ensuring operational efficiency.
4. Highway bridges and general earthwork projects
The XE225DK is widely used in highway embankment excavation, bridge and culvert foundation construction, slope grading, and other earthwork projects. Its standard emergency stop switch and reliable hydraulic system (with additional filtration in the breaking circuit) ensure operational safety and system durability.
5. Flexible Application with Multiple Attachments
The XE225DK can be adapted for use in concrete breaking, material handling, and other scenarios by replacing hydraulic breakers, grapples, and other attachments, achieving multi-functional use with a single machine.
Product Operate Guide
Before operation, check the oil, hydraulic fluid, and coolant levels. After starting, idle for 3-5 minutes to warm up. The left/right control levers control the travel and working mechanisms, respectively. Maintain smooth movements during operation. When using attachments such as a breaker, switch the hydraulic lines to “breaker mode.” Pay special attention to fuel efficiency and avoid prolonged high-speed idling. Thoroughly clean the equipment after use, with particular attention to the wear condition of the reinforced working mechanisms. Regularly maintain the fuel filter and hydraulic system. Always observe the surrounding environment to ensure safe operation.
FAQ
1. WHO ARE WE?
XUZHOU SHANGHENG ENGINEERING MACHINERY CO.,LTD is a leading construction machinery exporter,located in Xuzhou city,Jiangsu province where Xuzhou Construction Machinery Group Inc in. We have the domestic agency rights of them more than 10years,based on the advantage of them,we also estabish long-time business with other famous brands.
2. HOW IS YOUR DELIVERY TIME?
In general circumstance, we can have an immediate delivery of regular machines for our clients within 7 days, because we have a variety of resources to check machines in stock, locally and nation widely, and to receive machines in timely manner. But for manufacturers/factories, it will take more than 30 days to produce the ordered machine.
3. WHICH PAYMENT TERMS CAN YOU ACCEPT?
Normally we can work on T/T term or L/ term, sometime DP term.
1)On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment, or against the copy of original B/L for long-term cooperating client.
2)On L/C term, a 100% irrevocable L/ C without "soft clauses"from an international recognized bank can be accepted. Please seek the advice from the individual sales manager whom you work with.
4. WINDSHIELD WIPERS NOT WORKING OR OPERATING AT ABNORMAL SPEEDS?
Inspect the wiper motor, linkage mechanism, fuse, control switch, and intermittent relay.
5. POOR AIR CONDITIONING COOLING PERFORMANCE?
Check for insufficient refrigerant pressure, dust-clogged condenser fins, or a dirty cabin air filter.
6. BATTERY DRAINING QUICKLY (LOSES CHARGE RAPIDLY AFTER PARKING)?
AInvestigate whether any aftermarket devices are secretly draining power or if equipment has “parasitic current.” Disconnect circuits one by one and measure static current with a multimeter.
