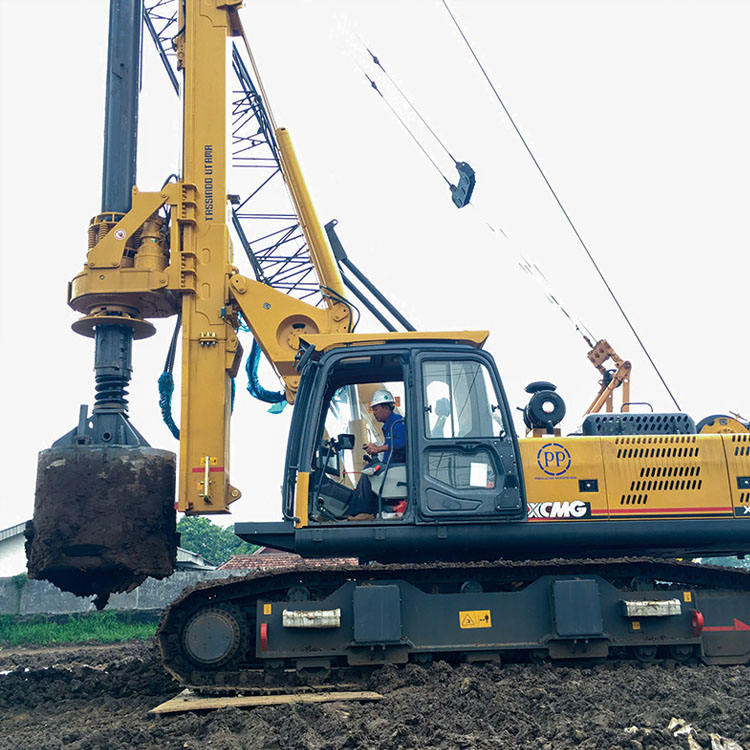

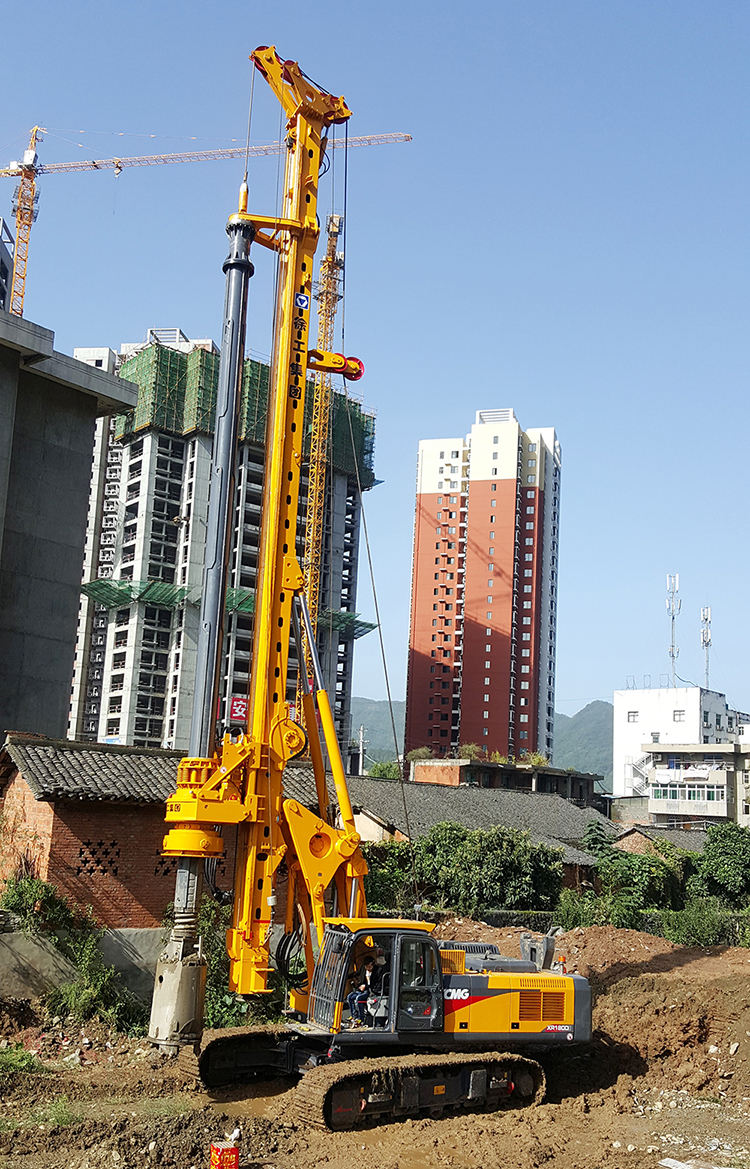

XR180D
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction
The XR180D adopts a dedicated hydraulic telescopic track chassis and large-diameter slewing bearings, which not only ensures outstanding stability during operation but also facilitates the transportation of equipment during relocation. It is equipped with a Cummins electronically controlled turbocharged engine, which not only has strong power but also meets strict environmental protection emission standards (such as Euro III standards)
Product Advantage
Hydraulic telescopic (TDP series) track chassis and large diameter of slewing bearing which is special for rotary drilling rig is used, and meets super strong stability and convenience of transportation.
German hydraulic system is used, and for which the positive flow control, load sensing control and power limit control is used to make the hydraulic system more energy efficient.
Single row of rope and master winch is used to solve effectively the wear issue of steel wire rope and increase effectively the service life of steel wire rope; and the master winch is provided with drilling depth detector, and the single row of rope makes the depth detection more accurate.
Anti-noise cab with FOPS function, adjustable seat, air conditioner, interior and exterior lights, windshield wiper with water spray function. Control console with various instruments and handles, color LCD with powerful function.
Technical Parameters
| Description | Unit | Parameter | |
| Max. drilling diameter | mm | 1800 | |
| Max. drilling depth | m | 46 | |
| Engine | Model | QSB6.7 | |
| Rated power/speed | kW | 194/(2200r/min) | |
| Rotary drive | Max. torque | kN.m | 180 |
| Rotational speed | r/min | 7-27 | |
| Crowd cylinder | Max. Pushing force | kN | 160 |
| Max. Pulling force | kN | 180 | |
| Max. stroke | mm | 5000 | |
| Main winch | Max. pulling force | kN | 180 |
| Max. single-rope speed | m/min | 65 | |
| Diameter of the steel wire rope | mm | 180 | |
| Auxiliary winch | Max. pulling force | kN | 50 |
| Max. single-rope speed | m/min | 70 | |
| Diameter of the steel wire rope | mm | 16 | |
| Traveling | Max. traveling speed of the overall unit | km/h | 1.5 |
| Max. climbable gradient of the overall unit | % | 35 | |
| Hydraulic system | Working pressure | MPa | 35 |
| Rotary table slewing angle | ° | 360 | |
| Weight of overall unit | t | 58 | |
| Dimension | Working condition | mm | 8350*4200*20480 |
| Transportation condition | mm | 14255*3000*3455 | |
Product Uses
Oil and gas exploration: Suitable for onshore oil and gas field development, meeting the needs of conventional oil and gas well operations.
Geothermal energy development: Used for geothermal well construction, efficiently penetrating hard rock layers to support clean energy extraction.
Hydrogeological survey: Accurately completing hydrogeological monitoring wells, irrigation wells, and other projects to ensure the quality of water resource development.
Mining Exploration: Supports core sampling, providing reliable data support for resource assessment of metal mines, coal mines, and other resources.
Product Operate Guide
Pre-operation debugging: Check the hydraulic system, drill pipe connections, and power head status to ensure stable equipment operation.
Intelligent drilling control: Adjust the speed and feed pressure according to the rock layer characteristics, and use digital instruments to monitor the working conditions in real time.
Safe operation: Use the derrick anti-tilt system in accordance with regulations, suspend operations in bad weather, and ensure the safety of personnel and equipment.
Maintenance and repair: Replace lubricating oil regularly, clean the drill pipe threads, and treat key components with rust prevention to extend their service life.
