Product Description

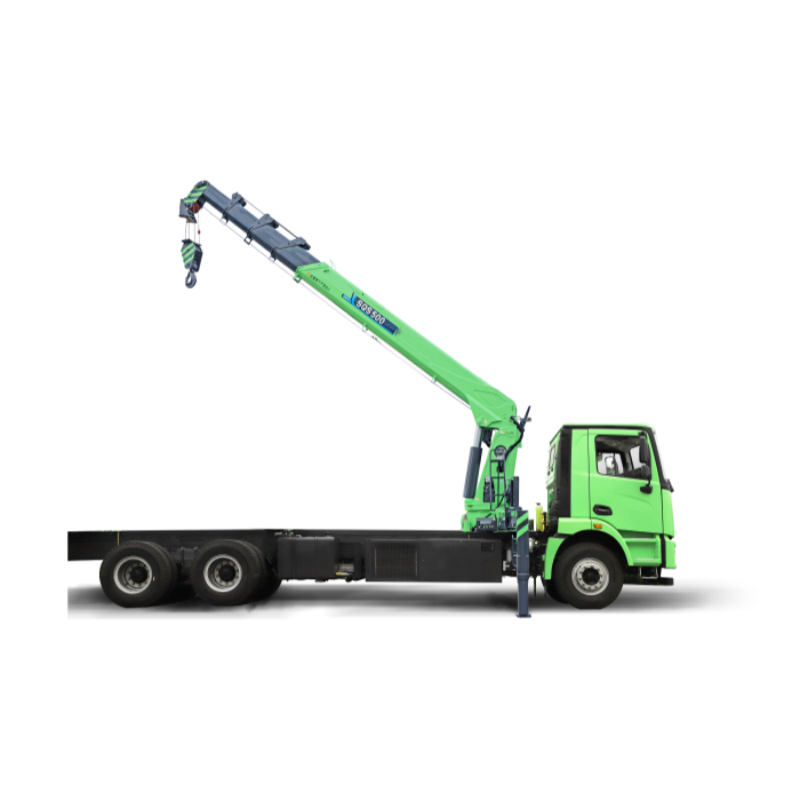

SQS500P hydraulic truck mounted crane is an upgraded heavy-duty loader crane designed for high-load and long-reach working scenarios. Adopting high-strength integral steel boom and optimized hydraulic transmission system, the equipment realizes smooth telescoping, luffing and slewing movements with low vibration and high stability.
Equipped with a 5-section telescopic boom, the crane features a maximum hydraulic extension length of 22.23m and a maximum lifting capacity of 20 tons. The full 360° continuous rotation structure eliminates dead working angles, greatly improving operation flexibility in narrow and complex construction sites. The whole machine adopts anti-rust baking paint and reinforced structural welding technology, effectively resisting corrosion, dust and severe weather erosion for long-term outdoor service.
This crane is compatible with mainstream heavy-duty truck chassis such as HOWO, SHACMAN and FAW. It supports customized configurations including wireless remote control, hydraulic outriggers, multi-functional grabbing attachments and safety monitoring systems. Strict factory load testing and quality inspection ensure stable performance and ultra-low failure rate for global commercial and engineering applications.
Product Advantages
Superior Heavy-load Lifting Performance:
Rated lifting torque reaches 515kN·m with 20-ton maximum lifting capacity. The 5-section boom realizes long-distance and high-altitude hoisting, fully meeting heavy-duty engineering operation demands.
360° Full Continuous Rotation:
Infinite slewing design without dead angles, flexible operation in narrow construction sites, road maintenance and municipal overhead working scenarios.
Stable & Efficient Hydraulic System:
Optimized hydraulic circuit and high-quality core components ensure smooth boom movement, fast response, low energy consumption and easy daily maintenance.
High-strength Durable Structure:
Integral high-tensile steel boom and precision welding process improve overall rigidity and anti-fatigue ability. Professional anti-corrosion paint adapts to harsh outdoor environments.
Strong Chassis Compatibility:
Flexible matching with various 8×4 heavy-duty truck chassis, convenient for vehicle mounting and road transportation, realizing one vehicle with multiple functions.
Complete Safety Protection:
Built-in overload protection, height limit and hydraulic balance devices to prevent overload and tilting risks, ensuring safe and standardized operation.
Customizable Configuration:
Optional wireless remote control, hydraulic supporting legs, auxiliary hooks and grapple accessories to adapt to diversified working conditions.
Technical Parameters
Item | Specification |
Model | SQS500P |
Max Rated Lifting Capacity | 20000kg (20 Ton) |
Rated Lifting Torque | 515 kN·m |
Boom Structure | 5 Sections Telescopic Boom |
Max Hydraulic Boom Length | 22.23m |
Max Working Height | 25m |
Rotation Range | 360° Continuous Full Rotation |
Control Mode | Manual Hydraulic Control / Wireless Remote Control (Optional) |
Working Pressure | Standard Industrial Hydraulic Pressure |
Applicable Chassis | 8×4 Heavy-duty Truck (HOWO, SHACMAN, FAW, etc.) |
Optional Accessories | Wireless Remote Controller, Lifting Hook, Timber Grapple, Hydraulic Outrigger |
Product Applications
Construction Engineering:
Hoisting and handling steel structures, construction materials and mechanical equipment on building sites.
Municipal Maintenance:
Street lamp replacement, guardrail installation, bridge maintenance and urban overhead operation.
Logistics & Freight:

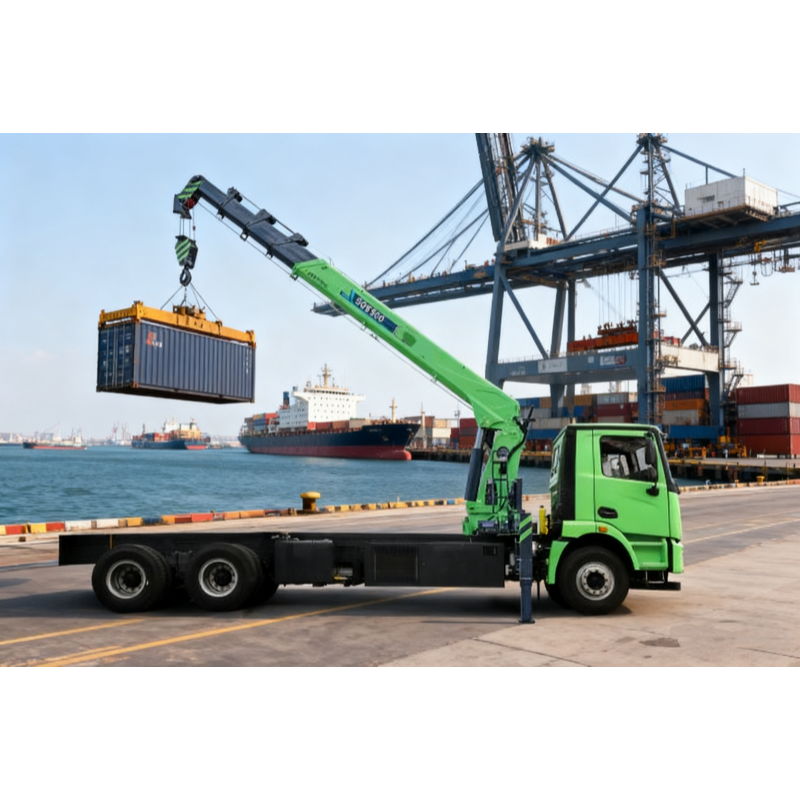

Container loading and unloading, heavy cargo transshipment and yard handling work.
Power & Communication Engineering:
Electric pole erection, cable laying and communication tower maintenance.
Forestry & Mining:
Timber grabbing and transportation, mining equipment handling and field engineering operation.
Road & Traffic Rescue:
Highway obstacle clearance, vehicle rescue and emergency hoisting tasks.
Rural & Field Engineering:
Outdoor construction, farmland water conservancy and remote area hoisting operations.
FAQ
Q1: What truck chassis is suitable for SQS500P crane?
A: The SQS500P 20-ton crane is mainly matched with 8×4 heavy-duty truck chassis, compatible with mainstream brands such as HOWO, SHACMAN and FAW. We can provide professional chassis matching suggestions according to local road conditions and working scenarios.
Q2: Does this crane support wireless remote control?
A: Yes. The standard configuration is manual hydraulic operation, and wireless remote control system is available as an optional upgrade for more flexible and safer remote operation.
Q3: What is the delivery time for standard SQS500P?
A: The standard model has stable production cycle. The delivery time is 20–35 working days after deposit confirmation. For customized configurations, the delivery period will be adjusted according to the modification scheme.
Q4: What is your after-sales warranty policy?
A: We provide 12 months factory warranty for the whole crane. During the warranty period, free technical support and fault guidance are provided. Spare parts are supplied at factory cost for long-term after-sales service.
Q5: Can I customize accessories and painting color?
A: Customization is supported. We can customize body color, install auxiliary lifting hooks, timber grapples, reinforced outriggers and other accessories to meet diverse working needs.
Q6: Is the machine suitable for long-distance outdoor operation?
A: Absolutely. With anti-corrosion paint, stable hydraulic system and all-weather structural design, the SQS500P adapts to high temperature, dust, humid and other harsh outdoor environments, ideal for long-term field operation.
