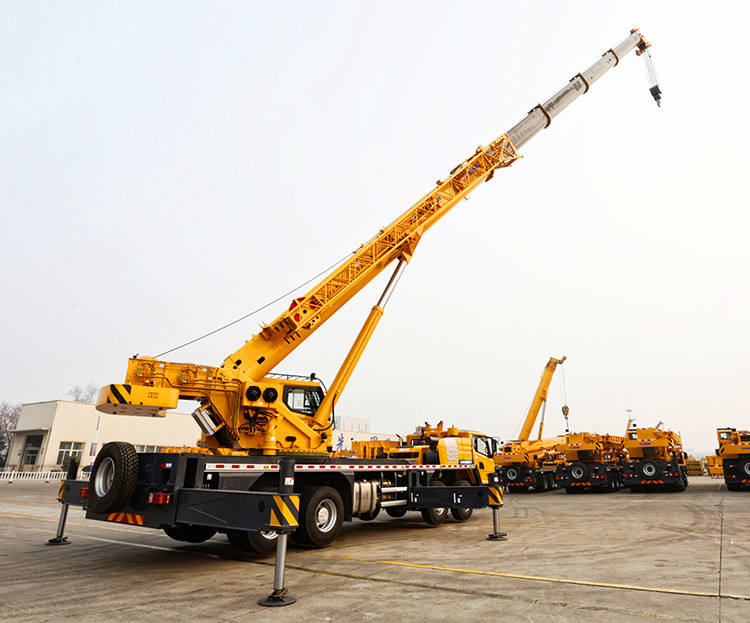

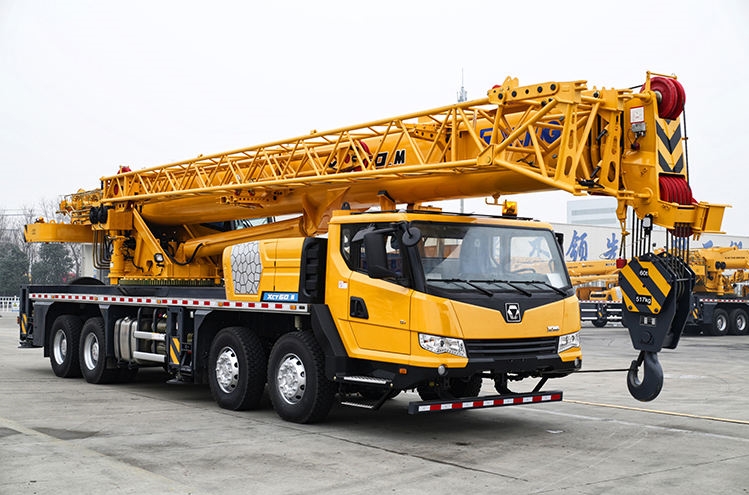

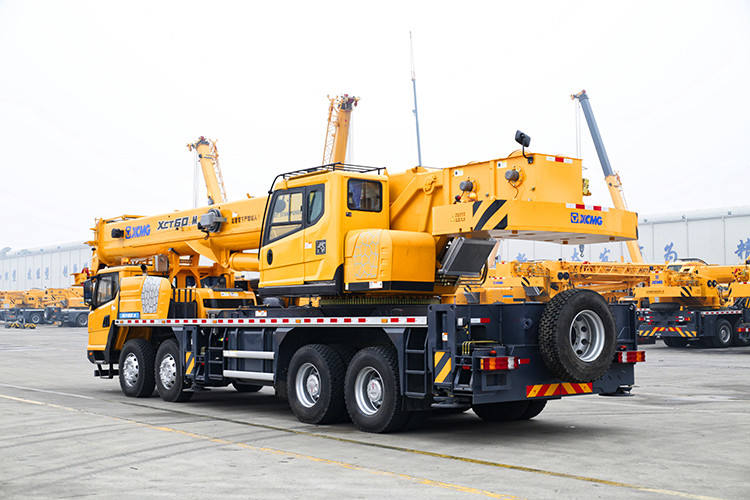

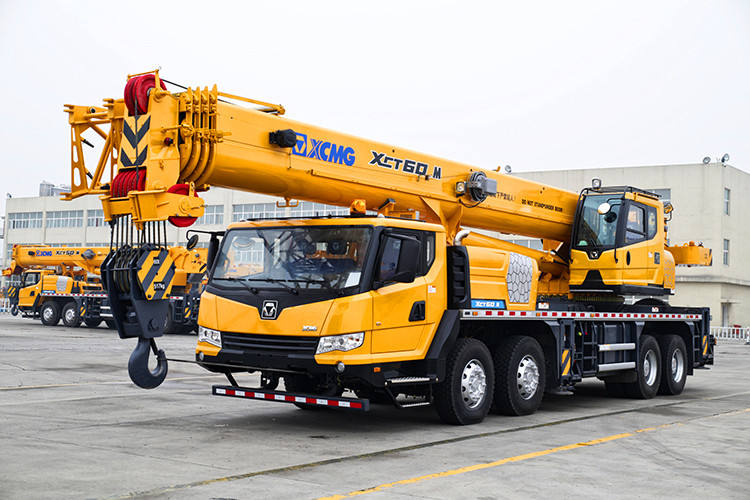

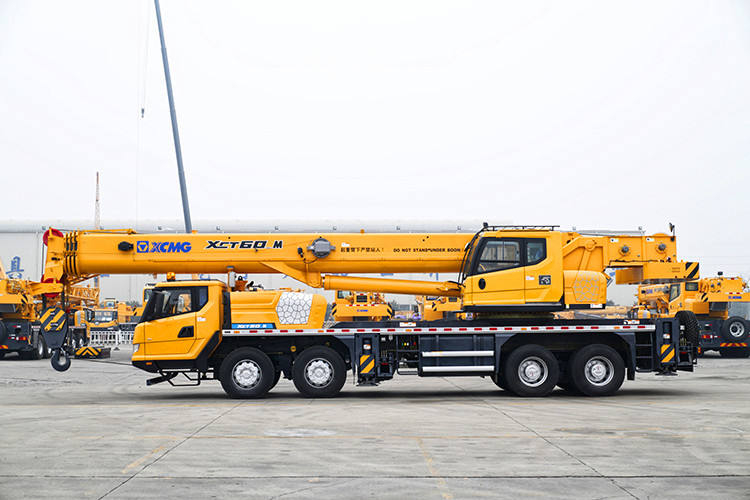

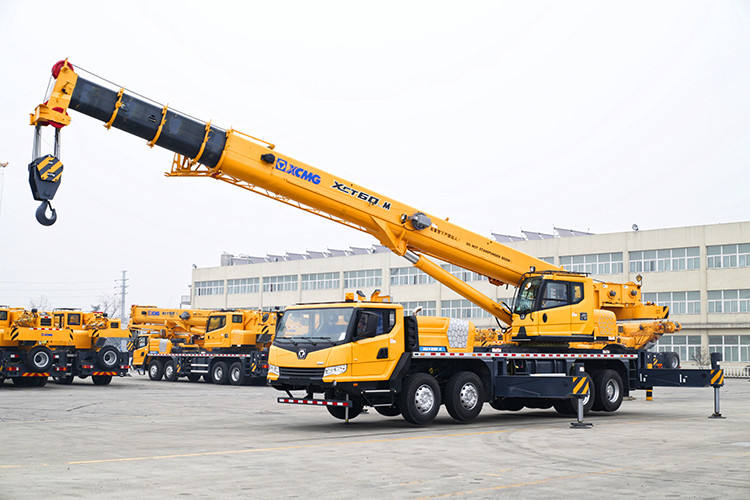

Product Introduction
The XCT60_M incorporates a new energy-saving hydraulic system and intelligent control technology, effectively reducing fuel consumption during operation while delivering smooth micro-movement capabilities. It features a user-friendly cab and advanced safety protection systems, ensuring both operator comfort and the safe, reliable execution of lifting tasks.
Product Advantage
* 5-section boom of 44m with U-type profile is adopted; the lifting load is 60 t; the lifting height is 59.8 m; The performance takes the lead comprehensively.
* The machine is designed to be high temperature resistance, so it can continuously work without downtime in ambient temperature of 60℃.
* Abundant configurations suitable for various working conditions, meet the requirements of applications such as all oil fields and government projects.
Technical Parameters
| Item | Unit | Parameter |
| Dimensions (length x width x height) | mm | 14090×2790×3630 |
| Total vehicle mass in travel configuration | kg | 42200 |
| Axle load | 1st and 2nd axle | kg | 16200 |
| 3rd and 4th axle | kg | 26000 |
| Max. output torque/rpm | N.m/(r/min) | 1350/1100-1600 |
| Max. travel speed | km/h | 90 |
| Min. turning diameter | m | 24 |
| Min. ground clearance | mm | 250 |
| Approach angle | ° | 18 |
| Departure angle | ° | 13 |
| Max. grade ability | % | 36 |
| Fuel consumption per 100 km | L | 36 |
| Max. total rated lifting capacity | t | 60 |
| Min rated working radius | m | 3 |
| Max. load moment | Base boom | kN.m | 2009 |
| Fully-extended boom | kN.m | 1113 |
| Outrigger span | Longitudinal | m | 6.1 |
| Lateral | m | 7.1 |
| Hoist height | Base boom | m | 11.3 |
| Fully-extended boom | m | 43.6 |
| Boom length | Base boom | m | 11.5 |
| Fully-extended boom | m | 44 |
| Jib offset angle | ° | 0,15, 30 |
| Boom raising time | s | ≤40 |
| Boom fully extending time | s | ≤90 |
Product Uses
1. Urban Construction and Municipal Engineering
The XCT60_M is ideally suited for relatively confined workspaces such as urban construction sites, municipal pipeline networks, and renovation projects in older residential areas. Its compact and flexible design effectively adapts to urban operating environments, enabling tasks like pipeline laying and small equipment hoisting while minimizing disruption to daily life and traffic.
2. Transportation Hubs and Large-Scale Infrastructure Development
This crane is extensively deployed in major infrastructure projects like ports, bridges, and highways. Its robust lifting capacity efficiently handles critical tasks such as installing large precast beams and steel structures, ensuring timely progress on major engineering projects.
3. Industrial Sites and Energy Projects
The XCT60_M facilitates large-scale equipment installation, inspection, and maintenance in complex industrial environments including petrochemical plants, oilfields, and mines. Its reliable performance enables safe and efficient hoisting and positioning of heavy equipment like large reactors and tanks.
4. Special Climate Conditions
Featuring a high-temperature resistant design, this crane can operate continuously without shutdown at ambient temperatures up to 60°C. This makes it ideal for prolonged, high-intensity operations in hot regions or during summer, meeting construction demands in extreme environments.
Product Operate Guide
Before operation, check that the outriggers are fully extended and ensure the ground is solid. Keep the crane level during operation and never overload it. Extend and retract the boom smoothly, maintaining a safe distance from surrounding obstacles. Rotate slowly and steadily, avoiding abrupt stops or turns. Regularly inspect the wire rope for wear. After completing work, retract the boom, secure the hook, and maintain daily equipment maintenance records.
FAQ
1. CAN THE SPECIALIZED TOOLS SPECIFIED IN THE EQUIPMENT MANUAL BE REPLACED WITH STANDARD TOOLS?
Strongly discouraged. Specialized tools are designed to ensure repair quality and safety; substitution may cause damage or inaccurate data.
2. ARE THERE COLORED OIL STAINS ON THE GROUND WHERE THE EQUIPMENT IS PARKED?
The color can provide an initial indication of the type of leaked fluid, aiding in locating the fault point.
3. WHY CAN'T THE DIAGNOSTIC TOOL READ SIGNALS FROM A NEWLY REPLACED SENSOR?
You may have purchased the wrong model or the sensor itself is damaged.
4. DURING TILTED OPERATION, DOES MOVEMENT IN ONE DIRECTION AUTOMATICALLY SLOW DOWN?
This occurs when the spool deviates from center position due to gravity or when internal leakage paths in the actuator change.
5. AFTER STARTUP, DOES OPERATION FEEL SLUGGISH FOR A SHORT TIME, THEN RETURN TO NORMAL AFTER WARMING UP?
This is normal behavior caused by high viscosity and poor flow of hydraulic oil at low temperatures, resulting in slow system response and increased resistance. Adequate warm-up is required.
6. OCCASIONAL SIGNAL DELAYS OR INTERRUPTIONS DURING REMOTE CONTROL OPERATION?
Check the remote control's battery level, presence of strong electromagnetic interference nearby, or whether the signal receiving antenna is properly connected.
