XCB-L15
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction

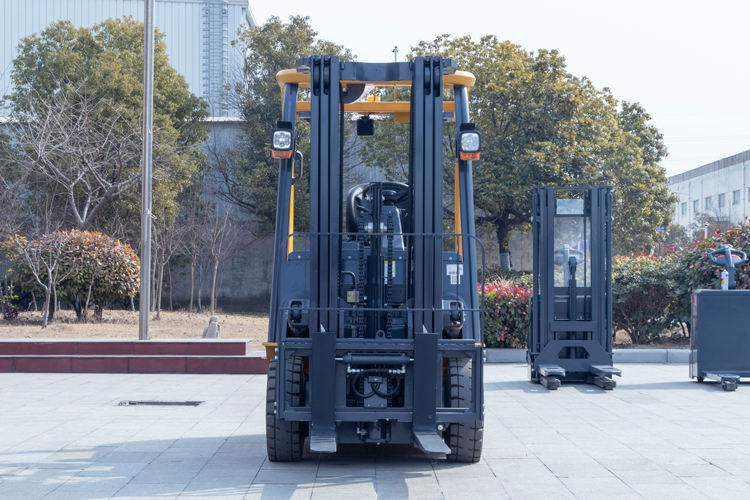

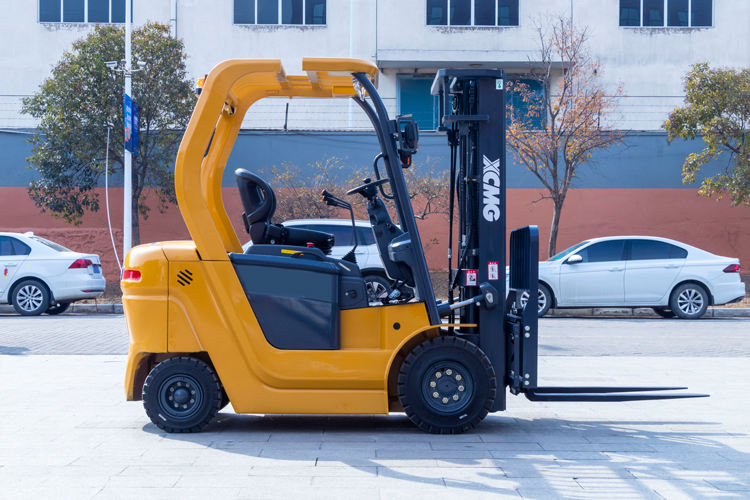

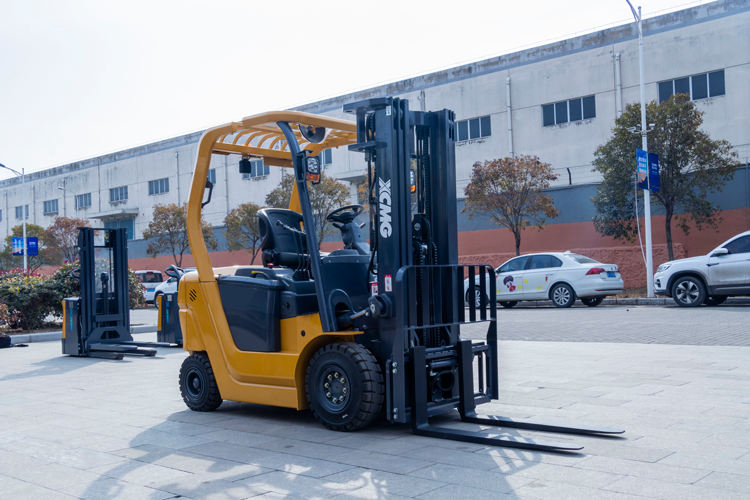

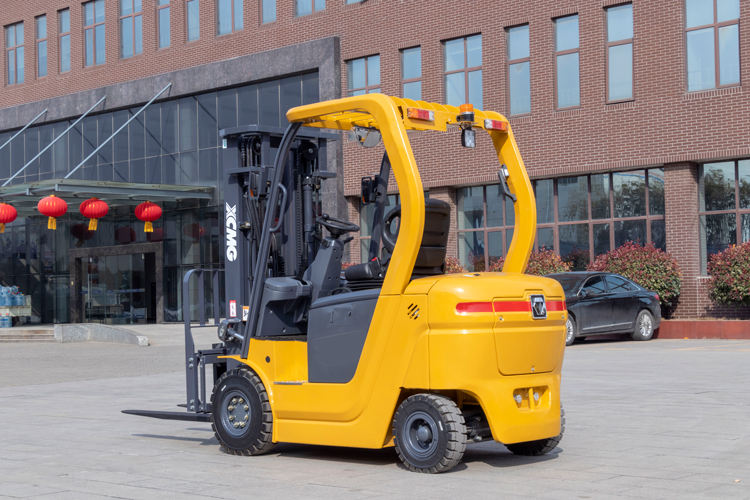

The XCB-L15 electric forklift is a modern material handling equipment that integrates high performance, high reliability, excellent comfort and environmental friendliness. Relying on XG's strong brand endorsement and solid manufacturing techniques, it offers users a highly cost-effective choice of electric forklifts. It is an ideal tool for helping enterprises achieve the electrification upgrade of logistics equipment, reduce comprehensive operating costs, and enhance corporate image.
Product Advantage
The appearance is novel, breaking through the industry shape, and the overall connection design between the roof frame and the car body.
Extreme performance: Four speed modes, two lift modes, and climbing capability comparable to internal combustion forklifts.
Safe and reliable: smooth starting, acceleration and braking; The hydraulic system adopts double seal;Sixth generation hydraulic cylinder, internal circulation oil circuit, with load cushioning.
Comfortable handling: Double-degree-of-freedom steering mechanism creates a more comfortable operating experience and convenient maintenance: tool-free disassembly of covers, larger maintenance space, and more accessible maintenance positions.
Diverse configuration: Rich product configuration to meet the differentiated needs of customers.
Technical Parameters
| Model | Unit | XCB-L15 | ||
| Rated capacity | kg | 1500 | ||
| Load center distance | mm | 500 | ||
| Size | Max.lifting height | mm | 3000 | |
| Free lifting height | mm | 145 | ||
| Mast tilt angle front/rear | ° | 6/12 | ||
| Length fork excluded | mm | 2125 | ||
| Width | mm | 1130 | ||
| Mast height | mm | 1985 | ||
| Overhead guard height | mm | 2130 | ||
| Min.under clearance | mm | 110 | ||
| Wheel base | mm | 1380 | ||
| Min.Turning radius | mm | 1880 | ||
| Performance | Travelling speed loaded/unloaded | km/h | 13/14 | |
| Lifting speed loaded/unloaded | mm/s | 330/450 | ||
| Gradeability loaded/unloaded | % | 15/17 | ||
| Motor&Battery | Motor | Drive motor power | kW | 8 |
| Pump motor power | kW | 10 | ||
| Battery | Voltage | V | 48 | |
| Amphere | Ah | 270/315/360 | ||
Product Uses
Indoor operations: warehouses, logistics distribution centers, supermarkets, printing workshops, food processing plants, pharmaceutical factories and other places with strict requirements for air quality and noise.
• Outdoor operations: Light cargo transfer at airports, stations and docks, as well as on flat and hard surfaces in courtyards, building materials markets, etc.
Product Operate Guide
Before operation, please conduct a daily check to confirm that the battery power, brakes and lights are normal. When starting, make sure the gear is in neutral, insert the key and turn it to the "ON" position. Driving is controlled by the steering wheel and the acceleration/brake pedals, while the lift and tilt functions are operated by the multi-functional handle on the right. When working, be sure to accelerate and decelerate smoothly, keep the forks low while driving, and pay attention to the surrounding environment and blind spots. Overloading or uneven loading is strictly prohibited. After completing the operation, lower the forks completely to the ground, apply the handbrake, turn off the power and remove the key. For detailed operations, please be sure to refer to the official "Operation and Maintenance Manual" and receive professional training. Safety first, operate in a standardized manner.
FAQ
A: As a large-scale construction machinery enterprise, XG's forklift products typically feature:
• High efficiency and energy saving: It adopts an AC drive system and hydraulic system, featuring high energy recovery rate and long operating time.
• Reliable and durable: The structure is sturdy, and key components are selected from well-known brands, ensuring good stability.
• Ergonomics: The operating space is comfortable, the control handle is reasonably designed, the field of vision is wide, and the fatigue of the operator is reduced.
• Easy maintenance: The self-diagnostic function of the electronic control system and the open machine cover facilitate daily inspection and maintenance.
A: The battery level indicator light (or the battery gauge shows insufficient) reminds you that the battery power is low. You should immediately stop working and go to the charging area for charging. Excessive discharge of a storage battery can seriously damage its lifespan.
A: Possible reasons include:
1. Insufficient battery power: This is the most common cause. Please check the battery power first and charge it in time.
2. Negligence in daily inspection: Check if the brake has not been fully released.
3. Improper operation: Is it overloaded?
If the above simple factors are ruled out, it might be a problem with the hydraulic system or the electrical control system. In such cases, contact the maintenance personnel.
• Location: It must be conducted in a dedicated and well-ventilated charging area.
Method: Turn off the power of the forklift and remove the key. Use the original charger that comes with it. First, connect the battery plug, and then turn on the charger power.
After charging is complete, first turn off the power of the charger, and then unplug the battery plug.
• Timing: It is recommended to charge the battery when it has 20% to 30% left to avoid completely draining it. Even if it is not used for a long time, it should be recharged once a month.
A: Conduct a "round-trip inspection" before starting work every day:
• Visual inspection: Check if the tires are worn, if there is any oil leakage, and if the screws are loose.
• Function check: Whether the lights, horn and brakes are functioning properly.
• Performance check: Whether the door frame rises, descends and tilts smoothly without any jamming.
• Cleaning: Keep the vehicle, especially the surface of the battery, clean and dry.
