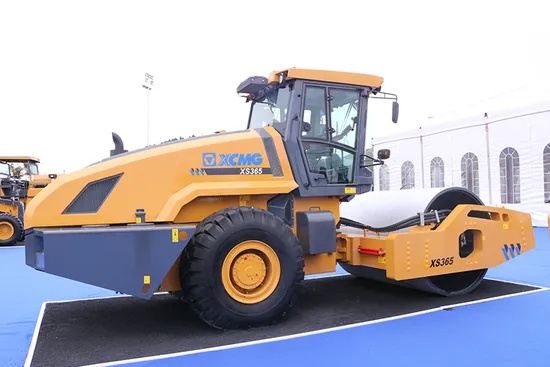

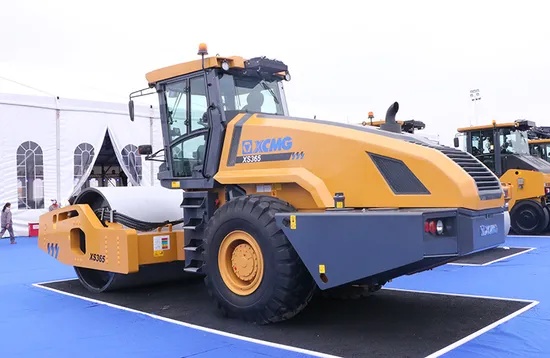

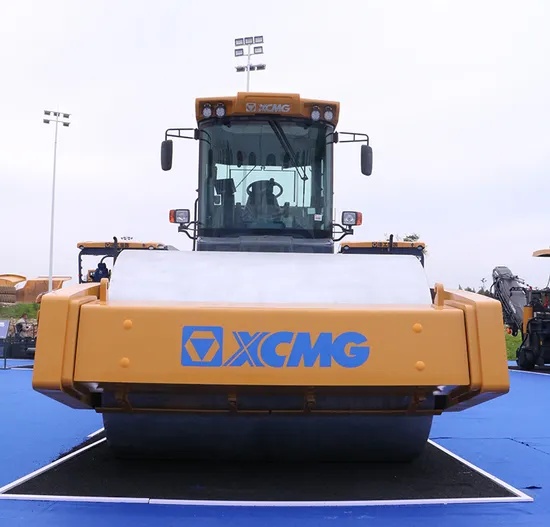

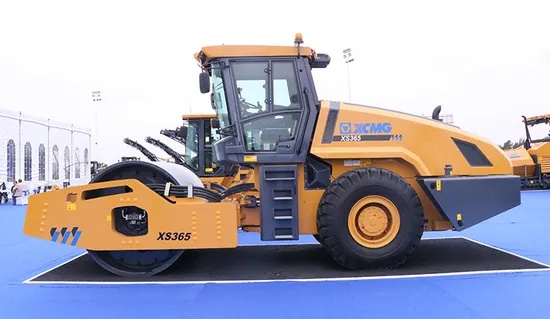

Product Introduction
The compacting of high-depth rock fills and the super-thick pavements as well as the compacting of conventional pavements and is an ideal compacting machine for dam rock fills, super-thick water-stability bases, road substrate, and road beds.
This machine is powered by high-power engine and multiple adaptability designs are taken for the compacting of rock filled dams to better meet the construction needs of dams.
Product Advantage
*Unparalleled compaction performance: The terrifying working mass of 36 tons combined with over 1,000 Newtons of excitation force provides the industry's top linear pressure and impact energy, enabling the one-time compaction of ultra-thick layers and significantly enhancing construction efficiency.
• Ultimate reliability and durability: Adhering to the gold standard of "technological leadership and indestructibility", key systems (power, hydraulics, transmission) adopt the world's top brands and have been reinforced in design, capable of adapting to the extreme working conditions of 24-hour continuous high-load operation.
• Advanced intelligent control system: Integrating multiple intelligent compaction management, fault diagnosis and operation assistance systems, it not only lowers the operation threshold but also realizes digital management of construction quality.
• Outstanding operating experience: Ultra-luxurious cab, electro-hydraulic control, and humanized design elevate the comfort of the operator and the precise control of the equipment to a new level.
Technical Parameters
| Item |
Unit |
XS365 |
| Operating weight |
kg |
36000 |
| Load on front drum |
kg |
24000 |
| Load on rear wheels |
kg |
12000 |
| Static linear load |
N/cm |
1000 |
| Vibration frequency(Low/High) |
Hz |
31/26 |
| Nominal amplitude(High/Low) |
mm |
1.2/2.3 |
| Excitation force(High/Low) |
KN |
540/730 |
| Travel speed |
km/h |
0~10.4 |
| Steering angle |
° |
±33 |
| Swing angle |
° |
±12 |
| Theoretical gradeability |
% |
40 |
| Min. external turning radius |
mm |
7060 |
| Engine power |
kw |
276 |
| Rated engine speed |
r/min |
2200 |
Product Uses
1. Super infrastructure projects: Hundreds of meters of ultra-high fill roadbeds (such as expressways, high-speed railways through mountains), and anchor fill for large cross-sea and cross-river Bridges.
2. Large-scale energy hubs: Compaction of dam core walls for hydropower stations with a capacity of over 10 million kilowatts and foundation treatment for nuclear power plants.
3. Giant ports and airports: Foundation treatment for coastal land reclamation and compaction of large airport runways.
4. Mining Engineering: Backfilling of kilometer-deep Wells and base treatment of mining infrastructure.
Product Operate Guide
Before commencing work, a comprehensive inspection of the oil, braking, steel wheels and the status of the intelligent system is necessary. Select the high-amplitude (ultra-thick layer/rock) or low-amplitude (final pressure/thin layer) mode based on the type of filler and the thickness of the layup (it is recommended to refer to the construction process). When rolling, maintain a constant speed and ensure the width of the overlapping wheels is uniform. When working on a slope, neutral gear is strictly prohibited. A low-speed gear should be used instead. The intelligent compaction system needs to pre-set compaction parameters and monitor data in real time. Daily maintenance must be carried out in accordance with the manual. All operations must be carried out in accordance with the official manual. Any violation of regulations is strictly prohibited.
FAQ
1.What should I do if the vibration system doesn't work?
A: 1. First, confirm whether the vibration switch and mode (high/low amplitude) selection are correct; 2. Check whether the hydraulic oil level is normal; 3. Check whether the relevant fuses and circuit connections are reliable.
2.Does the driving speed have an impact on the compaction effect?
A: It has a significant impact. It is recommended to maintain a uniform and medium-low speed (usually 3-5km/h) during compaction to ensure that the compaction layer can obtain uniform and sufficient compaction energy. Excessive speed will lead to insufficient compaction.
3.What are the features of its cab?
• A: The cab is designed with sealed, shock-absorbing and noise-reducing features, and is equipped with standard air conditioning and audio systems, providing a comfortable operating environment. The panoramic glass design ensures an excellent all-round view and guarantees work safety.
4.What key points should be noted during operation?
A: ① Starting must be carried out after the vehicle has started. Starting from a standstill is strictly prohibited. ② Slow down when turning. ③ When working on slopes, it should be carried out longitudinally. It is strictly prohibited to cross the slope for rolling. ④ Vibration is prohibited on hard roads (such as cement roads).
5.What should I do if the oil temperature in the hydraulic system is too high?
A: 1. Stop the machine immediately and check the hydraulic oil level and quality; 2. Thoroughly clean the hydraulic oil radiator (under extreme working conditions, the radiator is prone to being completely blocked by dust and debris)
6.What security prohibitions must be followed when operating XS365?
A: Absolutely prohibited
When working on a slope, slide in neutral gear.
• ️ vibration is initiated without pulling the safety lock rod or releasing the brake.
• Driving at high speed in areas with unknown foundation conditions or near the edge.
Ignore abnormal noises, vibrations or alarm signals and operate while faulty.
