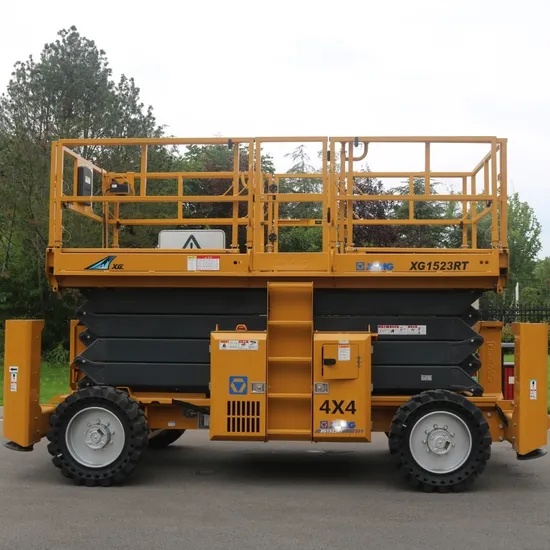

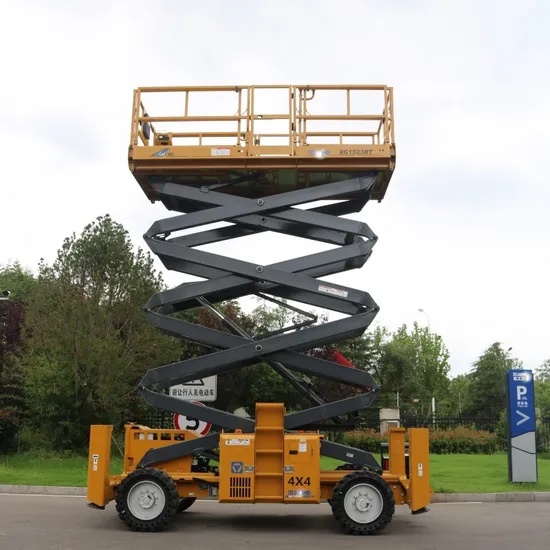

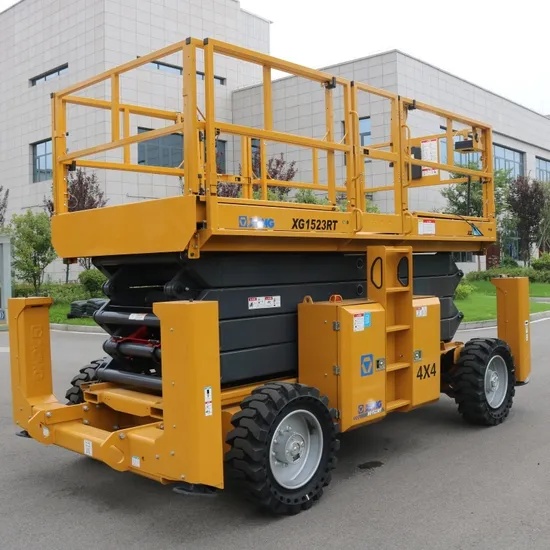

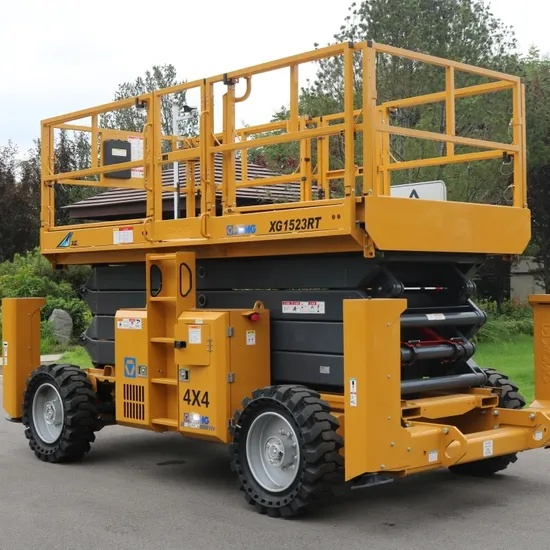

Product Introduction
Compared with conventional mobile scissors elevating work platform, it features high load capacity and spacious platform
and is more applicable for the installations and multi-person collaboration applications of high-load large objects, including
firefighting ventilation pipelines, lighting, glasses, curtain wall installation, paint spraying, and wall finishing.
Product Advantage
Performance Highlights:
Working Height: It offers a significant working height of up to 15 meters, allowing workers to reach areas that would otherwise be difficult to access. This makes it ideal for applications such as construction, maintenance, and industrial work.
Load Capacity: The XG1523RT has a substantial load capacity, enabling it to carry workers and their tools and equipment safely. This ensures that jobs can be completed efficiently without sacrificing safety.
Rough Terrain Capability: Equipped with features such as large wheels and a rugged suspension system, the XG1523RT can navigate rough terrains with ease. It is designed to handle slopes and uneven surfaces, providing stability and reliability even in the most challenging conditions.
Powerful Engine: Powered by a reliable diesel engine, the XG1523RT offers excellent performance and durability. The engine provides sufficient power to drive the lift and operate its various functions, ensuring smooth and efficient operation.
Safety Features: The XG1523RT is equipped with a comprehensive set of safety features to protect workers. These include safety rails, emergency stop buttons, and overload protection systems. Additionally, the lift is designed to meet strict safety standards to ensure the well-being of operators.
Technical Parameters
| Ltem | Unit | XG1523RT |
| Lift capacity | kg | 680 |
| Lift capacity of auxiliary platform | kg | 230 |
| Occupant Capacity | - | 7 |
| Working height | m | 15 |
| Platform height | m | 13 |
| Length of auxiliary platform | mm | 1450/1140 |
| Ground clearance | mm | 253 |
| Turning radius(inside/outside) | m | 2.5/5.6 |
| Drive speed-full retracted | km/h | 6.1 |
| Drive speed-full extended | km/h | 1.1 |
| Lift/Lower time | s | 45/45 |
| Gradeability | % | 40 |
| Tilt alarm(side/forward and backward) | ° | 2/3 |
| Power source | - | Kubota V2403 |
| Rated power | kW/(r/min) | 36.8/2700 |
| Tires | - | 33 × 12-20 |
| Fuel tank | L | 115 |
| Hydraulic tank | L | 115 |
| Weight | kg | 7250 |
Product Uses
The construction and maintenance of large industrial plants
Construction and equipment installation of stadiums, theaters, conference centers and other venues
Decoration and cleaning of commercial public facilities such as shopping centers, airports and railway stations
Shelf installation, goods storage and retrieval, and maintenance in logistics warehouses
Manufacturing and installation of large-scale equipment
Product Operate Guide
Before starting work, check whether the battery level, structure and functions are normal. After startup, confirm that the emergency descent function is effective. When operating on the platform, be sure to fasten your safety belt and overloading is strictly prohibited. When driving, pay attention to the ground environment and avoid obstacles and potholes. After the platform is raised, mobile devices are prohibited. After the work is completed, the platform should be fully retracted and the engine turned off for parking. Strictly following the manual procedures is the prerequisite for safe and efficient operation.
FAQ
1.Can the traveling speed of the equipment be adjusted?
A: Yes. The equipment is usually equipped with high and low dual speed Settings. When the platform is lifted, the speed is automatically limited to ensure safety. When traveling on the ground, the high speed can be selected to improve the efficiency of site transfer.
2.How to ensure precise movement when operating on the platform?
A: The control box is equipped with "Micro-motion" or "turtle Speed" function buttons. Once pressed, the device will run at an extremely slow speed, facilitating precise positioning in confined Spaces.
3.What will happen to the people on the platform if there is a sudden power outage?
A: The equipment is equipped with an emergency manual descent system. In the event of a power outage, the operator can activate the manual pump on the platform to safely and slowly lower it to the ground.
4.How can equipment be prevented from toppling over?
A: The equipment is equipped with an inbuilt tilt protection system. When the vehicle body's tilt Angle exceeds the safety set value, the system will issue an audible and visual alarm and automatically stop all actions, effectively preventing rollover accidents.
5.What is the pit protection function?
A: This refers to the physical protection design of the equipment chassis, which can prevent the chassis from directly colliding with potholes and obstacles on the ground, and protect key components (such as batteries and hydraulic valves) from damage.
6.Is the maintenance and upkeep of equipment complicated?
A: It's not complicated. The equipment adopts a modular design, and key components are easily accessible. Daily maintenance mainly involves keeping the equipment clean, checking the tightness of connecting parts and regularly applying grease to moving components. For specific cycles, please refer to the random "Maintenance Manual".
