XC870HK
| Quantity: | |
|---|---|
| Description | Unit | XC870HK | |
| Chassis type | integrated | ||
| Drive style | 4 drive/2 drive | ||
| Digging working device | side | ||
| Outline dimensions（L×W×H） | mm | 6075×2350×3520 | |
| Total weight | kg | 8200 | |
| Max. travel speed | km/h | ≥40 | |
| Wheelbase | mm | 2180 | |
| Engine | Power | kW | 82(Cummins) 74(Cummins) 74.9(Deutz dalian) 70(weichai ) |
| Supplier | tier 3 tier 2 tier 3 tier 2 | ||
| Loading device | Bucket capacity | m³ | 1 |
| Rated load | kg | 2500 | |
| Max. breakout | kN | 66 | |
| Max. discharge height | mm | 2770 | |
| Max. discharge distance | mm | 755 | |
| System pressure | Mpa | 24 | |
| Digging device | Bucket capacity | m³ | 0.25 |
| Max. digging radius | mm | 5420 | |
| Max. digging depth | mm | 4320 | |
| Max. digging force | kN | 63 | |
| System pressure | Mpa | 24 | |

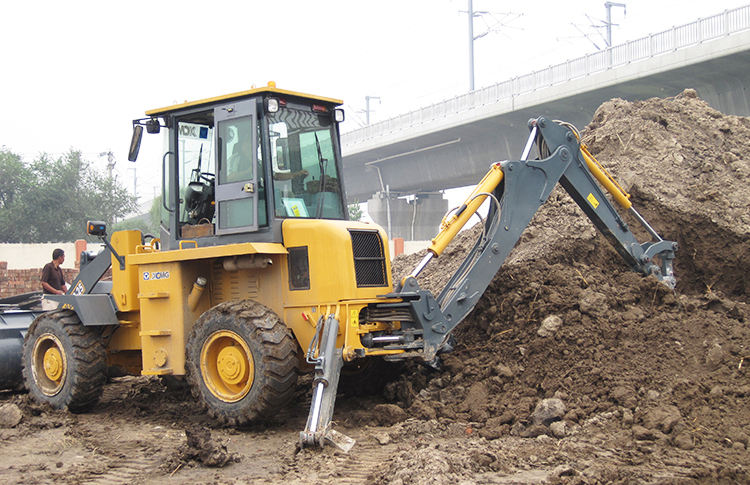

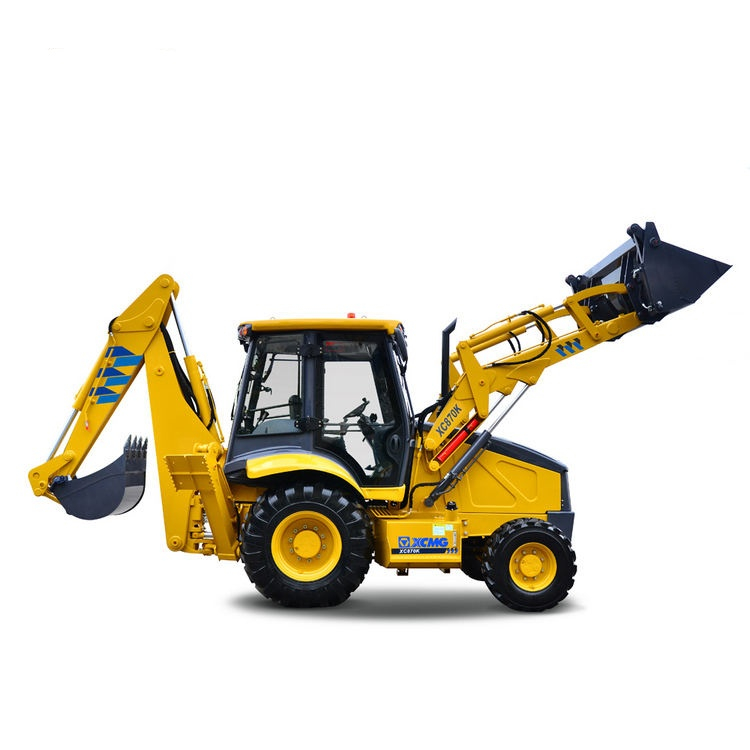

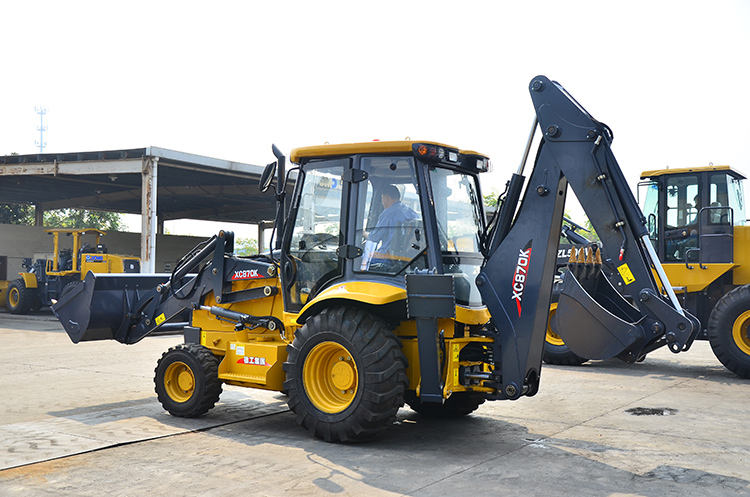

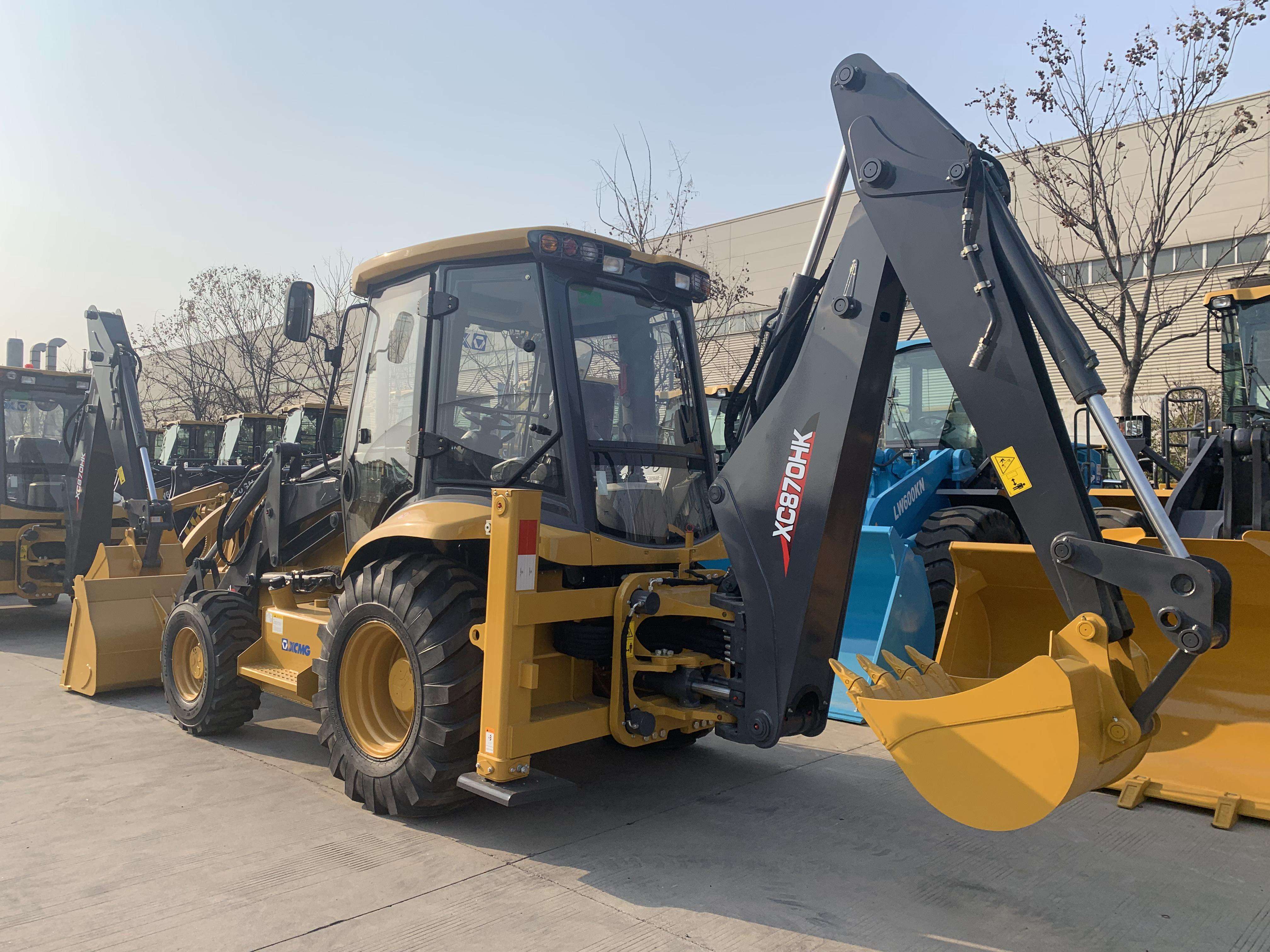

The XC870HK Backhoe Loader integrates loader and excavator functions into one compact unit, with a 2.5-ton load capacity and 8.2-ton operating weight. It adopts hydraulic pilot control and a 4×4 drive system, paired with a torque converter transmission for smooth, responsive power delivery. The 360° swivel seat and full-view cab design enhance operational comfort and visibility, reducing operator fatigue.
Cost Savings: Eliminates the need for separate loader and excavator units, cutting procurement and operational costs by up to 30%.
Maneuverability: Its narrow profile (width ≤2.2 m) suits confined spaces, such as urban construction sites, indoor renovation projects, and residential areas.
Efficiency: A built-in digging slide device extends the operation range by 15%, while dual-function controls boost work speed by 25% compared to single-control models.
Widely applied in irrigation system construction, municipal sanitation work, pipeline laying, and landscaping projects. It is also well-suited for road maintenance, agricultural infrastructure development, and underground cable installation.
Q: What attachments are compatible with this model?
A: It supports a range of attachments (breakers, augers, sweepers, and grapples) via a universal quick-connect system for rapid swapping.
Q: Is it easy to transport between job sites?
A: Yes—its compact size (length ≤5.8 m) fits into standard 40-foot containers, simplifying domestic and international transportation.
The operation of the XC870HK wheeled excavator requires a valid certificate. Before starting work, check the tires, oil and attachment connections. After starting, preheat the engine and select the appropriate operation mode through the intelligent display screen. When driving, retract the working device, pay attention to the road conditions and slow down when turning. When operating, use the pilot hydraulic handle to smoothly control the boom and bucket arm. Overloading is strictly prohibited. It is equipped with a quick-change interface. When changing attachments, the engine must be turned off and a safety lock must be ensured. Pay attention to the maintenance of structural components and slewing bearings on a daily basis to ensure the long-term stable operation of the equipment. Strictly follow the manual procedures to ensure safety and efficiency.
