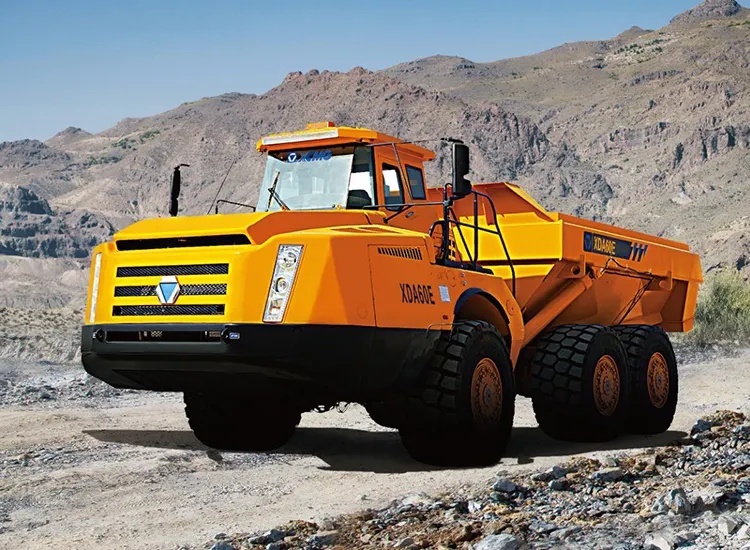

XDA60E
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction
The combination of strong power and outstanding vehicle performance provides higher productivity. The ergonomically designed cab provides high productivity from unparalleled operation quality. The trucks provide steady and smooth hauling even in the worst operating conditions with high productivity.
Product Advantage
* High Performance Engine Electronically controlled high performance diesel engines, The use of advanced modular common rail fuel system, High fuel efficiency, Low emissions, Low noise, Dynamic energy; the Efficient turbocharger.
* Advanced Driven System The intelligent brake system patent technology. In the speed above 5 km/h ,using electric braking, Fall below 5 km/h speed, still maintaining the corresponding electric braking, realize to electro-hydraulic braking. The system can effectively alleviate the pressure of the mechanical brake, extend the life of the mechanical braking system.
* Easy Maintenance Controlled amount of lubricant is delivered timely to lube points, reducing service time and costs.
Technical Parameters
| Description | Unit | Parameter value | |
| Engine | Model | Cummins QSK19 | |
| Rated Power/Speed | kw/rpm | 503/1800 | |
| Max. Torque/Speed | Nm/rpm | 2275/1500 | |
| Drivetrain | Transmission | AC drive system, with steeples speed regulation | |
| Speed range | |||
| Standard Tire of Break System | Fully hydraulic controlled dry disc brake | ||
| Hoist system | Hoist Time | s | 16 |
| Hoist Angle | 。 | 68 | |
| Cab | FOPS cab | ||
| Tires | 875/65R29 | ||
| Electrical System | V | 24 | |
Product Uses

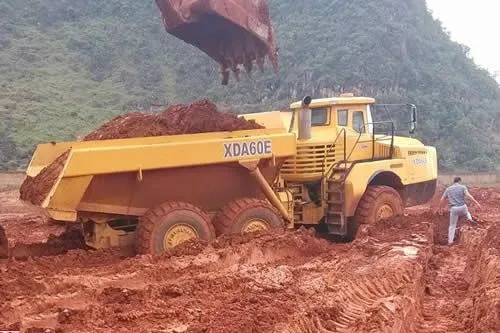

Large-scale open-pit mines: stripping and transportation of ores and earthwork.
• Water conservancy and hydropower projects: Transportation of soil and stone materials in dam construction.
• Land reclamation project: Long-distance and heavy-load transportation of filling materials.
• Highway/Railway construction: Transporting basic materials in complex terrains.
• Large-scale quarries.
Product Operate Guide
The operation of the XDA60E articulated dump truck must strictly comply with safety regulations.
Operators must be certified to work and conduct vehicle and environmental safety inspections before operation.
Basic process: Before starting, make sure the parking brake has been released and shift gears smoothly. When driving, take advantage of the articulated steering feature to control flexibly. When going downhill, be sure to use the retarder. When unloading, the vehicle must be stopped steadily on a flat and solid ground. Only after shifting into neutral and applying the parking brake tightly can the cargo box be lifted.
It is strictly prohibited to lift and drive. After unloading, the cargo box must be completely positioned before starting.
Routine maintenance is required on a daily basis. If any abnormality is found, the machine should be stopped immediately and reported for repair. For specific operations, please refer to the official manual. It is strictly prohibited to operate the equipment without training.
FAQ
A: The articulated dump truck (ADT) has an articulated steering mechanism in the middle, allowing the front and rear frames to swing and twist relatively. The core differences and advantages lie in:
• Off-road performance: The 6x6 all-wheel drive and swing axle provide it with unparalleled off-road performance and traction on extreme terrains such as muddy and potholed surfaces, and the tires adhere more closely to the ground.
• Flexibility: Articulated steering makes its turning radius smaller and more flexible in narrow Spaces.
• Safety: It is more stable when driving on rough roads and has a lower risk of rollover than rigid trucks.
A: Extremely dangerous and must be avoided! It is strictly prohibited to lift the cargo box for unloading on slopes or uneven roads, as there is an extremely high risk of overturning. It is essential to choose a flat and solid ground. Only after the vehicle has come to a complete stop and the parking brake has been tightened can the lifting operation be carried out.
Lifting and unloading: It must be carried out on a flat and solid ground. The vehicle must come to a complete stop and the parking brake must be engaged. It is strictly prohibited to lift the cargo box while driving or on a slope.
When driving downhill: Make full use of the engine exhaust brake (retarder) to control the speed, reduce the use of service brakes, and prevent the brakes from overheating.
Complex road conditions: Take advantage of its articulated characteristics to pass smoothly at low speeds, avoiding sharp turns and high-speed driving.
A: Strictly follow the "Maintenance Manual", with key points including:
• Oil products: Regularly replace engine oil, diesel filters, hydraulic oil and filter elements.
• Tightening: Regularly inspect and tighten key fasteners such as U-bolts, wheel nuts, and leaf spring pins.
• Lubrication: Apply grease to all lubrication points (such as the hinge points of the lifting cylinder and the suspension points) on time.
• Cleaning: Keep the air filter and radiator clean to prevent engine overheating and insufficient power.
Daily inspection: Check the tire pressure and wear, the lubrication of the hinge pins and bearings, the hydraulic oil level and whether there is any leakage.
Regular maintenance: Replace the engine oil, transmission oil, drive axle gear oil and hydraulic oil filter strictly in accordance with the time or hours specified in the maintenance manual.
Cleaning: Keep the vehicle clean, especially the radiator core, to prevent efficiency decline or malfunction due to overheating.
A: Stop the vehicle safely immediately and let the braking system cool down naturally. Never pour water directly onto the brake discs or drums, as it can cause sudden cooling and cracking. Before going down a long slope, it is necessary to use the engine exhaust brake (retarder) in advance to control the speed and reduce the frequency of use of the service brake.
