Product Introduction

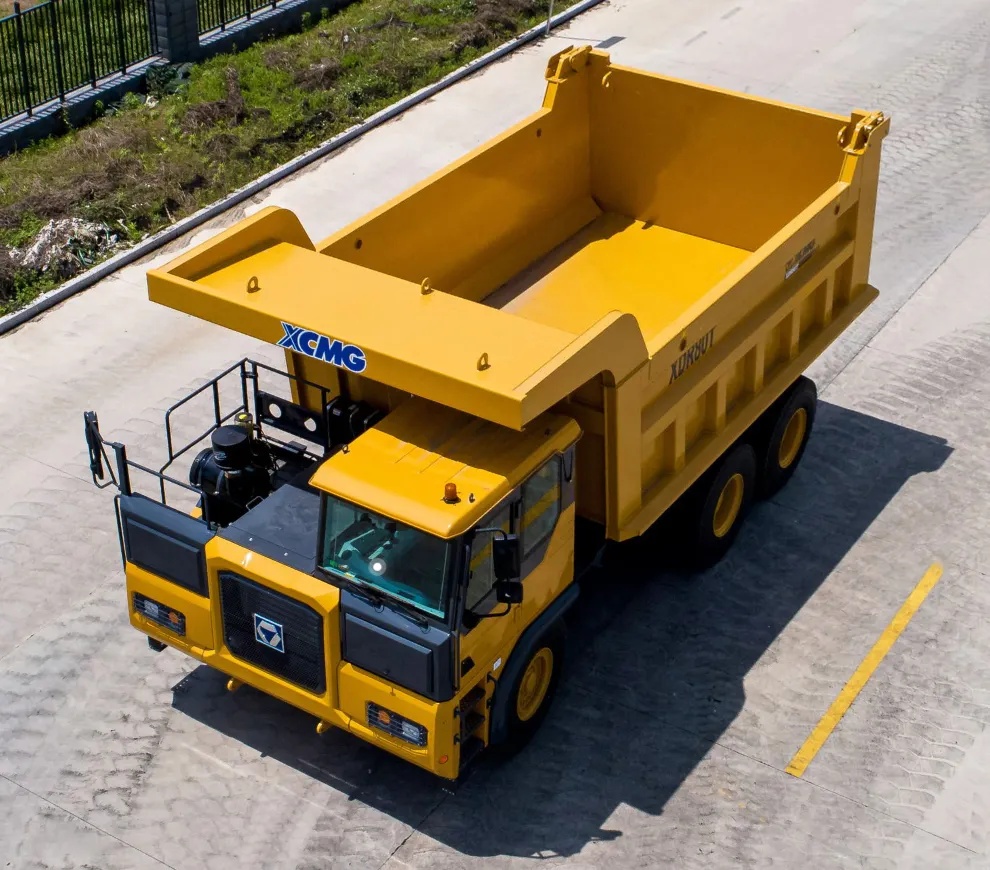

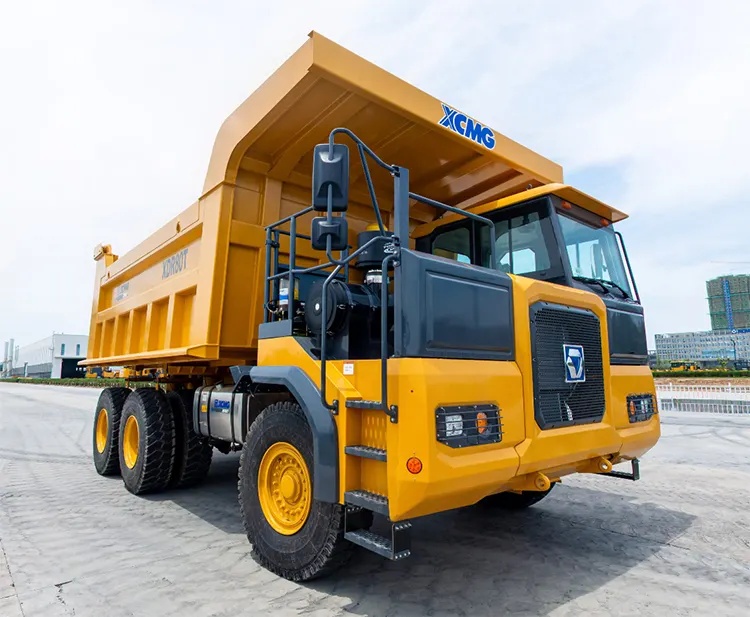

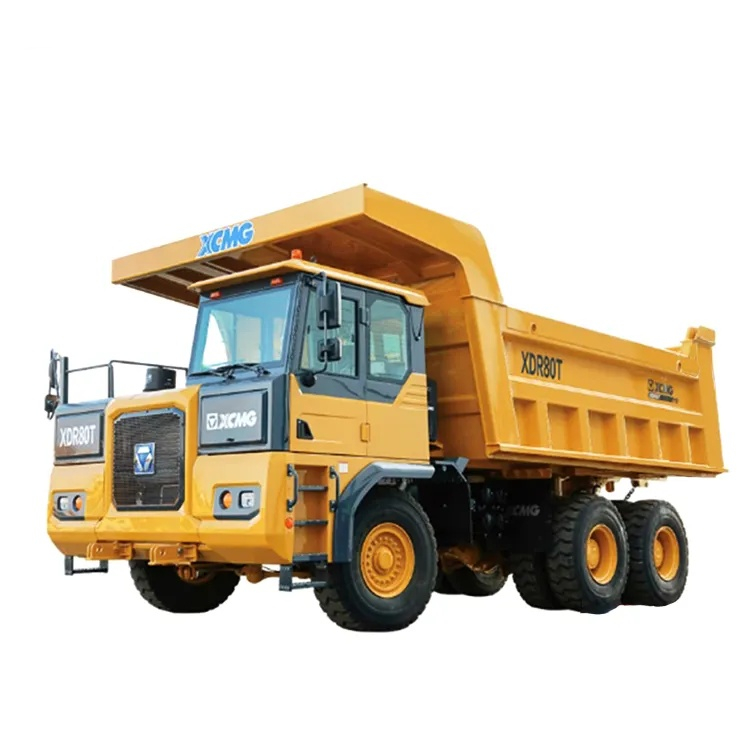

XDR80T is equipped with Yuchai 480 HP electronically controlled diesel engine, which has good fuel economy and abundant power; the engine monitoring system can monitor the working conditions of each cylinder in real time, prolong the service life of the engine and reduce the cost; the advanced fully electronic control system ensures the best performance of the engine under different sea level and load conditions.
Product Advantage
• Strong power and efficient transmission: Equipped with the classic configuration of "high-power engine + AC drive system", it features strong climbing ability, excellent acceleration performance, and is suitable for complex road conditions in mining areas.
• Robust and durable structure: Key structural components (such as the frame, cargo box, and lifting system) are made of high-strength steel and optimized in design, featuring strong impact resistance and fatigue resistance, and a long service life.
• Intelligent control system: Integrated with an advanced vehicle management system (VMS), it can monitor vehicle status, fuel consumption, tire pressure, load and other data in real time, achieving intelligent fleet management and preventive maintenance.
• Safe and reliable: Equipped with multiple braking systems (including electric braking, hydraulic braking, emergency braking and parking braking), body stability system, fire protection system, etc., to ensure the safety of people and vehicles.
• Comfortable driving and riding: The spacious and comfortable cab is equipped with advanced suspended seats, air conditioning systems and noise reduction designs, effectively reducing driver fatigue and improving work efficiency.
• Easy to maintain: With a centralized lubrication system and modular design of key components, the accessibility of maintenance points is high, significantly reducing daily maintenance time and costs.
Technical Parameters
| Performance Parameters | Payload | 76000kg |
| Empty Weight | 34000kg |
| Gross Vehicle Weight (GVW) | 110000kg |
| Axle configuration | 6×4 |
| Max. vehicle speed | 45Km/h |
| Max.gradeability | 30% |
| Min. turning diameter | 22m |
| Overall dimension (EMPTY,L×W×H) | 9308×4578×4345mm |
| Engine | Rated Power/ Speed | 353kW/1900rpm |
| Max. Torque/ Speed | 2200Nm/1100～1500rpm |
| Drivetrain | Transmission | FAST8DS240A |
Product Uses
The stripping and coal transportation of large open-pit coal mines
Ore transportation from large-scale iron ore, copper ore and other metal mines
Earthwork transportation in large-scale water conservancy and infrastructure projects
Product Operate Guide
The operation of the XDR80T dump truck requires a valid certificate and strict compliance with safety regulations. Before starting the operation, a round-around inspection must be carried out to ensure that the tire pressure, lighting, hydraulic system and structural components are normal.
Start and stop smoothly while driving and make reasonable use of the electric slow braking system. When unloading, the vehicle must be parked steadily on a solid and flat ground. After confirming that there is no one around, lift the cargo compartment. After unloading, make sure the cargo compartment is completely lowered and locked before driving. Overloading, uneven loading, driving with the cargo box lifted and coasting in neutral are strictly prohibited. Operators should always be vigilant about blind spots, operate in a standardized manner, and ensure the safety of people and vehicles. For detailed steps, please refer to the official operation manual.
FAQ
1.When a vehicle is going down a long slope, how should it be operated to ensure braking safety?
A: Its electric Retarder braking system should be fully utilized. Adjust the braking force by controlling the handle to keep the vehicle going downhill at a constant speed. This will significantly reduce the frequency of use of traditional service brakes (foot brakes) and prevent the braking system from failing due to overheating (brake thermal fade). The foot brake serves as an auxiliary and ultimate means of parking.
2.What safety precautions must be taken when unloading materials from a lifting carriage?
1. Parking in place: A flat and solid unloading platform must be selected. The vehicle must come to a complete stop and the handbrake must be applied.
2. Observe the environment: Ensure that there is absolutely no one and no obstacles behind the vehicle and within the lifting space.
3. Engine speed: Before lifting, the engine speed should be increased to the rated range to ensure that the hydraulic pump has sufficient power.
4. It is strictly prohibited to drive with the cargo box lifted: After unloading is completed, it must be confirmed that the cargo box has completely fallen back and been locked before moving the vehicle. This is an unbreakable rule for preventing a rollover.
3.What are the most basic daily maintenance checks?
A: Before daily work, the following should be done:
• Round-trip inspection: Check the tire pressure and damage, whether there is any oil leakage, whether the lights and horn are normal, and whether there are any cracks in the structural components.
After starting, check: Observe the dashboard (whether the oil pressure, water temperature, voltage, etc. are normal) and listen for any abnormal sounds from the engine.
• System check: Test whether the brakes are effective.
4.How to query vehicle fault codes?What are the basic ideas for fault diagnosis?
The XDR80T is equipped with an intelligent dashboard. When the system detects A fault, it will display it in the form of a fault code. The operator should record the code immediately.
The basic thinking for judgment is:
Refer to the manual: In the fault code section of the "Operation and Maintenance Manual" provided with the vehicle, you can quickly locate possible fault causes and offer handling suggestions based on the codes.
5.How can the operating costs of this vehicle be effectively reduced?
A: Mainly start from the following aspects:
• Standardized operation: Avoid sudden acceleration, sudden braking, and rough handling to save fuel and tire wear.
• Preventive maintenance: Regular maintenance should be carried out strictly in accordance with the time or hours specified in the maintenance manual. Use genuine oil and filter elements to prevent problems before they occur.
• Utilize data: Monitor fuel consumption, tire pressure, load and other data through the on-board management system, analyze and optimize operational efficiency.
• Training drivers: A skilled and well-behaved driver is the key to reducing operating costs.
