XGS58
| Availability: | |
|---|---|
| Quantity: | |

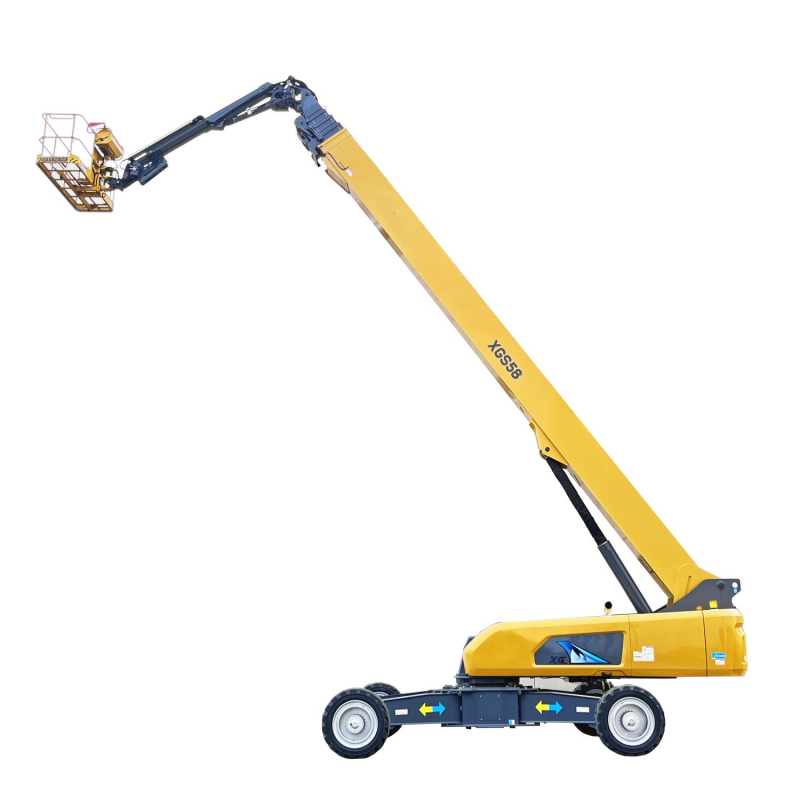

XGS58 is a heavy-duty diesel-driven self-propelled telescopic boom lift engineered for extreme-height aerial tasks. It delivers a 58.6m max working height, 24.4m horizontal outreach, and 230kg (unrestricted) / 450kg (limited) dual load capacity. Featuring an X-type axle, 4-wheel steering (2-wheel/4-wheel/crab modes), and 360° continuous turntable rotation, it combines industry-leading performance, robust stability, and precise control. Ideal for high-rise construction, steel structure, petrochemical, large venues, and rental fleets demanding maximum reach and capacity.
Ultra-High Reach & Capacity: 58.6m height, 24.4m outreach, 230/450kg dual load—top-tier for 58m-class lifts.
X-Type Heavy-Duty Axle: Ensures exceptional stability during operation and easy transport.
Advanced 4-Wheel Steering: 2-wheel, 4-wheel, and crab steering modes for unmatched maneuverability on tight sites.
Powerful Diesel Performance: 45% gradeability, 4WD, and 250mm ground clearance for rough-terrain dominance.
Smooth & Efficient Hydraulics: Load-sensing system with gravity descent for energy savings and stable boom movement.
Full-Range Flexibility: 360° continuous rotation + 160° platform swing for blind-spot-free positioning.
High Safety Assurance: Real-time load monitoring, tilt alarm, overload protection, and emergency power unit (EPU).
Rental-Friendly Design: Durable build, low maintenance, and compact stowed size for cost-effective logistics.
Item | Unit | XGS58 |
|---|---|---|
Max. Working Height | m | 58.6 |
Max. Platform Height | m | 56.6 |
Max. Horizontal Outreach | m | 24.4 |
Rated Load Capacity | kg | 230 (unlimited) / 450 (limited) |
Platform Dimension | mm | 2400 × 900 × 1100 |
Overall Dimension (Stowed) | mm | 19450 × 2490 × 3070 |
Total Weight | kg | 27900 |
Power Source | - | Diesel Engine |
Travel Speed | km/h | 4.5 (stowed) / 0.5 (extended) |
Max. Gradeability | % | 45 |
Turntable Rotation | ° | 360° Continuous |
Platform Swing Angle | ° | 160 |
Boom Luffing Range | ° | -1 ~ +80 |
Min. Turning Radius (Outside) | m | 9.5 (2WS) / 6.6 (4WS) |
Ground Clearance | mm | 250 |
High-Rise Construction: Exterior wall installation, glass curtain wall fitting, steel structure erection, high-rise maintenance.
Large Venues: Stadium/airport/exhibition center roof maintenance, lighting/audio system installation.
Petrochemical & Energy: Refinery pipeline maintenance, power plant equipment inspection, flare stack repair.
Municipal & Bridge: Bridge inspection, streetlight/traffic signal repair, highway sign installation.
Rental & Heavy Industry: Ideal for rental fleets; suitable for shipbuilding, aerospace, and large equipment maintenance.
Check diesel fuel, engine oil, and hydraulic oil levels; verify no leaks.
Inspect tire pressure, tread condition, and wheel bolt tightness.
Test safety systems: guardrails, door locks, limit switches, emergency stop, and tilt alarm.
Confirm battery voltage and emergency power unit (EPU) functionality.
Start the diesel engine; wait for system self-check and stable idle speed.
Drive to a firm, level area; apply parking brake and chock wheels.
Operate boom controls slowly: luff, extend, and rotate turntable to target position.
Adjust 160° platform swing for precision; strictly avoid overloading.
After work: fully retract boom, lower platform, shut down engine, and remove keys.
Never exceed rated load: 230kg unrestricted / 450kg limited; max 2 operators.
Operate only on solid ground; max allowable slope: 5° when working.
Stop operation if wind speed > 12.5m/s (strong wind).
Operators must wear safety harnesses, helmets, and non-slip shoes.
Regularly inspect safety sensors, limit devices, and hydraulic components.
A: 230kg is unrestricted (full 24.4m outreach allowed); 450kg is limited (reduced outreach for safety). Choose based on job reach and weight requirements.
A: Typical fuel consumption: 12–15 L/h (varies with load). Standard tank capacity: ~200L, ensuring long-duration operations per refill.
A: Yes. 45% gradeability, 4WD, X-type axle, and 250mm ground clearance enable stable travel on mud, gravel, and rough terrain.
A: Standard features: emergency stop, overload protection, tilt alarm, 360° safety sensors, automatic leveling, and EPU for emergency lowering during engine failure.
A: Yes. Stowed dimensions: 19.45m × 2.49m × 3.07m, compatible with standard low-bed trailers; height under 3.1m simplifies logistics.
A: 12 months / 2000 hours (whichever comes first) full machine warranty. Core components (engine, pump, motor) have extended coverage. Global after-sales support available.
