Product Introduction
Prioritizing safety, this crane incorporates multiple protective measures and alarm systems, complying with international safety standards including CE and GOST to significantly enhance operational security. Optimized hydraulic systems and electronic control technology minimize energy consumption while ensuring smooth, reliable operation, guaranteeing stability, dependability, and ease of use throughout lifting tasks.
Product Advantage
Single cylinder synchronization guy cable technology makes work efficiency higher than before. Advanced development means make sure that the design is very reliable. The more symmetrical center design of pentagon or hexagon boom make it has bigger anti-bending capacity.
Compact hinge point design takes up smaller space. The work is more safety after fitted with alarm device. The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system. Float three -point bridge structure design can lower the accessional stress on the chassis when traveling. It has been fitted own powerful slewing of working in diversifying conditions. Anti-slewing impulse equipment makes vehicle running safety.
Technical Parameters
| ITEM | UNITS | SQ10ZK3Q |
| Max lifting capacity | KG | 10000 |
| Max lifting capacity | T.M | 20 |
| Recommend power | KW | 28 |
| Max oil flow | L/MIN | 40 |
| Max pressure | MPA | 30 |
| Oil Tank Capacity | L | 160 |
| Crane weight | KG | 3477 |
| Installation space | MM | 1150 |
| Rotation angle | DEGREE | 360 |
| Extension length | MM | 9755 |
| Lifting height | MM | 12000 |
| Max elevation | DEGREE | 75 |
Product Uses
1. Construction Sites and School Development
This crane can be used to lift and transport construction materials such as precast slabs and steel reinforcement. Its flexibility makes it suitable for diverse site environments, with documented cases of procurement by Kuwait's Ministry of Education for post-pandemic school construction projects.
2. Logistics Transportation and Port Operations
In logistics, this equipment assists with cargo loading/unloading and material transfer. Its folding boom design and excellent maneuverability make it suitable for operations in yards, ports, and other locations requiring frequent loading/unloading.
3. Industrial Plants & Specific Conditions
In factories, mines, and similar environments, it handles heavy lifting during equipment installation, maintenance, and repairs. Its compact structure allows operation in relatively confined spaces, and various attachments can be added to accommodate special working conditions.
4. Overseas Engineering Projects
As part of the company's overseas expansion strategy, this crane model has been successfully exported to markets like Kuwait. It has undergone structural enhancements and operational adaptations for specific overseas markets such as Brazil, making it suitable for international infrastructure projects.
Product Operate Guide

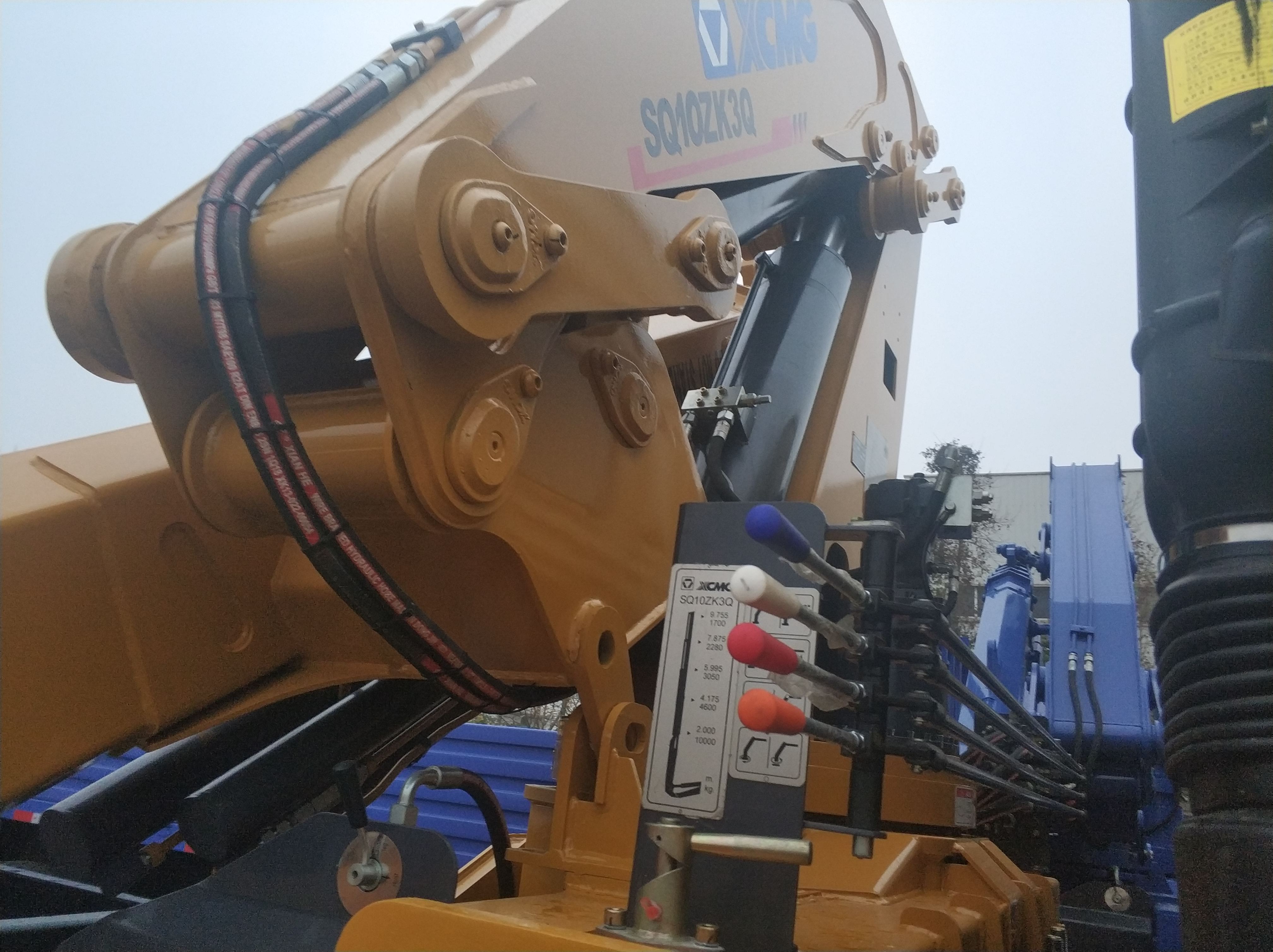

Operating the SQ10ZK3Q lorry crane requires certification and strict adherence to safety protocols. Before any lift, deploy outriggers to their full width on stable, level ground. Always consult the load chart to ensure the weight and radius are within safe limits. Use smooth, controlled movements with the hydraulic controls. Never lift loads over people and maintain a safe distance from power lines. Regularly inspect the wire rope and hooks for damage.
FAQ
1. HOW TO PROPERLY START MECHANICAL EQUIPMENT?
Check that all instrument readings are normal. Turn the key to the ON position and wait for the system self-check to complete. Then start the engine and let it idle for 3-5 minutes to warm up.
2. WHAT TO DO IF THE EQUIPMENT SUDDENLY LOSES POWER?
Immediately stop the vehicle smoothly. Inspect the fuel supply system, hydraulic system, and electrical system. Restart only after troubleshooting the issue.
3. WHAT SHOULD BE DONE IF THE EQUIPMENT EMITS ABNORMAL NOISES DURING OPERATION?
Immediately cease operation. Identify the source of the noise and inspect corresponding components for looseness, wear, or damage. Contact maintenance personnel if necessary.
4. HOW TO PROPERLY OPERATE THE HYDRAULIC SYSTEM?
Check the hydraulic oil level before operation. Avoid prolonged operation at extreme positions during use. Monitor changes in hydraulic oil temperature.
5. HOW TO OPERATE EQUIPMENT SAFELY ON SLOPES?
Maintain stable equipment center of gravity, engage parking brakes, avoid sharp turns, and use anti-slip devices when necessary.
6. WHAT TASKS ARE REQUIRED FOR DAILY MAINTENANCE?
Includes checking engine oil, hydraulic fluid, and coolant levels; cleaning the air filter; inspecting tire or track condition; and tightening all connecting components.
