803683478
| Availability: | |
|---|---|
| Quantity: | |

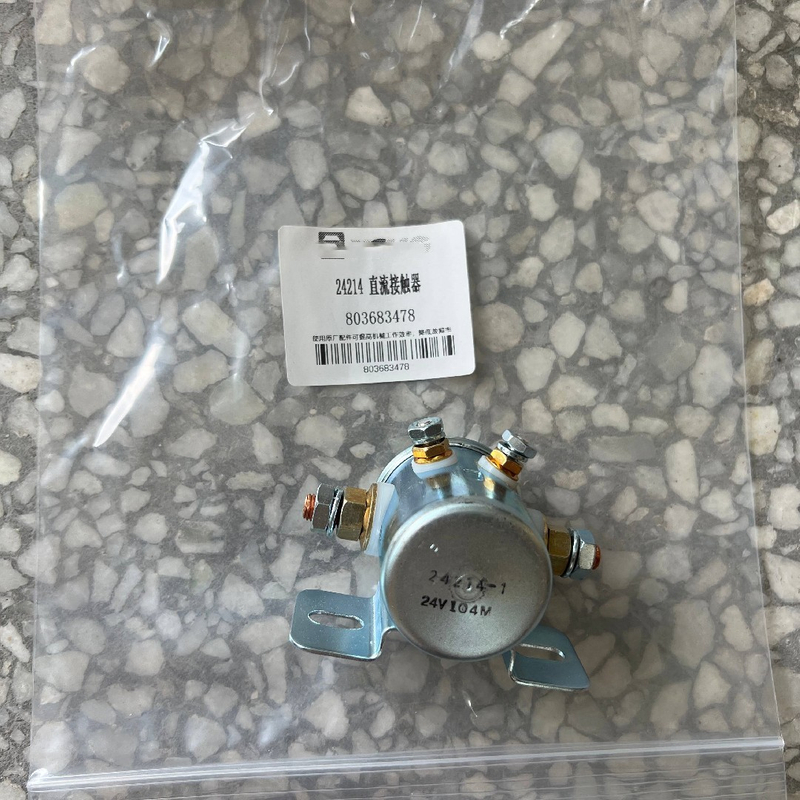

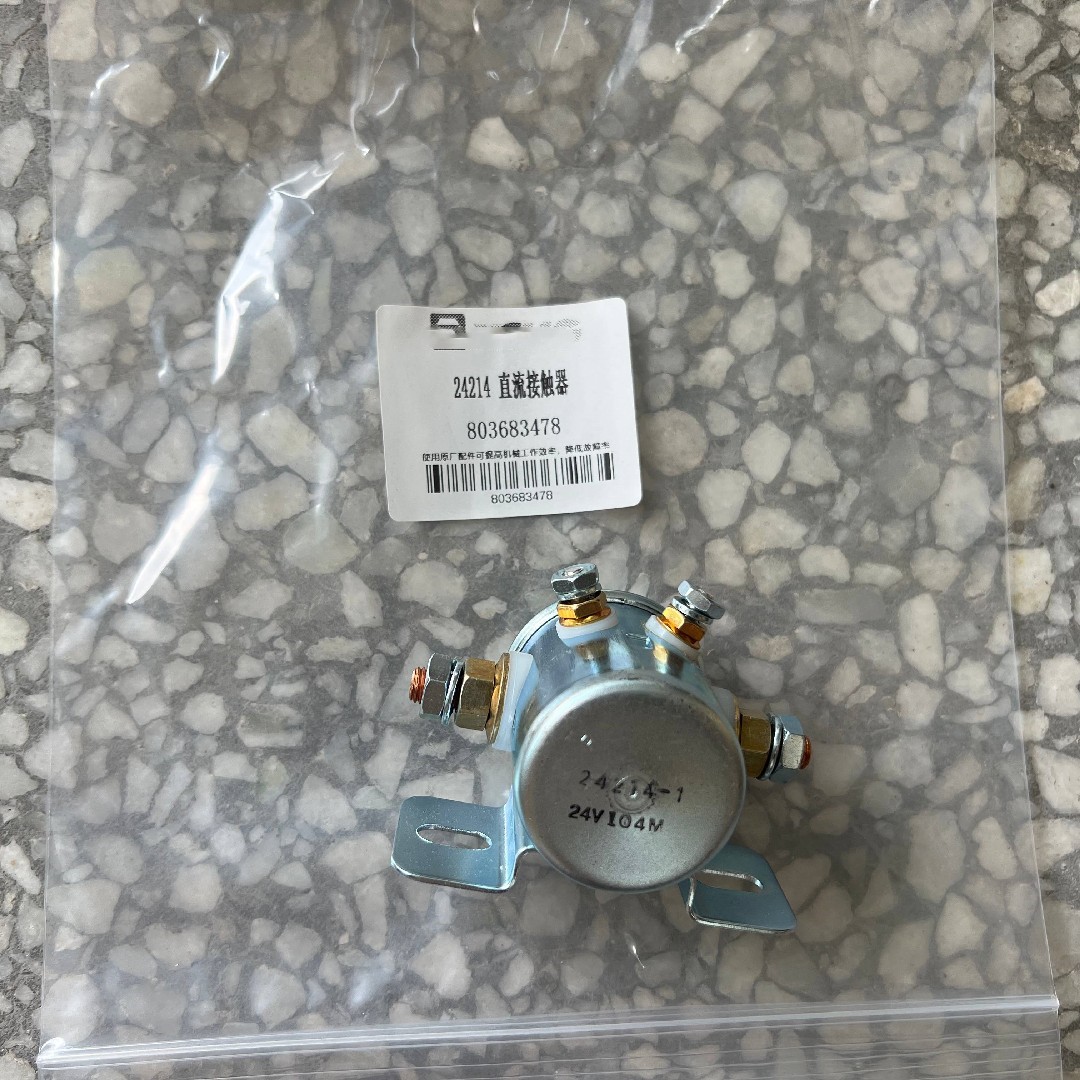

The 24214 DC Contactor, with part number 803683478, is a high-performance electrical component specifically designed for mining excavators. It serves as a core control part in the excavator’s electrical system, responsible for switching on and off the DC circuit, controlling the operation of key electrical components (such as motors, solenoid valves), and ensuring stable and reliable power transmission. With strong load-bearing capacity and excellent anti-interference performance, it is fully adapted to the harsh working environment of mining sites, providing stable support for the safe and efficient operation of mining excavators.
High Load-Bearing Capacity: Designed for heavy-duty mining scenarios, it can stably bear large current loads, avoiding circuit failure caused by overload.
Stable Electrical Performance: Adopts high-quality internal components, with low contact resistance, fast switching response, and no contact jitter, ensuring stable circuit connection.
Strong Environmental Adaptability: Dustproof, moisture-proof, and shock-resistant, able to work normally in high-temperature, low-temperature, and dusty mining environments.
Easy Installation & Replacement: Standard size and interface, perfectly matching mining excavators, no need for modification, simple and quick to install and replace.
Long Service Life: High-quality materials and precision manufacturing process, with strong wear resistance and corrosion resistance, reducing the frequency of replacement and maintenance costs.
Safe and Reliable: Equipped with overcurrent and overheat protection functions, effectively preventing electrical faults and ensuring the safety of the excavator’s electrical system.
Item | Specification |
|---|---|
Part Number | 803683478 |
Product Model | 24214 DC Contactor |
Product Type | DC Contactor (Electrical Control Component) |
Applicable Equipment | Mining Excavators (Suitable for various models of mining crawler excavators) |
Working Voltage | DC 24V (Standard vehicle electrical system voltage) |
Rated Current | High current rating (Adapt to mining excavator load requirements) |
Contact Type | Normally Open (NO) / Normally Closed (NC) (Standard configuration) |
Working Temperature | -40℃ ~ +85℃ |
Protection Grade | IP65 (Dustproof, moisture-proof) |
Material | High-temperature resistant plastic shell + copper alloy contacts |
The 24214 DC Contactor 803683478 is mainly used in the electrical control system of mining excavators, suitable for various harsh mining and engineering scenarios, including but not limited to:
Open-pit mining sites: Controlling the electrical system of excavators during ore mining and loading operations.
Underground mining operations: Adapting to low-light, dusty, and humid underground environments, ensuring stable operation of excavator electrical components.
Large-scale earthwork construction: Used in excavators for earthmoving, digging, and leveling operations in engineering sites such as mines, highways, and railways.
Heavy-duty operation scenarios: Suitable for long-time continuous operation of mining excavators, bearing large current loads and ensuring stable power supply.
Before installation, cut off the excavator’s power supply to ensure personal safety and avoid electrical short circuits.
Check the part number (803683478) and model (24214) to confirm it matches the excavator’s electrical system requirements.
Find the installation position of the original DC contactor in the excavator’s electrical control box, and gently remove the old contactor by disconnecting the wiring.
Align the wiring terminals of the 24214 DC contactor with the excavator’s wires, and firmly connect the wires (ensure correct wiring to avoid reverse connection).
Fix the contactor in the control box with screws, ensuring it is installed firmly and there is no looseness (to prevent vibration from affecting performance).
After installation, restore the power supply, start the excavator, and test whether the contactor works normally (check for abnormal noise, heating, or circuit failure).
In daily use, regularly check the contactor’s surface for dust and dirt, clean it in time, and check the wiring tightness to avoid poor contact.
If the contactor fails (such as failure to switch, abnormal heating), stop using it immediately, cut off the power supply, and replace it with a new one of the same model.
Q: Which equipment is the 24214 DC Contactor 803683478 suitable for?
A: It is specially designed for mining excavators, suitable for various models of mining crawler excavators, and can perfectly match the electrical system of mining equipment.
Q: What is the working voltage of this DC contactor?
A: The standard working voltage is DC 24V, which is consistent with the electrical system voltage of most mining excavators.
Q: Can it be directly replaced with the original contactor of the excavator?
A: Yes, it adopts standard size and interface, which is completely consistent with the original factory specifications, and can be directly replaced without any modification.
Q: What are the common causes of contactor failure?
A: Common causes include long-term overload operation, poor contact of wiring terminals, dust and moisture erosion, and aging of internal components.
Q: How to judge whether the contactor is damaged?
A: If the excavator’s electrical components (such as motors) fail to start, there is abnormal noise or heating of the contactor, or the circuit is frequently disconnected, it may indicate that the contactor is damaged.
Q: Does this contactor have protection functions?
A: Yes, it is equipped with overcurrent and overheat protection functions, which can effectively prevent electrical faults caused by overload and overheating, ensuring the safety of the excavator’s electrical system.
