Product Introduction

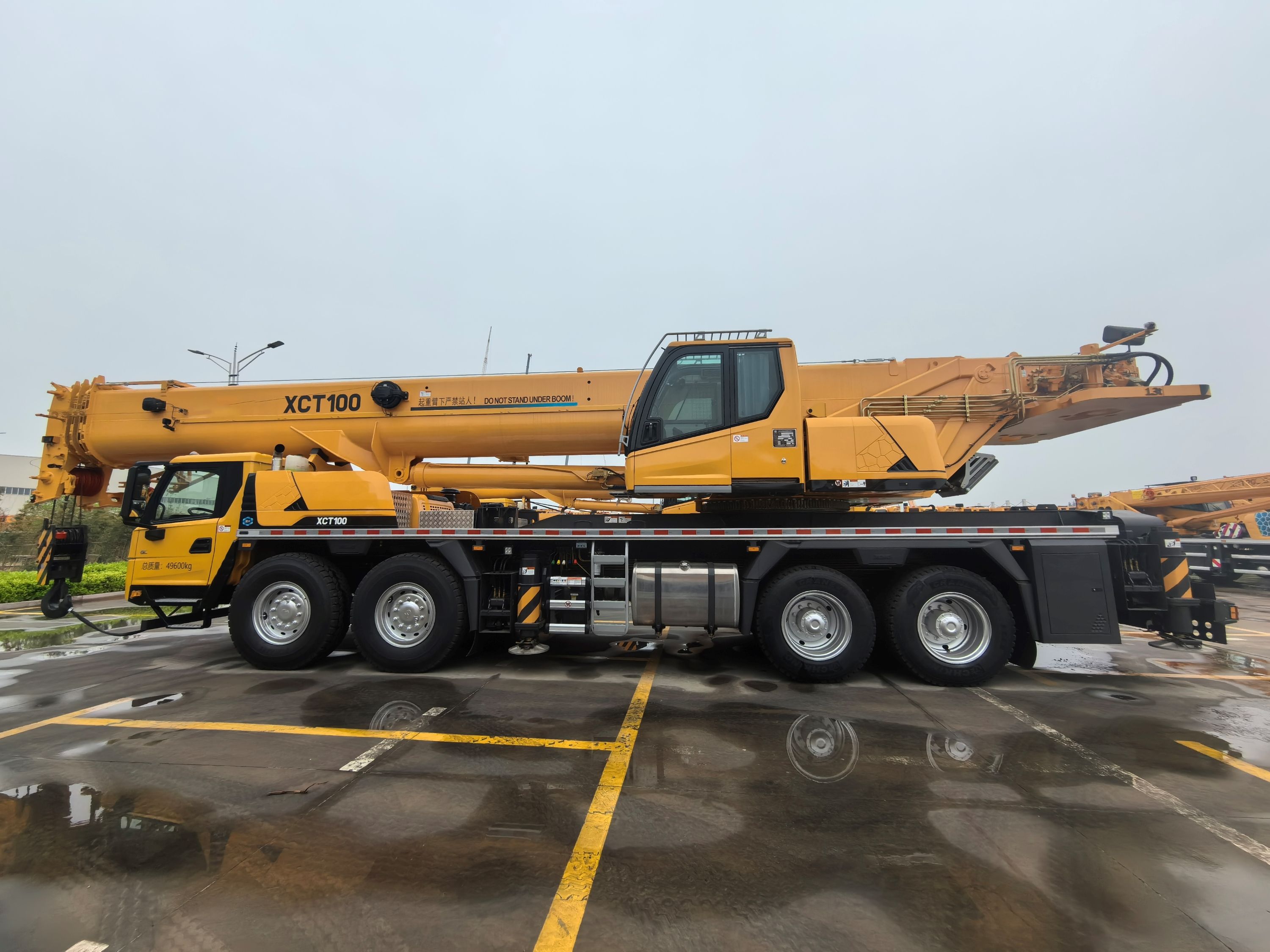

XCT100G5-1 is a 100-ton high-performance hydraulic mobile truck crane for heavy-duty lifting in complex construction. It has a 5-section 51.5m telescopic main boom (optional 17.5m jib), with a max lifting height of 68m. Equipped with advanced hybrid power, it supports three modes (hybrid, plug-in, pure electric) for zero emissions and over 40% fuel savings, with strong mobility and safety.
Product Advantages
Superior Lifting: 100-ton capacity, 51.5m main boom, 68m max lifting height (with optional jib), stable under heavy loads.
Energy-Saving: Hybrid power with three modes, over 40% fuel savings and zero-emission operation.
Strong Mobility: 4-axle chassis carries 29t counterweight for on-site transfer; 80km/h max speed, 45% gradeability.
High Adaptability: Stable operation at -35℃ and 5000m altitude; suitable for narrow sites.
Safe & User-Friendly: Equipped with safety protections; wide-vision cab for easy operation.
Product Parameter Table
Item | Unit | XCT100G5-1 |
Max Rated Lifting Capacity | t | 100 |
Main Boom Length | m | 13.2-51.5 |
Optional Jib Length | m | 17.5 |
Max Lifting Height | m | 68 |
Max Travel Speed | km/h | 80 |
Max Gradeability | % | 45 |
Counterweight | t | 29 |
Product Uses
Suitable for bridge construction, high-rise building steel structure lifting, infrastructure engineering, factory heavy equipment maintenance, port cargo loading and unloading, logistics handling, and temporary heavy lifting tasks.
Product Operation Guide
Pre-Operation
Check tire condition, brake system, hydraulic oil level and pipeline sealing; inspect boom, wire rope and hook; confirm ground bearing capacity and place support pads under outriggers.
Operation
Start engine, idle for 5 minutes; extend outriggers fully and level the chassis; lift load slowly to check stability; operate boom and slewing smoothly, avoid overload and sudden movement.
Post-Operation
Lower load steadily, retract boom and outriggers; idle engine then shut down; clean the crane and check for maintenance needs.
FAQ
Q1: What is the max lifting capacity?
A1: 100 tons, suitable for heavy-duty lifting tasks.
Q2: Can it be used in low-temperature areas?
A2: Yes, it operates stably at -35℃.
Q3: Does it support on-site transfer?
A3: Yes, its 4-axle chassis carries counterweight for direct transfer.
Q4: What safety devices does it have?
A4: Overload protection, height limit and moment limiter.
Q5: Is it energy-saving?
A5: Yes, hybrid power saves over 40% fuel and supports zero emissions.
