Product Introduction

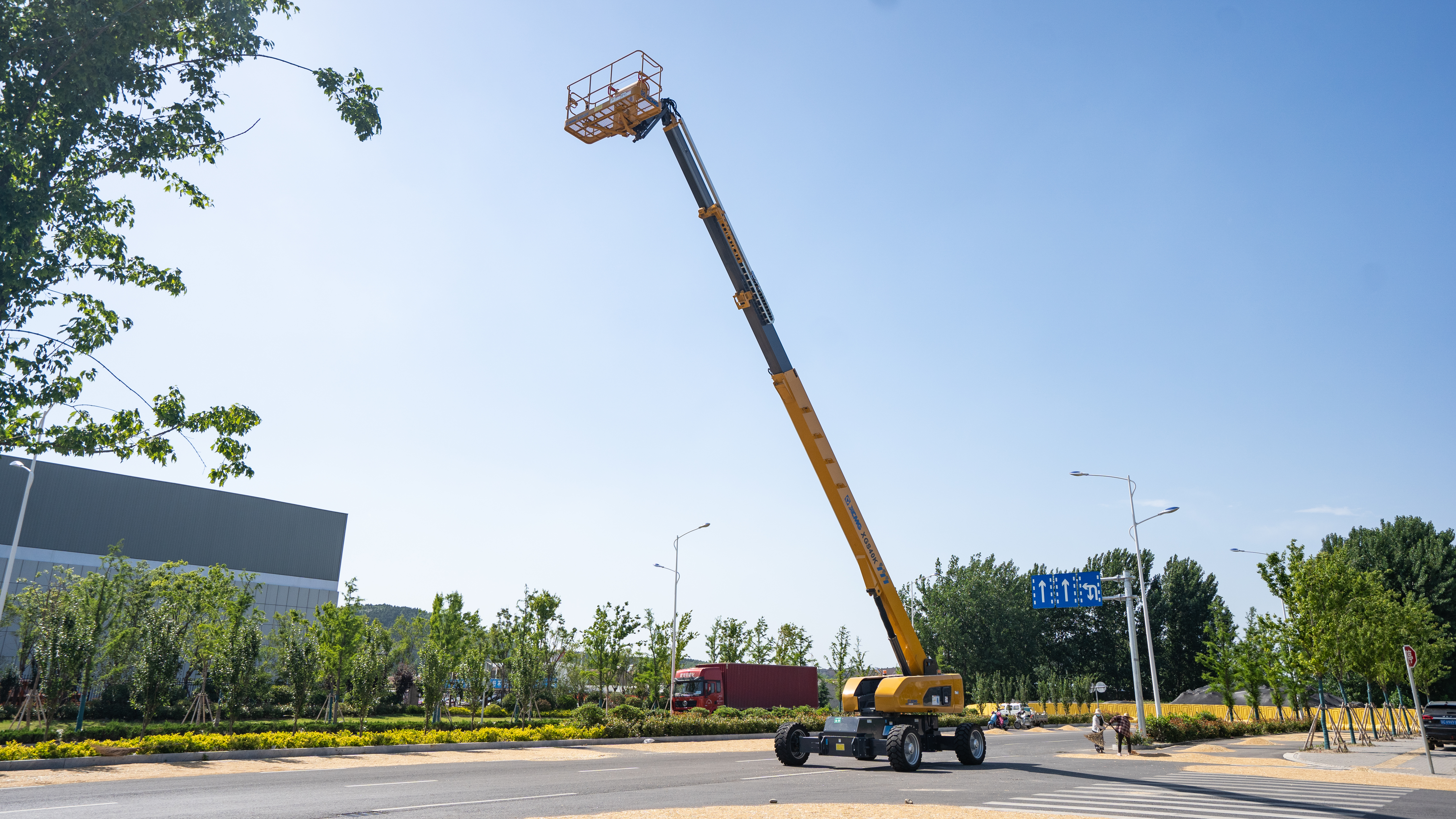

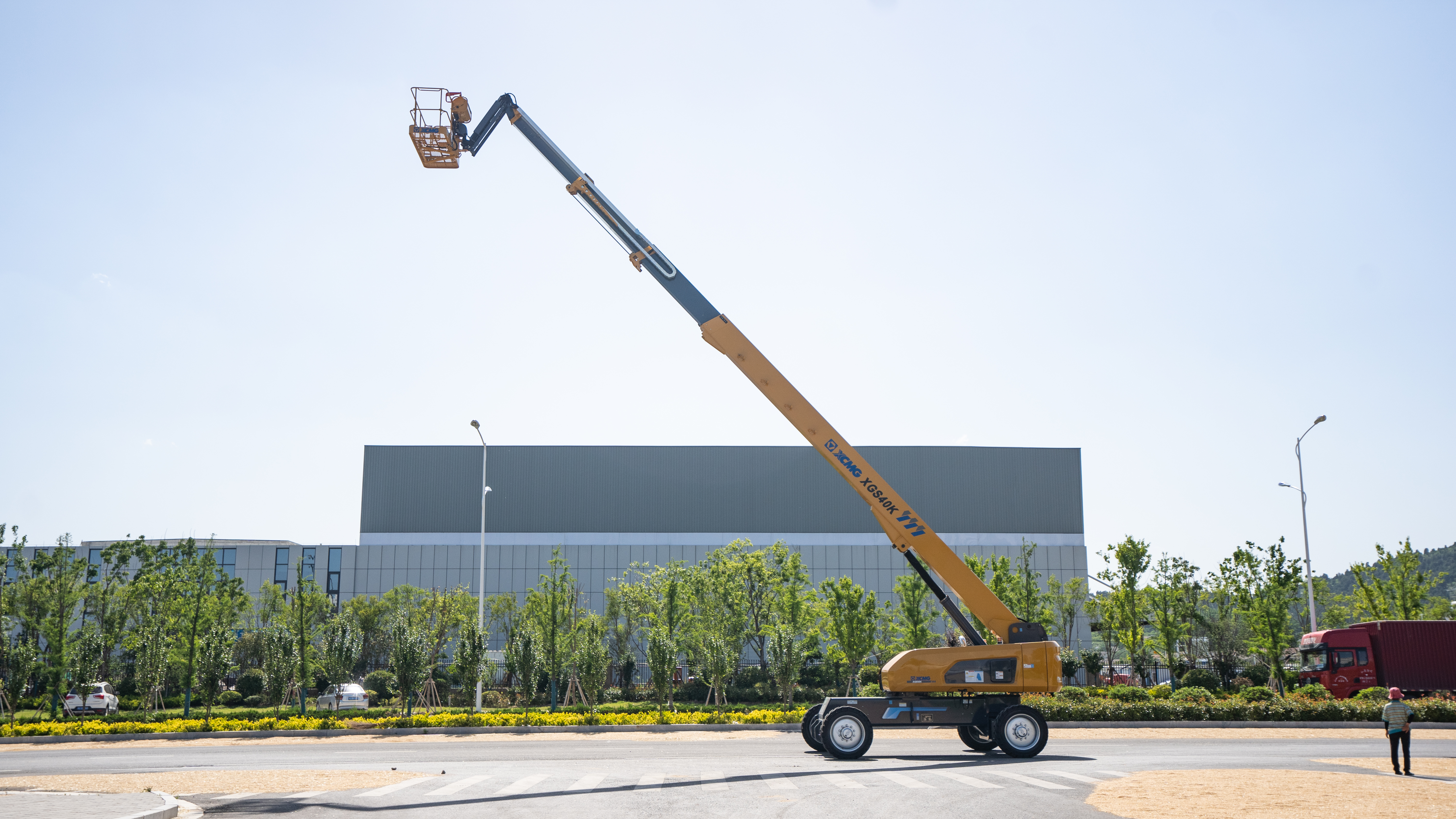

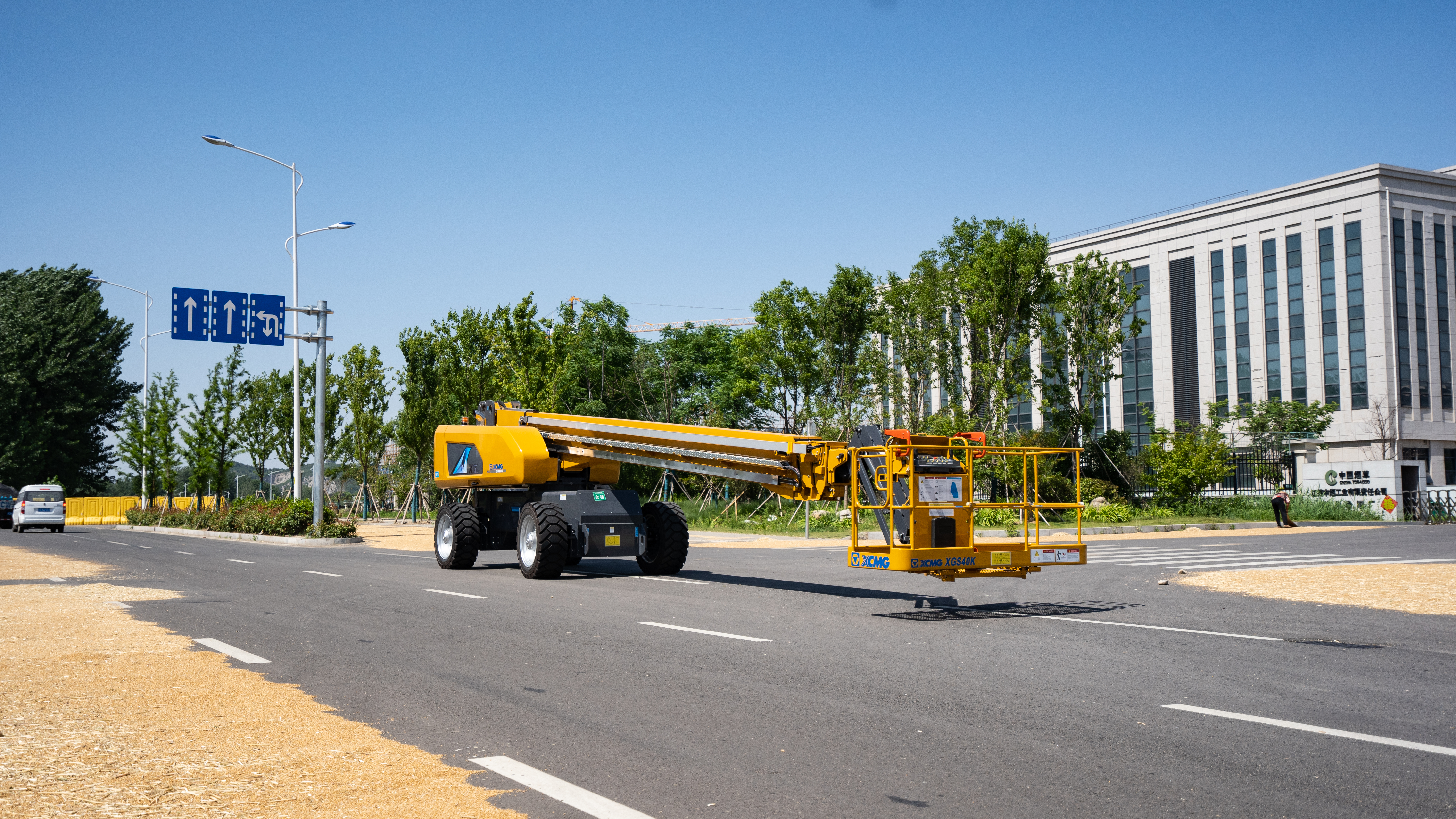

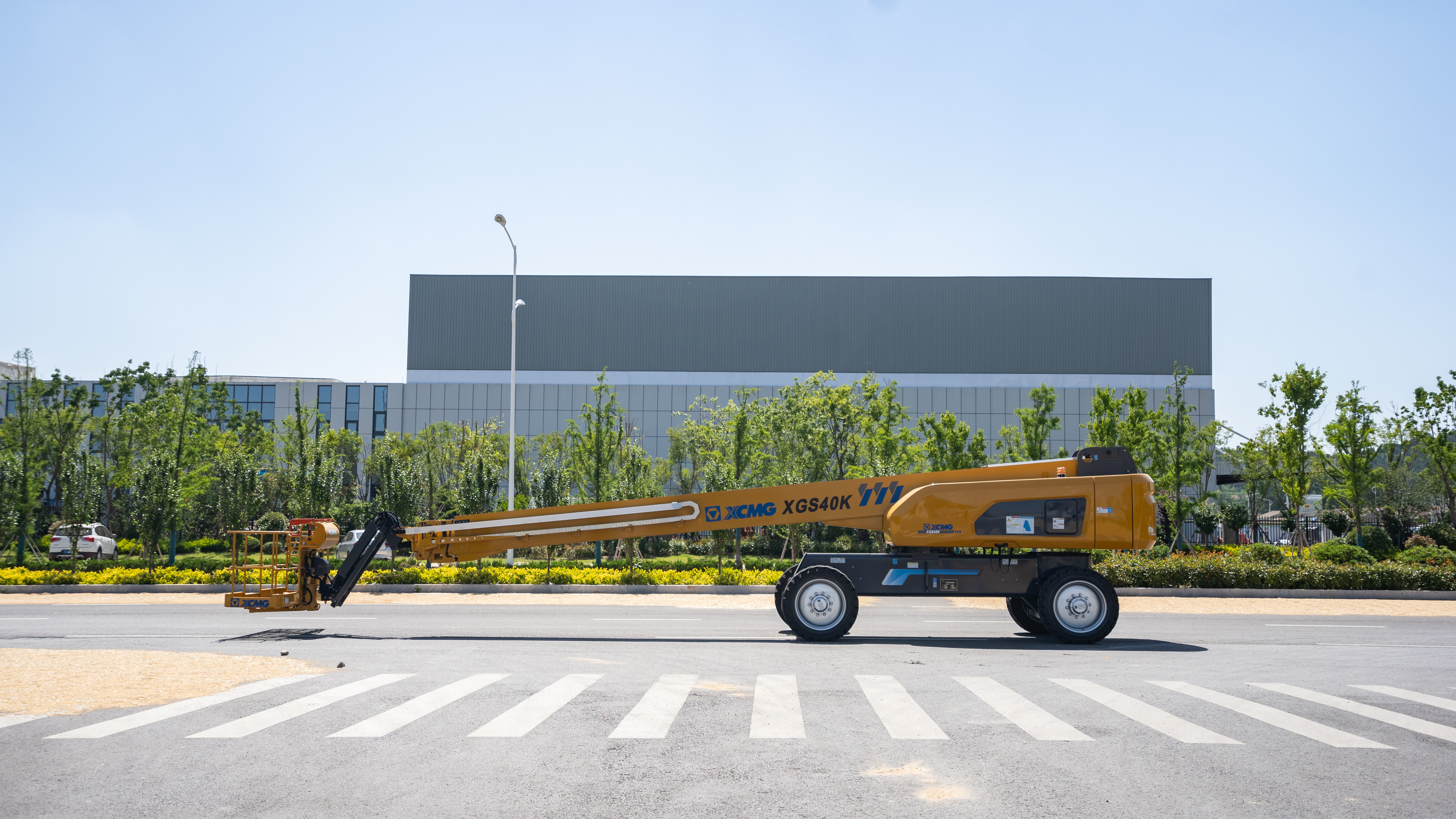

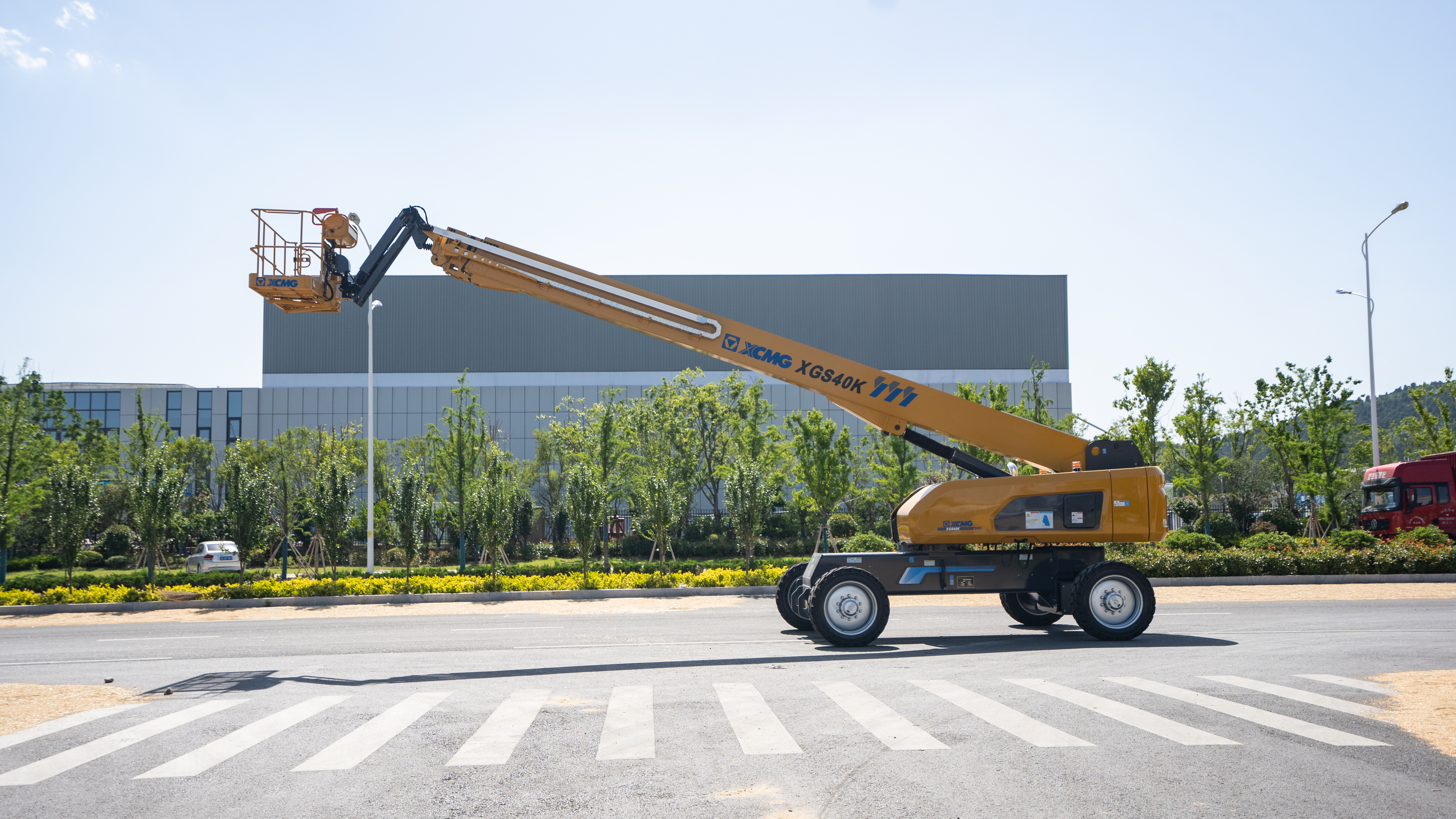

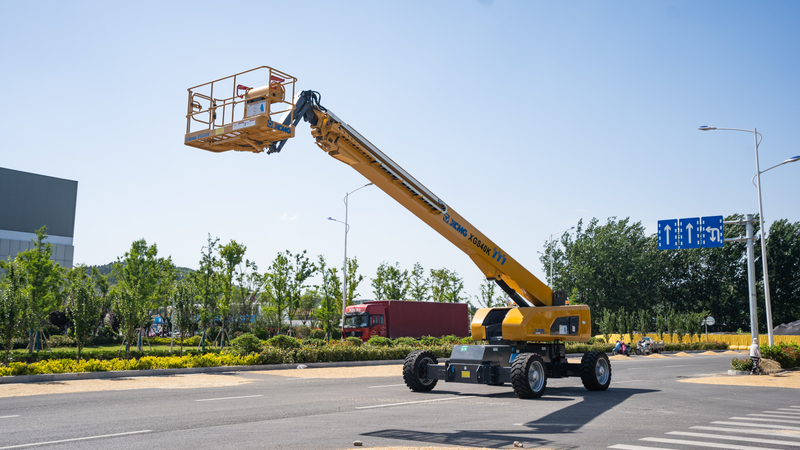

The XGS40K is a high-end hybrid boom aerial work platform that integrates high performance, high safety and high intelligence. It is not only an extension of height, but also a comprehensive embodiment of technology, efficiency and safety, aiming to solve extremely complex high-altitude operation problems for users, and is the ultimate tool for challenging top-level high-altitude operation tasks.
Product Advantage
* The 2.4m wide platform would be convenient to carrying tools and materials.
* The technologies of four wheel drive, double operating amplitude curve control and the abilities climbing of working height, luffing range, load capacity is excellent in this field.
* Two kinds of Max. load capacity, 300kg and 460kg, could meet the demands of different working conditions.
* The telescopic boom with a short jib increased 1.45m horizontal reach and 135° pitch range, which make its working performance excellence.
* With electronic four-wheel steering control technology, it is flexible, which could realize the independent front and rear axle steering, all-wheel and crabs steering and other four kinds of steering model.
* With axle balance control system, it could run on the rough road.
* With the ultra wide type cross-country foam tire, it could run on soft road, which gives it a strong adaptability to the road condition.
Technical Parameters
| Item | Unit | Parameters |
| Overall length | mm | 14060 |
| Overall width (shaft restracts/stretches) | mm | 2490/3800 |
| Overall height | mm | 3000 |
| Wheelbase | mm | 3800 |
| Max. working height | m | 40.2 |
| Max. platform height | m | 38.2 |
| Max. working range | m | 24.6 |
| Max. load capacity | kg | 300(unlimited)/460(limited) |
| Boom luffing range | ° | -6.5~+75 |
| Slewing angle of turntable | ° | 360 |
| Max. Tail swing
(shaft restracts/stretches) | mm | 2255/1600 |
| Dimension of platform | mm | 2400/900 |
| Slewing angle of platform | ° | 160 |
| Overall weight | kg | 21460 |
| Max. traveling speed | km/h | 5 |
| Min. turning radius
(shaft restracts/stretches) | m | 10.8/8.2(Two-turn)
6.8/5.8(Four-turn) |
| Min. ground clearance | mm | 320 |
| Max. gradeability | % | 40 |
| Specification of tire | / | 445/50D710 |
| Engine model | / | YC4FA75-T300 |
| Engine rated power | kW/(r/min) | 55 |
Product Uses
Large industrial plants (steel structure, equipment installation, maintenance)
Construction and maintenance of large venues (stadiums, airports, stations)
• Shipbuilding and maintenance
• Inspection and construction of large Bridges
• Installation and maintenance of power facilities
• Construction and cleaning of building exterior walls
Product Operate Guide
The operation of the XGS40K aerial work platform requires a valid certificate. Before starting the operation, be sure to check the outriggers, structure and emergency devices. After starting, select the driving mode on the chassis and use the four-wheel drive and four-wheel drive for flexible positioning. Operate the platform proportional handle to precisely control the movement of the hybrid boom and the rotation of the platform, paying attention to environmental obstacles and the 300kg load limit. Use the emergency stop button in an emergency. After completion, restore the equipment to the transportation state and park it. Overloading and illegal operation are strictly prohibited. Please strictly follow the safety manual.
FAQ
1.What are the differences between the "hybrid arm" of the XGS40K and the ordinary articulated arm?What is the greatest advantage?
A: The hybrid arm combines the long-distance extension capability of a straight arm with the flexible crossing ability of a curved arm. Its greatest advantage lies in its outstanding obstacle crossing performance. The vertical crossing height can reach nearly 18 meters, enabling it to easily overcome large factory buildings, facilities and other obstacles for operations without the need for frequent equipment movement, thus achieving extremely high efficiency.
2.How is its passability on the construction site?
A: Excellent passability. Equipped with four-wheel drive and multiple steering modes (including crab walk and zero turning radius), it has a climbing gradient of up to 40%, capable of adapting to uneven construction site roads as well as flexible steering and precise positioning in narrow Spaces.
3.In case of an emergency such as an engine stall, how can one land safely?
A: The equipment is equipped with multiple safety redundancies:
• Emergency Power Unit (EPU) : It can provide backup power to drive the pump and safely retract the boom.
• Manual emergency descent system: In the event of a complete power failure, the emergency valve can be manually operated, and the platform can descend smoothly relying on the gravity oil control system.
4.What key point checks need to be carried out on a daily basis?
A: Before each daily operation, a machine inspection must be carried out. The key points include:
• Structural components: Inspect key structures such as the boom and outriggers for cracks or deformations.
• Hydraulic system: Check for any leakage in the oil pipes and whether the oil level is normal.
• Safety devices: Test whether functions such as tilt alarm, emergency stop, and emergency descent are effective.
5.Is the maintenance of the equipment convenient?
A: Convenient. Adopting a humanized design, the engine compartment has a large open cover. Daily maintenance points (such as the oil dipstick, air filter, and coolant filling port) are concentrated and within easy reach, greatly simplifying the daily maintenance process and reducing downtime.
6.How to obtain original factory parts?
A: You can contact us directly online to obtain genuine original factory parts.
