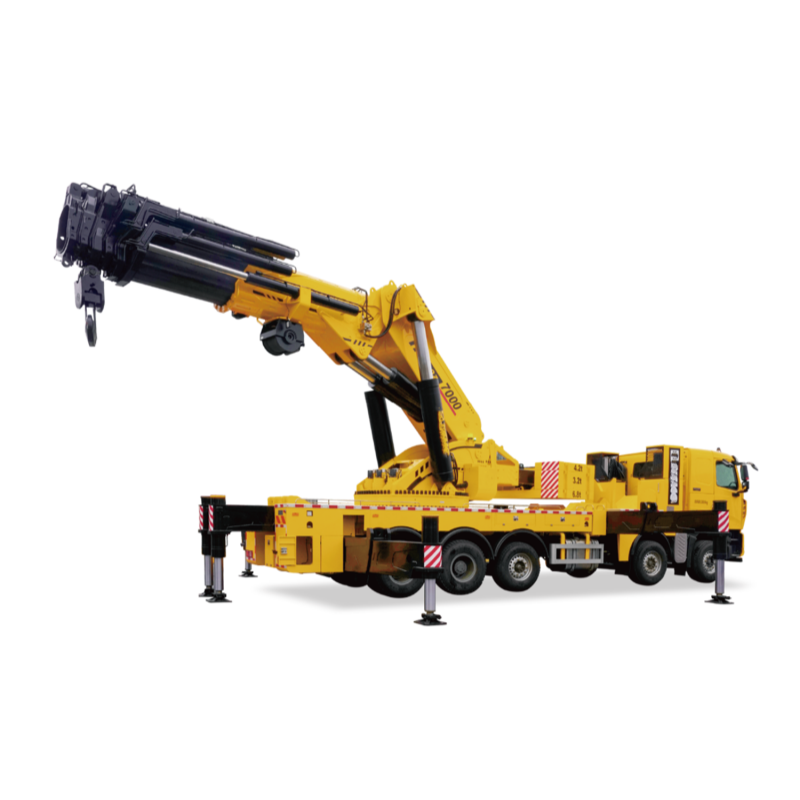

SQZ7000 Heavy Duty Articulated Lorry Crane Ultra-large Torque Low Clearance Folding Boom Crane For Petrochemical & Heavy Industrial Lifting

Product Description

The SQZ7000 hydraulic folding boom crane is a newly upgraded ultra-large torque super-heavy lifting equipment, professionally developed for ultra-extreme heavy-load hoisting scenarios in high-standard large-scale engineering. Different from conventional heavy folding cranes, the whole machine adopts aviation-grade high-strength steel and optimized 12-sided polygonal boom cross-section design, cooperating with integral forging and precision welding technology to maximize structural rigidity, anti-bending and anti-torsion performance. It completely eliminates boom jitter, deformation and offset during full-load ultra-long-radius operation, realizing high-precision positioning of super-heavy equipment.

Equipped with a multi-section optimized telescopic folding boom system, the SQZ7000 achieves an ultra-wide operation coverage range, greatly reducing frequent vehicle position adjustment and improving overall engineering construction efficiency. It adopts a premium large-flow dual-pump confluence hydraulic system with intelligent pressure regulation and multi-stage buffer protection technology, featuring fast response, stable power output, uniform lifting speed and low energy consumption. The optimized hydraulic valve group matching effectively reduces impact wear during boom telescoping, luffing and slewing, extending the service life of the entire hydraulic system and core components.

The machine adopts an upgraded integrated rotary table and integral counterweight box structure, optimizing the overall force transmission path and greatly improving structural stability under ultra-large torque loads. The dual high-torque reducer full hydraulic slewing drive system ensures stable and uniform rotary power, realizing smooth 360° dead-angle-free full rotation. The full-span multi-stage telescopic reinforced hydraulic outriggers expand the supporting area in all directions, with upgraded anti-slip and anti-sink structure, adapting to complex and harsh construction ground conditions. The SQZ7000 reserves full intelligent upgrade interfaces, supporting wireless remote control, real-time load monitoring, automatic overload protection and intelligent fault diagnosis. All finished cranes pass strict full-load aging tests and precision calibration to adapt to long-term high-intensity ultra-heavy industrial operation.

Product Advantages

• Industry-leading 7000kN·m Ultra-large Torque:

  The super-high rated lifting torque breaks the performance limit of traditional folding cranes, realizing ultra-heavy load hoisting capacity that meets the construction demands of super-large industrial and national key engineering projects.

• Upgraded 12-sided Polygonal High-rigidity Boom:

  Adopting optimized twelve-sided polygonal cross-section and integral precision welding process, the boom features stronger torsion resistance, bending resistance and fatigue resistance, ensuring zero-jitter stable operation under full-load and ultra-long working radius conditions.

• Extreme Low-clearance Operation Ability:

  Compact full-folding integrated design minimizes the overall body height, enabling ultra-heavy hoisting in low workshops, enclosed spaces, tunnels and narrow urban construction sites where large all-terrain cranes cannot access.

• High-efficiency Large-flow Hydraulic System:

  Premium dual-pump confluence hydraulic system with intelligent flow regulation delivers fast lifting response, stable power output and high continuous working efficiency, adapting to long-term high-intensity ultra-heavy load operation.

• 360° Unlimited Dead-angle-free Rotation:

  Dual high-torque reducer full hydraulic drive system provides uniform and stable rotary power, realizing flexible all-round operation without dead angles, perfectly adapting to complex and irregular super-large construction scenarios.

• Ultra-high Overall Structural Stability:

  Integrated reinforced box frame + integral counterweight box design optimizes force transmission, matched with full-span telescopic reinforced outriggers, effectively preventing tilting risks and ensuring zero-error safe operation under ultra-large torque loads.

• Strong Environmental Adaptability:

  Upgraded anti-corrosion, anti-wear and anti-sink structural design enables stable operation in high dust, high humidity, uneven ground and other harsh construction environments, with low failure rate and strong durability.

• Full Intelligent Customization Compatibility:

  Reserved intelligent expansion interfaces support multiple upgraded configurations including wireless remote control, load monitoring system, overload self-protection and multi-functional working accessories, realizing intelligent and refined ultra-heavy hoisting construction.

Technical Parameters

Product Applications

• Super-large Industrial Heavy Equipment Installation:

  Precision hoisting and positioning of 120-ton ultra-heavy mechanical equipment, large steel structure frames and core industrial components in heavy industrial parks and closed low-height factory buildings.

• Petrochemical & Energy Super Engineering:

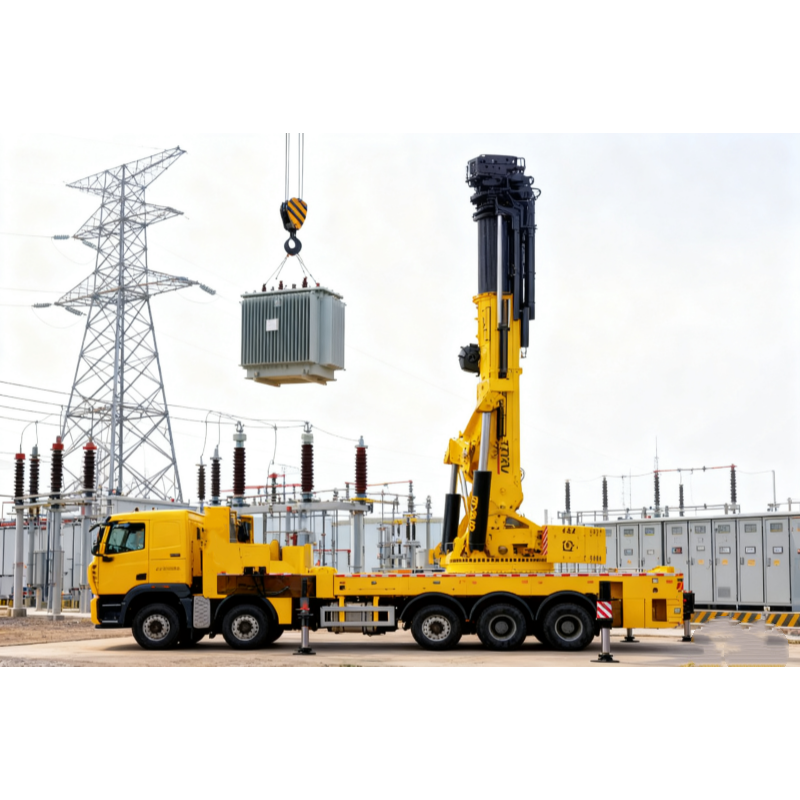

  Installation, replacement and maintenance of large chemical storage tanks, power station main units, wind power heavy equipment and ultra-heavy pipeline facilities for petrochemical, thermal power and new energy key projects.

• High-standard Municipal Reconstruction Projects:

  Hoisting and maintenance of super-large bridges, urban viaducts, overhead traffic facilities and municipal ultra-heavy structures, adapting to high-precision and high-load urban construction demands.

• Extreme Limited-space Hoisting:

  Professional ultra-heavy load operation in low workshops, enclosed warehouses, tunnel interiors and narrow urban areas that traditional large truck cranes cannot access, realizing "heavy lifting in narrow spaces".

• Port & Terminal Super-heavy Logistics:

  Loading, unloading and transshipment of oversized containers, super-heavy bulk cargo and large engineering equipment at ports, freight terminals and large logistics hubs.

• National Key Infrastructure Super Projects:

  Ultra-heavy material hoisting and large-scale equipment assembly for highway, railway, water conservancy and bridge super-large infrastructure projects.

• Major Emergency Heavy Rescue:

  Rapid clearance of super-large engineering obstacles, ultra-heavy equipment rescue and emergency hoisting for major industrial accidents and construction emergencies.

FAQ

Q1: What are the core advantages of SQZ7000 compared with other heavy folding cranes?

A: The SQZ7000 is a flagship ultra-large torque folding boom crane with 7000kN·m super-high lifting torque and 120-ton maximum lifting capacity, topping the industry specification of folding cranes. It uniquely combines ultra-large torque ultra-heavy load capacity and extreme low-clearance passability, solving the long-standing industry pain point that large truck cranes cannot enter narrow spaces and ordinary heavy cranes have insufficient lifting capacity. With high-rigidity boom and stable integrated structure, it achieves high-efficiency and high-precision ultra-heavy hoisting for super engineering projects.

Q2: Does the SQZ7000 support full-angle dead-angle-free operation?

A: Yes. Equipped with dual high-torque reducer full hydraulic driving system, the SQZ7000 realizes 360° continuous unlimited full rotation with stable and uniform slewing power. Matched with 26.5m ultra-long working radius and flexible folding boom adjustment, it can fully adapt to various complex, narrow and ultra-large irregular construction scenarios without operation dead angles.

Q3: What kind of chassis is matched for the SQZ7000 super heavy crane?

A: The SQZ7000 ultra-large torque folding crane is exclusively matched with customized super multi-axle heavy-duty special truck chassis to ensure ultra-heavy load bearing safety and driving stability. We provide one-stop professional chassis selection, personalized modification and overall construction scheme design according to customers' local road transportation standards and actual super-heavy working conditions.

Q4: What intelligent functions can be upgraded for the SQZ7000?

A: The standard configuration is reliable manual hydraulic operation. It supports comprehensive intelligent upgrades including wireless remote control, real-time load monitoring system, automatic overload protection and intelligent fault self-diagnosis module, realizing safer, more precise and intelligent ultra-heavy load construction.

Q5: What is the delivery cycle and after-sales warranty policy?

A: The delivery cycle of standard SQZ7000 is 40–50 working days after deposit confirmation. We provide 12 months official factory warranty, lifelong free professional technical guidance, remote fault diagnosis and cost-price spare parts supply for global engineering customers.

Q6: Can the SQZ7000 be customized for harsh working environments?

A: Full personalized customization is available. We can customize high-grade anti-corrosion coating, reinforced anti-sink outriggers, high-temperature and low-temperature resistant hydraulic components and multi-functional heavy-duty accessories to adapt to high dust, high humidity, extreme temperature and other harsh industrial construction environments.
