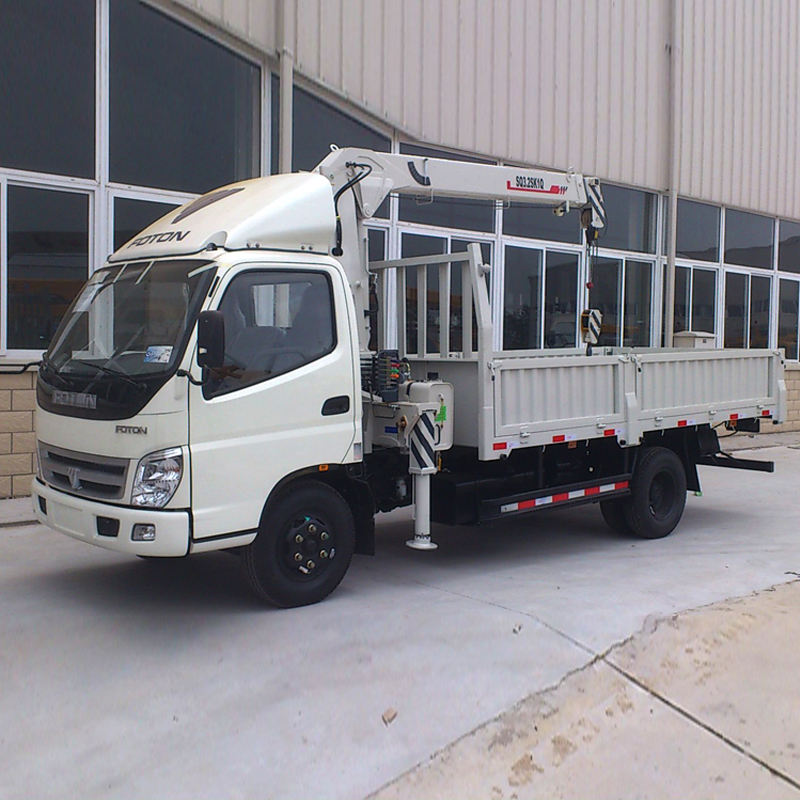

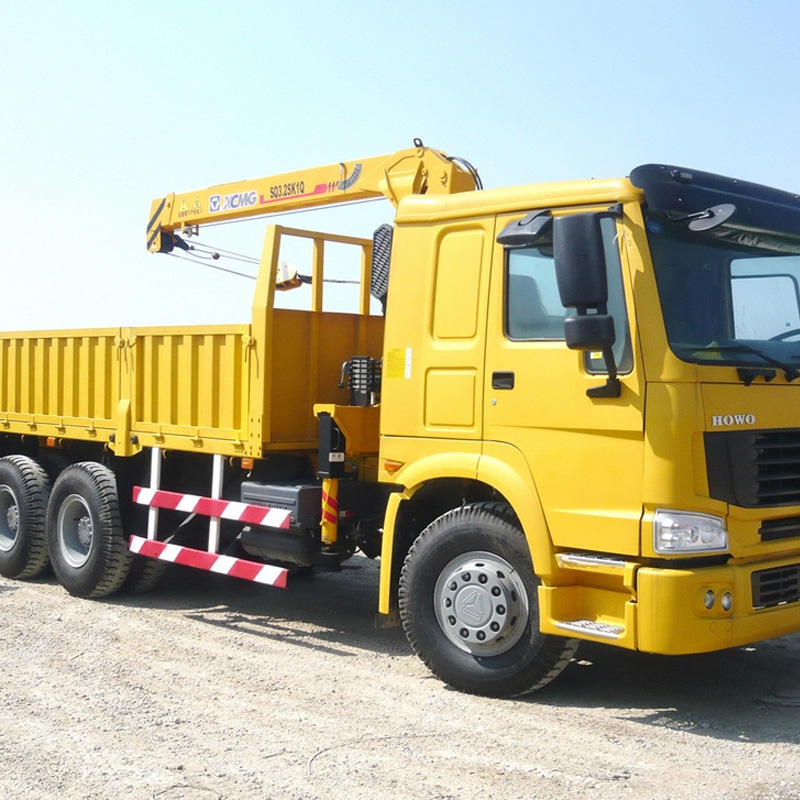

Product Introduction
This machine prioritizes safety, featuring multiple safety protection devices as standard equipment, including an anti-overwind alarm system, which significantly enhances operational safety. It employs an advanced hydraulic system, ensuring smooth operation, reliability, and ease of use during crane operations.
Product Advantage
1. Structural pieces with 690MPa high-strength steel plate welding, high strength, good toughness, light weight.
2. The use of advanced three-dimensional design and stress analysis to ensure product reliability.
3. Rotary mechanism using hydraulic mechanical double brake, to ensure the operation and driving safety.
4. Winning mechanism using mature hydraulic winch structure of small noise, high efficiency, good reliability.
5. Suspension and contraction of the three-stage cylinder + cable with telescopic form, with the ability to carry the leading domestic, cylinder part of the 100%, rigging part of 2 /
6. Work range, wide range of applications.
Products with car seat control, operation field of vision better, more secure operation.
Technical Parameters
| Model | SQ3.2SK1Q | Unit |
| Max Lifting Capacity | 3200 | kg |
| Max Lifting Moment | 6.72 | T.M |
| Recommend Power | 14 | kw |
| Max Oil Flow of Hydraulic System | 25 | L/min |
| Max Pressure of Hydraulic System | 20 | MPa |
| Oil Tank Capacity | 30 | L |
| Rotation Angle | All Rotation |
|
| Crane Weight | 1105/1229 | kg |
| Installation Space | 850 | mm |
| Choice of Chassis | EQ1092FJ;EQ1092FJ1;EQ1092F3GJ1;EQ1081GJ12D5; |
| DFL1120B;HFC1083K103R1D;EQ5121GFJ; |
Product Uses
1. Construction and Municipal Engineering
This crane is suitable for construction sites and municipal projects, effectively lifting building materials such as precast slabs and reinforcing bars. Its compact pivot point design (requiring only 850mm of installation space) and flexibility enable safe and efficient operation in confined urban environments, meeting diverse lifting demands.
2. Logistics Warehousing and Cargo Handling
In logistics yards, warehousing centers, and small cargo transfer points, this equipment facilitates cargo loading/unloading and material transport. Its 3200kg rated lifting capacity handles common cargoes, while full slewing capability ensures operational flexibility and enhances handling efficiency.
3. Mining & Quarrying (Special Considerations)
This crane can lift minerals, stones, and other materials in mining and quarrying environments. However, special attention must be paid to site levelness, dust conditions, and weather. Strict adherence to safety regulations and enhanced equipment maintenance are essential to ensure safety and suitability.

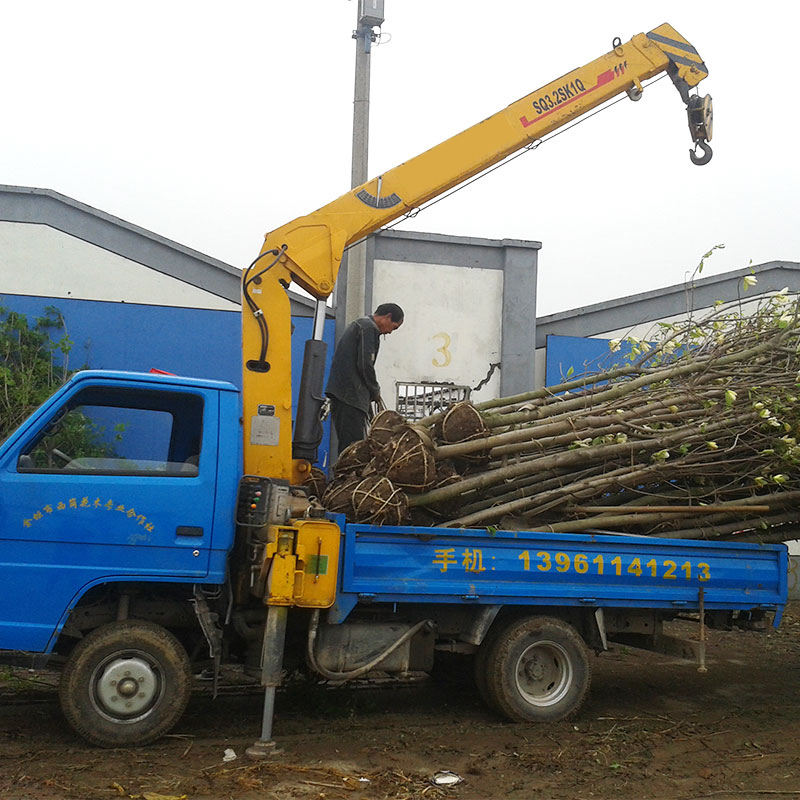

4. Landscaping and Auxiliary Operations
This crane is also commonly used in landscaping projects for lifting trees, stones, and other materials. Its excellent maneuverability (enhanced by single-cylinder cable synchronous extension technology) enables safe and efficient completion of auxiliary tasks.
Product Operate Guide
Operating the SQ3.2SK1Q requires a special equipment operator's license. Conduct a comprehensive inspection of the equipment before operation to confirm that the wire rope, hooks, and safety devices are in good working order. Fully extend the outriggers on solid, level ground to ensure stable support. Strictly adhere to the load chart (maximum lifting capacity: 3.2 tons). Overloading is strictly prohibited. Maintain smooth movements during operation, fully utilizing the 360° slewing capability. Continuously monitor the surrounding environment; never pass loads over personnel. Conduct regular inspections and maintenance of the hydraulic system. After completing operations, retract the boom to a safe position and disconnect the power supply.
FAQ
1. HOW TO PREVENT ROLLOVER ACCIDENTS?
Understand the equipment's stability range, avoid lateral operation on slopes, pay attention to the load's center of gravity, and use safety devices.
2. HOW TO ADDRESS ABNORMAL TIRE WEAR?
Check and adjust tire pressure and alignment parameters, balance the wheels, and avoid overloading and sudden acceleration/braking.
3. HOW TO REPLACE AN ENGINE BELT?
Loosen the tensioner, remove the old belt, install the new belt and adjust tension, check pulley alignment.
4. WHAT SHOULD BE NOTED FOR BATTERY MAINTENANCE?
Keep terminals clean, regularly check electrolyte level and specific gravity, disconnect the negative terminal during long-term storage.
5. HOW TO MAINTAIN THE ALTERNATOR?
Check belt tension, clean the rectifier, inspect carbon brush wear, and periodically measure output voltage.
6. HOW TO HANDLE ELECTRICAL SHORT CIRCUITS?
Disconnect the power source, use a multimeter to locate the short circuit, repair damaged insulation, and replace faulty wiring harnesses.
