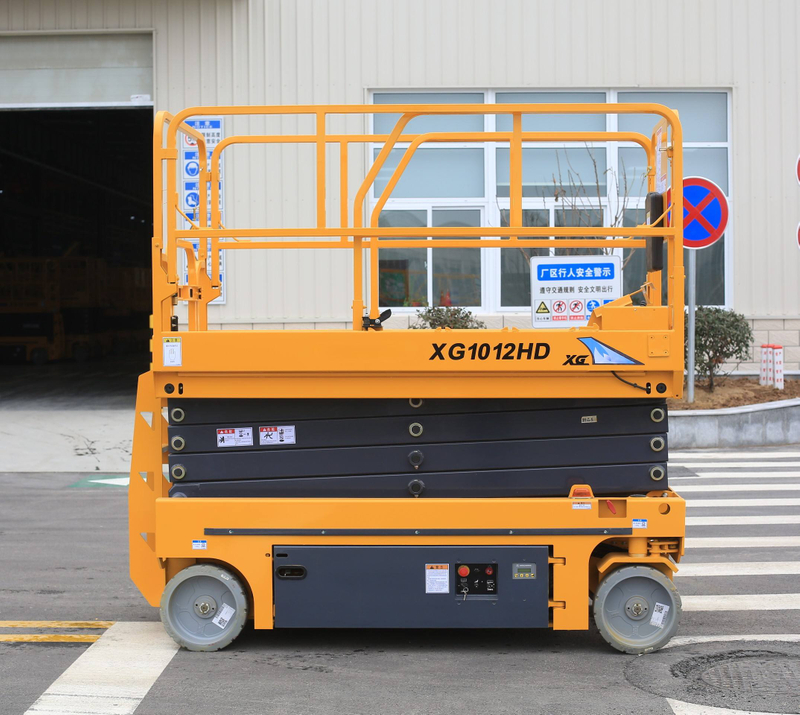

High Capacity Lead-acid Scissor Lift XG1012HD XG1012HD-Li 11.8m Max Height Durable Structure

Product Introduction

XG1012HD and XG1012HD-Li are heavy-duty self-propelled electric scissor lifts with 11.8m maximum working height and 320kg high rated load. Built with reinforced high-strength scissor structure and large solid tires, both models deliver outstanding stability and excellent adaptability for indoor and light rough outdoor sites.

XG1012HD is equipped with mature lead-acid batteries, featuring reliable performance and cost advantages. XG1012HD-Li adopts advanced lithium battery pack, supporting faster charging, longer continuous working time and longer service life. Fitted with comprehensive safety systems and CE certification, they are ideal solutions for medium-to-high altitude aerial work in construction, warehouse logistics, commercial venues and municipal maintenance.

Product Advantages

Common Advantages

• High Load & Large Working Height: 320kg rated capacity and 11.8m working height, meeting various high-altitude operation demands.

• Heavy-duty Reinforced Structure: Thickened steel frame and strengthened scissor arms ensure great rigidity and long service life.

• Strong Terrain Adaptability: Large solid anti-wear tires provide stable running on flat ground and slightly uneven terrain.

• Flexible Maneuverability: Reasonable body layout and flexible steering, easy to pass through standard doors, elevators and narrow aisles.

• Complete Safety Protection: Overload protection, tilt alarm, emergency stop, automatic pothole protection and anti-slip platform are all standard equipped.

• Extended Platform: Extra extended deck expands working area and improves operation efficiency.

• Eco-friendly Operation: Pure electric drive, zero emission and low noise, suitable for long-time continuous work.

XG1012HD (Lead-acid Battery Version)

• Cost-effective: Mature lead-acid battery technology, low purchase and replacement cost.

• Stable Power Output: Steady power supply, easy maintenance and convenient after-sales support.

XG1012HD-Li (Lithium Battery Version)

• Fast Charging: Greatly shortened charging period to improve overall working efficiency.

• Long Continuous Runtime: Much longer working duration after a full charge compared with lead-acid model.

• Long Cycle Life: Over 1000 charge-discharge cycles for longer service span.

• Low Maintenance: No need to check electrolyte, saving daily maintenance time and cost.

• Light Weight: Lighter battery reduces the overall machine weight.

Product Specification Table

Application Scenarios

• Construction Sites: Interior and exterior decoration, wall painting, electrical wiring, pipeline installation and high-altitude construction work.

• Warehouse & Logistics: High rack maintenance, inventory inspection, lighting and ventilation system repair in large warehouses.

• Commercial Venues: Ceiling cleaning, lamp replacement, billboard installation and layout arrangement in malls, hotels and exhibition centers.

• Building Maintenance: Daily repair and upkeep for high-rise office buildings, residential buildings and public facilities.

• Municipal Works: Street lamp maintenance, traffic sign installation and greening trimming on urban roads.

• Event Arrangement: Large-scale stage setup, banner hanging and professional equipment installation for exhibitions and conferences.

Operation Guide

1 Pre-operation Inspection

• Check battery power, tire condition and hydraulic oil level. For lead-acid model, inspect electrolyte regularly.

• Check safety railings, extendable platform and locking pins to ensure firm connection.

• Test emergency stop, tilt alarm and pothole protection devices to confirm normal operation.

• Clear all obstacles on site and ensure the working ground is flat, solid and within the slope limit.

2 Driving Operation

• Turn the key switch to ON to start the machine.

• Control forward and backward movement via joystick. The driving speed will be limited when the platform is lifted.

• Operate steering gently. Do not make sharp turns or drive on slopes over 25% during elevated work.

3 Lifting & Lowering

• Press the lift button to raise the platform; release the button to stop lifting.

• Press the lower button to descend. Keep the area below clear of personnel and obstacles.

• Extend the auxiliary platform only after the main platform is fully lifted. Do not exceed the rated load.

4 Safety Regulations

• Overload is strictly prohibited: 320kg for main platform and 120kg for extended platform.

• Do not travel on slopes exceeding 25% while the platform is elevated.

• Operators must wear safety harness during high-altitude operation.

• Fully lower and retract the platform before moving the machine.

5 Shutdown & Maintenance

• Lower the platform completely and retract the extended deck.

• Turn off the key switch and cut off the power supply.

• Clean the machine body and check for loose parts or damage.

• Charge the battery in time after use.

• Store the machine in a dry and ventilated place. For lithium battery model, keep power at about 80% for long-term storage.

FAQ

Q1: What is the maximum working height of the two models?

A: Both models reach 11.8m maximum working height, and the maximum platform height is 9.8m.

Q2: What is the main difference between XG1012HD and XG1012HD-Li?

A: XG1012HD uses lead-acid battery with lower cost and longer charging time. XG1012HD-Li adopts lithium battery, featuring fast charging, longer runtime, lighter weight and less daily maintenance.

Q3: Can they be used outdoors?

A: Yes, they are suitable for light outdoor work on flat or slightly uneven ground. Avoid working in heavy rain, strong wind and severely rough terrain.

Q4: What is the load capacity of the extended platform?

A: The extended platform can bear up to 120kg. Overload is not allowed.

Q5: How long does it take to fully charge the battery?

A: XG1012HD needs 8 to 10 hours for full charging; XG1012HD-Li only needs 2 to 3 hours.

Q6: How many people can stand on the platform?

A: Maximum 2 people are allowed, and the total weight shall not exceed 320kg.
