Product Description

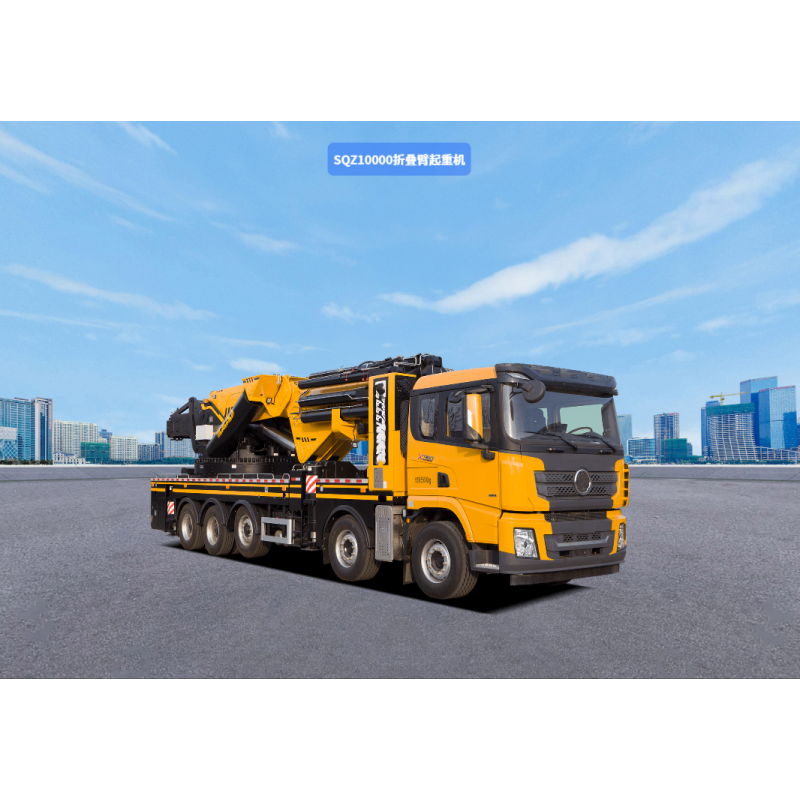

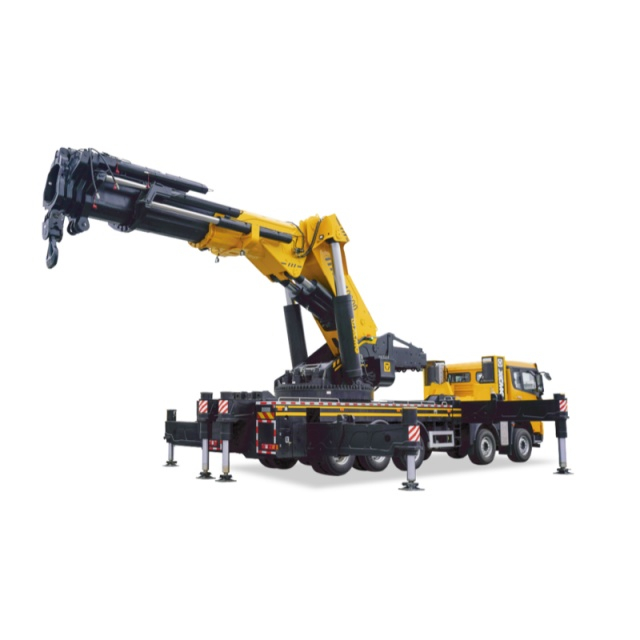

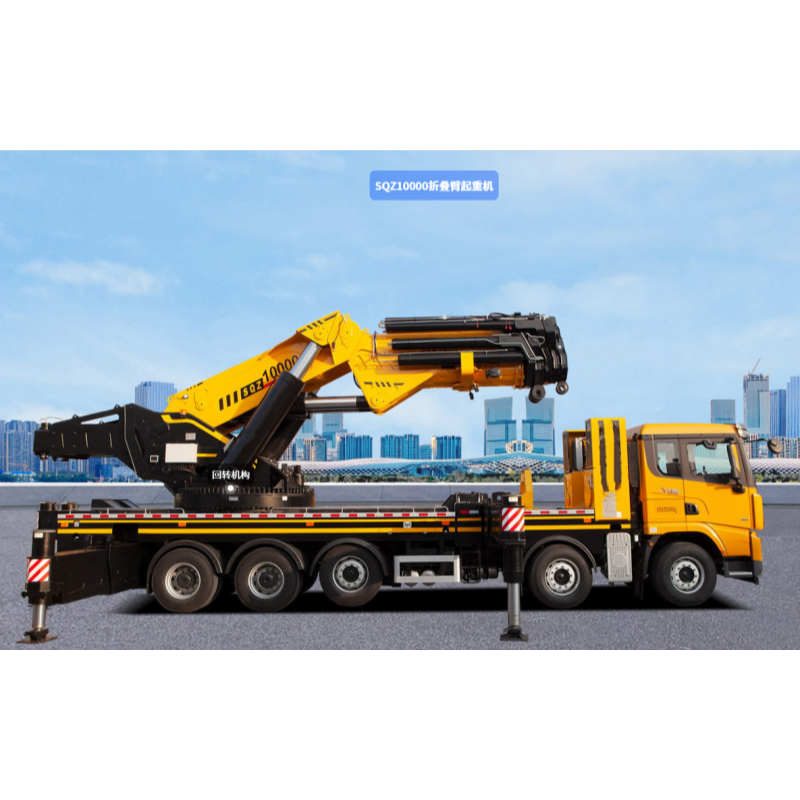

The SQZ10000 folding boom truck crane is a newly upgraded ultra-large torque lifting equipment designed for extreme heavy-load construction scenarios. Different from standard heavy cranes, it adopts high-strength integral steel plate and thickened 12-sided polygonal boom design, paired with integral forging and precision robotic welding technology. This optimized structural design greatly improves bending resistance, torsion resistance and fatigue resistance, effectively avoiding boom shaking, deformation and position deviation during full-load and long-radius operation, realizing high-precision positioning for 150-ton super-heavy equipment.
Equipped with a multi-section telescopic folding boom system, the SQZ10000 achieves a maximum working radius of 29.5m and a maximum working height of 32.0m, covering a super-wide construction range and reducing frequent vehicle repositioning to improve overall project efficiency. It adopts a large-flow dual-pump confluence intelligent hydraulic system with independent pressure regulation and multi-stage buffer protection. The hydraulic system features fast response, stable constant-power output, uniform lifting speed and low energy consumption, fully adapting to long-term high-intensity continuous heavy-duty operation. Optimized valve group matching reduces hydraulic impact and component wear, extending the overall service life of hydraulic parts.
The whole machine adopts an integrated rotary table and thickened counterweight box structure, optimizing force transmission and evenly distributing ultra-large torque loads to enhance overall structural stability. Equipped with dual high-torque reducer full hydraulic drive, it achieves smooth 360° dead-angle-free full rotation. Full-stage telescopic reinforced hydraulic outriggers deliver enlarged supporting area with anti-slip, anti-sink and anti-tilt performance, suitable for complex and harsh construction grounds. Reserved intelligent upgrade interfaces support wireless remote control, real-time load monitoring, automatic overload protection and fault diagnosis. All units pass strict full-load aging tests and precision calibration to meet long-term ultra-heavy industrial operation standards.
Product Advantages
Ultra-large 10000kN·m Lifting Torque:
Featured with industry-leading 10000kN·m rated torque and 150-ton maximum lifting capacity, this model surpasses conventional folding cranes and meets ultra-heavy lifting requirements of super-large industrial and national key engineering projects.
High-rigidity 12-sided Polygonal Boom:
Thickened 12-sided polygonal steel boom with integral forging technology provides excellent torsion resistance and structural stability, ensuring zero-jitter and stable operation under full-load and long-distance working conditions.
Superior Low-clearance Passability:
Compact full-folding structure reduces overall body height, enabling 150-ton ultra-heavy lifting in low workshops, enclosed warehouses, tunnels and narrow urban areas where large truck cranes cannot enter.
Intelligent Confluence Hydraulic System:
Large-flow dual-pump confluence hydraulic system with constant-power regulation ensures fast response, stable power output and high working efficiency, supporting long-cycle heavy-duty operation with lower energy consumption.
360° Unlimited Full Rotation: Dual high-torque reducer hydraulic driving system provides uniform and stable rotary power, realizing dead-angle-free omnidirectional operation and adapting to complex and irregular construction sites.
Reinforced Integrated Stability Structure:
One-piece thickened box frame and integrated counterweight box optimize force transmission. Matched with full-span reinforced outriggers, the crane effectively prevents tilting and guarantees safe operation under extreme heavy loads.
Strong Environmental Adaptability:
Full vehicle anti-corrosion, anti-wear and anti-impact design enables stable operation in high dust, high humidity, extreme temperature and uneven ground conditions, with low failure rate and long service life.
Complete Intelligent Upgrade Support:
Reserved expansion interfaces support industrial remote control, high-precision load monitoring, overload protection and multi-functional accessories, realizing intelligent and refined heavy-load construction management.
4Technical Parameters
Item | Specification |
Model | SQZ10000 |
Crane Type | 150 Ton Heavy-duty Folding / Articulated Boom Truck Mounted Crane |
Rated Lifting Torque | 10000 kN·m |
Max Lifting Capacity | 150 Ton |
Practical Working Capacity | 138 Ton |
Boom Structure | Multi-section Telescopic Folding, Thickened 12-sided High-strength Steel Boom |
Max Working Radius | 29.5m |
Max Working Height | 32.0m |
Rotation Range | 360° Continuous Unlimited Full Rotation |
Driving Mode | Dual High-torque Reducer Full Hydraulic Drive |
Hydraulic System | Large-flow Dual-pump Confluence Intelligent Hydraulic System with Multi-stage Buffer |
Structural Design | Integrated Rotary & Thickened Counterweight Box, One-piece Reinforced Box Frame |
Outrigger Type | Full-span Multi-stage Telescopic Ultra-reinforced Hydraulic Outriggers (Anti-slip, Anti-sink, Anti-tilt) |
Control Mode | Manual Hydraulic Control / Industrial Wireless Remote Control (Optional) |
Applicable Chassis | Customized Ultra-heavy Multi-axle Special Truck Chassis |
Optional Accessories | Wireless Remote Controller, Heavy-duty Grapple, Real-time Load Monitoring System, Reinforced Lifting Hook, Intelligent Fault Diagnosis Module |
Product Applications
Ultra-large Industrial Equipment Installation:
Precision hoisting and positioning of 150-ton super-heavy mechanical equipment, large steel frames and core industrial components in heavy industrial parks and low enclosed workshops.
Petrochemical & New Energy Projects:
Installation, replacement and maintenance of large chemical storage tanks, power station units, wind power equipment and heavy pipeline facilities for petrochemical, thermal power and new energy super projects.
High-standard Municipal Engineering:
Hoisting and maintenance of super-large bridges, urban viaducts, overhead traffic facilities and heavy municipal structures, adapting to high-precision and high-load urban construction demands.
Limited-space Heavy Lifting:
Professional ultra-heavy operation in ultra-low workshops, closed warehouses, deep tunnels and narrow urban core areas inaccessible to traditional large truck cranes.
Port & Terminal Heavy Logistics:
Loading, unloading and transshipment of oversized containers, 100+ ton heavy bulk cargo and giant engineering equipment at international ports and logistics terminals.
National Infrastructure Construction:
Ultra-heavy material handling and large equipment assembly for highway, railway, water conservancy and cross-sea bridge key projects.
Large-scale Emergency Rescue: Rapid clearance of super-large engineering obstacles and emergency hoisting for industrial accidents, construction collapse and national-level heavy rescue scenarios.
FAQ
Q1: What are the core advantages of SQZ10000 compared with ordinary heavy folding cranes?
A: The SQZ10000 is a top-tier ultra-large torque folding boom crane with 10000kN·m super torque and 150-ton maximum lifting capacity, far exceeding standard heavy folding crane specifications. It combines ultra-heavy load capacity and excellent low-clearance passability, solving the industry dilemma that large truck cranes cannot enter narrow spaces while ordinary cranes cannot undertake super-heavy lifting tasks. With high-rigidity structure and stable intelligent hydraulic system, it provides reliable heavy-load solutions for various super engineering projects.
Q2: Does the SQZ10000 support full-angle dead-angle-free operation?
A: Yes. Adopting dual high-torque reducer full hydraulic drive system, the SQZ10000 realizes 360° continuous unlimited full rotation with stable and uniform slewing power. Cooperated with 29.5m ultra-long working radius and flexible multi-section boom adjustment, it fully adapts to complex, narrow and irregular large-scale construction sites without operation dead angles.
Q3: What chassis is suitable for SQZ10000 150-ton crane?
A: The SQZ10000 ultra-large torque crane is matched with customized multi-axle ultra-heavy duty special truck chassis to ensure bearing safety and driving stability. We provide one-stop chassis selection, personalized reinforcement modification and overall construction scheme design according to local traffic regulations and actual working conditions.
Q4: What intelligent functions can be upgraded?
A: The standard configuration is manual hydraulic operation. Optional intelligent upgrades include industrial wireless remote control, real-time load monitoring system, automatic overload safety protection and remote fault diagnosis system, making heavy-load construction safer, more precise and more efficient.
Q5: What is the delivery time and after-sales warranty policy?
A: The standard delivery cycle is 45–55 working days after deposit confirmation. We provide 12 months official factory warranty, lifelong free technical guidance, 24/7 remote fault diagnosis and cost-effective spare parts supply for global customers.
Q6: Can the SQZ10000 be customized for harsh working environments?
A: Full personalized customization is available. We can customize high-grade anti-corrosion coating, reinforced anti-sink outriggers, extreme temperature resistant hydraulic components and multi-functional heavy-duty accessories to adapt to high dust, high humidity, extreme cold and high-temperature harsh working conditions.
