Product Description

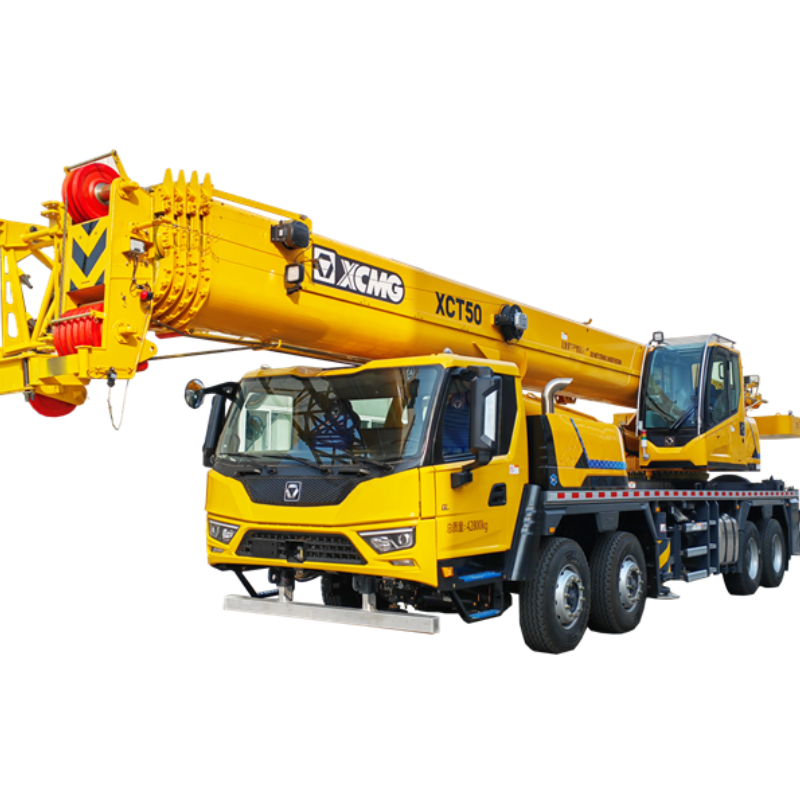

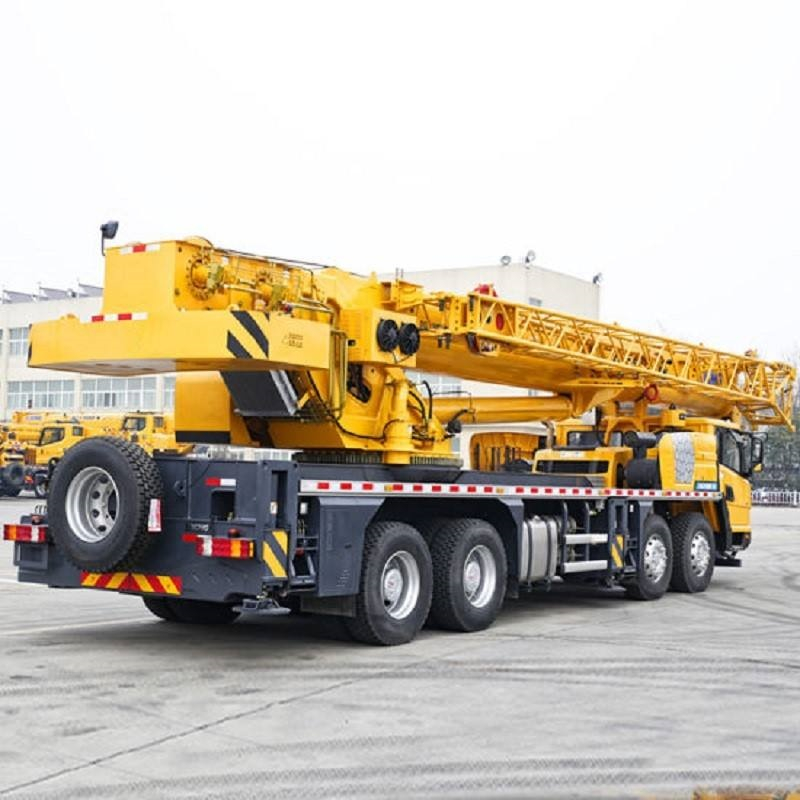

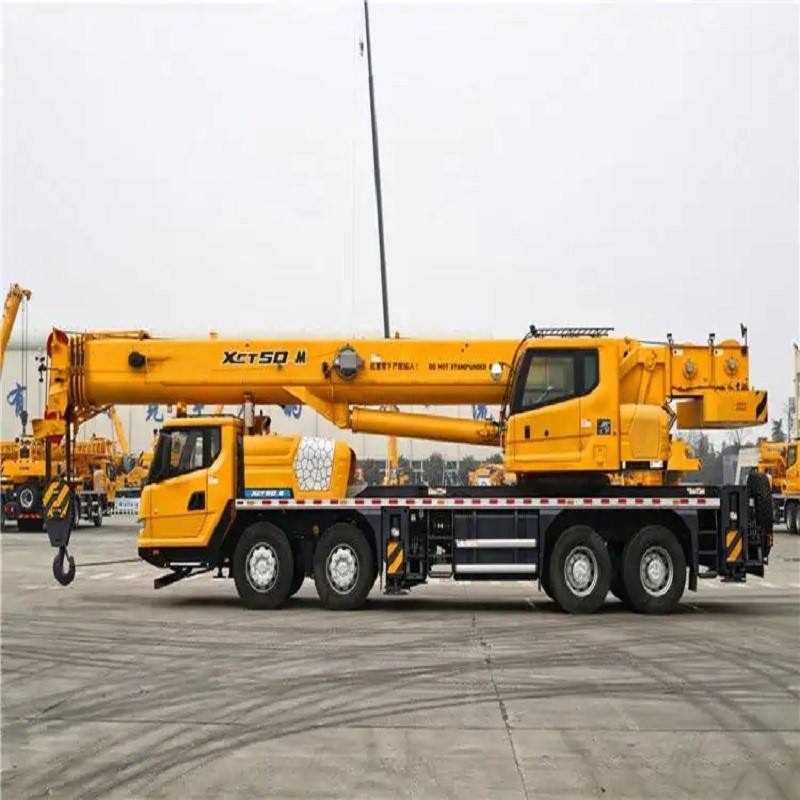

The XCT50G5 mobile truck crane integrates mature lifting technology and vehicle chassis technology to handle 50‑ton rated heavy‑load lifting tasks. Its five‑section octagonal boom adopts high‑strength steel material, applying double‑cylinder rope‑arrangement load‑carrying telescoping technology, allowing boom length adjustment under loaded condition and greatly improving field working efficiency. The double‑cylinder synchronous retraction mechanism breaks traditional sequential retraction limits for faster boom recovery.
Full‑optimized heavy‑duty chassis realizes reasonable weight distribution, offering flexible steering, stable travelling performance, max travel speed up to 90 km/h and strong grade‑ability for complex road conditions. High‑stability H‑type outriggers provide large supporting span to guarantee safety during heavy lifting operations. The load‑sensing hydraulic system realizes stepless speed regulation, smooth multi‑action compound operation and accurate micro‑manipulation for high‑precision hoisting work. Human‑centered operator cabin comes with friendly man‑machine interface, comfortable seating and clear monitoring system to reduce operator fatigue during long‑shift work. Whole‑vehicle structural reinforcement enhances anti‑deformation performance and extends service life under harsh construction environment.
Product Advantages
Powerful Lifting Performance：
5‑section 46m octagonal high‑strength main boom, max lifting height 62.5m with jib, 2058 kN·m maximum load moment, excellent long‑radius lifting capacity
High‑efficiency Boom Telescoping：
Double‑cylinder rope‑arrangement load‑carrying telescoping tech, adjust boom length under load; synchronous retraction improves retracting efficiency by 40%
Excellent Mobility & Transit：
Optimized heavy‑duty chassis, max travel speed 90 km/h, self‑drive transfer between job‑sites without trailer, save transit cost and time
Precise & Stable Hydraulic Control：
Load‑sensing hydraulic system, smooth compound movements, fine micro‑control performance for high‑precision lifting assignment
High Operation Safety：
Large‑span high‑stability outriggers, real‑time load monitoring system, multiple safety interlock protection for lifting operations
Enhanced Structural Durability：
G2‑generation platform structural optimization, reduced structural deformation, longer whole‑machine service life adapting to harsh site conditions
Comfortable Operating Cabin：
Ergonomic cabin layout, clear display, low‑noise environment to improve long‑time working comfort
Technical Parameters
Item | Unit | XCT50G5 |
Max. Total Rated Lifting Capacity | t | 50徐 |
Max. Load Moment (Base Boom) | kN·m | 2058 |
Main Boom Sections / Length | pcs/m | 5 / 46 |
Max. Lifting Height (Main Boom + Jib) | m | 62.5 |
Overall Dimension(L×W×H) | mm | 14045×2790×3615XCMG |
Total Operating Weight | kg | 40330 |
Max. Travel Speed | km/h | 90 |
Min. Turning Diameter | m | 24 |
Max. Grade‑ability | % | 38 |
Engine Rated Power | kW | 247 |
Outrigger Span (Longitudinal × Transverse) | m | 6.1 × 6.3 |
Slewing Speed | r/min | 0‑2.0 |
Warranty Period | ‑ | 1 Year |
Product Applications
Urban municipal construction, building erection & demolition
Highway, viaduct and bridge engineering installation
Factory workshop equipment hoisting & heavy‑equipment relocation
Real‑estate high‑rise construction, steel‑structure installation
Petrochemical plant, industrial park project lifting work
Transportation station, stadium venue construction
General engineering, material handling on complex job‑sites
FAQ
Q1: What is the maximum lifting height of XCT50G5?
A: The main boom full‑extended length reaches 46 m; fitted with jib attachment, maximum lifting height can reach 62.5 m.
Q2: Does this truck crane need trailer for transportation between different sites?
A: No. XCT50G5 adopts truck‑mounted chassis, it can self‑drive to transfer among construction sites, which reduces extra trailer‑transport cost.
Q3: What safety protection devices are equipped on XCT50G5?
A: It is equipped with load moment indicator, outrigger monitoring system, anti‑over‑winding protection, multiple safety interlocks to prevent overload operation.
Q4: What is your warranty term?
A: Standard 1‑year warranty for whole machine. Spare parts supply and overseas technical support service are available.
Q5: Can you supply optional jib, counterweight and other attachments?
A: Yes. Auxiliary jib, different counterweight combinations and other optional configurations are available according to customer working‑condition requirements.
Q6: What’s the shipping method?
A: RORO ship, bulk vessel or flat‑rack container shipping are supported, we provide professional export packing solution.
