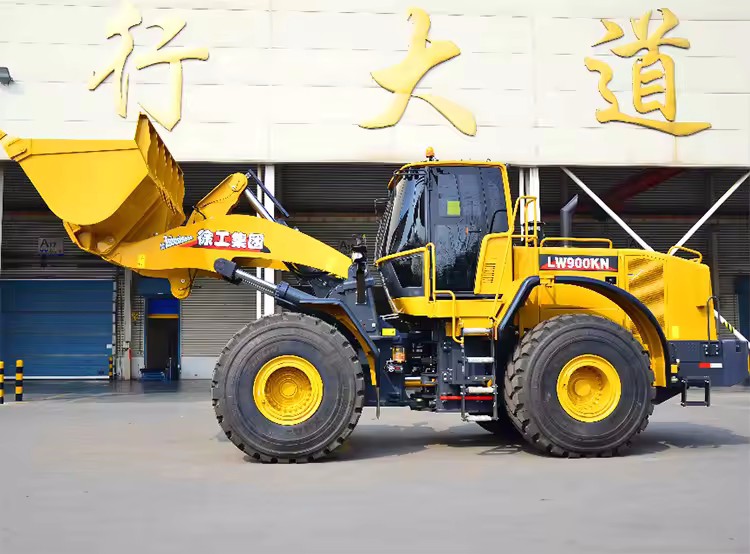

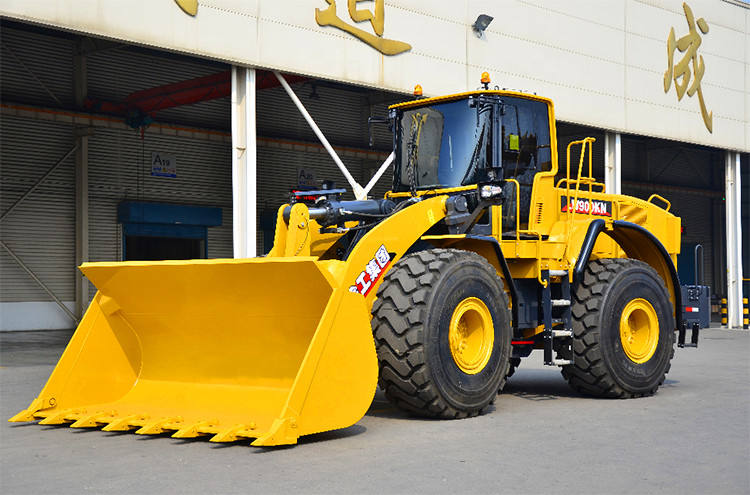

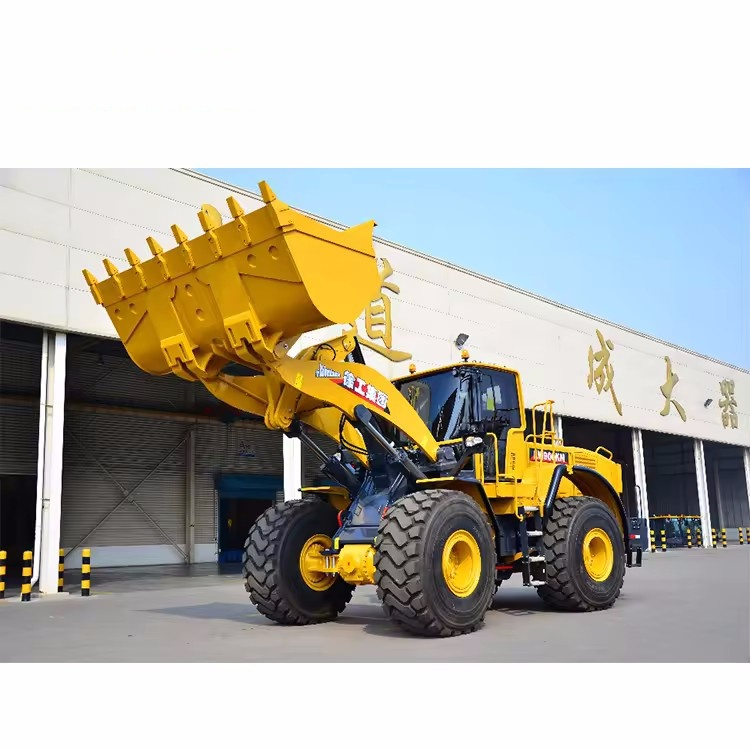

Product Introduction
The LW900KN is not merely a loader; it is an efficient, reliable and intelligent "mining solution". It embodies XG's most advanced technologies and manufacturing processes, and its target users are top customers who have extreme demands for the comprehensive performance, production efficiency and return on investment of equipment. It marks that China's high-end equipment manufacturing industry has already acquired the powerful strength to compete on the same stage with international giants and secure a place for itself.
Product Advantage
Market positioning: Specifically designed for global large-scale open-pit coal mines, metal mines with an annual output of over 10 million tons, giant port terminals, and national-level major infrastructure projects (such as dam construction and nuclear power projects).
Core advantages: Ultimate structural strength, wild power performance, intelligent control technology and ultra-low total life cycle cost. Its design objective is to achieve the highest production efficiency and the lowest operating cost per ton under extreme load.
Technical Parameters
| Description | Unit | Parameter value |
| Wheel base | mm | 3450 |
| Tread | mm | 2360 |
| Dump clearance at maximum lift | mm | 3515 |
| Reach at maximum lift | mm | 1388 |
| Height of hinge at maximum lift height | mm | 4780 |
| Working height(fully lifted) | mm | 6560 |
| Overall machine dimension L×W×H | mm | 9455×3430×3630 |
| Rated operating load | kg | 7000 |
|
|
| Bucket capacity | m³ | 6 |
| Machine weight | kg | 25500 |
| Max.breakout force | kN | 150 |
| Max.horse power | kN | 220 |
| Lifting time of boom | s | ≤6.5 |
| Total cycle time | s | ≤11 |
| Minimum turning radius (at tire center) | mm | 5920 |
| Articulation angle | ° | ±40 |
| Gradeability | ° | 28 |
| Tyre size |
| 26.5R25 |
| EngineModel |
| WD12G310E221 |
| Rated Power/Speed | kW/rpm | 226/2100 |
| Travel Speed | I-gear(F/R) | km/h | 7/7 |
| II-gear(F/R) | km/h | 12.7/12.7 |
| III-gear(F/R) | km/h | 27/27 |
| Ⅳ-gear(F) | km/h | 38 |
Product Uses

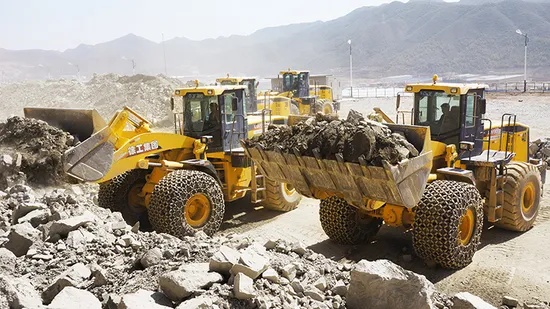

Core equipment for raw coal stripping and mining loading in large open-pit coal mines with an annual output of over 10 million tons.
Large metal mines (such as iron ore and copper ore) : High-intensity and highly abrasive ore material loading operations.

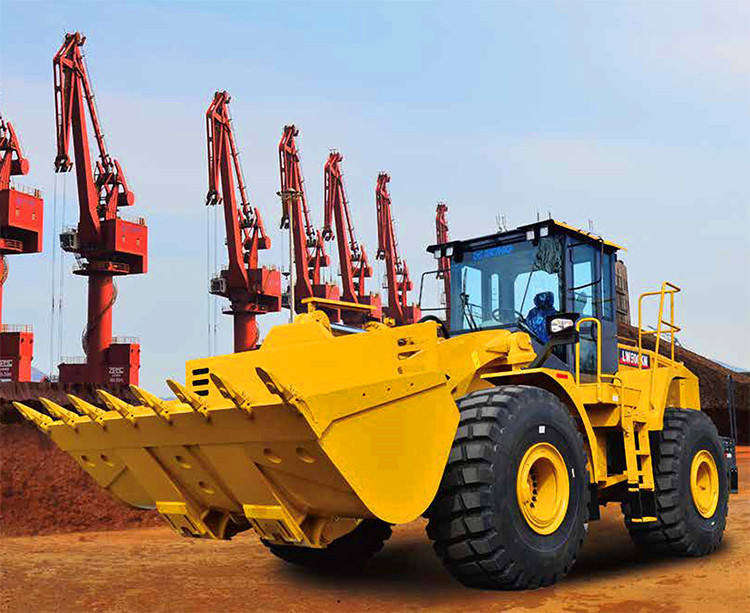

International hub ports with a throughput of over 100 million tons: Loading and unloading operations for large bulk carriers.
National-level major projects: earthwork and stonework operations for giant projects such as the Three Gorges Dam and the Baihetan Hydropower Station.
Super-large metallurgical enterprises: Stacking and reloading operations in raw material yards.
Product Operate Guide
Start：
Confirm that the gear is in N and the parking brake has been applied.
Power on the key and wait for all systems to complete the self-check (no red alarm on the screen).
Sound the horn as a warning and then start the engine.
A low idle warm-up period of 5 to 8 minutes must be carried out, especially in cold environments, until parameters such as the hydraulic oil temperature enter the green zone.
Homework：
Smoothness is key: All operation instructions should be smooth and gentle, avoiding sudden acceleration, sudden steering, and sudden braking to protect the large transmission system and structural components from shock damage.
Utilize intelligent mode: Select the appropriate working mode (such as heavy-load mode) based on the actual load to enable the system to automatically optimize power output and hydraulic performance.
Vision is the lifeline: Make full use of rearview mirrors and cameras, but before making any move decisions, you must turn your head and look directly to confirm safety.
Plan the route: Due to the large and heavy size of the equipment, plan the moving and turning routes in advance to avoid frequent adjustments in narrow Spaces.
