XGA16K
| Availability: | |
|---|---|
| Quantity: | |

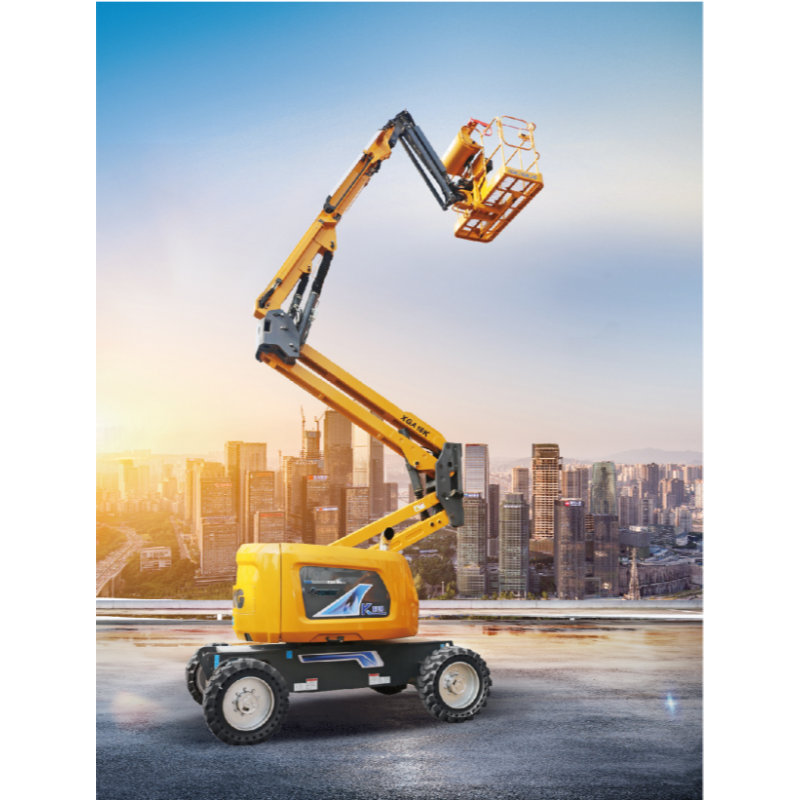

XGA16K is a diesel-powered self-propelled articulated boom lift designed for outdoor aerial operations. It reaches a maximum working height of 16.63m and a maximum horizontal outreach of 8.82m, with dual load capacities of 256kg and 350kg. Featuring flexible articulated boom structure and reliable diesel power system, this unit delivers strong terrain adaptability and excellent maneuverability. It is widely applied in construction, municipal maintenance, industrial facilities and other outdoor working sites with complex ground conditions.
Dual Load Capacity: 256kg and 350kg two load modes to meet different carrying demands of personnel and tools.
Flexible Articulated Boom: Multi-joint boom design easily bypasses obstacles and adapts to complex working angles.
Powerful Diesel Drive: Stable power output, long continuous working time and no frequent charging required.
Superior Trafficability: 45% gradeability enables smooth travel on sloped, muddy and gravel roads.
360° Continuous Rotation: Full-range turntable rotation for flexible positioning without dead zones.
Stable Hydraulic System: Precise control and steady movement of boom, improving operation comfort.
Complete Safety Configuration: Equipped with overload protection, tilt alarm and emergency lowering device for full safety guarantee.
Durable Structure: Heavy-duty chassis and wear-resistant components reduce maintenance cost and extend service life.
Item | Unit | XGA16K |
|---|---|---|
Max. Working Height | m | 16.63 |
Max. Platform Height | m | 14.63 |
Max. Horizontal Outreach | m | 8.82 |
Rated Load Capacity | kg | 256 / 350 |
Platform Dimension | mm | 1420 × 720 × 1100 |
Overall Dimension (Stowed) | mm | 7050 × 1780 × 2060 |
Total Weight | kg | 7100 |
Power Source | - | Diesel Engine |
Travel Speed (Stowed / Extended) | km/h | 4.2 / 0.8 |
Max. Gradeability | % | 45 |
Turntable Rotation Angle | ° | 360° Continuous |
Platform Swing Angle | ° | 180 |
Ground Clearance | mm | 195 |
Building Construction: Exterior wall renovation, steel structure installation and overhead construction work.
Municipal Engineering: Street lamp repair, traffic facility maintenance and roadside landscape trimming.
Industrial Plants: Production equipment inspection, pipeline maintenance and high-level cleaning.
Large Venues: Stadium, exhibition center and airport exterior maintenance and equipment installation.
Rental Business: Versatile outdoor aerial equipment, suitable for various temporary engineering projects.
Check diesel fuel, engine oil and hydraulic oil levels, and make sure there is no liquid leakage.
Inspect tire pressure, surface condition and tightness of wheel bolts.
Check safety guardrails, platform door, limit switches and emergency stop button.
Test alarm system and emergency lowering device to ensure normal operation.
Start the diesel engine and wait for system self-check and stable idle speed.
Drive the machine to a firm and flat working area, then engage the parking brake.
Operate control levers slowly to lift, extend and rotate the boom to the target position.
Adjust the platform angle for accurate positioning and strictly follow the load limit.
After work completion, retract the boom fully and lower the platform, then shut down the engine.
Do not exceed the rated load; follow corresponding load mode according to working requirements.
Operate only on solid ground, and the ground slope shall not exceed 5 degrees during operation.
Stop all operations immediately when wind speed exceeds 12.5m/s.
Operators must wear safety helmets and safety harnesses all the time.
Conduct regular inspection on all safety devices and hydraulic parts.
A: 256kg is the standard load mode for full outreach operation. 350kg is the heavy load mode with limited outreach for safety. You can select the mode based on actual working needs.
A: The average fuel consumption is about 6 to 8 liters per hour under normal working conditions. The large-capacity fuel tank supports long-time continuous operation.
A: Yes. It features 45% gradeability and reliable driving system, which can adapt to muddy, gravel and general sloped roads for outdoor work.
A: It is equipped with overload protection, tilt alarm, emergency stop and emergency lowering system. These devices effectively ensure the safety of operators and equipment.
A: The whole machine has a compact stowed size. It can be transported by ordinary trucks conveniently, saving transportation time and cost.
A: The complete machine is guaranteed for 12 months or 2000 working hours, whichever comes first. We provide long-term technical support and after-sales service worldwide.
