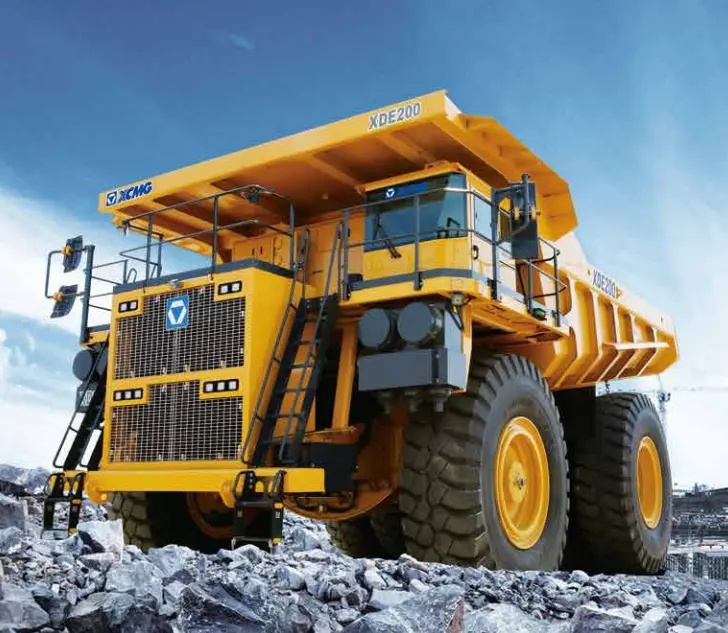

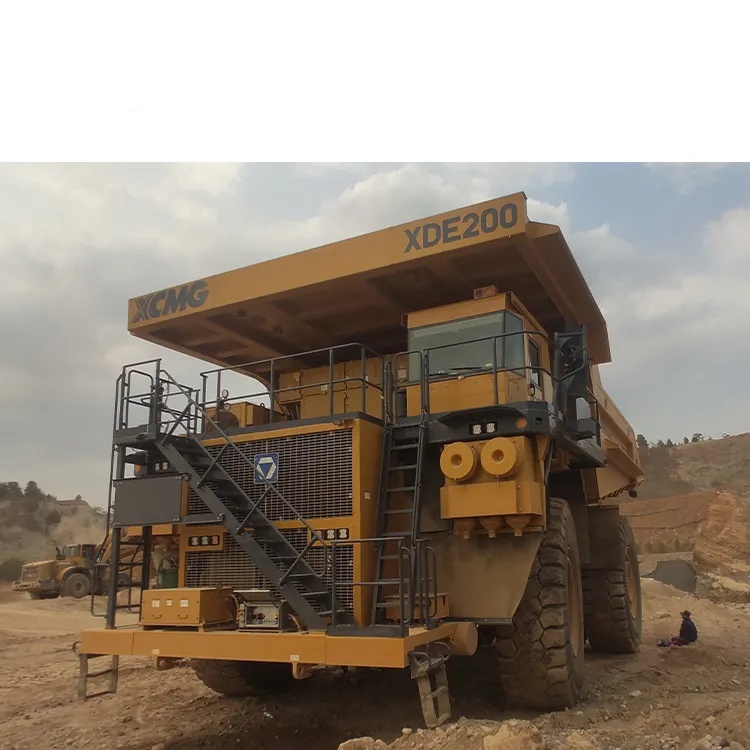

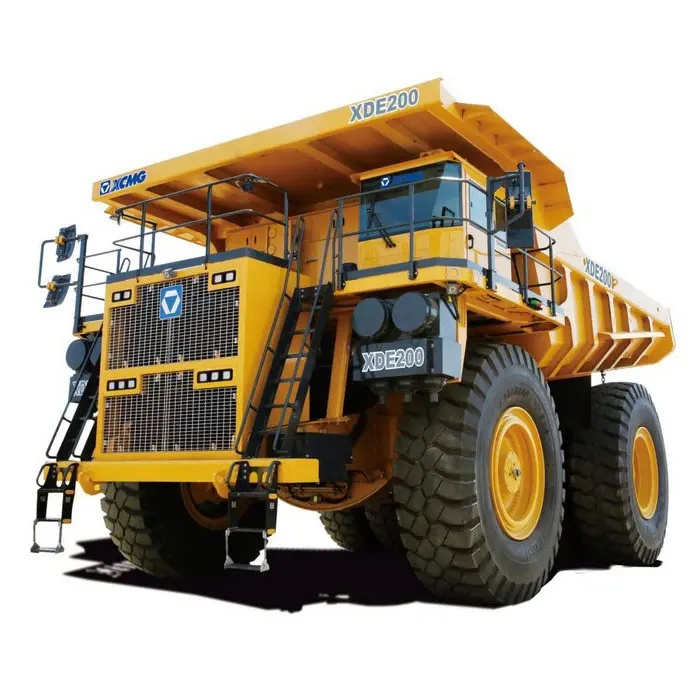

200ton Heavy Duty Electric Drive Dump Truck Xde200

Product Introduction

The XDE200 is positioned as an "intelligent, efficient, reliable and green" transportation solution for super-large mines. Its design integrates innovative technologies, robust structures and intelligent management, dedicated to maximizing production efficiency for customers and reducing the total cost of ownership (TCO) throughout their life cycle.

Product Advantage

1. Massive capacity, ultimate efficiency

With a rated load capacity of 200 tons, it is matched with large electric shovels (such as XCMG XE7000 or equivalent) to achieve the best loading matching and significantly enhance the efficiency of single-trip transportation.

The large-capacity U-shaped cargo box with an optimized design is made of high-strength wear-resistant steel plates. It has a large internal volume and a low center of gravity, which can not only ensure the loading capacity but also enhance the driving stability.

2. Advanced AC drive system

It adopts a power transmission scheme of "high-performance diesel engine + alternator + AC drive motor".

With mature technology and outstanding traction performance, it can provide strong power on complex road conditions and steep slopes.

It is equipped with energy regenerative braking function, which converts kinetic energy into electrical energy when going downhill, effectively reducing fuel consumption and minimizing the wear of mechanical brakes.

3. Super strong structure, unbreakable

The key structural components (frame, cargo box, front and rear axles) are optimized through finite element analysis (FEA) technology and made of high-strength alloy materials, which have extremely strong fatigue and impact resistance, ensuring long service life and high reliability under extreme working conditions.

Technical Parameters

Product Uses

It is applicable to the transportation of stripping materials and raw coal in large open-pit coal mines with an annual output of over 10 million tons.

It is applicable to the transportation of ores in large metal mines such as iron ore and copper ore.

It is applicable to the transportation of earthwork in extremely large water conservancy projects.

Product Operate Guide

The operation of the XDE200 electrically driven mining dump truck must strictly follow safety regulations. Before starting the operation, check the surrounding environment of the vehicle, its tires and key structural components. After startup, observe the self-checking status of the instrument and confirm that there is no alarm. When driving, use the electric brake reasonably to assist in controlling the vehicle speed and reduce the wear of mechanical brakes. When unloading, make sure to stop steadily on a solid and flat ground. After lifting the cargo box to complete unloading, ensure it is fully reset before driving. The operator should always pay attention to the prompts of the intelligent system. If any abnormality is found, it should be dealt with immediately to ensure the safety of people and vehicles.

FAQ

1.What are the advantages of electric drive over mechanical drive?

A: Advantages include: greater traction, better starting and climbing performance; Stepless speed change ensures smoother operation and less impact. It is easy to maintain and eliminates the need for complex mechanical gearboxes and drive shafts. It features regenerative braking function, which can recover energy when going downhill, saving fuel and reducing brake wear.

2.What are the core advantages of the electric drive system adopted by this car?

A: Core advantages include: extraordinary traction, easily handling heavy-load starts and steep slopes; Stepless speed change, smooth operation, and minimal impact on the transmission system; regenerative braking can recover energy when going downhill, significantly reducing fuel consumption and brake pad wear.

3.What should be noted when driving on steep slopes?

A: Electric brakes (retarders) should be used in advance to control the vehicle speed, and the use of service brakes (foot brakes) should be minimized as much as possible to prevent the brakes from overheating and causing performance degradation or damage. Keep going downhill at a low speed and smoothly.

4.What safety protections does the cargo box lifting system have?

A: The system is equipped with a lifting interlock device (ensuring the vehicle comes to a complete stop before lifting), overload protection and dual descent control (pilot valve + main valve to prevent the cargo box from accidentally falling), ensuring the absolute safety of the lifting operation.

5.What checks should be conducted before a daily trip?

A: A "round-trip inspection" should be carried out, including the tire pressure and wear condition, whether there is any oil or water leakage, whether the lights and horns are normal, whether there are visible cracks in structural components (such as the frame and suspension), and whether the braking system is reliable, etc.

6.In what aspects does the intelligence of the XDE200 manifest?

A: It is equipped with an intelligent fleet management system, which can achieve real-time positioning, fuel consumption monitoring, load statistics, remote fault diagnosis and predictive maintenance reminders. Through data analysis, it helps managers optimize fleet scheduling and enhance overall operational efficiency.
