Product Introduction
This crane prioritizes safety, featuring multiple standard safety devices such as an anti-overwind alarm system to significantly enhance operational security. It employs an advanced hydraulic system (rated pressure 20MPa, maximum flow 25L/min), ensuring smooth operation, reliability, and ease of handling throughout the lifting process.
Product Advantage
1. Single cable synchronous expansion technology, higher work efficiency
2. Of the advanced research means, ensure that the design reliability
3. Pentagon and hexagon suspension arm technology, to neutral good, cross section bending ability
4. Compact hinged point design, occupy the space is little
5. And with standard anti over winding alarm device, assignments, more safety
6. Integral lifting winch mechanism, the working efficiency is higher, the hydraulic system to live longer
7. Unique floating three bridge structure design, effectively reduce the vehicle chassis girder are under additional force
8. Independent research and development of slewing mechanism, with a strong driving force, can meet more condition need
9. Anti rotary impact device, and effectively protect vehicle safety
Technical Parameters
| Item | Unit | SQ4SK3Q |
| Max Lifting Capacity | kg | 400 |
| Max Lifting Moment | t.m | 10 |
| Recommend Power | kw | 16 |
| Max Oil Flow of Hydraulic System | L/min | 25 |
| Max Pressure of Hydraulic System | Mpa | 20 |
| Oil Tank Capacity | L | 60 |
| Crance Weight | kg | 1396 |
| Installation Space | mm | 850 |
| Rotation Angle | ° | 360°All Rotaion |
Product Uses

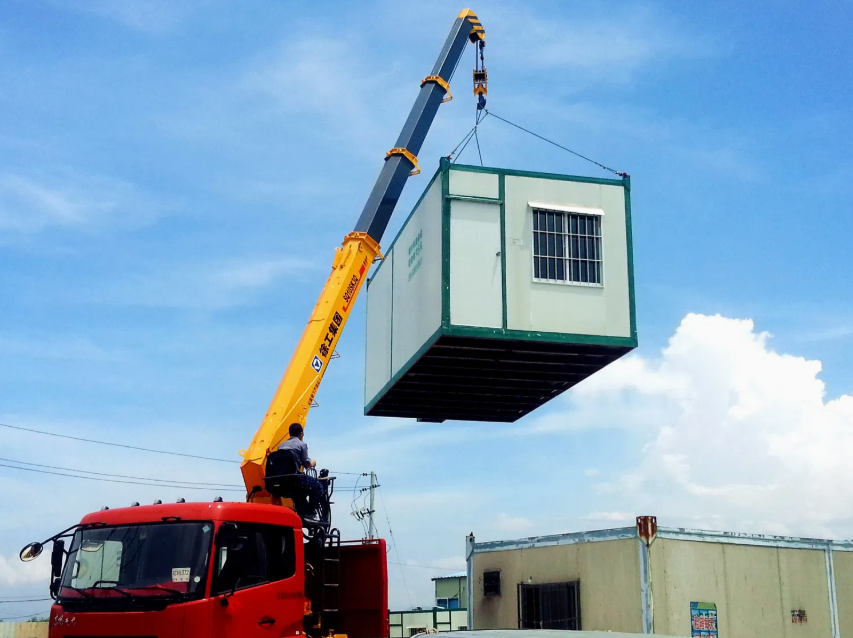

1. Construction and Municipal Engineering
This crane is suitable for construction sites and municipal projects, effectively handling the lifting and transport of building materials such as precast slabs and reinforcing bars. Its compact pivot point design minimizes space requirements, facilitating operations in confined areas. The straight boom design also enables more intuitive and flexible operation.
2. Logistics, Warehousing, and Cargo Handling
In logistics yards, warehousing centers, and cargo transfer points, this equipment facilitates cargo loading/unloading and material transport. Its 360° slewing capability meets diverse operational demands in complex conditions, boosting handling efficiency.
3. Mining and Quarrying
This crane can lift minerals, stones, and other materials in mining and quarrying environments. However, special attention must be paid to harsh conditions such as uneven ground and dusty conditions. Strict adherence to safety regulations and enhanced equipment maintenance are essential to ensure safety and suitability.
4. Equipment Installation and Maintenance
In factory and workshop settings, it facilitates heavy-load lifting during equipment installation, maintenance, and repairs. Its pentagonal and hexagonal boom technology optimizes structural design, enhances sectional bending resistance, and ensures stable, reliable operation. The integrated lifting hinge mechanism also extends hydraulic system lifespan and boosts operational efficiency.
Product Operate Guide
Operating the SQ4SK3Q requires a valid Special Equipment Operator Certificate. Conduct a comprehensive inspection of the equipment before operation to confirm the integrity of the wire rope, hooks, and safety devices. Fully extend the outriggers on solid, level ground to ensure stable support. Strictly adhere to the load chart (maximum lifting capacity: 4 tons). Overloading is strictly prohibited. Maintain smooth movements during operation, utilizing the 360° full rotation and four-section boom extension capabilities for precise positioning. Continuously monitor the surrounding environment; never pass loads over personnel. Conduct regular inspections and maintenance of the hydraulic system. After completing operations, fully retract the boom to the transport position and disconnect the power supply.
FAQ
1. HOW TO REPLACE THE HYDRAULIC OIL FILTER ELEMENT?
Shut down the machine and relieve pressure. Clean the area around the filter element housing. Use specialized tools to remove the old element. Install the new filter element, ensuring the seal ring is properly positioned.
2. WHAT SHOULD BE NOTED WHEN ADJUSTING THE TRACKS?
Perform adjustments on level ground. Maintain appropriate tension. Regularly inspect the wear condition of track pins and bushings.
3. WHAT SHOULD BE NOTED WHEN MAINTAINING THE BRAKE SYSTEM?
Use specialized tools, disassemble in sequence, replace worn components, adjust clearance after installation, and test functionality.
4. HOW TO TROUBLESHOOT A MALFUNCTIONING LIGHTING SYSTEM?
Inspect fuses, bulbs, switches, and wiring connections. Use a multimeter to measure voltage and continuity.
5. HOW TO DIAGNOSE STARTER MOTOR FAILURE?
Check power supply, test solenoid switch, inspect gear meshing, and measure starting current.
6. HOW TO SELECT HYDRAULIC OIL?
Choose viscosity grade and quality grade according to equipment requirements, considering the operating temperature range.
