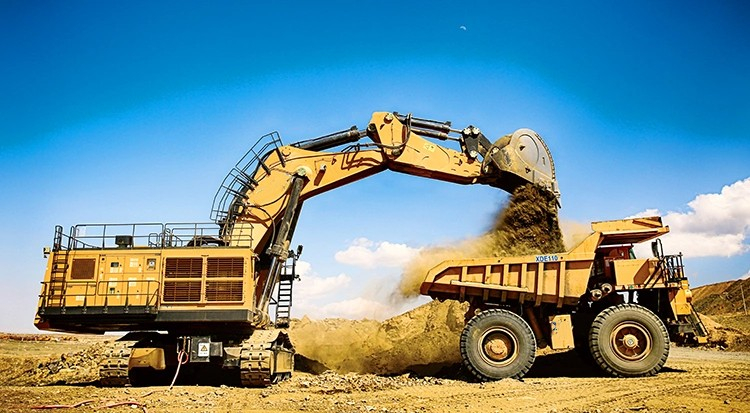

Product Overview
The XE2000 is a 200-ton class heavy-duty crawler hydraulic excavator designed for large-scale mining and major earthmoving projects. It features a robust structure, high-efficiency hydraulic system, and intelligent management technology, delivering high reliability, strong digging performance, and excellent fuel economy under extreme working conditions. With an operating weight of 192,000 kg, bucket capacity of 12–14 m³, and rated power of 810 kW, it meets the demands of heavy mining, quarrying, and large infrastructure construction worldwide.
Key Advantages
Superior Power & Efficiency
Equipped with a high-torque diesel engine, delivering strong power output even under full load. Meets Tier 2 / China National III emission standards.
Heavy-Duty & Durable Structure
Critical components (undercarriage, swing platform, boom/stick) adopt fatigue-resistant design for long service life in harsh mining environments.
Large Capacity & High Productivity
Standard 12–14 m³ mining bucket, high digging forces (bucket: 734 kN, arm: 678 kN), ensuring fast cycle times and high production.
Intelligent Control System
Integrated intelligent management system with CAN bus technology, providing real-time monitoring, fault diagnosis, and optimized fuel efficiency.
Easy Maintenance & High Availability
Centralized lubrication system (200 L grease tank), dual access ladders, and modular power layout reduce downtime; availability rate over 93%.
Comfortable & Safe Operation
6-meter high-level cab with excellent visibility, shock absorption, and ergonomic controls for long-shift comfort.
Product Specifications
XE2000 – Heavy Mining Crawler Excavator
Item | Specification |
Operating Weight | 192,000 kg |
Rated Power | 810 kW / 1800 rpm |
Bucket Capacity | 12–14 m³ (mining bucket) |
Bucket Digging Force | 734 kN |
Arm Digging Force | 678 kN |
Swing Speed | 4.7 rpm |
Travel Speed | 2.1–2.7 km/h |
Max Digging Radius | 15,325 mm |
Max Dumping Height | 9,035 mm |
Undercarriage | Heavy-duty track frame, reinforced rollers |
Hydraulic System | Multi-pump compound control, load-sensing |
Emission Standard | Tier 2 / China National III |
Product Applications
Open-pit Mining
Coal, iron ore, copper ore, and other mineral extraction & stripping.
Quarrying & Rock Excavation
Hard rock digging, primary crushing loading, aggregate production.
Large Earthmoving
Dam construction, highway & railway foundation, port & airport expansion.
Heavy Construction Projects
Large-scale infrastructure, industrial site development, major trenching.
Harsh Environment Operation
High altitude, extreme cold, high dust regions (proven in Australia, South America, Central Asia, etc.).
Operation Guidelines
1. Pre-Operation Inspection
Check engine oil level, coolant, fuel tank, and hydraulic oil level.
Inspect track tension, bucket teeth, and all pins & bushings for wear.
Verify function of lights, alarms, and emergency stop.
Ensure cab windows, mirrors, and cameras are clean for visibility.
2 .Starting the Engine
Enter the cab via access ladder; fasten seatbelt.
Set throttle to low idle; turn key to START (max 5 seconds).
After starting, run at low idle for 5–10 minutes for warm-up.
Check instrument panel for no fault codes or abnormal pressure/temperature.
3 .Basic Operation
Travel: Use left/right track levers; avoid high speed on slopes >15°.
Swing: Operate swing lever smoothly; avoid sudden stops under load.
Digging: Combine boom, arm, and bucket controls; maintain stable load.
Loading: Position bucket at 45°; fill 80–90% capacity for stability.
4. Safety Rules
No personnel under boom, bucket, or swing radius during operation.
Keep a safe distance from high-voltage lines (minimum 5 m).
Do not exceed rated load or operate on unstable ground.
In case of fire, shut off engine and use onboard fire extinguisher.
5 .Daily Maintenance
Grease all lubrication points daily (centralized system auto-lubricates).
Clean air filter every 8 hours in dusty conditions.
Check hydraulic hoses and connections for leaks.
Record operating hours and report any abnormal noise or vibration.
FAQ
What is the operating weight of XE2000 excavator?
Its total operating weight reaches 192 tons, belonging to large heavy mining excavator.
What is the rated engine power of this machine?
The rated power is 810kW, matched with high torque heavy-duty engine.
What is the standard bucket capacity of XE2000?
Standard mining bucket capacity is 12-14 cubic meters, suitable for bulk material loading.
What working scenes is this excavator mainly used for?
It is widely used in open pit mining, quarry rock excavation, large earthwork, road and dam construction.
Is this heavy excavator suitable for harsh working environment?
Yes, reinforced body structure and dustproof design adapt to high dust, low temperature and high altitude areas.
How about the digging force of XE2000?
Bucket digging force is 734kN, arm digging force is 678kN, strong penetration for hard soil and rock.
