XC968
| Availability: | |
|---|---|
| Quantity: | |

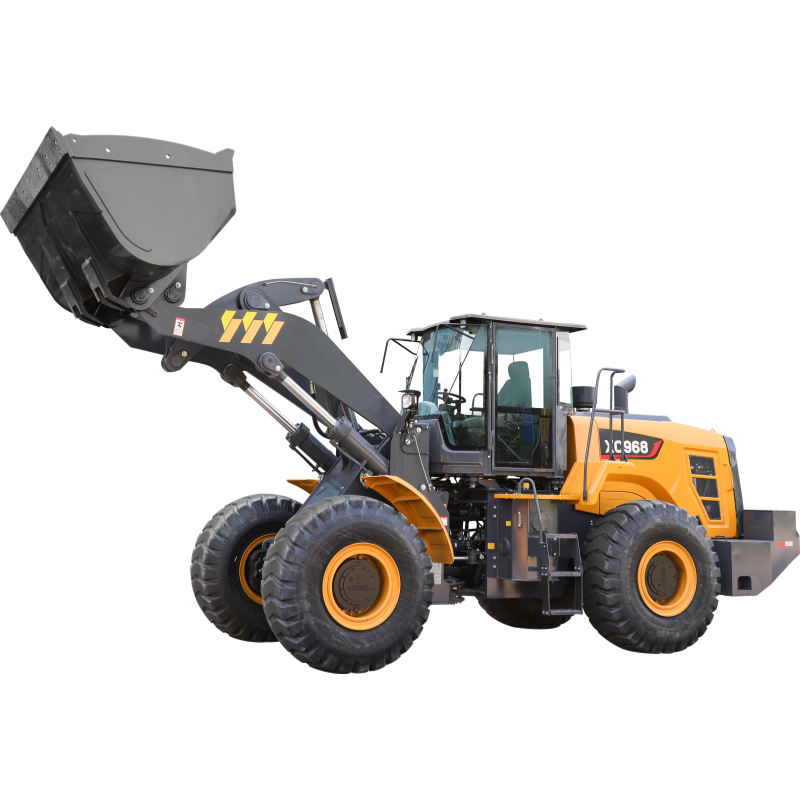

The XC968 is a large heavy-duty articulated wheel loader, serving as a flagship model built for high-intensity operation in quarries, open-pit mines, large-scale earthwork sites, ports and bulk material yards. It integrates premium power systems, ultra-rugged structural design and intelligent control technology, perfectly balancing high production efficiency, energy-saving performance and long-term operational stability. Powered by a 192kW high-performance turbocharged diesel engine and fitted with a 3.5–4.0m³ large-capacity wear-resistant bucket, it delivers powerful breakout force and highly efficient loading and transporting capabilities. This equipment is competent for handling heavy materials including ore, sand, gravel and various construction raw materials. Its upgraded electronic control transmission and hydraulic systems guarantee steady performance under heavy loads, while reinforced frame structures and heavy-duty drive axles greatly boost adaptability to harsh working scenarios. Equipped with a human-centric cab and user-friendly maintenance layout, it delivers superior operator comfort during long working shifts and minimizes equipment downtime, acting as core reliable machinery for large-scale engineering and industrial projects.
Powerful & Energy-Saving: Adopts a 192kW four-valve electronically controlled diesel engine that complies with stringent emission standards. Equipped with turbocharging and desert-grade air filter structures to block dust intrusion, it adapts perfectly to dusty working environments. The engine features outstanding low-speed high-torque output and sufficient power reserve for heavy tasks. The optional variable fixed hydraulic system achieves over 15% energy conservation, effectively lowering overall fuel consumption.
Robust & Durable Structure: The front and rear frames adopt an upgraded platform design with excellent overall rigidity and strong load-bearing capacity. Key structural components are optimized via finite element analysis and manufactured with flexible welding techniques to enhance impact resistance and eliminate structural weak points. Matched with 3.5–4.0m³ thickened buckets with wear-resistant blade edges and reinforced bucket teeth, as well as heavy-duty reinforced dry-type drive axles, the machine maintains a long service life during prolonged high-intensity operation.
Intelligent & Smooth Operation: Fitted with an electronically controlled fixed-shaft gearbox with electro-hydraulic regulation, supporting automatic gear shift (KD function) and four forward & four reverse gears for seamless shifting and simplified operation. The full-hydraulic flow-amplified steering system offers lightweight and flexible manipulation, with dual hydraulic and mechanical steering limiters to reduce steering impact, greatly improving operating comfort and equipment reliability.
Comfortable & Comprehensive Safety: The fully enclosed integrated molded cab features oversized front and rear windshields for a panoramic wide view. It is equipped with a shock-absorbing air suspension seat, digital instrument panel and multifunctional audio system. Noise-damping and vibration-reducing materials are pasted on interior floors and walls to lower operational noise and vibration. Safety configurations include air-over-oil four-wheel disc brakes, low-pressure protected parking brakes, safety belts and emergency stop buttons, providing full-dimensional operational safety protection.
Easy Maintenance & Versatile: The machine hood adopts a top-turning structure with large side access doors and a wide opening angle, facilitating daily cleaning and overhaul work. All routine maintenance parts are accessible at ground level to save time and labor. It supports diverse optional attachments, including 3.0–6.0m³ buckets, high-dump booms, side dumpers, material grapples and forklift tines, expanding its application range to meet varied construction and material handling demands.
Parameter | Specification |
|---|---|
Model | XC968 |
Machine Type | Heavy-Duty Articulated Wheel Loader |
Rated Load | 6500 kg (6.5 Ton) |
Operating Weight | 20600 ± 300 kg |
Rated Engine Power | 192 kW / 2200 rpm |
Standard Bucket Capacity | 3.5–4.0 m³ (Heavy-Duty Bucket) |
Bucket Breakout Force | 200 ± 5 kN |
Max. Lifting Height | 3800 mm |
Max. Dumping Height | 3415 mm |
Travel Speed (Low/High) | 14 km/h / 38 km/h |
Turning Radius (Outer) | 5500 mm |
Fuel Tank Capacity | 260 L |
Engine Type | Turbocharged, 4-Valve Electronically Controlled Direct-Injection Diesel Engine |
Tire Specification | 23.5-25 |
Max. Traction Force | 175 kN |
Quarry & Mining Operations: Suitable for shoveling, loading and transporting rock, gravel and ore in quarries and open-pit mines. It provides efficient support for aggregate production and mining auxiliary work, fully adapting to high-intensity and heavy-load operating conditions.
Port & Logistics Yards: Applied for loading, unloading and transferring bulk materials such as coal, cement and grain at ports, docks and large logistics yards. It effectively boosts material handling efficiency and reduces manual labor intensity, meeting the demand for large-volume cargo operation.
Large-Scale Construction Projects: Ideal for massive earthmoving, foundation excavation and construction material transportation in highway, bridge and high-rise building projects, fully catering to the operational needs of medium and large engineering construction and ensuring efficient project progress.
Industrial & Municipal Engineering: Adaptable for material handling in steel mills, coal yards and industrial parks. It also undertakes urban road construction, garbage transportation and winter snow removal work, satisfying diverse municipal and industrial operational requirements.
Agricultural & Special Scenarios: Equipped with customized optional attachments, it can complete large-scale farm material transportation, farmland leveling and rural infrastructure construction, realizing multi-functional application in multiple industry scenarios.
Check the liquid levels of engine oil, coolant, hydraulic oil and fuel, and replenish fluids timely when insufficient to avoid equipment damage caused by liquid shortage; inspect oil quality and replace deteriorated oil in time.
Examine tires for wear, bulges and air leakage; adjust tire pressure to standard values as required; check wheel bolts for looseness and fasten them tightly to ensure safe traveling.
Inspect the bucket, bucket teeth and connecting pins for looseness, wear or deformation, and replace damaged parts promptly; check bucket cylinders and hydraulic pipelines for oil leakage faults.
Verify cab safety devices including safety belt and emergency stop button, as well as lights, horn and rearview mirrors for normal operation; clean windows and mirrors to guarantee clear vision; check the digital instrument panel for normal display status.
Check the dust accumulation of the desert-type air filter, clean or replace the filter element when needed; inspect the radiator for blockage and clean it thoroughly to ensure stable heat dissipation performance.
Enter the cab and fasten the safety belt, adjust seat height and steering wheel position, confirm all control levers are in neutral state, and check the instrument panel for fault alarms.
Insert the key and turn to the "ON" gear, wait about 20 seconds for system self-inspection, and confirm no fault codes are displayed on the instrument panel.
Start the engine via the start button, then idle for 3–5 minutes to warm up the engine and hydraulic system. Avoid immediate heavy-load operation to protect core components such as the engine and gearbox.
Select a suitable working mode (light/medium/heavy) according to on-site working tasks. Operate control levers to lift, lower and tilt the bucket, control traveling direction via the steering wheel, and adjust traveling speed with accelerator and brake pedals.
Avoid sudden acceleration, deceleration and sharp turns during operation, and manipulate levers smoothly to prevent impact damage to hydraulic systems and structural parts. Make rational use of the automatic gear shift function to reduce operating fatigue.
After completing work, park the machine on flat ground and lower the bucket to the ground. Keep the engine idling for 2–3 minutes to cool down the system, then shut down the engine, remove the key and clean dust and debris off the machine surface.
Never overload the machine beyond the 6.5-ton rated load or 4.0m³ bucket capacity, so as to prevent structural damage, hydraulic system failure or vehicle rollover accidents.
Do not operate the loader on slopes steeper than 30 degrees, avoid turning on inclined surfaces, and park on flat ground during shutdown to prevent sliding. Engage the parking brake for long-term parking.
Maintain a safe distance of no less than 8 meters from personnel, vehicles and obstacles during operation. It is forbidden for staff to stand under the bucket or within the machine’s working range to prevent safety incidents.
Shut down the engine and cut off power before maintenance, inspection or part replacement, and hang warning signs to prevent misoperation. Do not disassemble hydraulic components under pressure.
Stop operation in severe weather such as heavy rain, strong wind, dense fog and thunderstorms, and avoid prolonged operation in high-temperature environments to prevent overheating damage to core parts.
Q1: What is the fuel consumption of the XC968 under standard working conditions?
A1: Under standard loading and transporting scenarios, the machine’s fuel consumption is about 18–25 L/h, which varies slightly with operating load, working environment and operating habits. The optional energy-saving hydraulic system can reduce fuel consumption by over 15%, with hourly fuel consumption comparable to conventional 5-ton loaders.
Q2: Can the XC968 work in harsh environments such as heavy dust or high temperature?
A2: Yes. Equipped with a desert-type air filter, it effectively blocks dust invasion and adapts to high-dust working conditions. The large-capacity high-efficiency radiator ensures excellent heat dissipation, supporting stable operation in high-temperature environments up to 55°C. Its reinforced overall structure guarantees reliable performance in various harsh scenarios.
Q3: What is the standard warranty period of the XC968?
A3: The standard warranty covers 1 year or 2,000 working hours, whichever comes first. Custom extended warranty services of 1–3 years are available based on customer demands, and professional engineers can provide overseas after-sales support.
Q4: What types of attachments are compatible with the XC968?
A4: The standard configuration is a 3.5–4.0m³ heavy-duty bucket. Optional accessories include 3.0–6.0m³ general/rock buckets, large high-dump booms, side dumpers, hydraulic grapples, forklift tines and quick couplers, which can be replaced for material handling, rock breaking, snow removal and other diversified tasks.
Q5: How often should routine maintenance be performed?
A5: Basic maintenance including oil replacement and filter cleaning is required every 250 working hours; minor inspection and lubrication work every 500 working hours; major overhaul covering engine, gearbox and drive axle maintenance every 2,000 working hours. The large-opening hood design greatly facilitates daily maintenance work.
Q6: What should I do if the gearbox fails during operation?
A6: Immediately stop the engine and cut off the power supply to avoid secondary damage. Check the gearbox oil level and oil quality, and replenish oil if insufficient. In case of abnormal noise or shifting failure, do not restart the machine. Contact professional maintenance personnel for troubleshooting and repair, and avoid unauthorized disassembly.
