Product Description

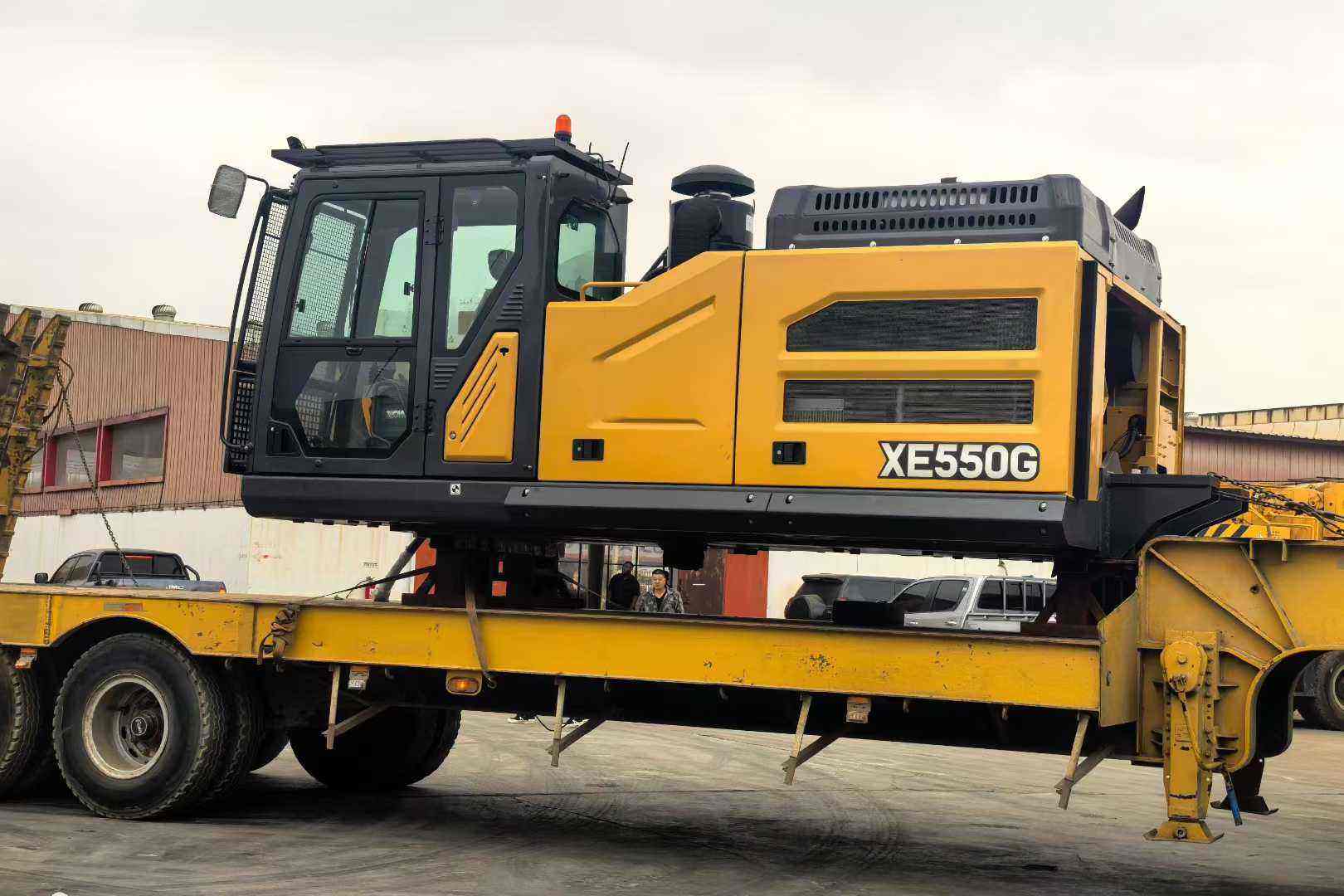

The XE550G is a 55-ton heavy-duty hydraulic crawler excavator built for mining, quarrying, and large-scale earthmoving projects. It combines a high-torque diesel engine, energy-efficient hydraulic system, and reinforced structural design to deliver maximum productivity, durability, and fuel economy under continuous heavy loads. Designed for harsh environments, it ensures stable performance in open-pit mining, rock excavation, and major infrastructure developments.
Product Advantages
Powerful & Fuel-Efficient
Equipped with a high-performance diesel engine (320 kW / 1,800 rpm) meeting international emission standards. Matched with an optimized hydraulic system, it delivers 35 MPa system pressure and strong digging force while lowering fuel consumption by up to 12% vs. conventional models.
Heavy-Duty Reinforced Structure
Boom, arm, and bucket use high-strength wear-resistant steel with precision welding and heat treatment. Heavy-duty undercarriage with reinforced track frame and 600 mm track shoes provides superior stability and long service life in rocky, muddy terrain.
High Digging Performance
Max. digging depth 7,800 mm, max. reach 11,900 mm, bucket capacity 2.5–3.5 m³. Fast cycle times and strong breakout force ensure efficient loading and mass earthmoving.
Intelligent & Comfortable Cab
Ergonomic suspension seat, fully adjustable controls, and large LCD monitor. Soundproof, dust-proof, shock-absorbing cabin reduces operator fatigue during long shifts.
Easy Maintenance & High Reliability
Centralized maintenance points, wide-opening service doors, and extended oil change intervals. Integrated self-diagnosis system quickly identifies faults, minimizing downtime.
Versatile Attachment Compatibility
Supports standard bucket, heavy rock bucket, hydraulic breaker, grapple, ripper, and more—suitable for excavation, demolition, rock breaking, and material handling.
Product Specification Sheet（XE550G）
Specification Item | Parameter |
Operating Weight | 55,000 kg |
Engine Model | Cummins QSX15 / ISZ series |
Rated Power | 320 kW / 1,800 rpm |
Bucket Capacity | 2.5 – 3.5 m³ (standard) |
Max. Digging Depth | 7,800 mm |
Max. Digging Reach | 11,900 mm |
Max. Digging Height | 11,300 mm |
Max. Dumping Height | 7,400 mm |
Hydraulic System Pressure | 35 MPa |
Travel Speed (High/Low) | 4.8 / 3.4 km/h |
Swing Speed | 8.0 rpm |
Track Width | 600 mm |
Fuel Tank Capacity | 700 L |
Emission Standard | EU Stage III / US Tier 3 |
Product Application Scenarios
Open-Pit Mining
Ore extraction, overburden removal, loading in coal, iron, and non-ferrous mines.
Quarrying & Rock Excavation
Hard rock digging, primary crushing, boulder handling in granite/limestone quarries.
Large-Scale Earthmoving
Mass cut/fill, site grading, foundation excavation for industrial parks and ports.
Road & Highway Construction
Roadbed excavation, embankment filling, slope trimming, bridge foundation work.
Infrastructure & Water Conservancy
Reservoir excavation, river dredging, channel digging, dam construction.
Demolition & Heavy Construction
Building demolition, heavy material handling, waste sorting with grapple/breaker.
Product Operation Guide
1 .Pre-Operation Inspection
Check machine exterior: boom, arm, bucket, tracks for cracks, deformation, or loose bolts.
Verify fluid levels: fuel, engine oil, hydraulic oil, coolant; check for leaks.
Inspect electrical system: battery connections, lights, horn, and instrument panel.
Check attachments: bucket/breaker pins, bolts, and hydraulic hoses for damage.
Start engine and idle 3–5 minutes; monitor oil pressure, water temperature, and abnormal noise.
2 .Basic Operation
Moving: Left joystick forward = forward; back = reverse; left/right = turn. Slow on uneven ground.
Digging: Right joystick forward = lower bucket; back = lift; left = curl; right = dump. Avoid overloading.
Loading: Lift bucket, swing to truck, align, dump, then return.
Stopping: Park on flat ground, lower bucket to soil, idle 2 minutes, shut off engine, engage parking brake.
3. Safety Precautions
Only trained, certified operators allowed.
No operation on slopes >30°; avoid sudden turns.
Keep personnel clear of swing radius and under boom/arm.
Do not touch hot engine/exhaust parts during or after operation.
Stop immediately if abnormal noise, vibration, or leakage occurs.
FAQ
Q1: What is the engine power and emission standard?
A: 320 kW / 1,800 rpm, meets EU Stage III / US Tier 3 for low emissions.
Q2: What is the standard bucket capacity?
A: 2.5–3.5 m³; heavy rock bucket available as option.
Q3: Is it suitable for hard rock mining?
A: Yes—reinforced boom/arm, high breakout force, and optional heavy rock bucket/breaker for hard rock.
Q4: What is the fuel consumption per hour?
A: Approximately 22–28 L/h depending on load and application.
Q5: What maintenance is required at 250 hours?
A: Replace fuel filter, hydraulic oil filter; inspect track tension and undercarriage.
Q6: Can it work in cold climates?
A: Yes—optional cold-start package, heater, and low-temperature hydraulic oil available.
