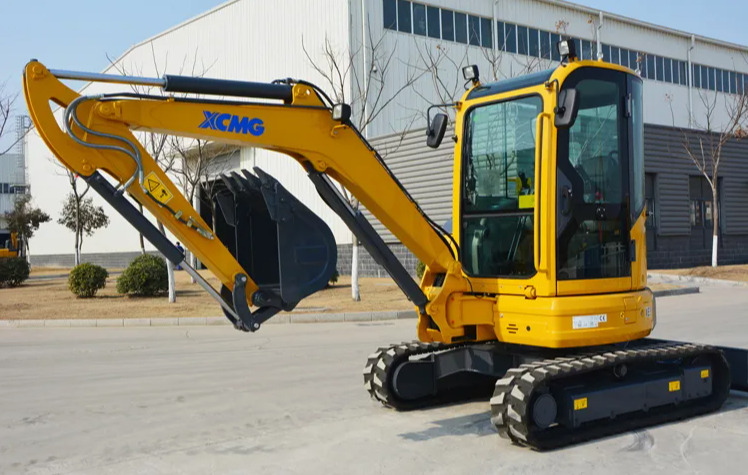

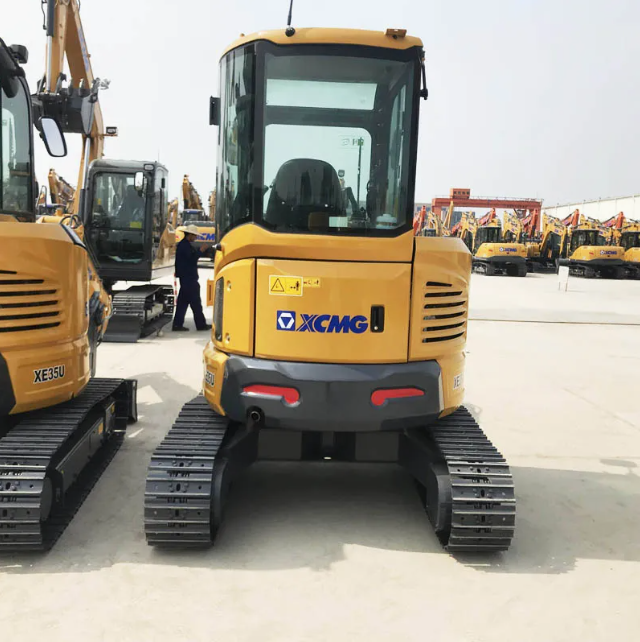

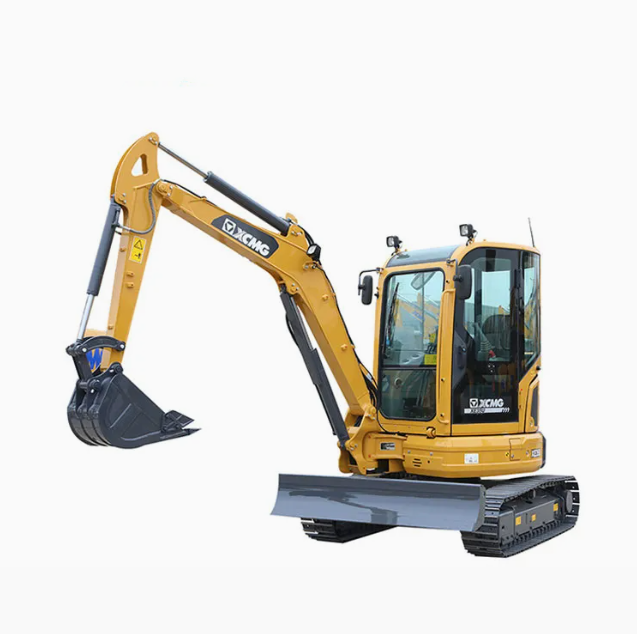

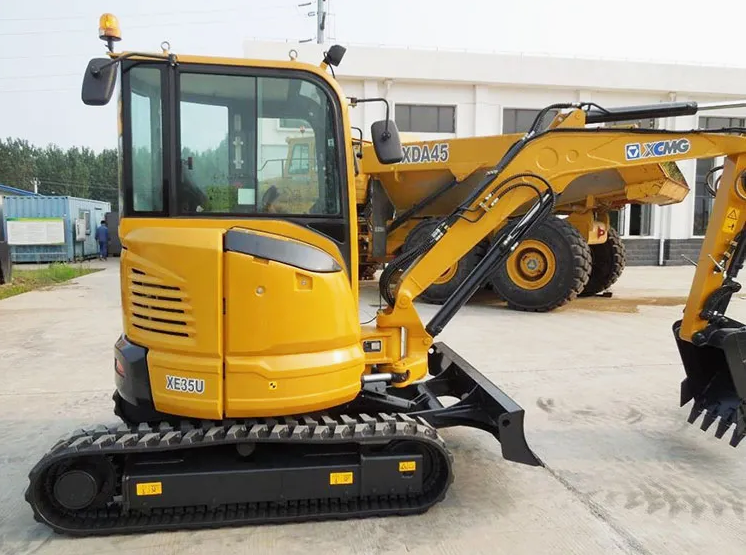

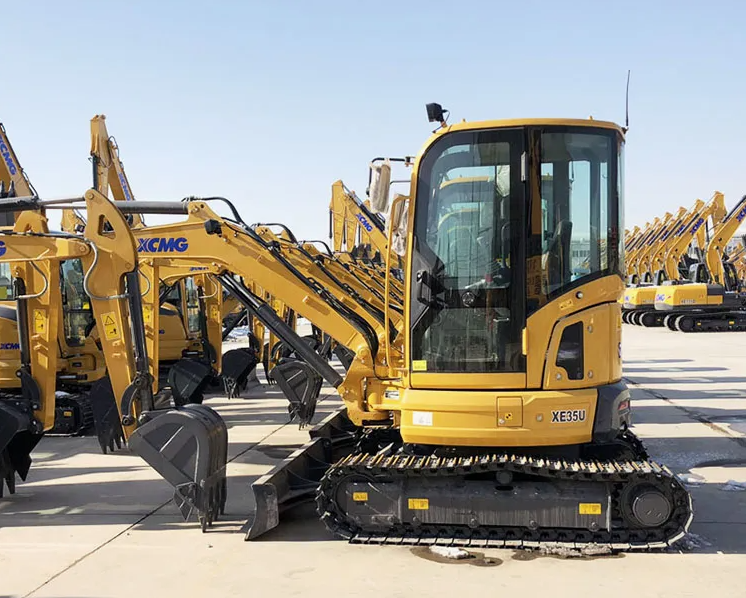

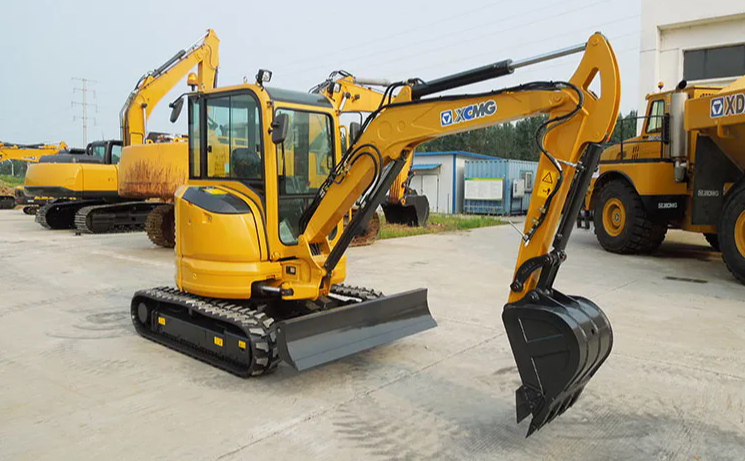

XE35U
| Availability: | |
|---|---|
| Quantity: | |

| Model | Metric unit | XE35U | ||
| Operating weight | kg | 4200 | ||
| Bucket capacity | m3 | 0.11 | ||
| Engine | Model | 3TNV88-BPXG | ||
| Displacement Standard | Tier IIIA | |||
| Style | Direct injection | --- | √ | |
| Four strokes | --- | √ | ||
| Water cooling | --- | √ | ||
| No. of cylinders | --- | 3 | ||
| Output power | kW/ r/min | 21.6/2400 | ||
| torque/speed | N.m | 107.2/1444 | ||
| Displacement | L | 1.642 | ||
| Main performance | Travel speed(H/L) | km/h | 3.6/2.2 | |
| Gradeability | % | 58 | ||
| Rotating speed | r/min | 8.5 | ||
| Ground pressure | kPa | 36.6 | ||
| Bucket digging force | kN | 24.6 | ||
| Arm crowd force | kN | 17.8 | ||
| Appearance size | A | Overall length | mm | 4960 |
| B | Overall width | mm | 1740 | |
| C | Overall height | mm | 2535 | |
| D | Width of platform | mm | 1585 | |
| E | Length of crawler | mm | 2220 | |
| F | Overall width of chassis | mm | 1740 | |
| G | Width of crawler | mm | 300 | |
| H | Track length on ground | mm | 1440 | |
| I | Crawler gauge | mm | 1721 | |
| J | Clearance under counterweight | mm | 587 | |
| K | Min. ground clearance | mm | 297 | |
| L | Min. tail swing radius | mm | 870 | |
| Working scope | A | Max. digging height | mm | 5215 |
| B | Max. dumping height | mm | 3760 | |
| C | Max. digging depth | mm | 3060 | |
| D | Max. vertical wall digging depth | mm | 2260 | |
| E | Max. digging reach | mm | 5415 | |
| F | Min. swing radius | mm | 2170 | |
This 3-ton small excavator is tailored for yard maintenance and residential landscaping, combining an operating weight of 3,200 kg with a compact footprint (1,200 mm width × 3,500 mm length) to navigate tight garden spaces. Powered by a 28 kW Yanmar diesel engine (EPA Tier 4 Final certified), it delivers low fuel consumption (3.2 L/hour) and quiet operation (≤68 dB) to avoid disturbing neighbors. The maximum digging depth of 3.2m and bucket capacity of 0.12 m³ make it ideal for yard digging tasks, while rubber tracks (400mm width) prevent lawn damage. Certified by CE and EPA, it operates reliably in temperatures from -5°C to +45°C.
Lawn-Friendly Traction: 400mm-wide rubber tracks with low ground pressure (≤35 kPa) distribute weight evenly, preventing ruts on grass, turf, and decorative stone surfaces.
Precision Control System: Dual proportional joysticks with adjustable sensitivity enable accurate bucket movements—ideal for shaping flower beds, digging around tree roots, and installing garden edging.
Compact Digging Range: 3.2m maximum digging depth and 5.1m maximum reach allow access to hard-to-reach areas (e.g., under decks, between mature trees) without repositioning.
Easy Maintenance Design: Flip-up engine hood and accessible hydraulic filters reduce service time; 500-hour service interval minimizes downtime for yard care businesses.
Residential yard renovation: Digging garden ponds (2.5m depth × 4m diameter), creating raised flower beds, and installing underground sprinkler systems.
Lawn drainage improvement: Excavating French drains (1m depth × 200mm width) and grading slopes to prevent waterlogging in yards.
Small-scale tree work: Digging planting holes (600mm diameter × 800mm depth) for mature shrubs and small trees (up to 150mm trunk diameter) with auger attachment.
Yard debris handling: Clearing soil, gravel, and fallen branches with a 0.12m³ bucket; transporting 150kg loads of mulch or decorative stone across lawns.
Q: Will it damage my lawn?
A: No, the 400mm-wide rubber tracks and low ground pressure (≤35 kPa) prevent turf damage—safe for use on newly installed lawns and established gardens.
Q: What’s the maximum load capacity?
A: The bucket handles up to 300 kg per load, suitable for moving mulch, soil, and small rocks; the lift arm supports 500 kg for lifting lightweight yard materials.
