Product Introduction

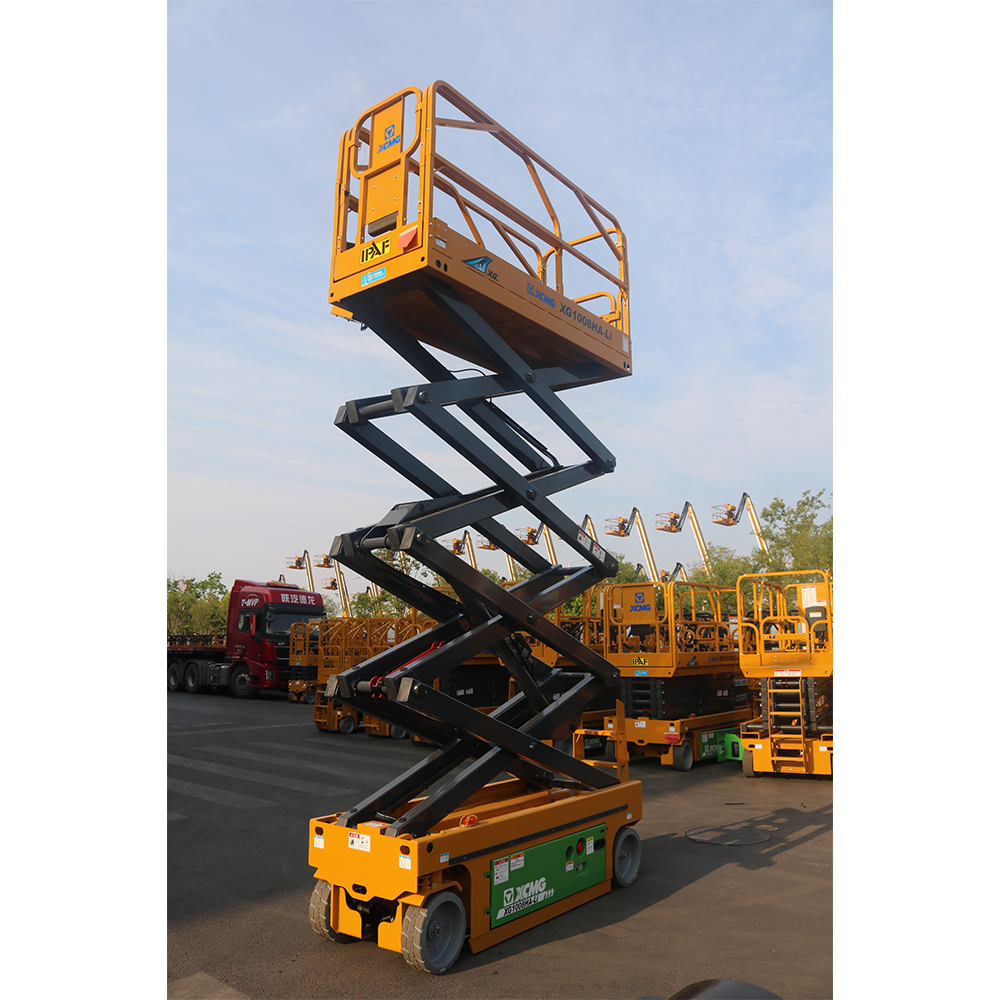

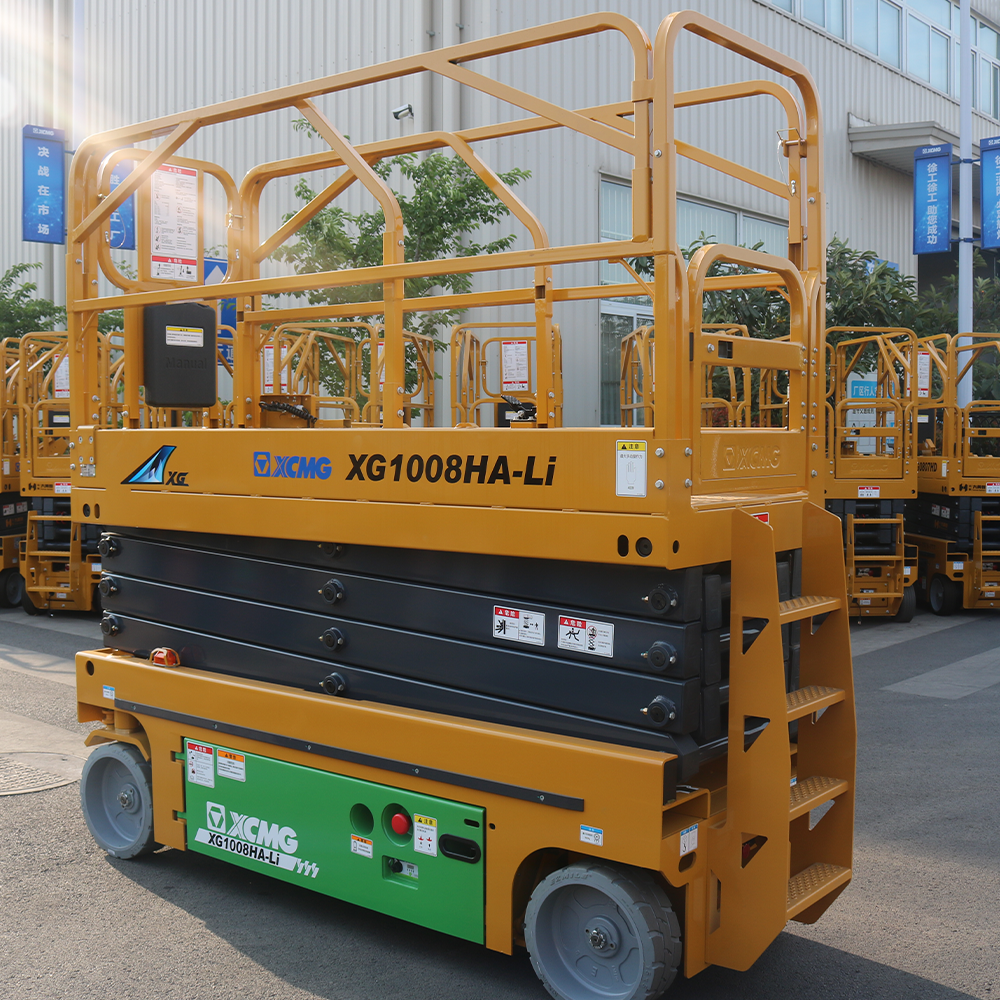

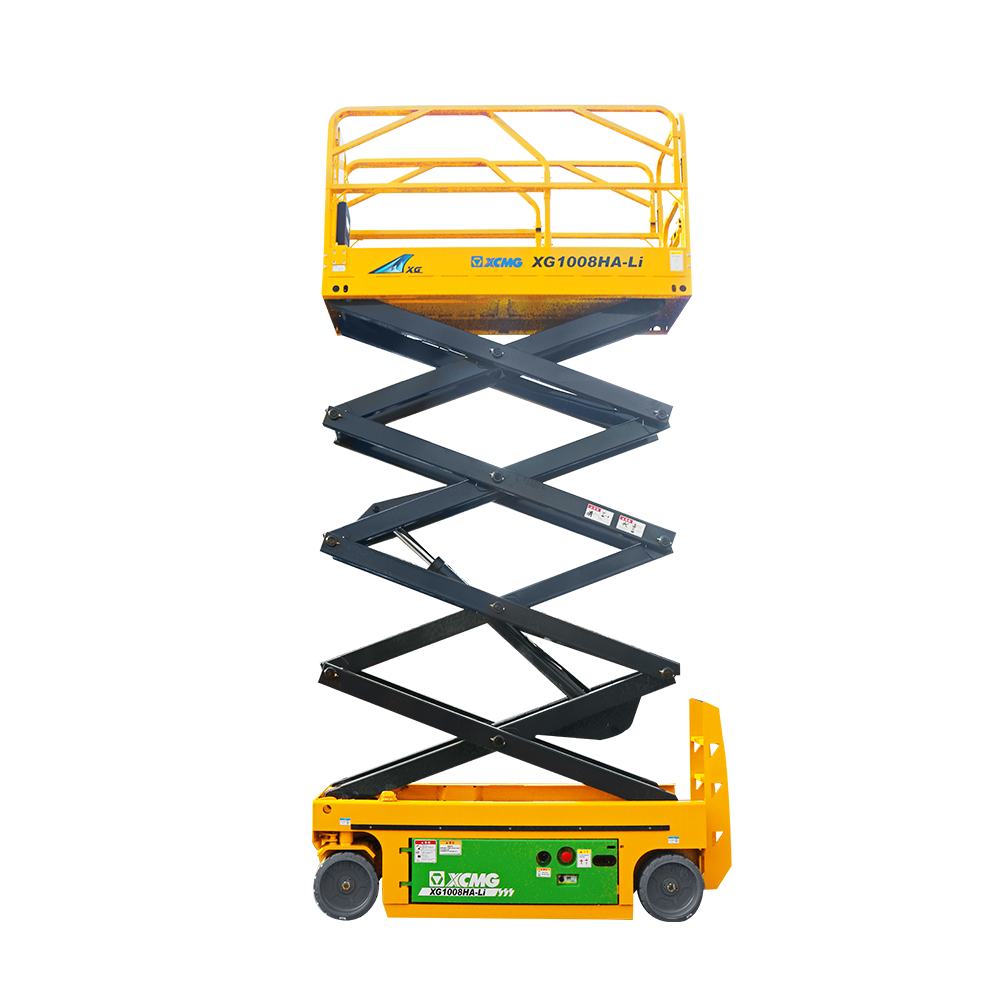

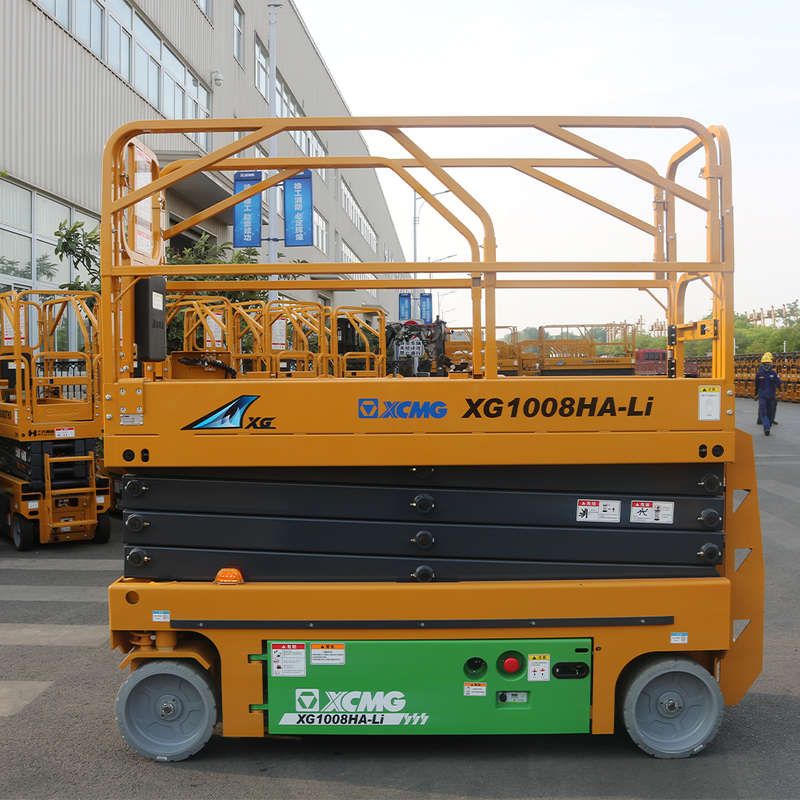

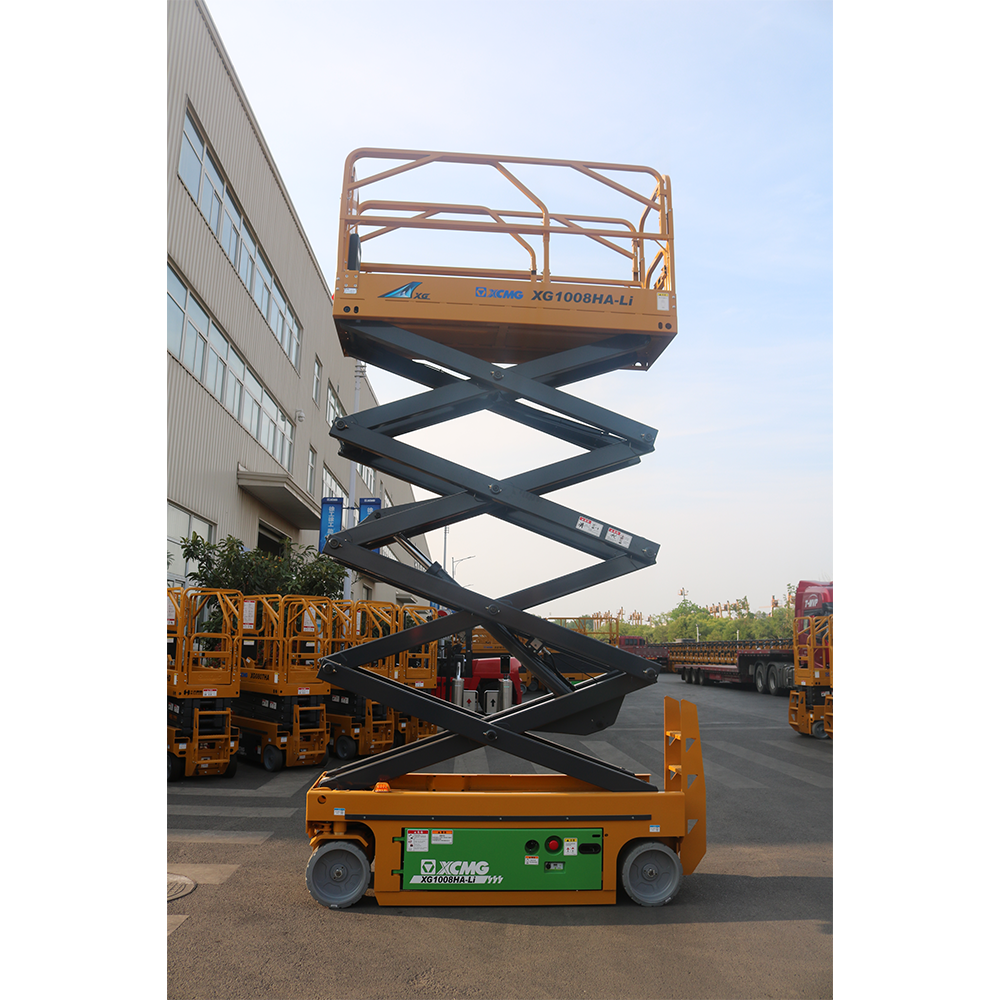

The XG1008HA-Li is a lithium-battery-powered scissor lift aerial work platform with a working height of 10 meters and a load capacity of 230 kilograms. This product adopts advanced lithium battery technology, featuring both high performance and environmental friendliness, and is suitable for medium and high-altitude operation scenarios.
Product Advantage
The XG1008HA-Li scissor lift integrates three core advantages:
Firstly, it has outstanding performance. With a working height of 10 meters and a super large load capacity of 230kg, it can meet the needs of multiple people working simultaneously and significantly improve work efficiency. The second is lithium battery power, which increases the battery life by 40%, supports fast charging and has zero emissions. It is suitable for indoor environments and has a longer service life. The third is intelligent safety, equipped with an intelligent BMS battery management system, tilt protection and emergency descent devices, providing all-round protection for operation safety. Its compact design also allows it to pass through a standard 0.8-meter-wide door opening, making it highly mobile and an ideal choice for high-end high-altitude operations.
Technical Parameters
| Item | Unit | XG1008HA-Li |
| Lift capacity | kg | 230 |
| Lift capacity of auxiliary platform | kg | 115 |
| Occupant Capacity | - | 2 |
| Working height | m | 10 |
| Platform height | m | 8 |
| Length of auxiliary platform | mm | 900 |
| Ground clearance(Pot hole protector - raised/lowered) | mm | 100/20 |
| Turning radius(inside/outside) | m | 0/2.3 |
| Lift motor | kW | 3.3 |
| Drive speed-full retracted | km/h | 3.5 |
| Drive speed-full extended | km/h | 0.8 |
| Lift/Lower time | s | 29~40/34~45 |
| Gradeability | % | 25 |
| Tilt alarm(side/forward and backward) | º | 1.5/3 |
| Batteries | V/Ah | 4 x 6/280 |
| Charger | V/A | 24/30 |
| Tires | - | 381 x 127 |
| Weight | kg | 2260 |
| a Length(without ladder) | mm | 2477(2280) |
| b Width | mm | 810 |
| c Height(platform folded) | mm | 2335(2005) |
| d x e Platform size(Length x Width) | mm | 2270 x 810 |
| f Wheelbase | mm | 1877 |
Product Uses
• Construction and maintenance of large-scale factories
Warehousing and logistics center operations
• Renovation of commercial complexes
• Maintenance of gymnasiums and exhibition centers
• Any situation where heavy-load operations are required within a height range of 10 meters
Product Operate Guide
Before operating the XG1008HA-Li scissor lift aerial work platform, it is necessary to check the appearance of the equipment, its battery level and the emergency stop function. Move the device to the operation point via the ground control box and switch to the platform control mode. The operator must fasten the safety belt and secure it to the designated hanging point before controlling the smooth lifting and slow movement of the equipment. Overloading (rated 230kg) and overstaffing operations are strictly prohibited. It is forbidden to use on inclined or soft ground. After the operation, the platform must be lowered to the lowest position and the power supply turned off. Specific operations must be carried out in accordance with the official manual, and operators must have received professional training. Safety first!
FAQ
1.What does "HA-Li" in the product model stand for?
A: "HA" stands for the high-altitude operation series, and "Li" indicates the adoption of a lithium battery power system, which is the main difference from traditional lead-acid battery models.
2.How long is the battery life of lithium batteries?
A: It can work continuously for 8 to 10 hours when fully charged, with the exact duration depending on the intensity of the operation and the ambient temperature.
3.How should lithium batteries be charged and maintained?
A: Equipped with an intelligent charger, it supports fast charging (reaching 80% in 2 hours). It only needs to be kept clean and dry on a daily basis, and no maintenance such as adding electrolyte is required.
4.Will low temperatures in winter affect battery performance?
A: Battery capacity will decrease in low-temperature environments. Suggestion:
• Indoor storage and charging
Preheat the battery before starting work
• Arrange your homework time reasonably
5.What requirements does the equipment have for the working ground?
A: It must be used on a solid and flat ground. The maximum inclination should not exceed 3 degrees, and the load-bearing capacity should reach 1.5 times the total weight of the equipment.
6.How to pass through a narrow passage?
A: The width of the equipment is only 0.8 meters and it can pass through standard door openings.
When driving, please:
• The platform has been reduced to the minimum
Pass slowly and at a low speed
Pay attention to your surroundings
