Product Introduction

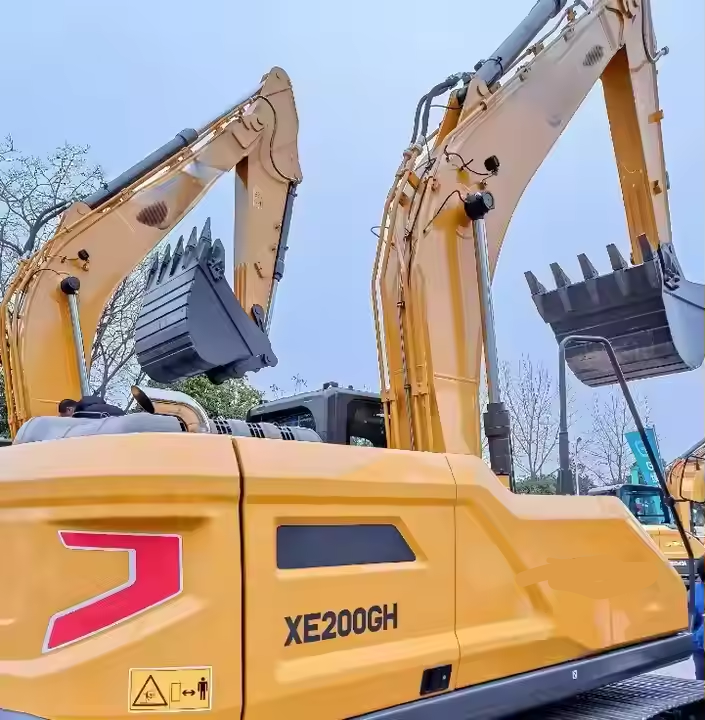

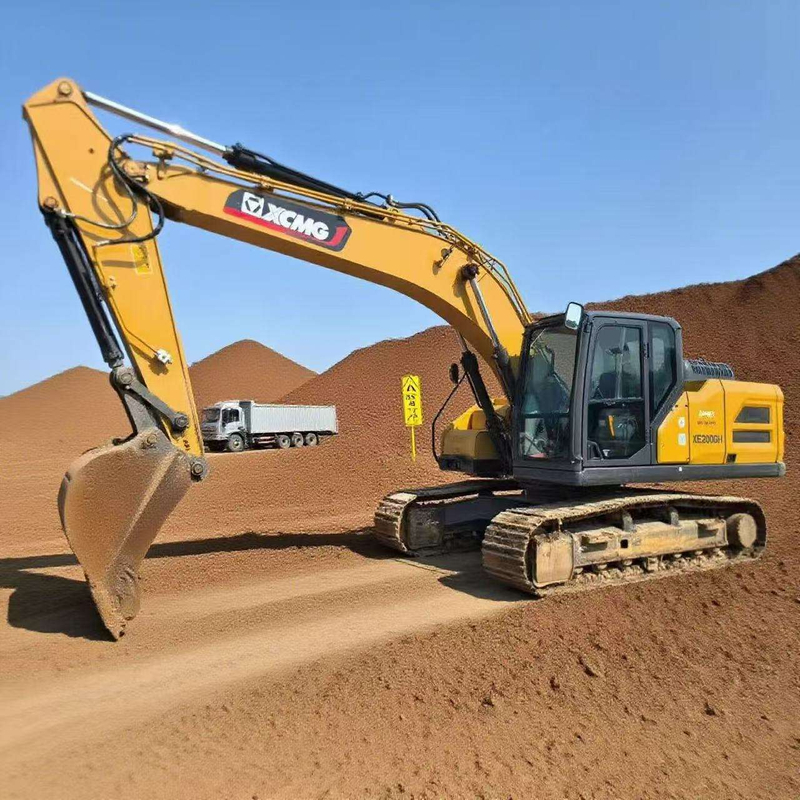

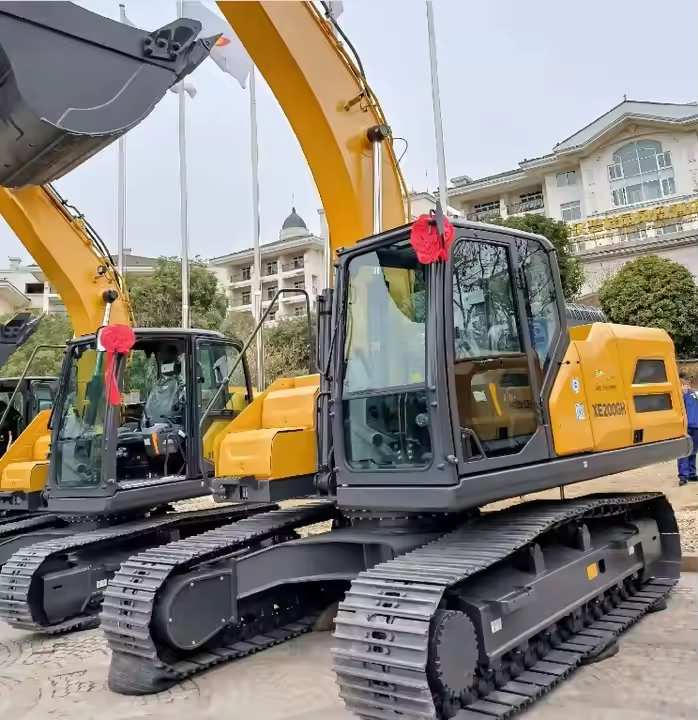

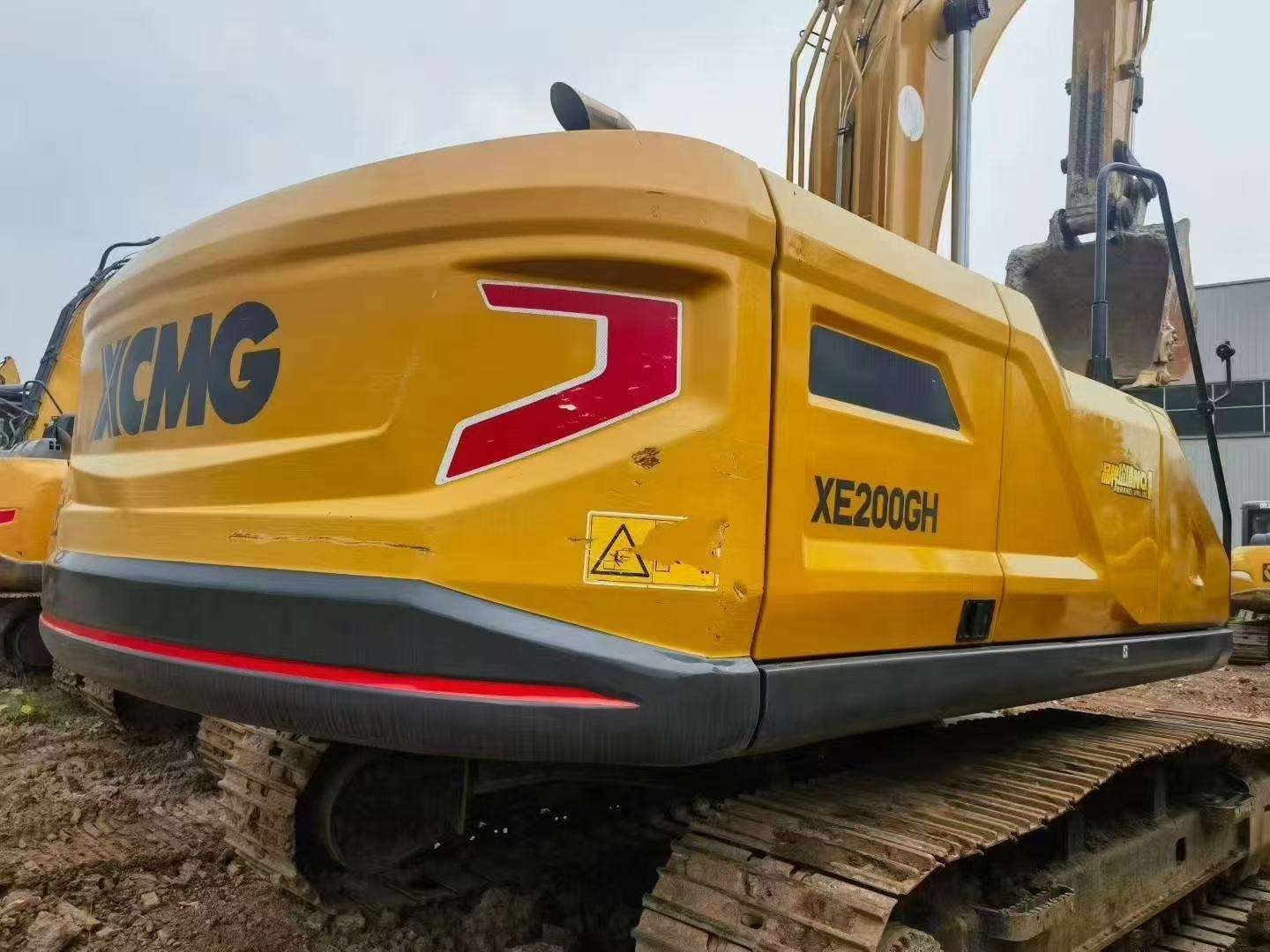

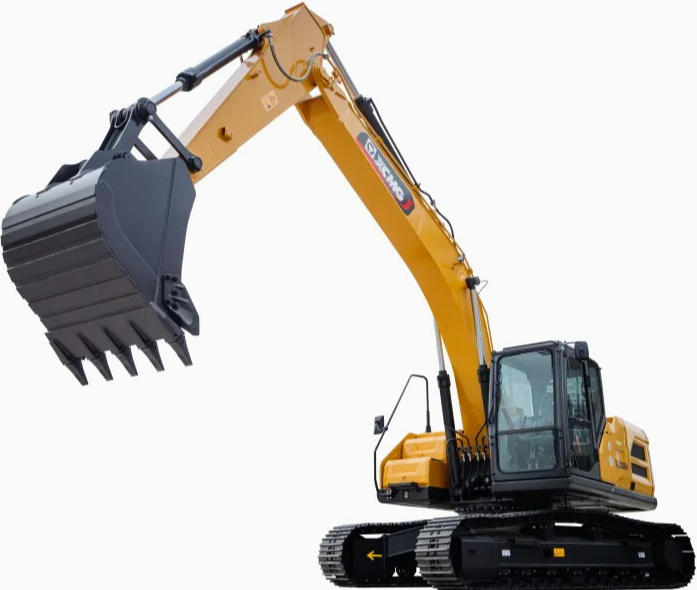

Earth-moving Machinery 20 ton Heavy Medium Hydraulic Crawler Excavator XE200GH With Spare Parts
XE200GH hydraulic excavator is a new generation of product, which is upgraded comprehensively by adopting new design concept, combining with experience of the last generation of products, and relying on advanced test system to cope with the china's fourth phase emission limits.
Product Advantage
1. Customized Cummins twin-turbocharged engine delivers ample reserve power, rapid response, and excellent high-altitude performance;
2. Fully electronic hydraulic system ensures swift response and smooth operation, achieving at least 5%-8% lower fuel consumption than China III standards;
3. One-touch selection for forward/reverse operation and high/low working modes, customizable to operator preferences;
4. Extended maintenance intervals with ultra-long-life hydraulic oil, 4,000-hour warranty period, reducing maintenance costs.
Technical Parameters
| Model | Unit | XE200GH |
| Operating weight | kg | 21500 |
| Bucket capacity | m³ | 0.93～1.1 |
| Engine | Model | / | QSF4.5TT |
| Direct injection | / | √ |
| Four strokes | / | √ |
| Water cooling | / | √ |
| Turbo-charging | / | √ |
| Air to air intercooler | / | √ |
| No. of cylinders | / | 4 |
| Rated power/speed | kW/rpm | 129/2200 |
| Maximum torque/speed | N.m | 745/1200 |
| Displacement | L | 4.5 |
| Main performance | Travel speed（H/L) | km/h | 5.5/3.0 |
| Swing speed | r/min | 12.5 |
| Gradeability | ° | ≤35 |
| Ground pressure | kPa | 47.5 |
| Bucket digging force | kN | 138 |
| Arm digging force | kN | 112 |
| Maximum tractive force | kN | 198 |
| Hydraulic system | Main pump | / | Two piston pumps |
| Rated flow of main pump | L/min | 2×218 |
| Main safety valve pressure | MPa | 34.3 |
| Travel system pressure | MPa | 34.3 |
| Swing system pressure | MPa | 28 |
| Pilot system pressure | MPa | 3.9 |
| Oil Capacity | Fuel tank capacity | L | 400 |
| Hydraulic sysytem capacity | L | 300 |
| Hydraulic tank capacity | L | 150 |
| Engine oil capacity | L | 14 |
| Appearance size | Overall length | mm | 9840 |
| Overall width | mm | 2920 |
| Overall height | mm | 3100 |
| Width of platform | mm | 2830 |
Product Uses
1. Earthmoving and Construction Sites
The XE200GH excels in earthmoving operations. With an operating weight of 21,500 kg and powerful digging force (bucket digging force: 149 kN), it efficiently handles tasks like excavation, loading, and grading. Fuel consumption is reduced by 5%-8% compared to previous models, effectively lowering hourly operating costs. It is particularly well-suited for foundation work in real estate and commercial residential projects.
2. Municipal and Highway/Bridge Construction
This machine is widely applicable in municipal engineering. Its stable performance meets requirements for pipeline laying, roadbed excavation, and slope grading, making it a reliable asset for urban development and road/bridge construction.
3. Agricultural Water Conservancy and High-Standard Farmland Development
In agricultural water conservancy projects, the XE200GH excels at ditch excavation, dredging, and land leveling. Its high-altitude-adaptive engine ensures efficient operation across varying elevations, with numerous units already deployed in such projects.
4. New Rural Construction and Miscellaneous Tasks
As a versatile mid-sized excavator, the XE200GH excels in diverse operations for new rural development. From site leveling to small-scale infrastructure construction, its multifunctionality and cost-effectiveness meet varied construction demands.
Product Operate Guide
Before operation, check the fluid level and pipeline seals. After starting, idle for 3-5 minutes to warm up the equipment. During operation, maintain the engine within the economical RPM range and avoid overloading. Pay attention to dashboard warning indicators and regularly clean the radiator filter. After prolonged operation, idle for 2-3 minutes before shutting down. When storing, apply rust prevention measures and keep the battery fully charged.
FAQ
1. HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?
Our team is consisted of a group of diligent and dynamic people, working 247 to respond client inquiries and questions all the time Most problems can be solved within 4 hours while manufacturers/factories will take much longer to give response.
2. WHAT SERVICES CAN WE PROVIDE?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
3. WHAT PRODUCTS YOU CAN GET FROM US?
Our main products including,wheel loader,backhoe loader,truck crane,crawler crane,tower crane,road roller,motor
grader,excavator,bulldozer,forklift,dump truck,trailer,tractor truck,special vehicle ,Marine Machinery and all of their spare parts.
4. AFTER A COLD START, THE EQUIPMENT RUNS AT FULL SPEED IMMEDIATELY, AND THE HYDRAULIC PUMP EMITS A BRIEF SCREECHING SOUND?
During cold starts, the oil is viscous, causing high suction resistance in the pump and resulting in “cavitation.” Idle for several minutes to warm up the hydraulic system.
5. UNEVEN ROTATION SPEEDS BETWEEN LEFT AND RIGHT?
Asymmetrical make-up pressure in the swing motor, differing settings on the swing buffer valve, or mechanical resistance differences (e.g., in bearings).
6. ENGINE SPEED REMAINS UNCHANGED WHEN PRESSING THE MANUAL THROTTLE INCREASE BUTTON?
This is not a hydraulic fault but an electronic control issue. Inspect the throttle controller, sensors, and wiring.
