XCA550
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction
XCA550 All Terrain Crane is designed for the erection and maintenance of 1.5-2.0MW wind turbines. It is also available for lifting operation in typical working conditions.
Product Advantage
1. Strong lifting capacity The XCA550 crane has a rated lifting capacity of 550 tons, which can meet the needs of most heavy lifting tasks.
2. Efficient and Stable The XCA550 crane adopts advanced hydraulic and intelligent control systems, which are easy to operate, highly efficient, and able to maintain stability.
3. Safe and reliable XCA550 crane adopts multiple safety measures, such as overload protection, overturning protection, limit protection, etc., to ensure safe and reliable lifting operations.
Technical Parameters
| Item | Unit | Parameter | ||
| Overall length | mm | 20880 | ||
| Overall width | mm | 3000 | ||
| Overall height | mm | 4000 | ||
| Wheel base | 1st and 2nd | mm | 1650 | |
| 2nd and 3rd | mm | 3100 | ||
| 3rd and 4th | mm | 1650 | ||
| 4th and 5th | mm | 2980 | ||
| 5th and 6th | mm | 1650 | ||
| 6th and 7th | mm | 1650 | ||
| Track | mm | 2540 | ||
| Dead weight in travel configuration | kg | 84000 | ||
| Axle load | On the1st, 2nd and 3rd axle | kg | 12000 | |
| On the 4th, 5th, 6th and 7th axle | kg | 12000 | ||
| Travel speed | Max. travel speed | km/h | ≥85 | |
| Min. steady travel speed | km/h | ≤2 | ||
| Min. turning diameter | m | ≤26 | ||
| Min. ground clearance | mm | 340 | ||
| Approach angle | ° | 11.4 | ||
| Departure angle | ° | 12.8 | ||
| Braking distance (at 30 km/h ) | m | ≤9 | ||
| Max. grade ability | % | ≥50 | ||
| Oil consumption per 100km | L | 103 | ||
Product Uses

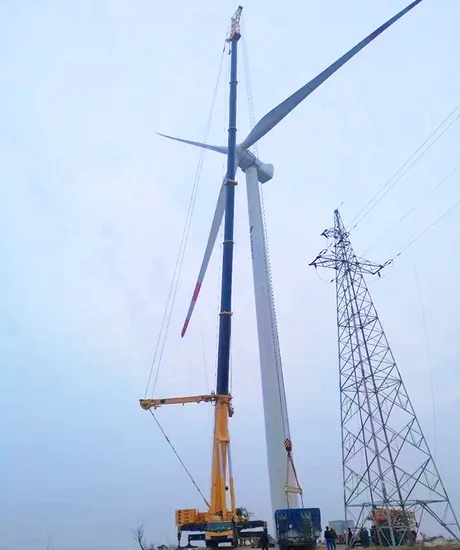

1. Wind power equipment installation
The XCA550, with its precise lifting control, is perfectly suited for the installation of 1.5-2.0 MW wind turbines. Its self-assembly and disassembly technology significantly reduces the need for auxiliary equipment, making it particularly suitable for various wind farm environments such as mountainous and flat terrain.
2. Large-Scale Petrochemical Construction
In refinery and chemical plant construction, it efficiently completes the lifting of heavy equipment such as reaction towers and large tanks. The ultra-strong boom combination and intelligent counterweight system ensure safe and stable lifting of heavy loads.
3. Bridge Engineering Construction
Suitable for the installation of steel box girders in large cable-stayed bridges and suspension bridges.
4. Power Facility Construction
Specifically designed for the assembly of ultra-high-voltage transmission towers, enabling rapid completion of tower segment hoisting.
Product Operate Guide
Safety points:
Pay close attention to warnings from the intelligent torque limitation system in real time.
The superlift device must be fully extended and locked.
Stop work immediately when wind speeds exceed level 5.
Efficient techniques:
Use the self-assembly and disassembly function to quickly move between sites.
Save commonly used operating parameters to improve efficiency.
