Product Description

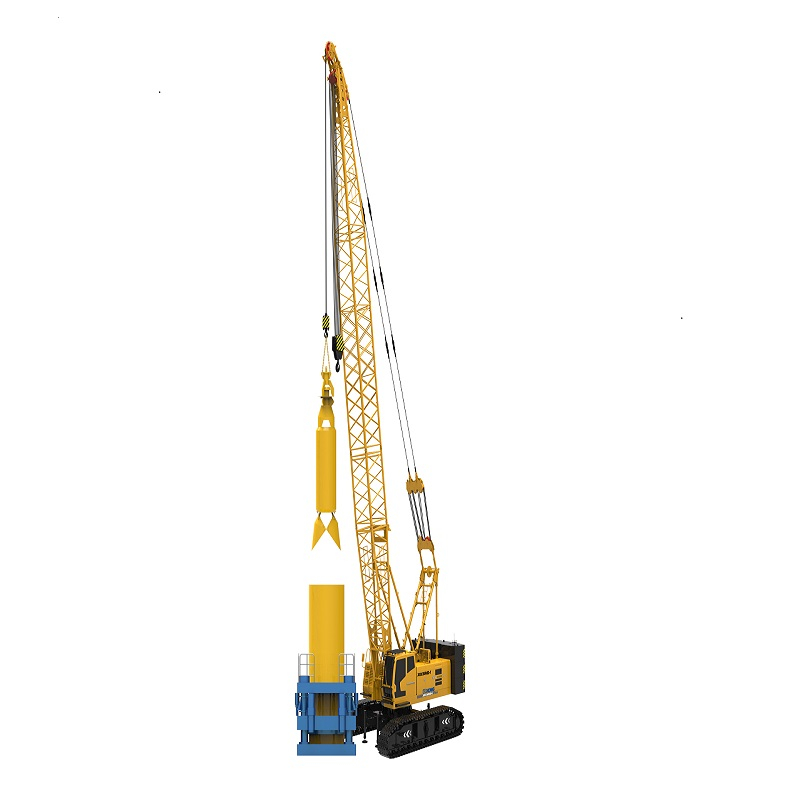

The XGC90HD‑I multi-functional crawler crane adopts heavy-duty tracked chassis with wide crawler shoes to lower ground pressure, keeping stable travelling and working on soft, muddy and rough ground. The lattice main boom ranges 13~58m for lifting tasks; for impact grab construction, the boom working range is 13~28m, with maximum grab load up to 16 tons.
The hydraulic system is equipped with premium hydraulic components and high-speed free-fall winch, realizing fast bucket release and high construction efficiency. Large oil-water radiator provides excellent heat dissipation, supporting continuous long-hour operation under high-temperature working environment. The whole machine adopts multi-stage counterweight structure to guarantee stable bearing capacity during heavy load operation.
Spacious operator cabin has wide visual field and humanized control layout for easy operation. Complete safety monitoring system monitors load, boom angle and machine working status in real time. Modular design supports convenient disassembly and segmented transportation for cross-region project transfer.
Product Advantages
Dual-function Integrated Machine：
Combine hoisting and impact clamshell grab. Lifting performance reaches the level of 95t crawler crane, grab max load 16t for full casing drilling.
Strong All-terrain Performance：
Tracked chassis with low ground pressure, works well in muddy, soft foundation and uneven foundation pit sites.
High Efficiency Hydraulic Winch System：
High-speed free-fall winch, fast grab release action, stable hydraulic circuit and low failure rate.
Excellent Heat Dissipation：
Large oil-water radiator, supports non-stop long time operation in high temperature condition.
Adjustable Lattice Boom：
13~58m boom for lifting; 13~28m boom for grab work, flexible to match various foundation working conditions.
Modular Transportation Design：
Split modular structure, easy disassembly and convenient cross-site transportation.
Full-set Real-time Safety Monitoring：
Load moment limiter, boom angle monitoring, overload protection and multi safety interlock system.
Cost-effective Solution：
One machine replaces two separate devices, saving procurement and maintenance cost for foundation contractors.
Strong Power Reserve：
High-performance engine provides stable power output for heavy-duty foundation construction.
Technical Parameters
Item | Unit | XGC90HD-I |
Max Rated Lifting Capacity | t | 90 |
Lifting Main Boom Length Range | m | 13~58 |
Grab Working Boom Range | m | 13~28 |
Max Grab Bucket Weight | t | 16 |
Travel Speed | km/h | 0~1.2 |
Slewing Speed | r/min | 0~2.3 |
Warranty | ‑ | 1 Year |
Product Applications

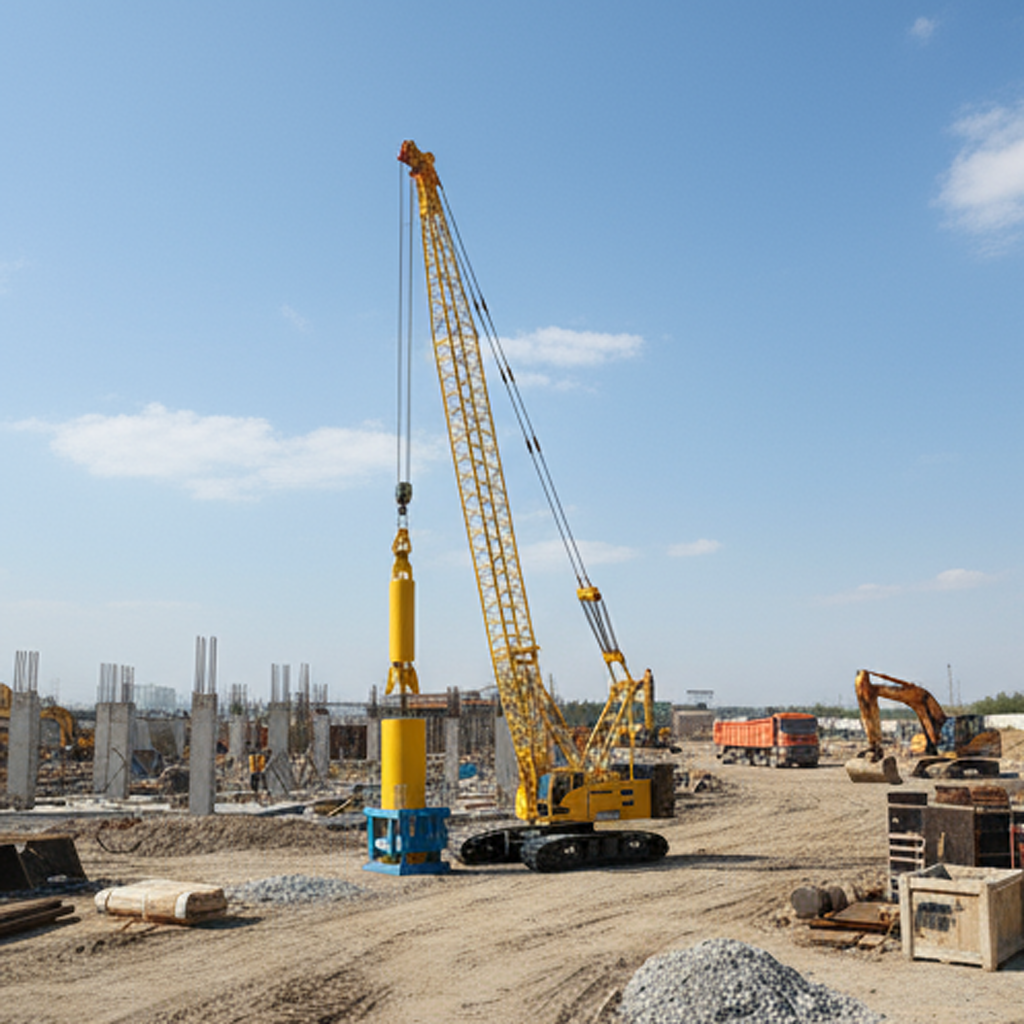

‑ Full casing drilling and rotary digging foundation construction
‑ Deep foundation excavation, piling engineering and trench grab operation
‑ Heavy component hoisting in foundation pit
‑ Bulk material lifting and handling on construction site
‑ Municipal underground foundation projects
‑ Bridge foundation construction
‑ Complex muddy field foundation engineering
FAQ
Q1: What is the highlight of XGC90HD-I?
A: It is a dual-purpose crawler crane integrating hoisting and impact clamshell grab. It can finish lifting and foundation grab work on one machine for deep foundation projects.
Q2: What is the max lifting capacity and boom specification?
A: The max rated lifting capacity is 90 ton. The main boom for lifting can be adjusted from 13m to 58m. For grab operation, boom range is 13~28m, max grab load reaches 16 tons.
Q3: Can it work on muddy construction sites? A: Yes. The tracked chassis features low ground pressure, with good passability on soft, muddy and uneven ground, suitable for foundation pits.
Q4: Can the machine run continuously under high temperature? A: Yes. Equipped with large oil-water radiator, it can support long-hour continuous operation under high-temperature working environment.
Q5: Is the crawler crane easy to transport? A: It adopts modular split design, easy to disassemble for segmented transport, convenient for cross-region project relocation.
Q6: What safety devices are installed? A: Load moment limiter, boom angle sensor, overload protection and multi safety interlock system to prevent overload operation.
Q7: What is your warranty term? A: 1-year whole machine warranty. Global spare parts supply and overseas technical support services are available.
Q8: What shipping methods can you offer? A: Bulk carrier, ro-ro vessel or flat rack container shipping available, with professional export packaging.
