Product Overview

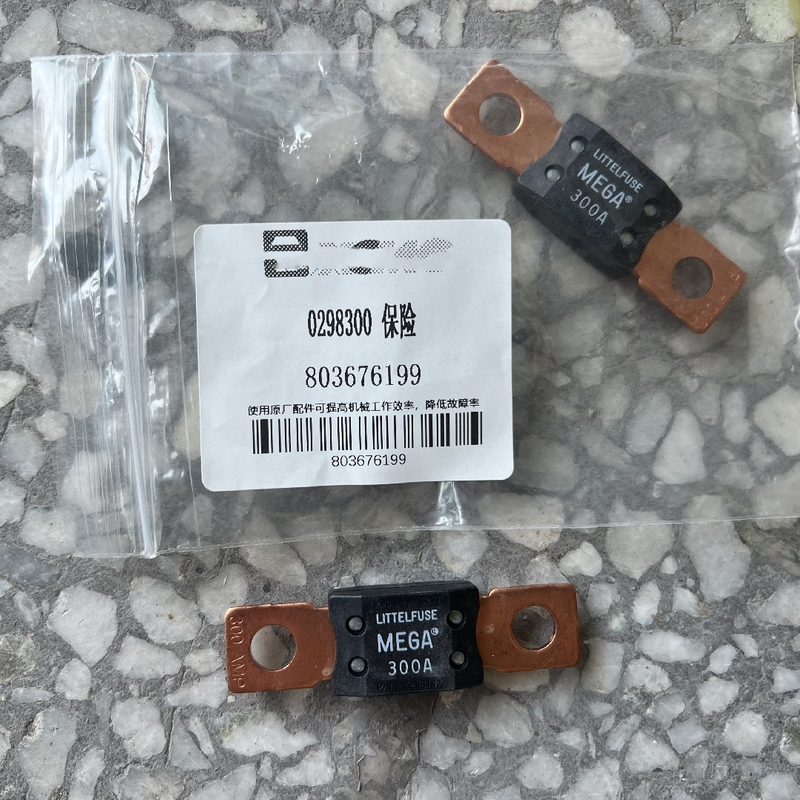

The XE2000 Excavator Fuse is a high-performance electrical protection component specifically designed for the XE2000 heavy-duty mining crawler excavator. As a critical spare part for the excavator’s electrical system, it is engineered to protect the machine’s key electrical components (such as motors, sensors, control panels, and circuits) from damage caused by overcurrent, short circuits, and voltage fluctuations. Made of high-quality conductive and insulating materials, this fuse features stable performance, precise protection, and strong compatibility, perfectly matching the XE2000 excavator’s electrical system specifications. It is easy to install and replace, ensuring the safe and stable operation of the excavator’s electrical system in harsh mining and construction environments.

Key Advantages

• High Precision Protection: Adopts advanced thermal melting technology, with accurate current rating and fast response speed. It can quickly cut off the circuit when overcurrent or short circuit occurs, effectively protecting the excavator’s electrical components from burnout and avoiding major equipment failures.

• Durable & Wear-Resistant: The shell is made of high-temperature resistant, flame-retardant insulating material, and the internal conductive core is made of high-purity copper, which has excellent heat resistance, corrosion resistance, and oxidation resistance. It can work stably in high temperature, high dust, and humid harsh environments for a long time.

• Perfect Compatibility: Strictly designed according to the XE2000 excavator’s original electrical system parameters, it is fully compatible with the machine’s circuit layout, no need to modify, and can be directly installed and used, ensuring the consistency of the electrical system’s performance.

• Easy Installation & Replacement: Compact structure, lightweight design, and standardized size, it can be easily disassembled and replaced without professional tools, reducing maintenance time and labor costs, and improving the excavator’s availability.

• Cost-Effective & Reliable: High-quality raw materials and strict production testing ensure long service life, reducing the frequency of fuse replacement and the cost of spare parts. It has passed strict quality inspections to ensure stable performance and reliable protection.

• Wide Temperature Adaptability: Suitable for working temperatures ranging from -40℃ to 125℃, it can adapt to extreme cold, high temperature, and other harsh working conditions, ensuring the normal operation of the excavator’s electrical system in various regions.

Product Specifications

Product Applications

The XE2000 Excavator Fuse is a dedicated electrical protection spare part, mainly used in the electrical system of XE2000 heavy-duty mining crawler excavators, and its specific application scenarios include:

• Open-Pit Mining Sites: Protect the excavator’s electrical components (such as hydraulic pump motors, travel motors, and control circuits) from overcurrent and short circuits caused by dust, vibration, and unstable power supply during mineral extraction and stripping operations.

• Quarry & Rock Excavation: Ensure the safe operation of the excavator’s electrical system under harsh conditions such as strong vibration, high temperature, and rock impact during hard rock digging and aggregate production.

• Large-Scale Earthmoving Projects: Protect the electrical system of the excavator during dam construction, highway and railway foundation construction, and port expansion, avoiding electrical failures caused by long-term heavy load operation.

• Harsh Environment Operations: Adapt to high altitude, extreme cold, high dust, and humid regions (such as Australia, South America, Central Asia), ensuring the normal operation of the excavator’s electrical system in extreme environments.

• Daily Maintenance & Spare Parts Replacement: Used as a standard spare part for XE2000 excavators, it is suitable for daily maintenance and emergency replacement when the original fuse is damaged, ensuring the excavator can resume operation quickly.

Operation Guidelines

1 .Pre-Installation Preparation

• Before installation, confirm that the XE2000 excavator’s engine is shut down and the power supply is cut off to avoid electric shock or short circuit.

• Check whether the model, current rating, and voltage rating of the fuse match the requirements of the XE2000 excavator’s electrical system to avoid mismatched fuses causing electrical component damage.

• Inspect the fuse for damage (such as shell cracks, conductive core melting, etc.). Do not use damaged fuses.

• Clean the fuse socket of the excavator to remove dust, dirt, and corrosion, ensuring good contact between the fuse and the socket.

2.Installation Steps

1. Hold the fuse with your hand (do not touch the conductive part), align the two pins of the fuse with the slots of the fuse socket.

2. Press the fuse gently into the socket until it is firmly fixed, ensuring that the fuse is in close contact with the socket and there is no looseness.

3. After installation, check whether the fuse is installed correctly, and confirm that there is no foreign matter in the socket.

4. Turn on the excavator’s power supply, check the instrument panel for abnormal prompts, and confirm that the electrical system is working normally.

3 .Replacement Steps

1. Shut down the excavator’s engine and cut off the power supply to ensure safe operation.

2. Use your fingers or a small tool (such as tweezers) to gently pull out the damaged fuse from the socket. Do not pull hard to avoid damaging the socket.

3. Check the cause of the fuse damage (such as overcurrent, short circuit, etc.). If the fuse is frequently blown, it is necessary to check the excavator’s electrical system for faults (such as wire short circuit, component failure, etc.) before replacing it.

4. Install a new fuse that matches the specifications according to the installation steps, ensuring firm contact.

5. Test the electrical system to confirm that the excavator’s electrical components (such as lights, motors, control panels) are working normally.

4. Safety Guidelines

• Do not replace the fuse when the excavator is powered on to avoid electric shock.

• Do not use fuses with higher current rating than specified. Using over-rated fuses will lose the protection function and may cause electrical components to burn out or even cause fire.

• Do not repair or reuse damaged fuses; replace them with new ones of the same specification.

• Keep the fuse and socket clean and dry to avoid corrosion and poor contact.

• When replacing the fuse in a harsh environment (such as high dust, rain), pay attention to waterproof and dustproof to avoid foreign matter entering the socket.

FAQ

1.What is the voltage rating of the XE2000 Excavator Fuse?

It is DC 24V, which is fully matched with the XE2000 excavator’s electrical system, ensuring stable operation of the electrical components.

2.Is this fuse compatible with the original XE2000 excavator?Yes, it is strictly designed according to the original parameters of the XE2000 excavator, fully compatible with the machine’s circuit layout, and can be directly installed without modification.

3.Why does the fuse blow frequently?

The frequent blowing of the fuse may be caused by overcurrent, short circuit of the excavator’s electrical system, damage to electrical components, or use of fuses with mismatched specifications. It is recommended to check the electrical system first and then replace the fuse of the correct specification.

4.What is the working temperature range of this fuse?

It can work stably in the temperature range of -40℃ to 125℃, adapting to extreme cold, high temperature, and other harsh working environments.

5.Can this fuse be used in other excavator models?

This fuse is specifically designed for the XE2000 excavator. It is not recommended to use it in other models, as the specifications may not match and the protection effect may be affected.

6.What is the service life of this fuse?

Under normal working conditions, the service life is more than 1-2 years. The specific service life is related to the working environment and usage frequency.
