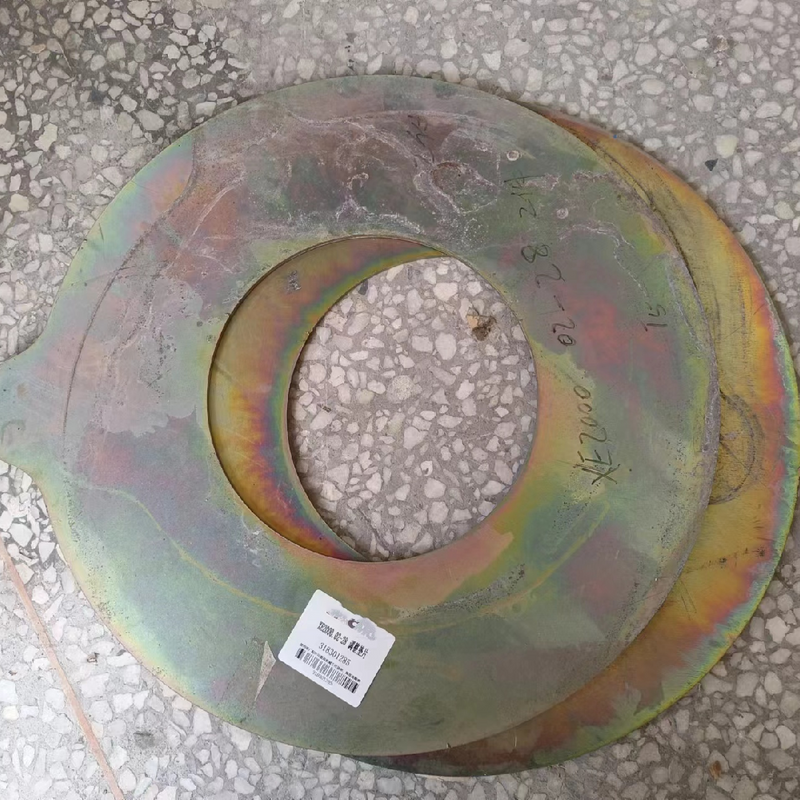

XE2000 Excavator Adjusting Shim Product Manual
The model XE2000.02-28 adjusting shim with part number 318301285 is a custom high-precision mechanical accessory tailored for XE2000 heavy-duty mining crawler excavators. As an essential thin flat structural component, it is primarily applied to core movable joints including boom pins, arm pins, bucket pins and connecting rod structures of the excavator. It undertakes core functions such as assembly gap adjustment, structural position calibration and operational wear compensation.
Manufactured with high-grade structural steel and processed through standardized heat treatment and professional anti-corrosion surface finishing, this shim features excellent flatness, ultra-precise dimensional tolerance and outstanding wear resistance, fully complying with the original factory assembly standards of XE2000 excavators. In actual operation, it can effectively reduce friction and wear between matching parts, lower mechanical operating noise, improve power transmission efficiency, and guarantee the long-term stable and safe operation of XE2000 excavators in harsh working scenarios such as open-pit mining, stone quarrying and large-scale infrastructure construction.
Adopting advanced CNC precision machining technology, this adjusting shim achieves consistent overall thickness and superior flatness with a strict tolerance of ±0.01mm. The dimensional parameters are highly matched with original equipment parts, which can accurately fill assembly gaps of mechanical components. It effectively avoids equipment looseness, structural offset and operational jamming caused by gap deviation during heavy-load working cycles, ensuring the precise coordination of excavator movable structures.
Selected high-quality high-carbon structural steel serves as the base material, combined with standardized multi-stage heat treatment process. The finished shim reaches a hardness of 70-90 HRB, with strong resistance to mechanical friction, impact force and long-term heavy-pressure extrusion. It will not deform, crack or damage under continuous harsh working conditions, greatly extending the service life of the accessory and reducing frequent part replacement troubles.
Developed strictly in accordance with the original design parameters and installation standards of XE2000 mining excavators, the shim’s overall size, installation caliber and gap adaptation indicators fully match the equipment’s joint assembly requirements. No secondary cutting, drilling or other modification operations are needed, supporting direct plug-and-play installation and quick replacement, which significantly saves on-site maintenance time and reduces labor operation costs.
Featuring ultra-thin and lightweight structural design, the shim is easy to carry and operate on site. Daily installation and replacement can be completed with conventional hand tools such as wrenches and screwdrivers. The operation process is simple and intuitive, and no professional technical background is required. It effectively shortens equipment maintenance downtime and improves the overall operating efficiency of construction machinery.
By accurately optimizing assembly gaps and compensating for natural wear of core components, the shim avoids excessive friction and impact damage of key high-cost parts including pin shafts, shaft sleeves and joint structures. It reduces the failure rate of vulnerable core components, cuts down the overall equipment maintenance frequency, and effectively controls the long-term operating and maintenance costs of XE2000 excavators.
Item | Specification |
|---|---|
Product Name | XE2000 Excavator Adjusting Shim |
Model Number | XE2000.02-28 |
Part Number | 318301285 |
Applicable Model | XE2000 Heavy-Duty Mining Crawler Excavator |
Main Material | High-Carbon Structural Steel |
Hardness | 70-90 HRB |
Thickness Range | 0.1mm - 2.0mm (Standard Size, Customizable) |
Flatness Tolerance | ±0.01mm |
Surface Treatment | Anti-Rust Oil Coating / Galvanization |
Working Temperature | -40℃ ~ 120℃ |
Core Function | Gap Adjustment, Wear Compensation, Structural Alignment Correction |
Quality Certification | ISO 9001 Certified, Industrial Grade Standard Spare Parts |
The XE2000 dedicated adjusting shim (Model: XE2000.02-28, Part No.: 318301285) is a professional exclusive accessory for XE2000 heavy-duty mining crawler excavators. It is widely applicable to multiple complex working scenarios, providing reliable guarantee for the stable operation of the excavator’s mechanical transmission and movable systems.
In open-pit mining scenarios such as coal and iron ore exploitation, the shim is used for gap adjustment of XE2000 excavator’s boom, arm and bucket joint structures. It compensates for structural wear caused by long-term heavy-load operation and frequent friction, effectively preventing component looseness and positional deviation. It adapts to high-dust and high-vibration mining environments to ensure continuous and stable equipment operation.
During hard rock digging, crushing and aggregate processing in quarries, the product calibrates the assembly precision of the excavator’s movable parts. It fills the assembly gaps generated by rock impact and mechanical fatigue wear, optimizes the matching degree of core joints, reduces equipment operating noise, and avoids premature wear and damage of pin shafts and shaft sleeve components.
It is suitable for major engineering scenarios including water conservancy dam construction, highway and railway foundation paving, and port expansion projects. The shim maintains precise alignment and optimal assembly gaps of excavator joints, improves the overall mechanical transmission efficiency of the equipment, reduces operational resistance, and effectively prolongs the overall service life of the excavator.
As a conventional standard maintenance part for XE2000 excavators, it can replace aged, deformed and worn old shims in daily equipment inspection and maintenance. It accurately repairs component assembly gaps, restores the original factory optimal working state of the equipment, and ensures the consistent working performance of the excavator.
With excellent low-temperature resistance, high-temperature stability and anti-corrosion performance, the shim can adapt to extreme working environments such as high-altitude cold areas, ultra-low temperature regions and humid coastal areas (covering Australia, South America, Central Asia and other regions). It maintains stable structural and working performance in complex climates to support normal operation of excavators.
Before starting installation, first turn off the XE2000 excavator engine, land the bucket stably on the ground to fix the whole equipment, and completely cut off the power supply to prevent accidental startup or displacement of the excavator and ensure on-site construction safety.
Check the product model and parameters carefully to confirm that the shim (XE2000.02-28 / 318301285) meets the technical specifications and actual gap installation requirements of the XE2000 excavator. Verify whether the thickness of the selected shim matches the on-site assembly demand.
Conduct a full appearance inspection of the shim to exclude defective products with deformation, cracks, surface corrosion and other quality problems. Thoroughly clean the installation positions of pin shafts, shaft sleeves and joint gaps to remove dust, oil stains and rust deposits, ensuring a clean and flat fitting surface for tight assembly.
Prepare matching operating tools in advance, including wrenches, screwdrivers, micrometers and other measuring tools, to ensure smooth installation and accurate gap detection.
Use a professional wrench to loosen the fixing bolts and fasteners at key joints such as boom pins, arm pins and bucket pins. Properly separate the matching components to reserve a reasonable installation space for the adjusting shim.
Use a micrometer to accurately measure the actual assembly gap of the component. Select a suitable shim thickness according to the gap size, adopt the method of thin sheet priority and layered padding, and lay the shim flat in the gap to ensure full surface fitting without tilting, warping or virtual gaps.
Fine-adjust the shim’s position to make it fully aligned with the component mounting surface. Fasten the fixing bolts in strict accordance with the standard torque parameters specified in the XE2000 official operation manual to lock the components and shim stably.
Re-measure the assembly gap with a micrometer after fastening. The optimal standard gap range is 0.5mm-1.0mm. Adjust the number or thickness of shims repeatedly until the gap meets the factory standard.
Start the excavator and run it at idle speed, repeatedly operate the boom, arm and bucket mechanisms. Check for abnormal noise, jamming and unsmooth movement. If no abnormal conditions occur, the installation is completed successfully.
Turn off the excavator engine completely, stabilize the equipment body, and lock the pilot operating lever to avoid accidental mechanical movement during replacement.
Loosen the fastening bolts at the target joint where the old shim is installed, slightly separate the connected components, and gently take out the worn and aged old shim with a screwdriver. Forbid brute-force pulling to prevent scratching or damaging precision parts such as pin shafts and shaft sleeves.
Thoroughly clean the installation gap and fitting surface to remove accumulated dust, oil dirt and rust. Inspect the wear degree of pin shafts, shaft sleeves and joint structures. If parts are severely worn or damaged, repair or replace them in time to ensure the overall mechanical performance of the equipment.
Install the new XE2000.02-28 (318301285) adjusting shim in accordance with the standard installation process, select the matching thickness to adjust the assembly gap to the optimal state, and fasten all bolts to the specified torque.
Carry out a full machine operation test to confirm that the boom, arm and bucket move flexibly without abnormal noise or jamming. Record the replacement date and equipment operating status for subsequent daily maintenance and regular inspection reference.
It is strictly forbidden to carry out shim installation and replacement operations when the excavator is running or powered on, so as to prevent personal injury accidents caused by sudden mechanical movement.
Do not use shims with unqualified thickness, wrong model or defective quality. Unmatched accessories will cause excessive tight or loose assembly of components, easily leading to mechanical failure and potential safety hazards during equipment operation.
Ensure the shim is kept flat and fully fitted with the component surface during installation. Any deformed, cracked or rusted shims are prohibited from being used on the equipment.
After installation, conduct a secondary inspection of bolt tightening torque to ensure all fasteners meet the standard requirements, preventing the shim from falling off during high-load operation of the excavator.
Store unused spare shims in a dry, clean and ventilated environment to avoid moisture erosion, rust and deformation, and keep the product performance intact for subsequent use.
This adjusting shim is specially customized for XE2000 heavy-duty mining crawler excavators, with a matching model of XE2000.02-28. It is an exclusive dedicated accessory for this equipment and cannot be used for other models of excavators.
The standard thickness specification of the product is 0.1mm to 2.0mm, covering most conventional gap adjustment demands of XE2000 excavators. Meanwhile, we support personalized customized thickness services to meet special on-site assembly requirements.
First, use a micrometer to accurately measure the actual gap of the excavator’s boom, arm or bucket pin joint. Select a corresponding thickness shim according to the measured data, and adjust the gap to the optimal range of 0.5mm-1.0mm to ensure flexible and stable operation of the equipment.
Yes. The product adopts high-strength wear-resistant steel base material and professional anti-corrosion surface treatment technology. It can resist the erosion of dust, humid air, lubricating oil and high temperature in mining sites, with strong environmental adaptability, fully meeting the long-term operation needs of harsh construction scenarios.
No special professional equipment is required. Conventional hand tools such as wrenches and screwdrivers can complete the installation and replacement. The operation process is simple and standardized, and ordinary maintenance personnel can efficiently complete the construction without professional technical training.
It is necessary to replace the shim in time when the product is deformed, severely worn or rusted. In addition, if the equipment joint gap exceeds 1.0mm, resulting in abnormal operating noise, unsmooth mechanical movement or accelerated wear of core parts, the shim should be replaced immediately to restore equipment performance.
